Description

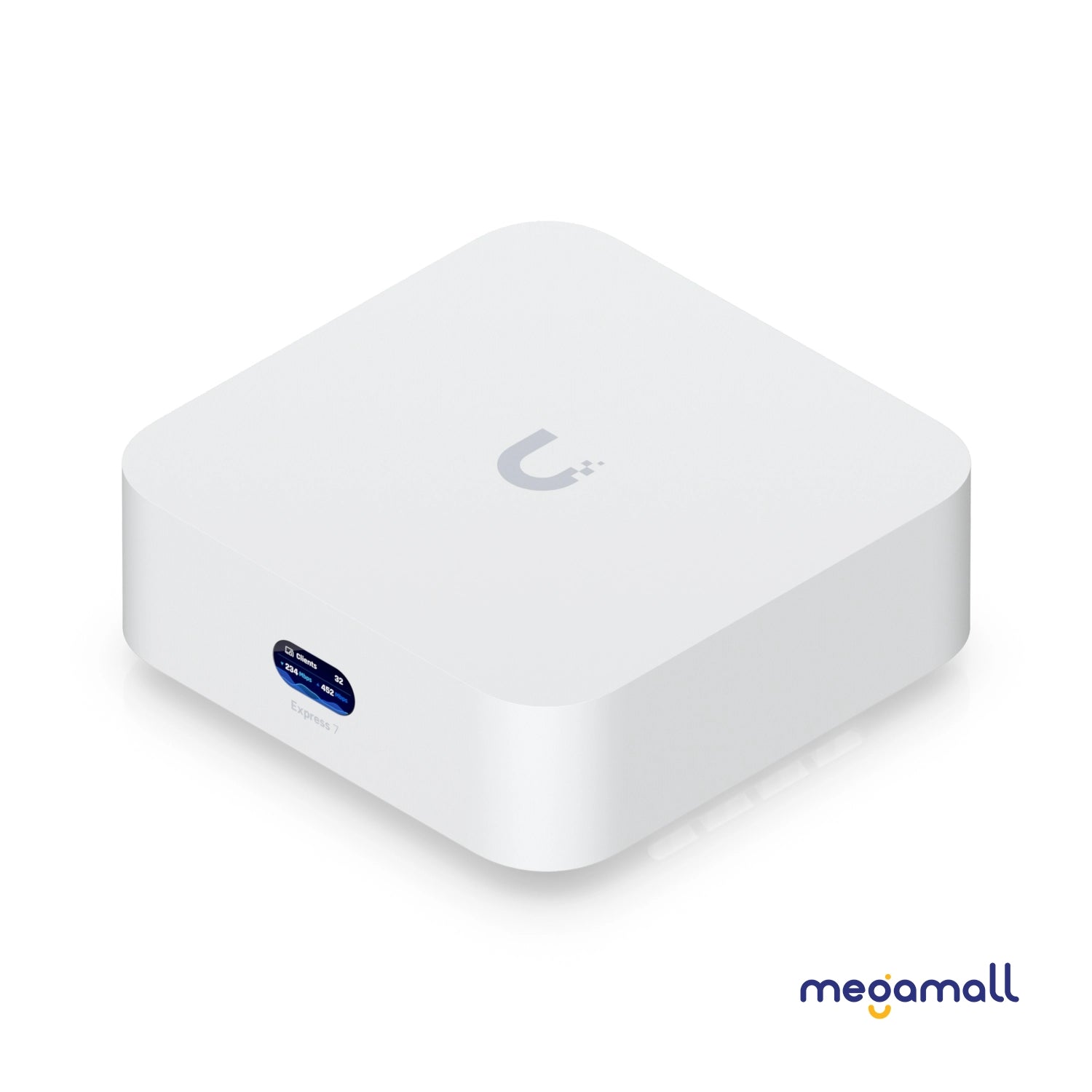

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
|
Overview |
||
|
Dimensions |
117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'') |
|
|
UniFi Application Suite |
||
|
Network |
✓ |
|
|
Managed UniFi Devices |
30+ |
|
|
Simultaneous Users Connected |
300+ |
|
|
Max. WAN Port Count |
1 |
|
|
Default WAN Ports |
(1) 10 GbE RJ45 |
|
|

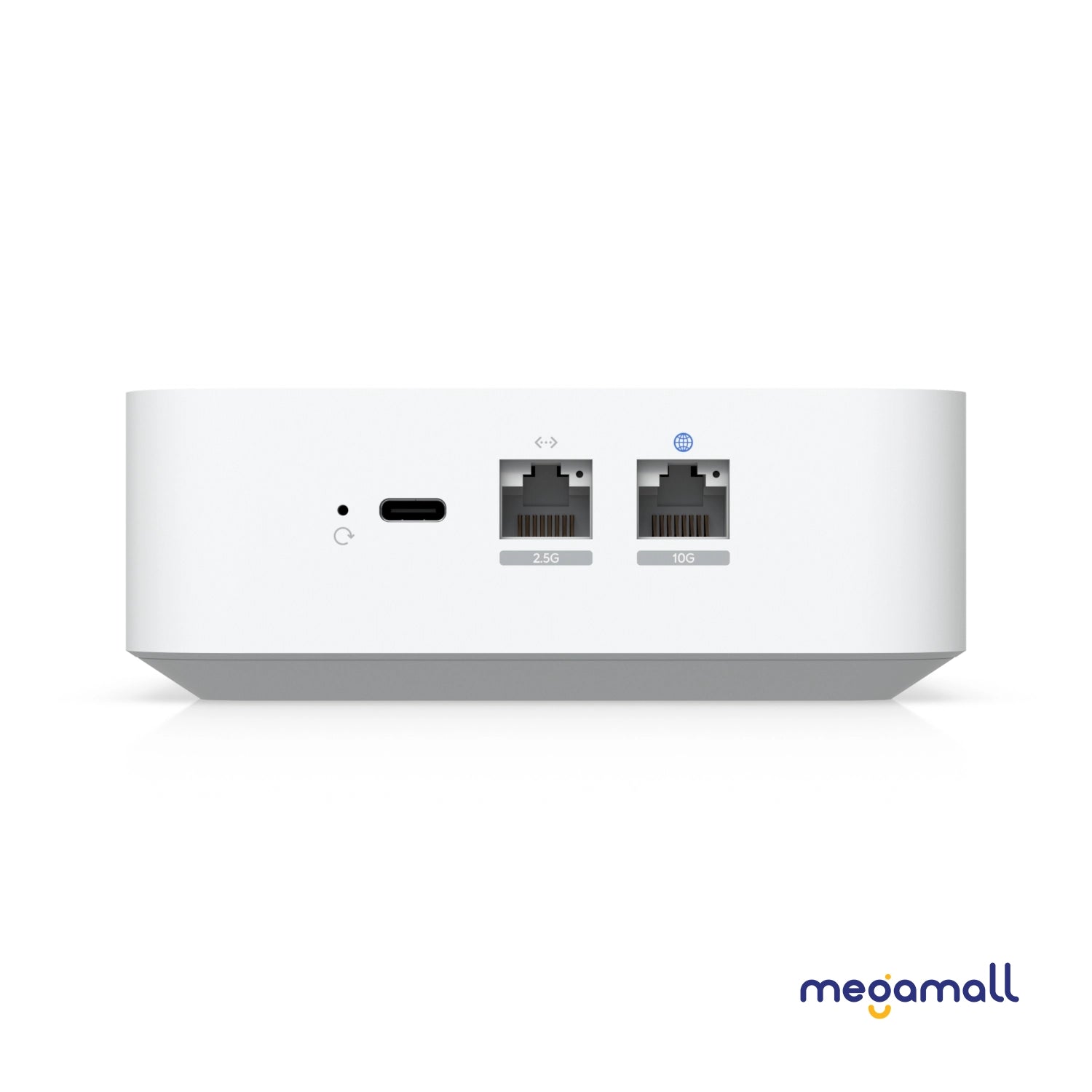

Port Layout |
||
|
2.5 GbE RJ45 |
1 (2.5G/1G/100M/10M) |
|
|
10 GbE RJ45 |
1 (10G/5G/2.5G/1G/100M) |
|
|
IDS/IPS Throughput |
2.3 Gbps |
|
|
Form Factor |
Compact desktop |
|
|
Coverage Area |
160 m² (1,750 ft²) |
|
|
Security |
||
|
Stateful Firewall |
✓ |
|
|
Application-Aware Layer 7 Firewall |
✓ |
|
|
DPI & Traffic Identification |
✓ |
|
|
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
✓ |
|
|
Content Filtering |
✓ |
|
|
Intrusion Prevention (IPS/IDS) |
✓ |
|
|
Ad Blocking |
✓ |
|
|
IDS/IPS Signatures |
20,000+ with CyberSecure |
|
|
VLAN/Subnet-based Traffic Segmentation |
✓ |
|
|
VPN & SD-WAN |
||
|
License-Free SD-WAN |
✓ |
|
|
Site-to-Site VPN |
||
|
Site Magic |
✓ |
|
|
IPsec |
✓ |
|
|
OpenVPN |
✓ |
|
|
VPN Server |
||
|
Identity Endpoint One-Click VPN |
✓ |
|
|
Teleport Zero-Configuration VPN |
✓ |
|
|
WireGuard |
✓ |
|
|
OpenVPN |
✓ |
|
|
L2TP |
✓ |
|
|
VPN Client |
||
|
OpenVPN |
✓ |
|
|
WireGuard |
✓ |
|
|
Networking |
||
|
Dynamic Routing |
||
|
OSPF |
✓ |
|
|
Advanced QoS |
✓ |
|
|
Multicast DNS (mDNS) |
✓ |
|
|
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
✓ |
|
|
Integrated RADIUS Server |
✓ |
|
|
RADIUS over TLS (RadSec) |
✓ |
|
|
Additional Internet Failover with UniFi LTE Backup |
✓ |
|
|
Internet Quality and Outage Reporting |
✓ |
|
|
Policy-based WAN and VPN Routing |
✓ |
|
|
Customizable DHCP Server |
✓ |
|
|
IPv6 ISP Support |
✓ |
|
|
IGMP Proxy |
✓ |
|
|
Integrated WiFi |
||
|
WiFi Standard |
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
|
|
Throughput |
||
|
6 GHz |
5.7 Gbps |
|
|
5 GHz |
4.3 Gbps |
|
|
2.4 GHz |
688 Mbps |
|
|
MIMO |
||
|
6 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
|
5 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
|
2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
|
Antenna Gain |
||
|
6 GHz |
6 dBi |
|
|
5 GHz |
7 dBi |
|
|
2.4 GHz |
4 dBi |
|
|
Max. TX Power |
||
|
6 GHz |
24 dBm |
|
|
5 GHz |
26 dBm |
|
|
2.4 GHz |
23 dBm |
|
|
Wireless Security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
|
|
Max. BSSIDs |
4 per Radio (Gateway Mode) 4 per Radio (AP Mode) |
|
|
Supported Data Rates |
||
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
|
802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
|
802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
|
|
802.11ax (WiFi 6/6E) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
|
|
802.11be (WiFi 7) |
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
|
|
Hardware |
||
|
Max. Power Consumption |
22W |
|
|
Power Method |
USB type C (5V DC/5A) |
|
|
Power Supply |
USB type C (5V DC/5A) (Adapter included) |
|
|
Supported Voltage Range |
100—240V AC |
|
|
Processor |
Quad-core ARM® Cortex®-A53 at 1.5 GHz |
|
|
System Memory |
3 GB |
|
|
Weight |
422 g (14.9 oz) |
|
|
Enclosure Material |
Polycarbonate |
|
|

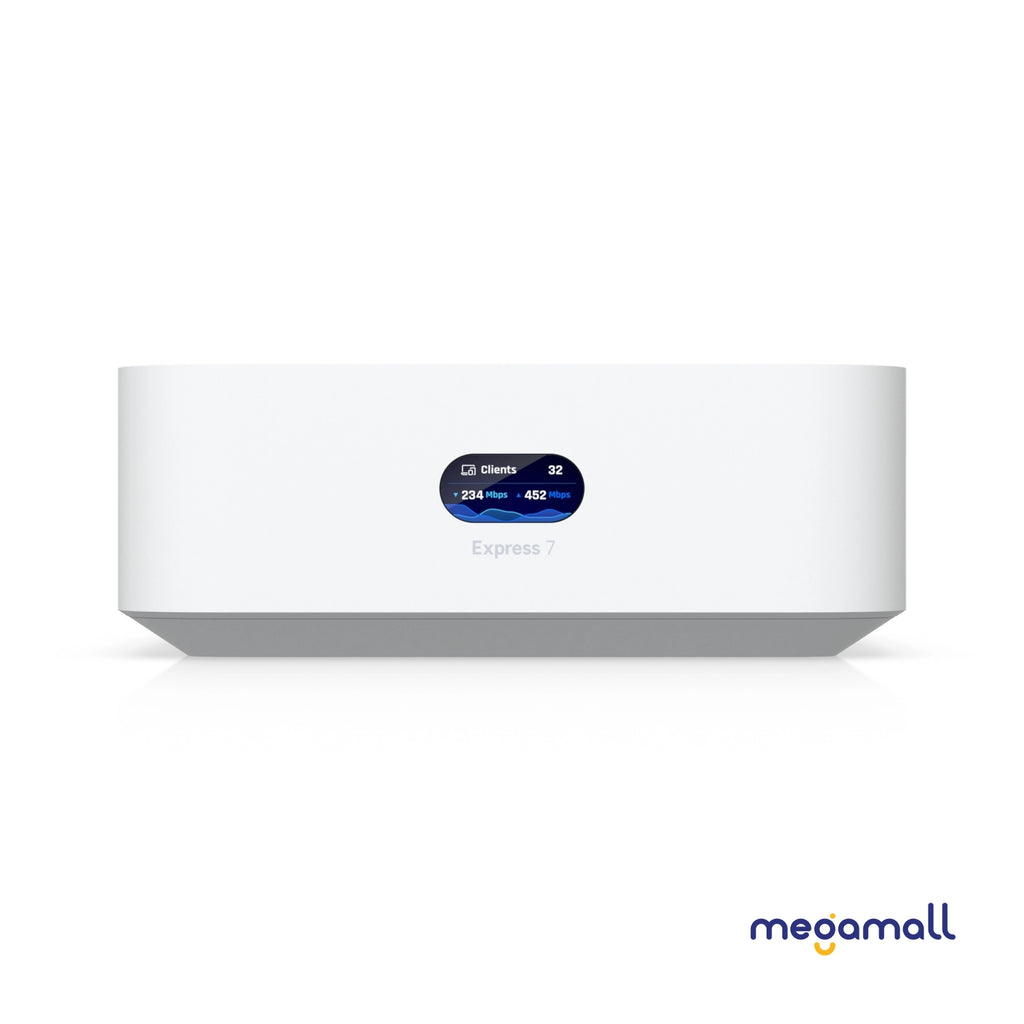

LCM Display |
0.96" status display |
|
|
Management |
Ethernet Bluetooth |
|
|
LEDs |
||
|
Ethernet |
✓ |
|
|
Button |
(1) Factory-reset |
|
|
ESD/EMP Protection |
Air: ± 8kV, contact: ± 4kV |
|
|
Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC |
|
|
Software |
||
|
VLAN |
802.1Q |
|
|
Guest Traffic Isolation |
✓ |
|
|
Application Requirements |
||
|
UniFi Network |
Version 9.0.108 and later |
|
