Description

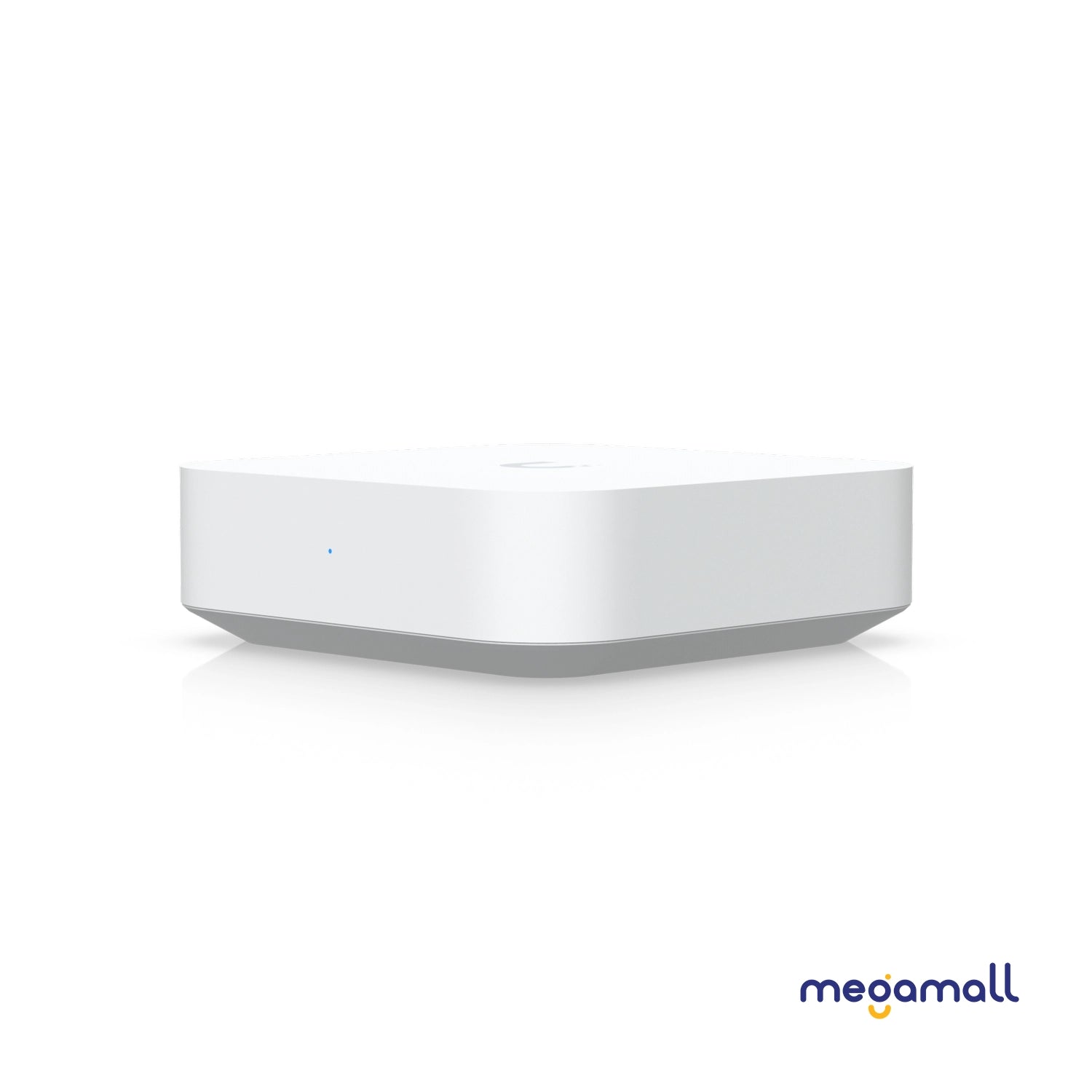

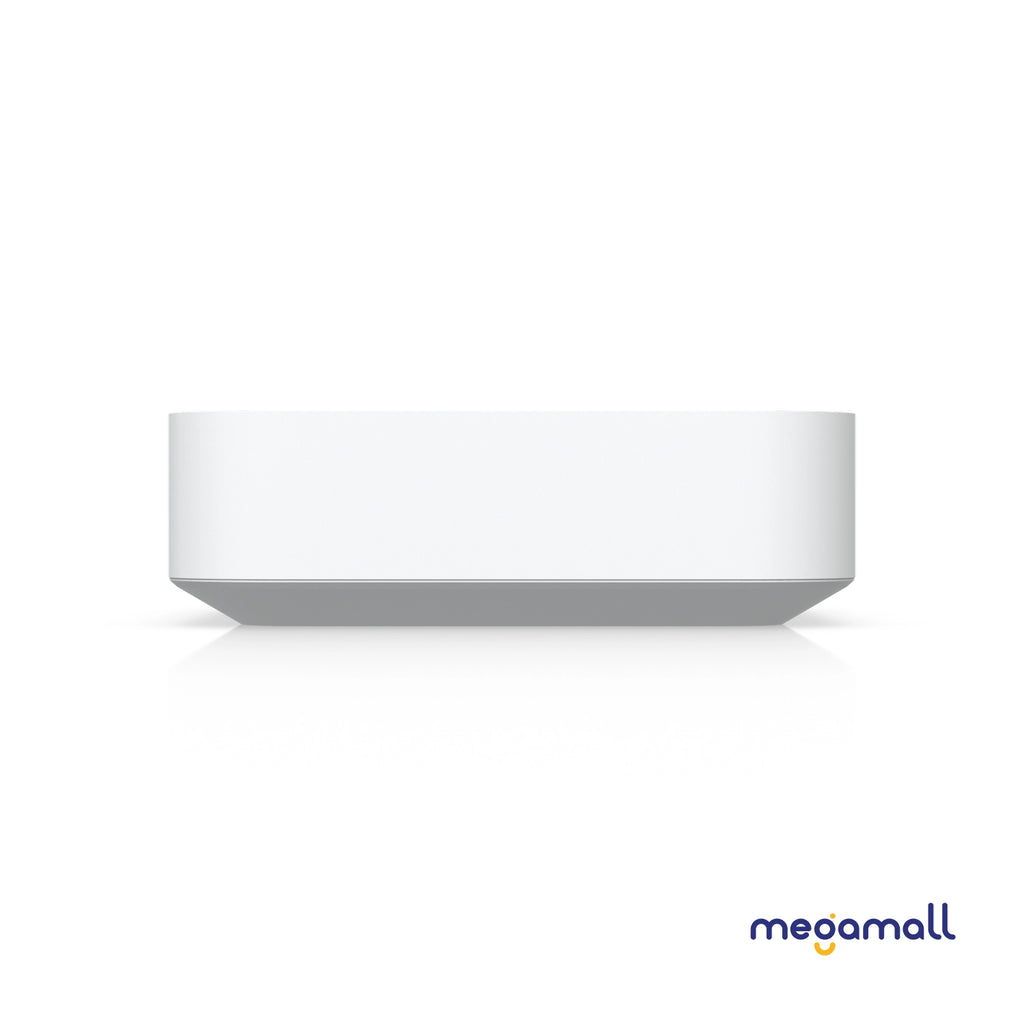

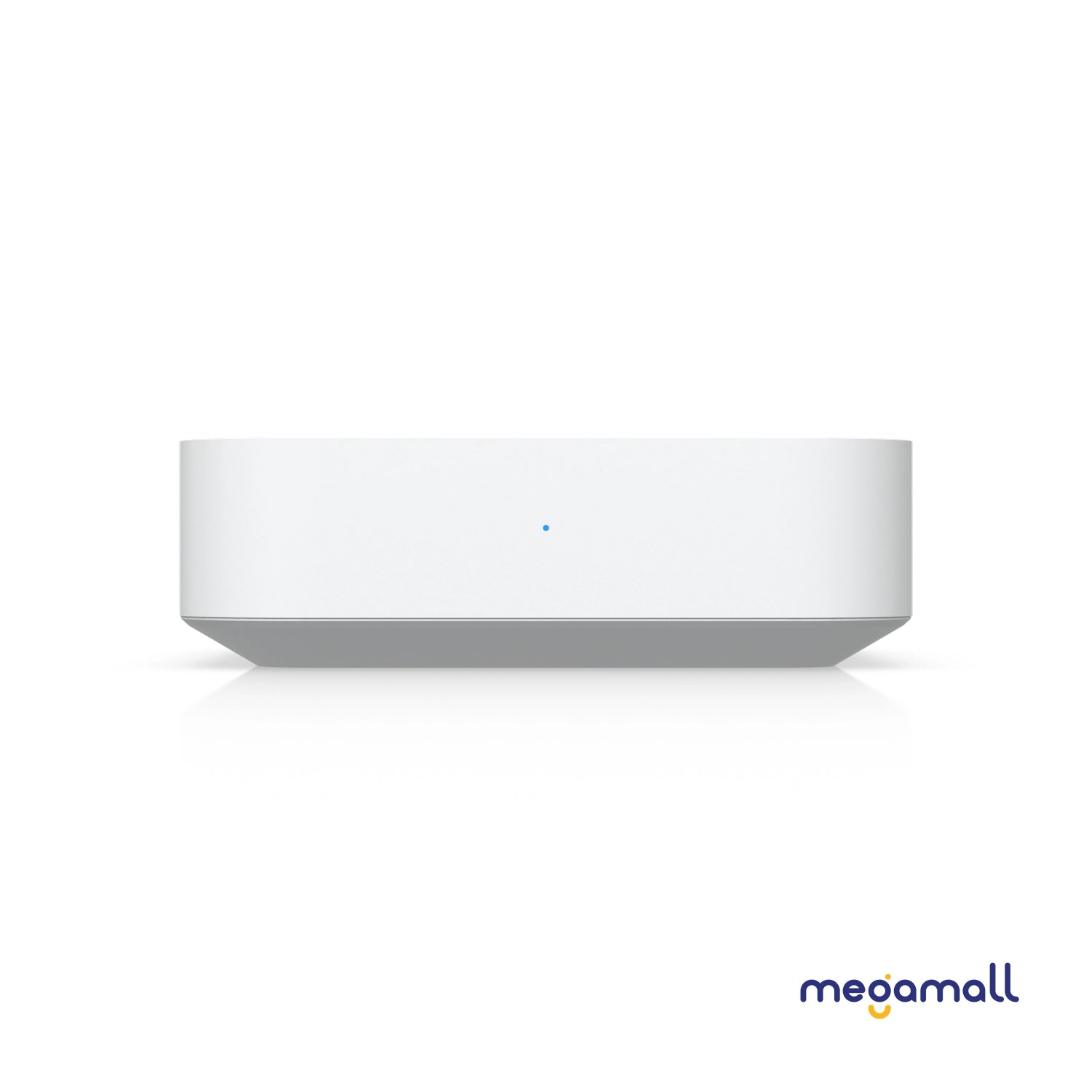

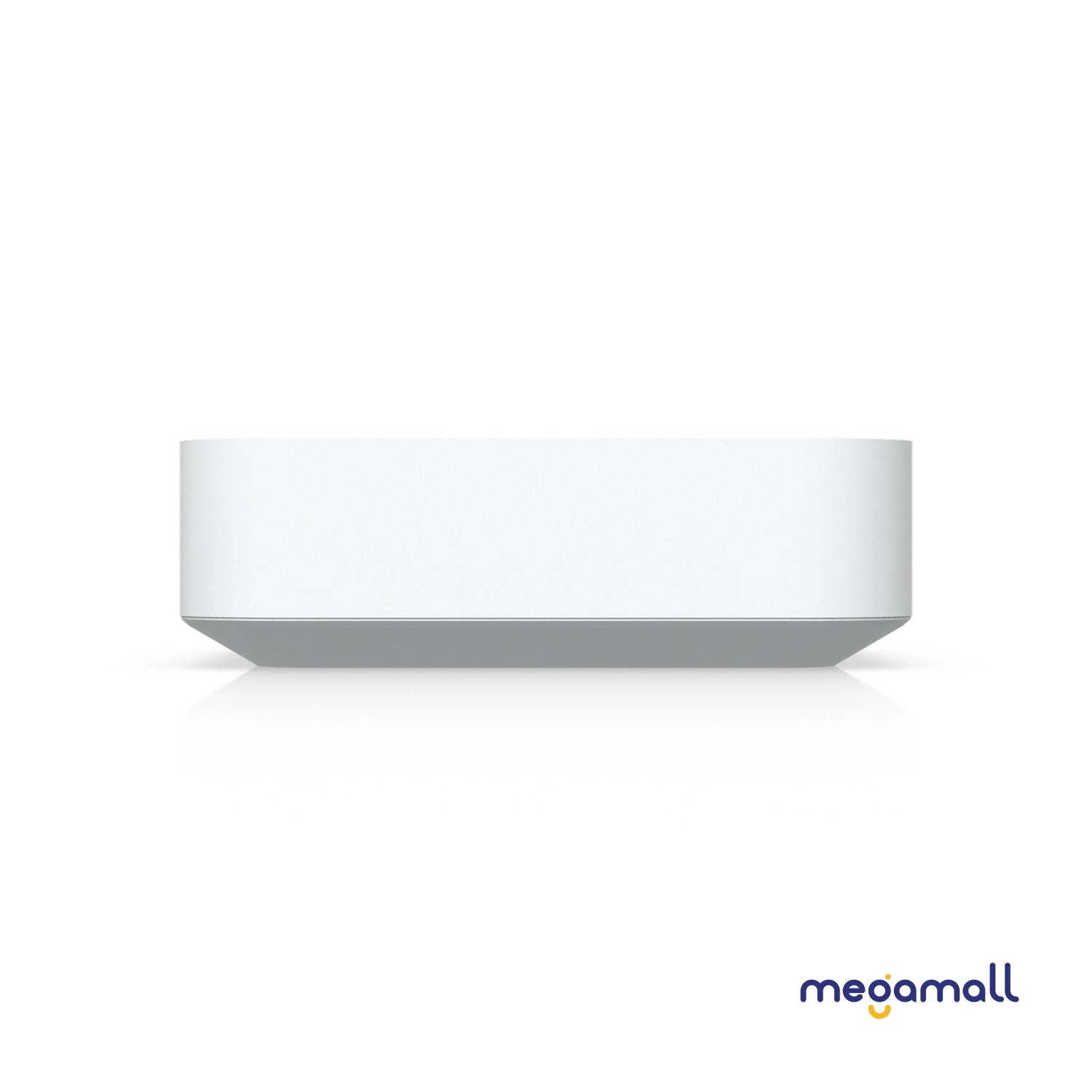

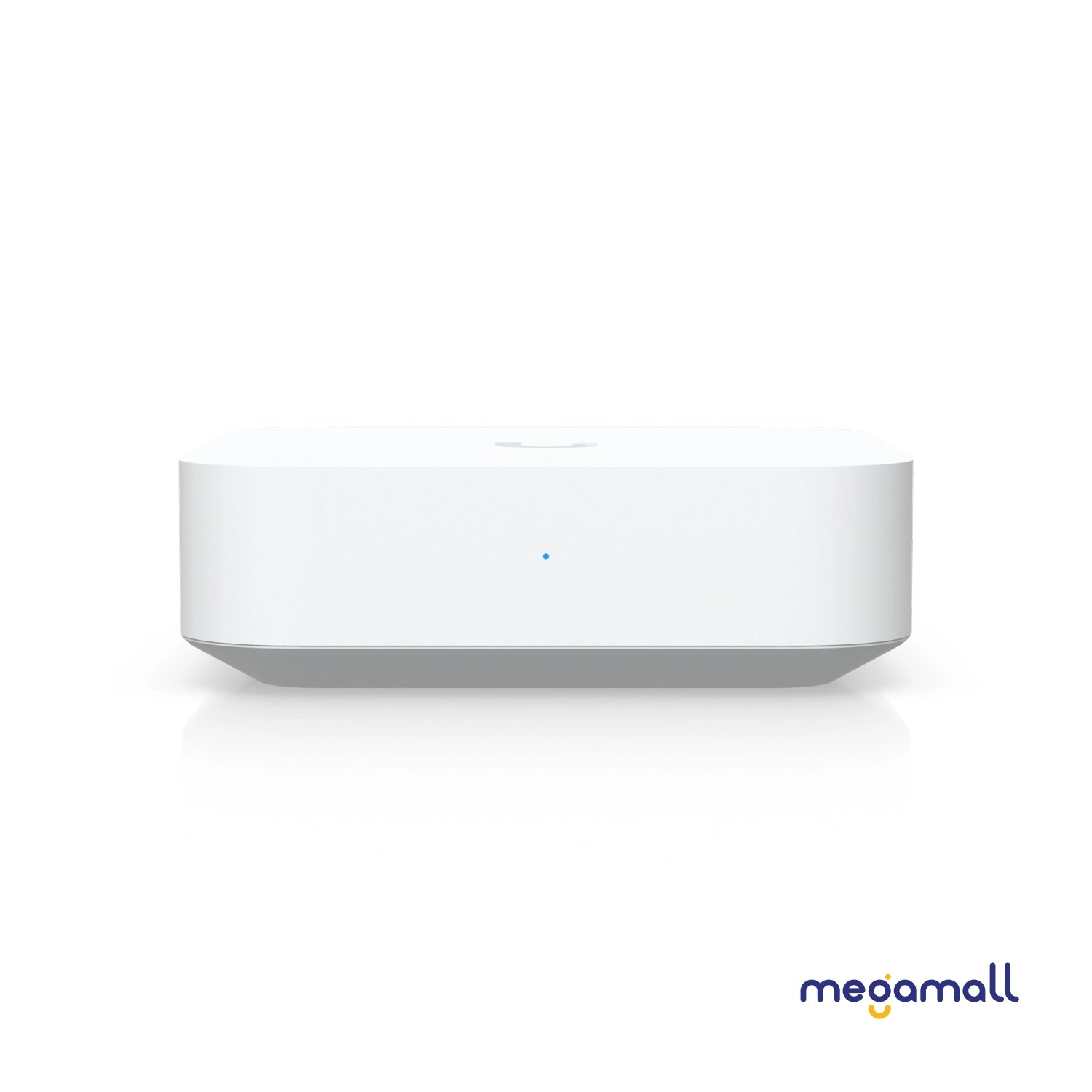

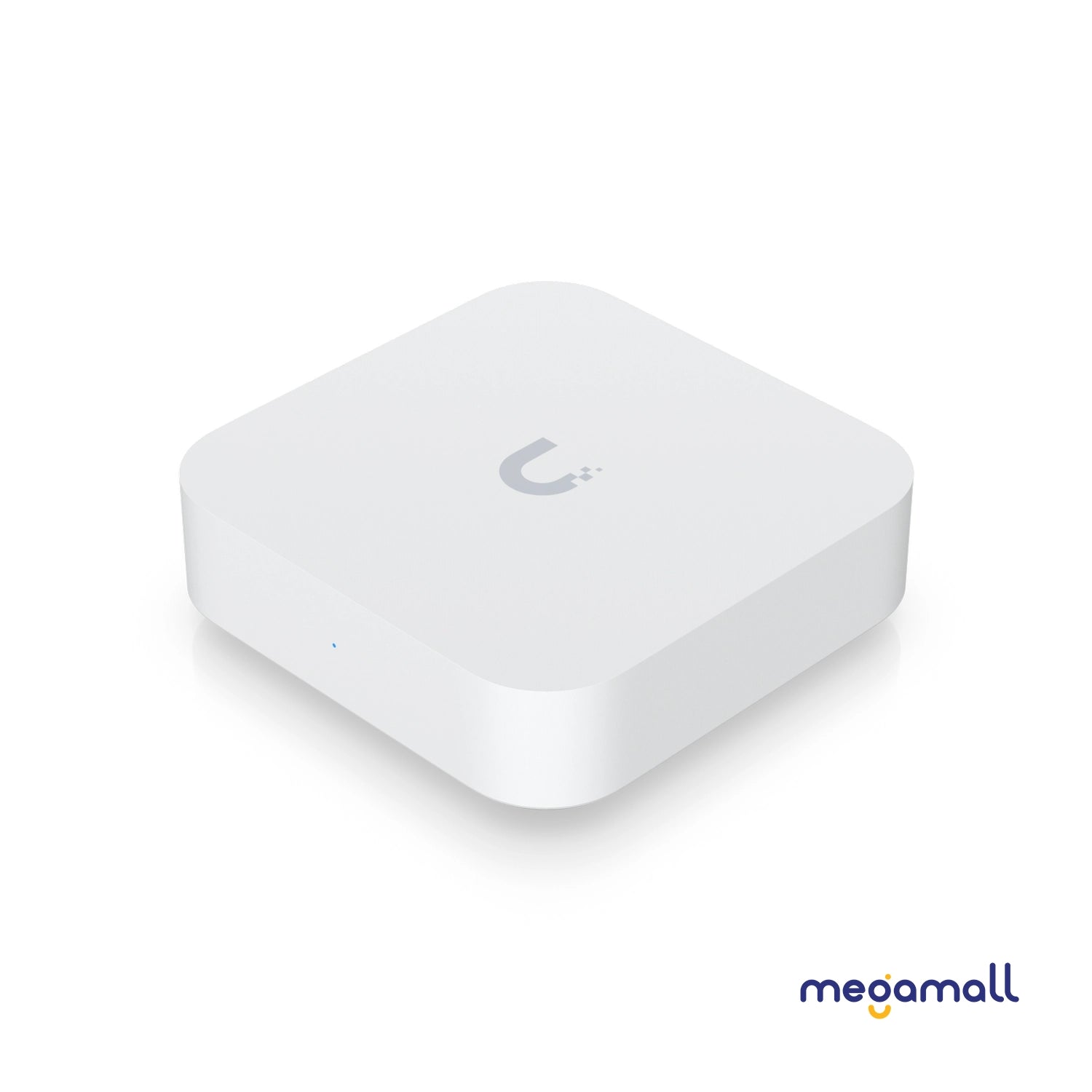

Compact independent gateway with a full suite of advanced routing and security features.
Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.0.7 and later

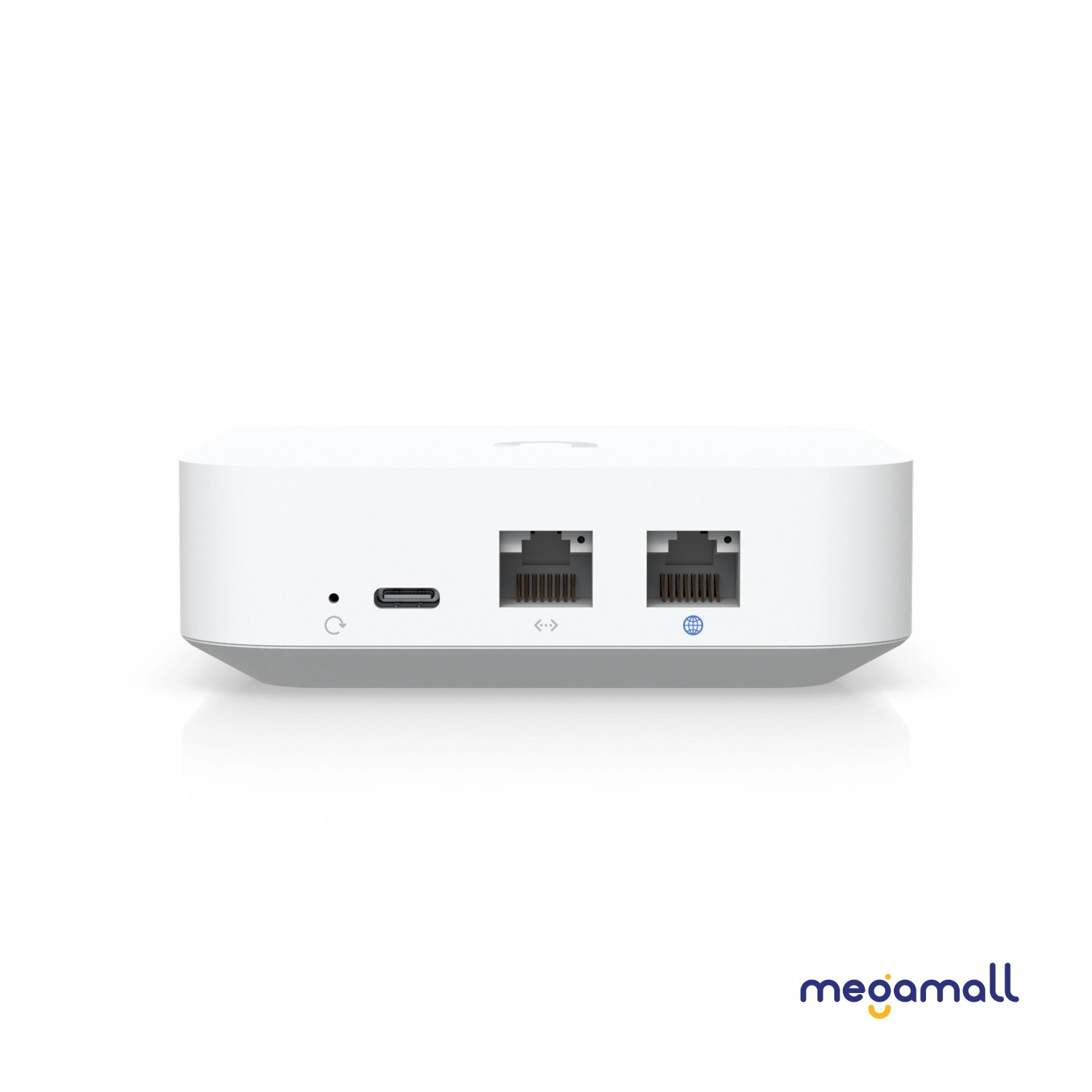

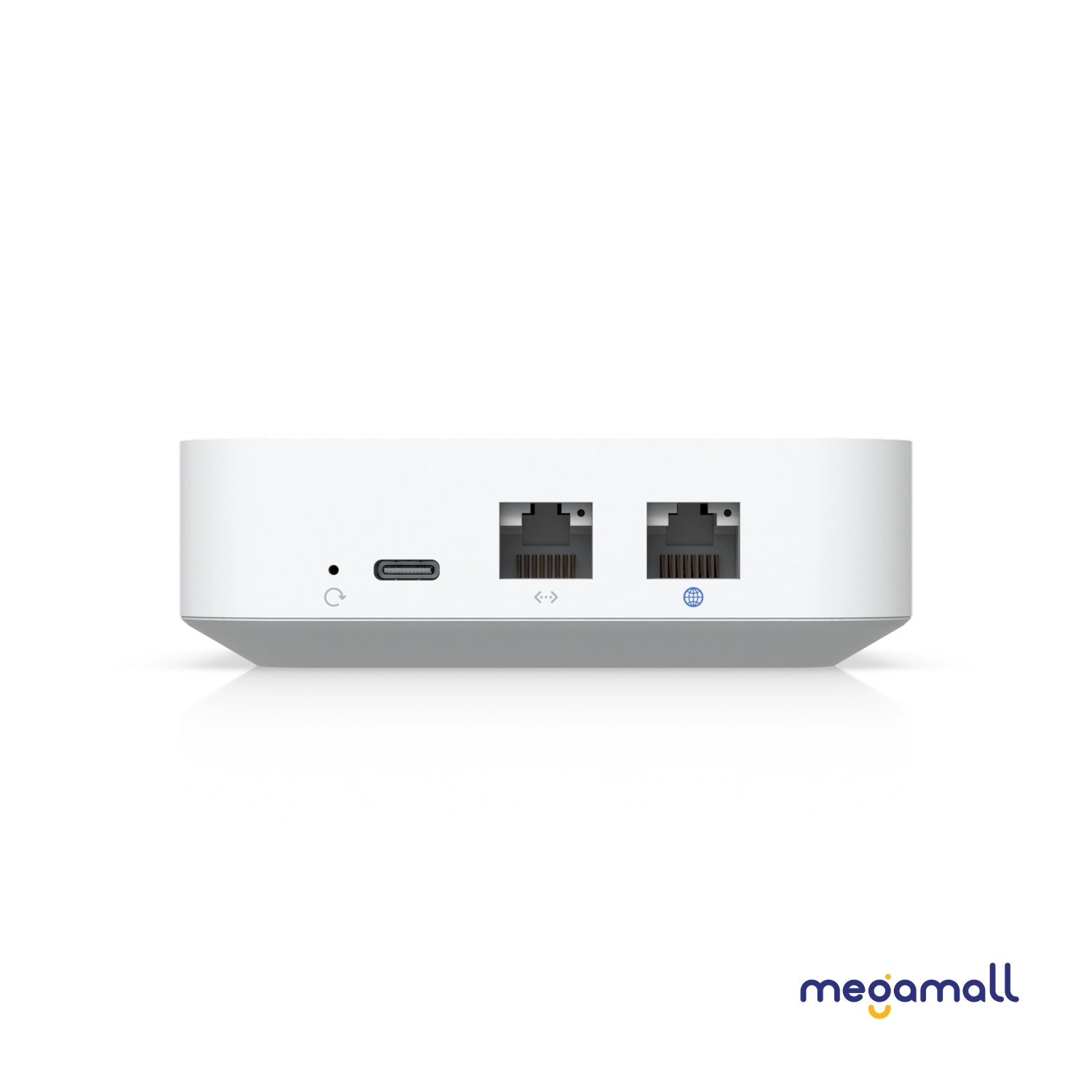

(1) GbE WAN port
(1) GbE LAN port
Compact footprint
USB-C powered (adapter included)
|
Overview |
||
|
Dimensions |
98 x 98 x 30 mm (3.9 x 3.9 x 1.2") |
|
|
Max. WAN Port Count |
1 |
|
|
Default WAN Ports |
(1) GbE RJ45 |
|
|
Port Layout |
||
|
1 GbE RJ45 |
2 (1G/100M/10M) |
|
|
IDS/IPS Throughput |
1 Gbps |
|
|
Form Factor |
Compact desktop |
|
|
Security |
||
|
Stateful Firewall |
✓ |
|
|
Application-Aware Layer 7 Firewall |
✓ |
|
|
DPI & Traffic Identification |
✓ |
|
|
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
✓ |
|
|
Content Filtering |
✓ |
|
|
Intrusion Prevention (IPS/IDS) |
✓ |
|
|
Ad Blocking |
✓ |
|
|
VPN & SD-WAN |
||
|
License-Free SD-WAN |
✓ |
|
|
Site-to-Site VPN |
||
|
Site Magic |
✓ |
|
|
IPsec |
✓ |
|
|
OpenVPN |
✓ |
|
|
VPN Server |
||
|
Teleport Zero-Configuration VPN |
✓ |
|
|
WireGuard |
✓ |
|
|
OpenVPN |
✓ |
|
|
L2TP |
✓ |
|
|
VPN Client |
||
|
OpenVPN |
✓ |
|
|
WireGuard |
✓ |
|
|
Networking |
||
|
Dynamic Routing |
||
|
OSPF |
✓ |
|
|
Advanced QoS |
✓ |
|
|
Multicast DNS (mDNS) |
✓ |
|
|
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
✓ |
|
|
Integrated RADIUS Server |
✓ |
|
|
RADIUS over TLS (RadSec) |
✓ |
|
|
Additional Internet Failover with UniFi LTE Backup |
✓ |
|
|
Internet Quality and Outage Reporting |
✓ |
|
|
Policy-based WAN and VPN Routing |
✓ |
|
|
Customizable DHCP Server |
✓ |
|
|
IPv6 ISP Support |
✓ |
|
|
Hardware |
||
|
Max. Power Consumption |
3.83W |
|
|
Power Method |
USB type C (5V DC/3A) |
|
|
Power Supply |
USB type C (5V DC/3A) (Adapter included) |
|
|
Supported Voltage Range |
100—240V AC |
|
|
Processor |
Dual-core ARM® Cortex®-A53 at 1 GHz |
|
|
System Memory |
1 GB |
|
|
Weight |
320 g (11.3 oz) |
|
|
Enclosure Material |
Polycarbonate |
|
|
Management |
Ethernet Bluetooth |
|
|
LEDs |
||
|
Ethernet |
✓ |
|
|
Button |
(1) Factory-reset |
|
|
Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 8.3.32 and later |
|
