Description
Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
Up to 2.3 Gbps routing with IDS/IPS
(1) 2.5 GbE WAN port
(4) 2.5 GbE LAN ports, including (1) remappable to WAN
USB-C powered (adapter included)
Managed with UniFi Network 8.1.113 and later
|
Overview |
||
|
Dimensions |
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
|
|
Max. WAN Port Count |
4 |
|
|
Default WAN Ports |
(1) 2.5 GbE RJ45 |
|
|

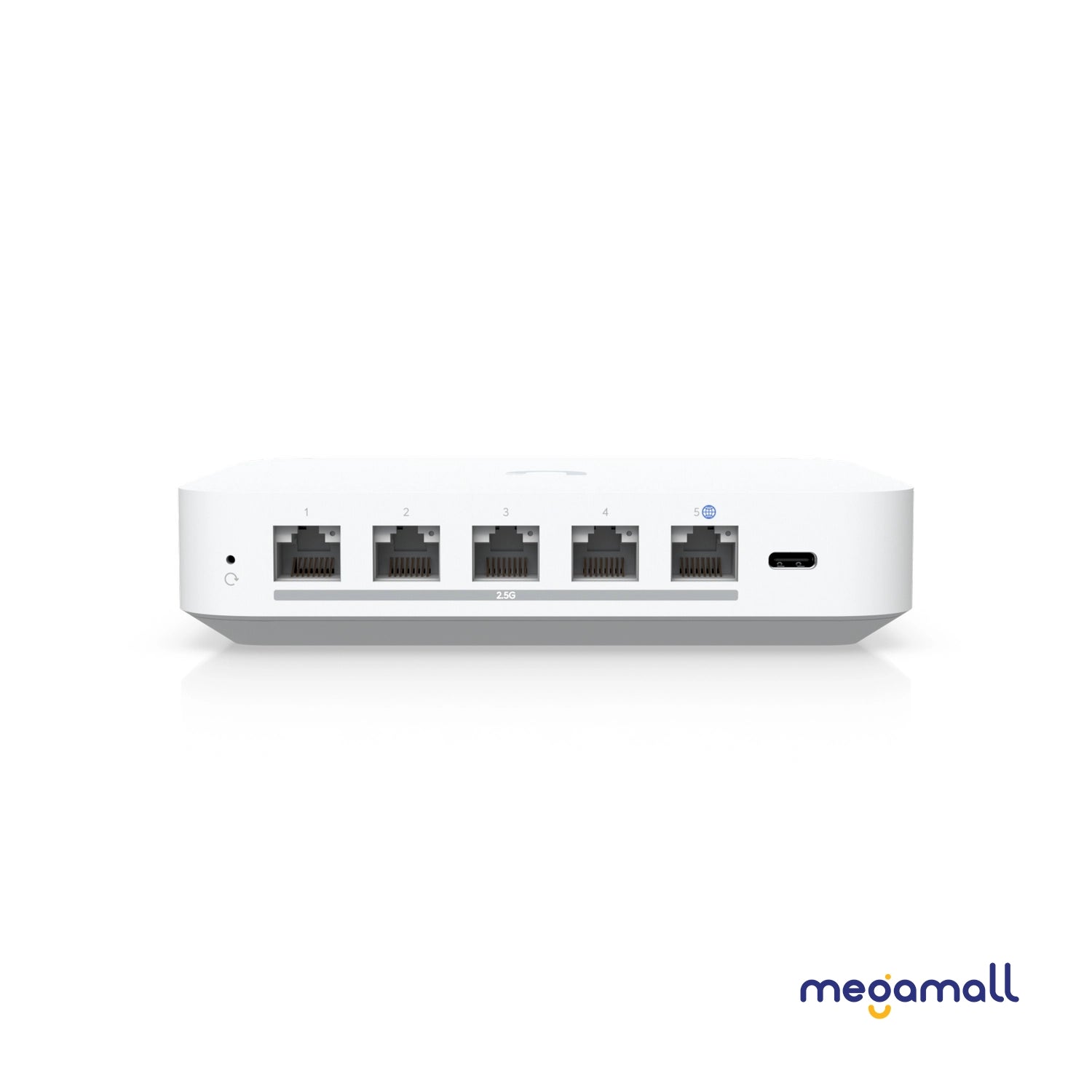

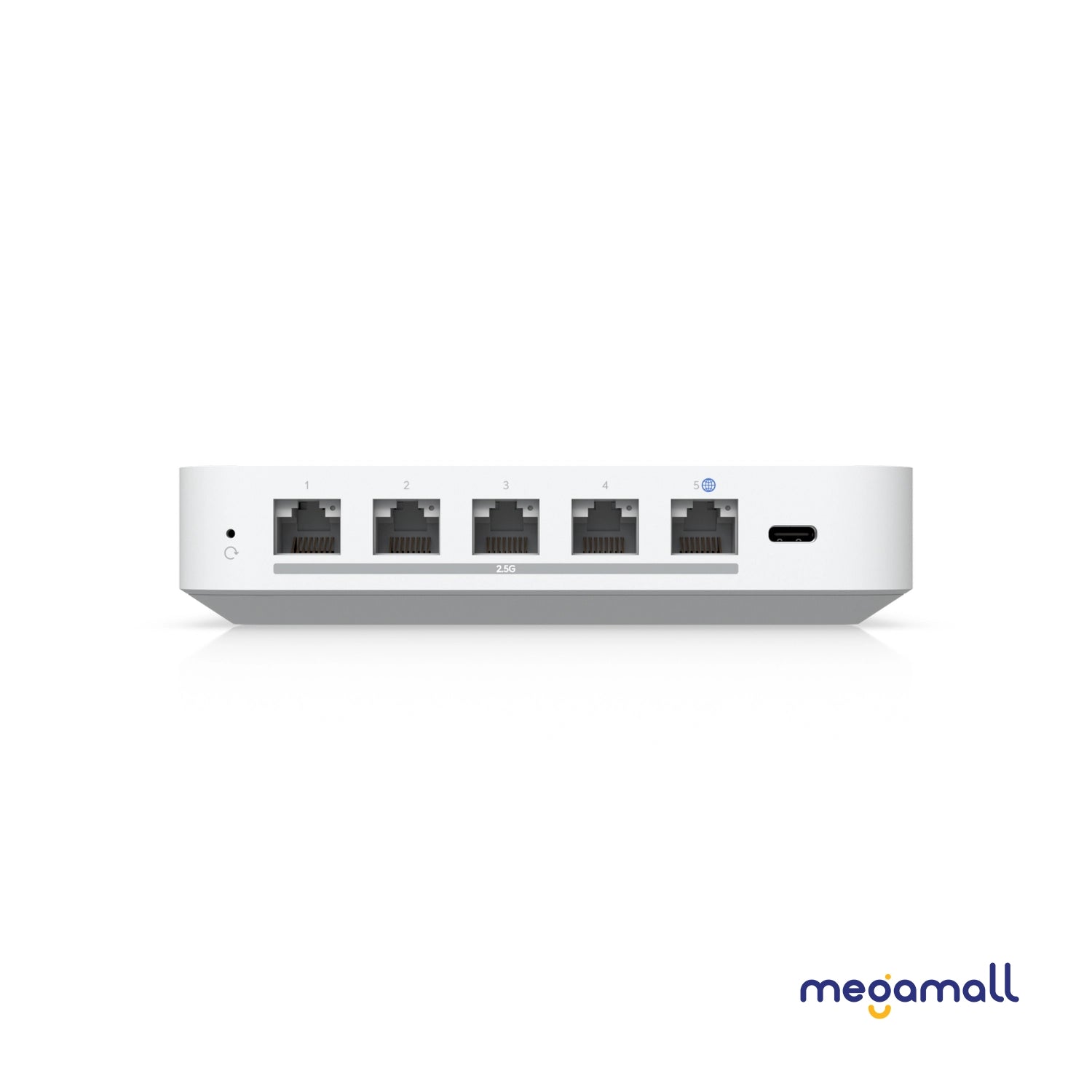

Port Layout |
||
|
2.5 GbE RJ45 |
5 (2.5G/1G/100M/10M) |
|
|
IDS/IPS Throughput |
2.3 Gbps |
|
|
Form Factor |
Compact desktop |
|
|
Security |
||
|
Stateful Firewall |
✓ |
|
|
Application-Aware Layer 7 Firewall |
✓ |
|
|
DPI & Traffic Identification |
✓ |
|
|
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
✓ |
|
|
Content Filtering |
✓ |
|
|
Intrusion Prevention (IPS/IDS) |
✓ |
|
|
Ad Blocking |
✓ |
|
|
IDS/IPS Signatures |
55,000+ With CyberSecure |
|
|
VPN & SD-WAN |
||
|
License-Free SD-WAN |
✓ |
|
|
Site-to-Site VPN |
||
|
Site Magic |
✓ |
|
|
IPsec |
✓ |
|
|
OpenVPN |
✓ |
|
|
VPN Server |
||
|
Teleport Zero-Configuration VPN |
✓ |
|
|
WireGuard |
✓ |
|
|
OpenVPN |
✓ |
|
|
L2TP |
✓ |
|
|
VPN Client |
||
|
OpenVPN |
✓ |
|
|
WireGuard |
✓ |
|
|
Networking |
||
|
Multi-WAN Load Balancing |
✓ |
|
|
Dynamic Routing |
||
|
OSPF |
✓ |
|
|
Advanced QoS |
✓ |
|
|
Multicast DNS (mDNS) |
✓ |
|
|
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
✓ |
|
|
Integrated RADIUS Server |
✓ |
|
|
RADIUS over TLS (RadSec) |
✓ |
|
|
Additional Internet Failover with UniFi LTE Backup |
✓ |
|
|
Internet Quality and Outage Reporting |
✓ |
|
|
MAC Address Table Size |
2000 |
|
|
Hardware |
||
|
Max. Power Consumption |
9.6W |
|
|
Power Method |
USB type C (5V DC/3A) |
|
|
Power Supply |
USB type C (5V DC/3A) (Adapter included) |
|
|
Supported Voltage Range |
100—240V AC |
|
|
Processor |
Quad-core ARM® Cortex®-A53 at 1.5 GHz |
|
|
System Memory |
2 GB |
|
|
Weight |
520 g (1.1 lb) |
|
|
Enclosure Material |
Polycarbonate |
|
|
Management |
Ethernet Bluetooth |
|
|
LEDs |
||
|
Ethernet |
✓ |
|
|
System |
✓ |
|
|
Button |
(1) Factory-reset |
|
|
ESD/EMP Protection |
Air: ± 8kV, contact: ± 4kV |
|
|
Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 8.1.113 and later |
|
