Description
True 1+ Gbps spectrally efficient, noise resilient PTP technology specifically designed for WISP’s.
|
Mechanical |
|
|
Dimensions |
224 x 82 x 48 mm (8.8 x 3.2 x 1.9") |
|
Weight |
0.4 kg (0.8 lb) |
|
Mounting |
airFiber X mount (Rocket mount compatible) |
|
GPS Pole Mount (Included) |
|
|
Weatherproofing |
IP67* |
|
*After installation of IP67 upgrade kit (included). |
|
|
Hardware |
|
|

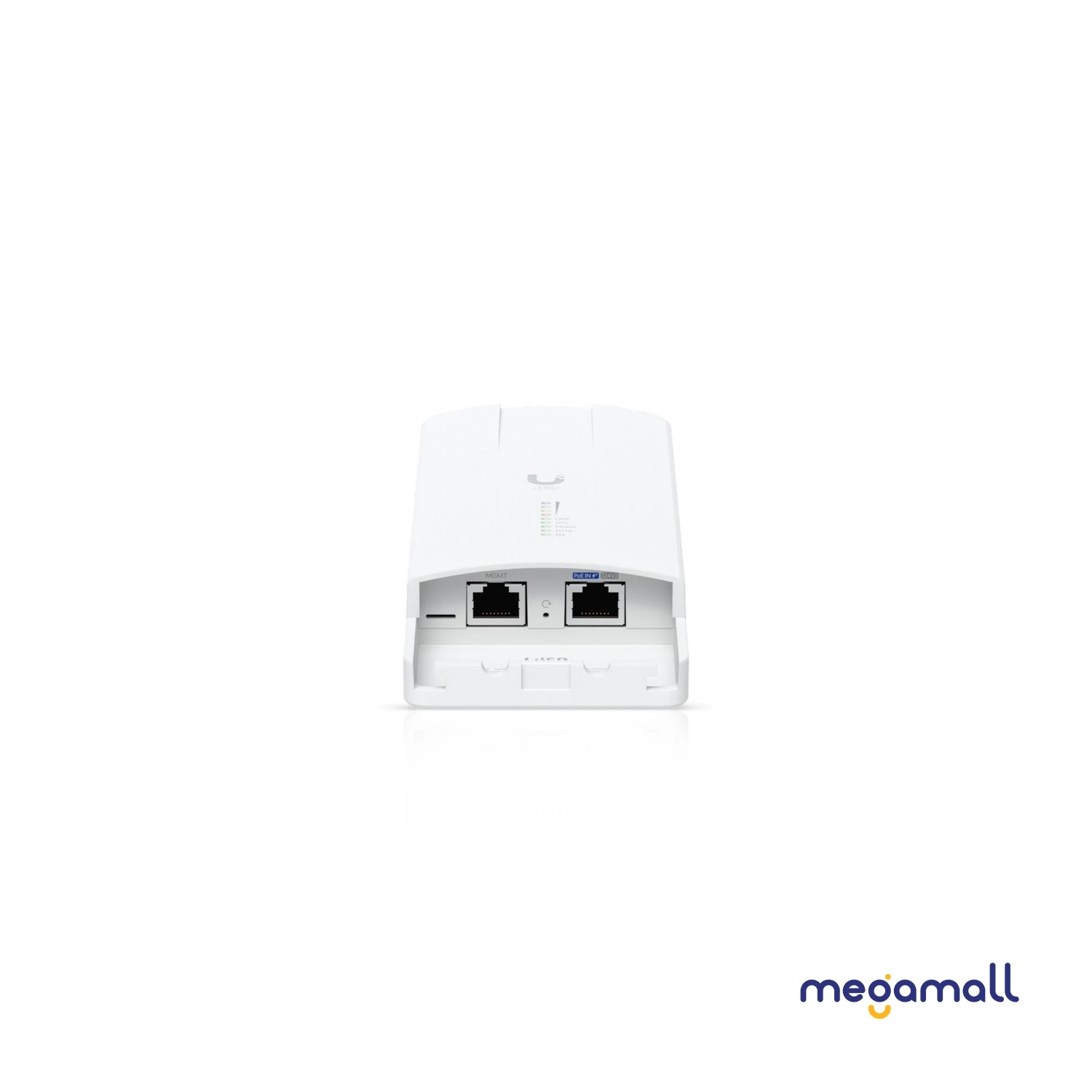

Networking interface |
(2) GbE RJ45 ports |
|
Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
|
Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-) |
|
|
Power supply |
24V, 1A gigabit PoE adapter (Included) |
|
Supported voltage range |
18—54V DC |
|
Max. power consumption |
12W |
|
GPS antenna |
External, magnetic base |
|
Ambient operating temperature |
-40 to 55° C (-40 to 131° F) |
|
Certifications |
CE, FCC, IC |
|
NDAA Compliant |
Yes |
|
Software |
|
|
Modes |
PtP Master/Slave |
|
Max. throughput |
1+ Gbps |
|
Max. range* |
100+ km |
|
*Throughput and range values may vary depending on the environmental conditions. |
|
|
Encryption |
AES-256 |
|
RF |
|
|
Max. TX power* |
29 dBm |
|
*Depends on regional regulations. |
|
|
Frequency accuracy |
± 2.5 ppm without GPS Synchronization |
|
± 0.2 ppm with GPS Synchronization |
|
|
Channel bandwidth |
10/20/30/40/50/60/80/100 MHz selectable |
|
Programmable Uplink and Downlink duty cycles |
|
|
Operating Frequency (MHz) |
|
|
Worldwide |
4800 - 6200 MHz* |
|
*Depends on regional regulations. |
|
|
US/CA |
|
|
U-NII-1 |
5150 - 5250 MHz |
|
U-NII-2A |
5250 - 5350 MHz |
|
U-NII-2C |
5470 - 5725 MHz |
|
U-NII-3 |
5725 - 5850 MHz |
