Description

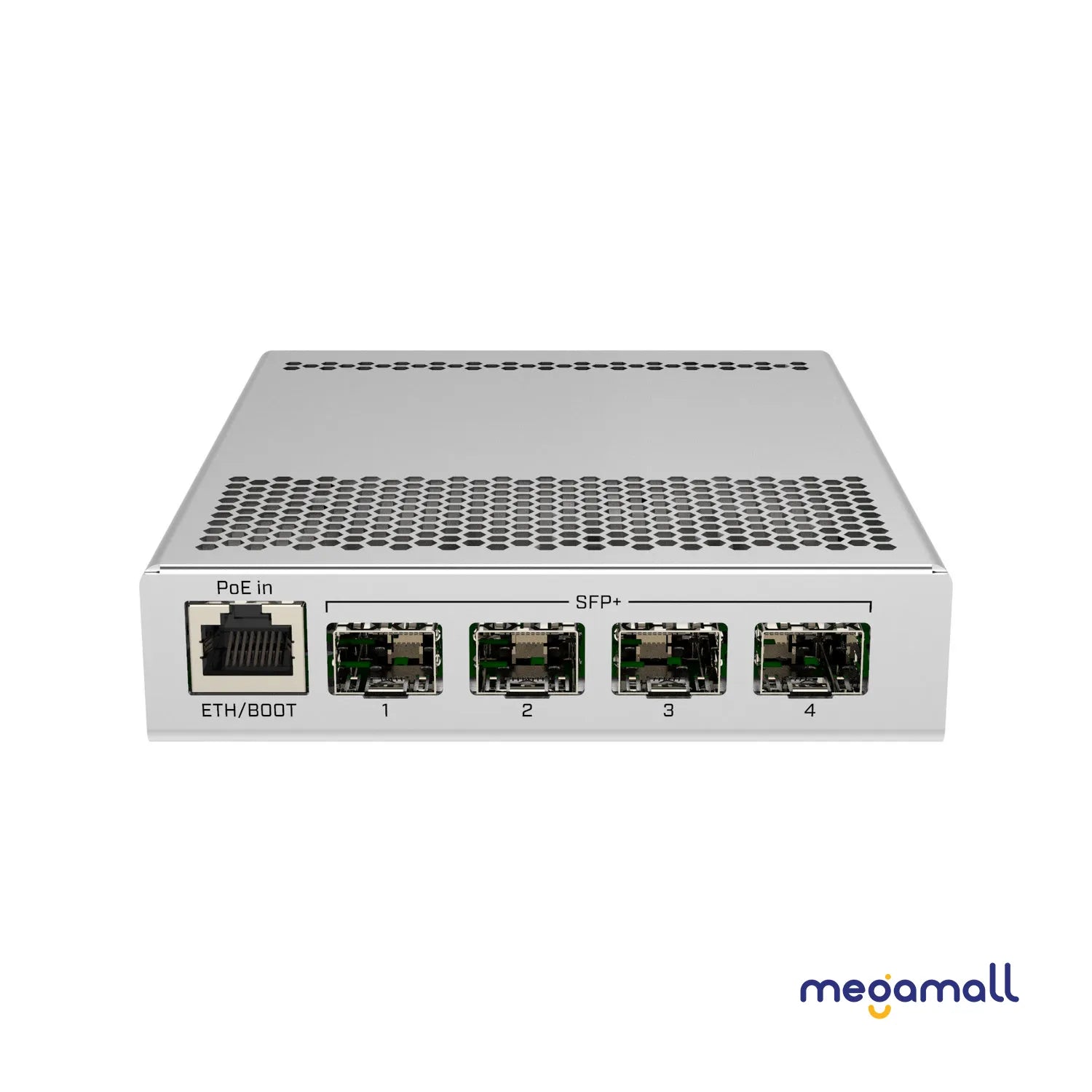

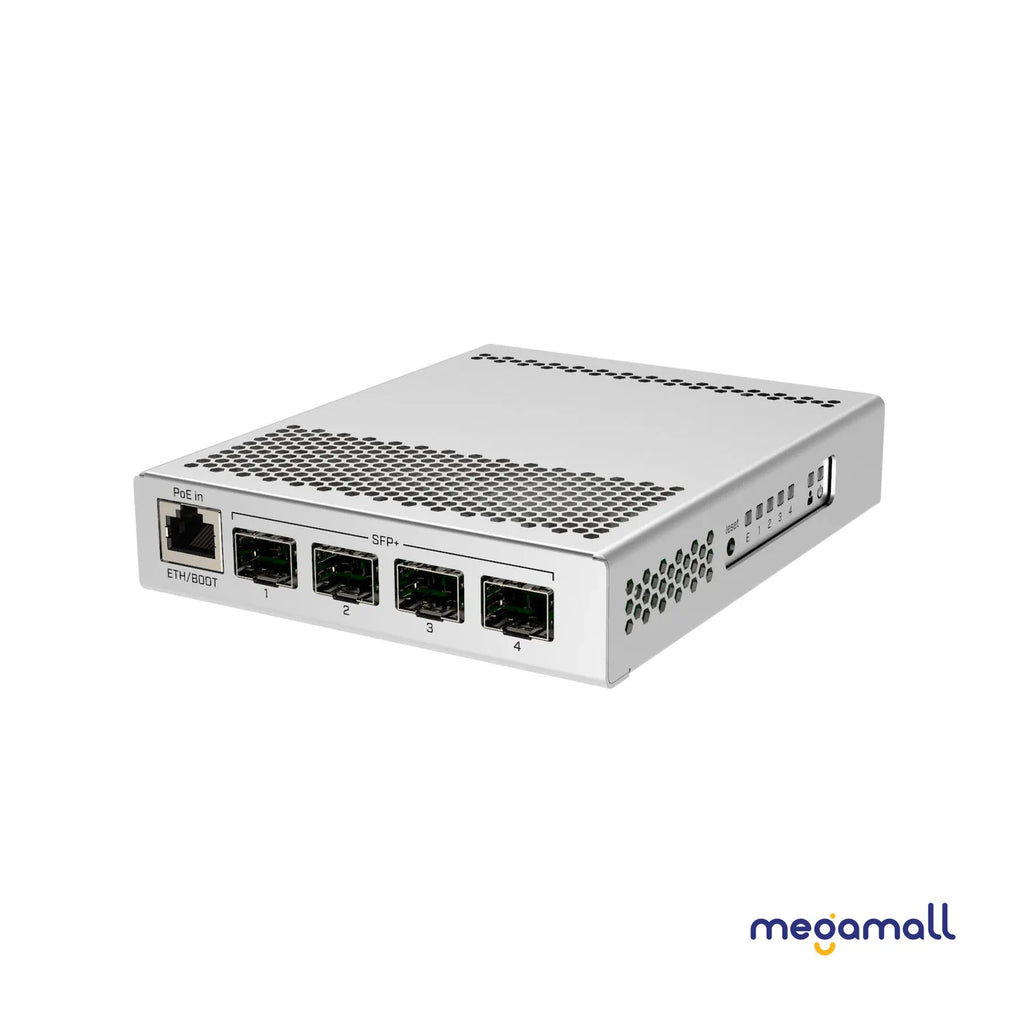

Five-port desktop switch with one Gigabit Ethernet port and four SFP+ 10Gbps ports.

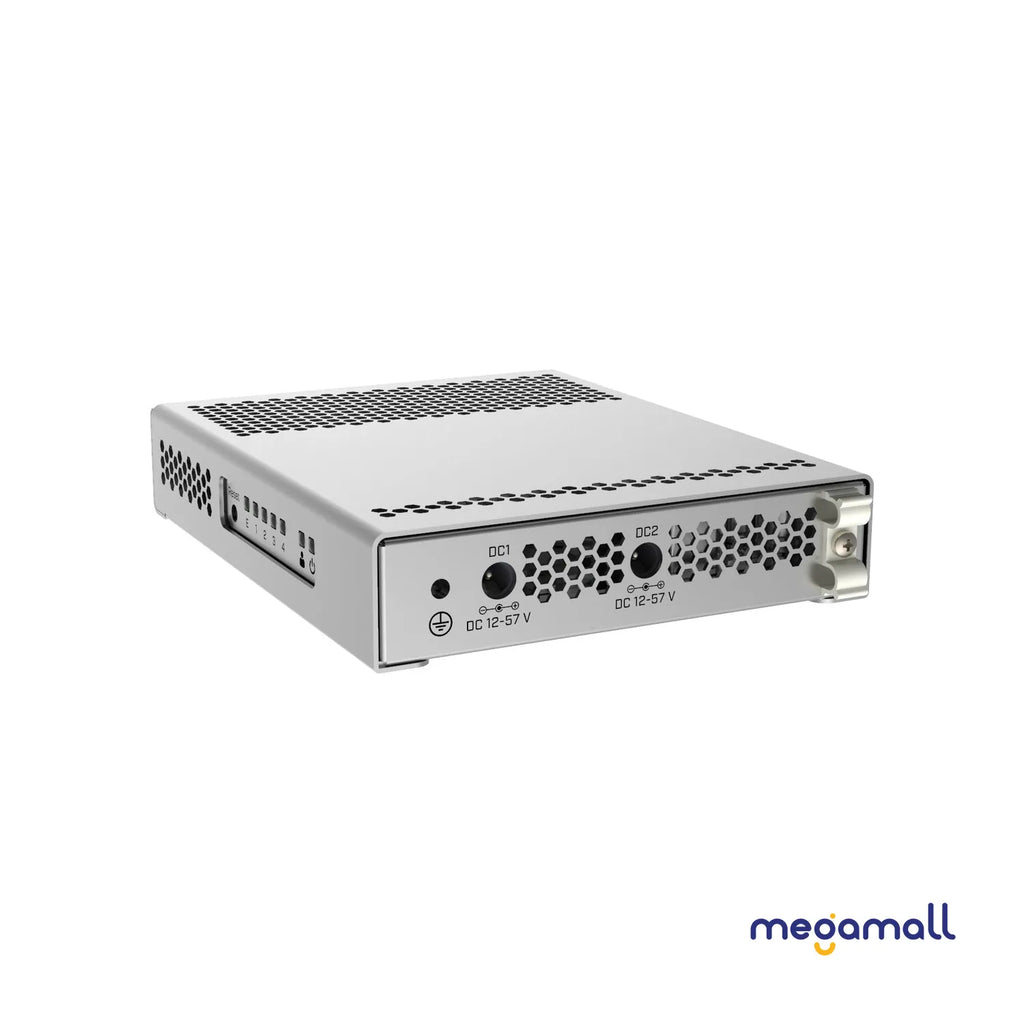

The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access or regular traffic forwarding and two DC jacks for power redundancy. The device is a very sleek and compact metallic case without any fans, for silent operation.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.
|
Specifications |
|
|
Product code |
CRS305-1G-4S+IN |
|
Architecture |
ARM 32bit |
|
CPU |
98DX3236 |
|
CPU core count |
2 |
|
CPU nominal frequency |
800 MHz |
|
Switch chip model |
98DX3236 |
|
Dimensions |
141 x 115 x 28 mm |
|
RouterOS license |
5 |
|
Operating System |
|
|
Size of RAM |
512 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
|
Number of DC inputs |
3 (PoE-IN, DC jack) |
|
DC jack input Voltage |
12-57 V |
|
Max power consumption |
18 W |
|
Max power consumption without attachments |
10 W |
|
PoE in |
802.3af/at |
|
Cooling type |
Passive |
|
PoE in input Voltage |
12-57 V |
|
Ethernet |
|
|
10/100/1000 Ethernet ports |
1 |
|
Fiber |
|
|
SFP+ ports |
4 |
|
Other |
|
|
CPU temperature monitor |
Yes |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
IP20 |
|
Warranty |
|
|
Warranty |
1 Year |
