Description
An outdoor 18 port switch with 15 reverse PoE ports and SFP. Cut costs, not speed – choose GPEN over GPON!
With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit.

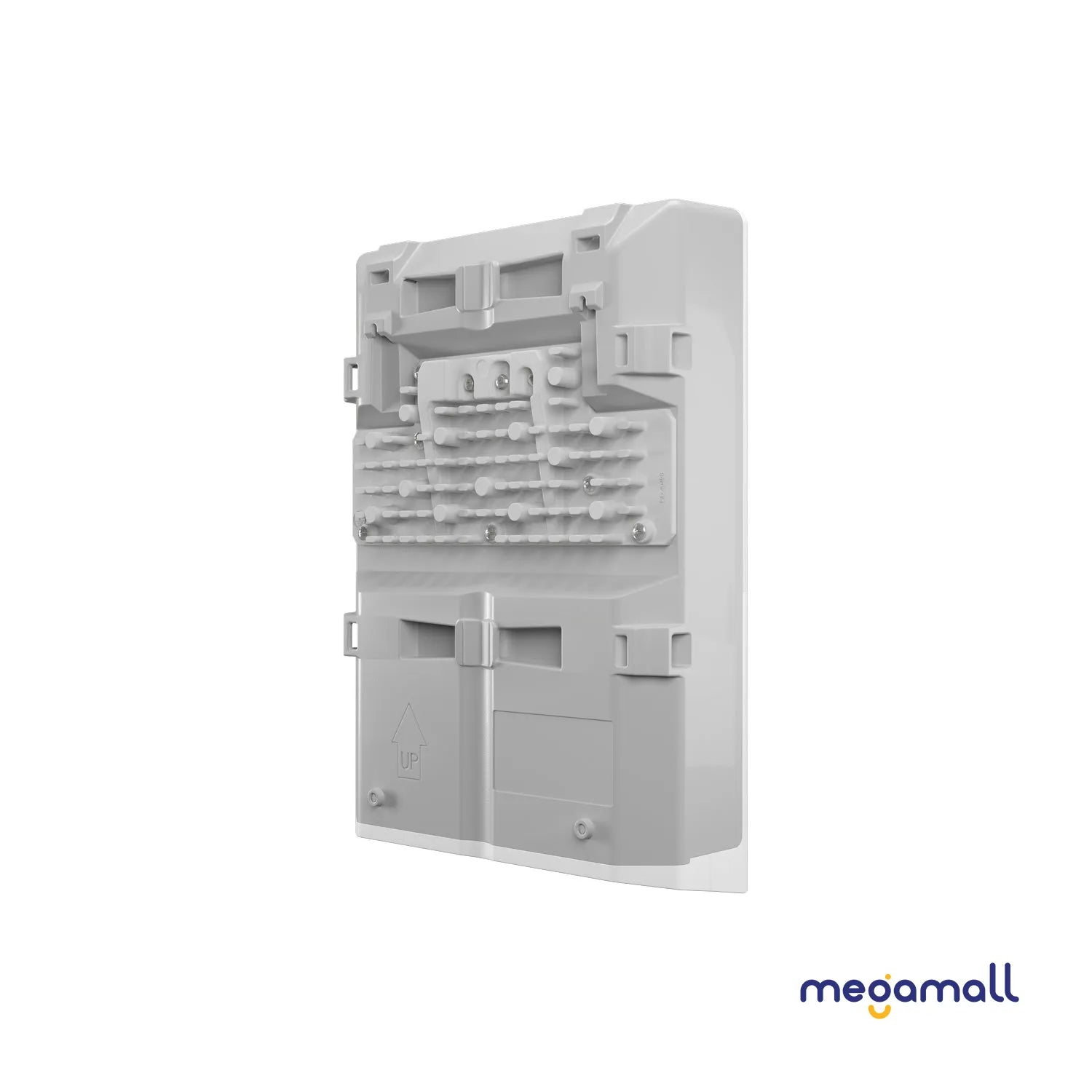

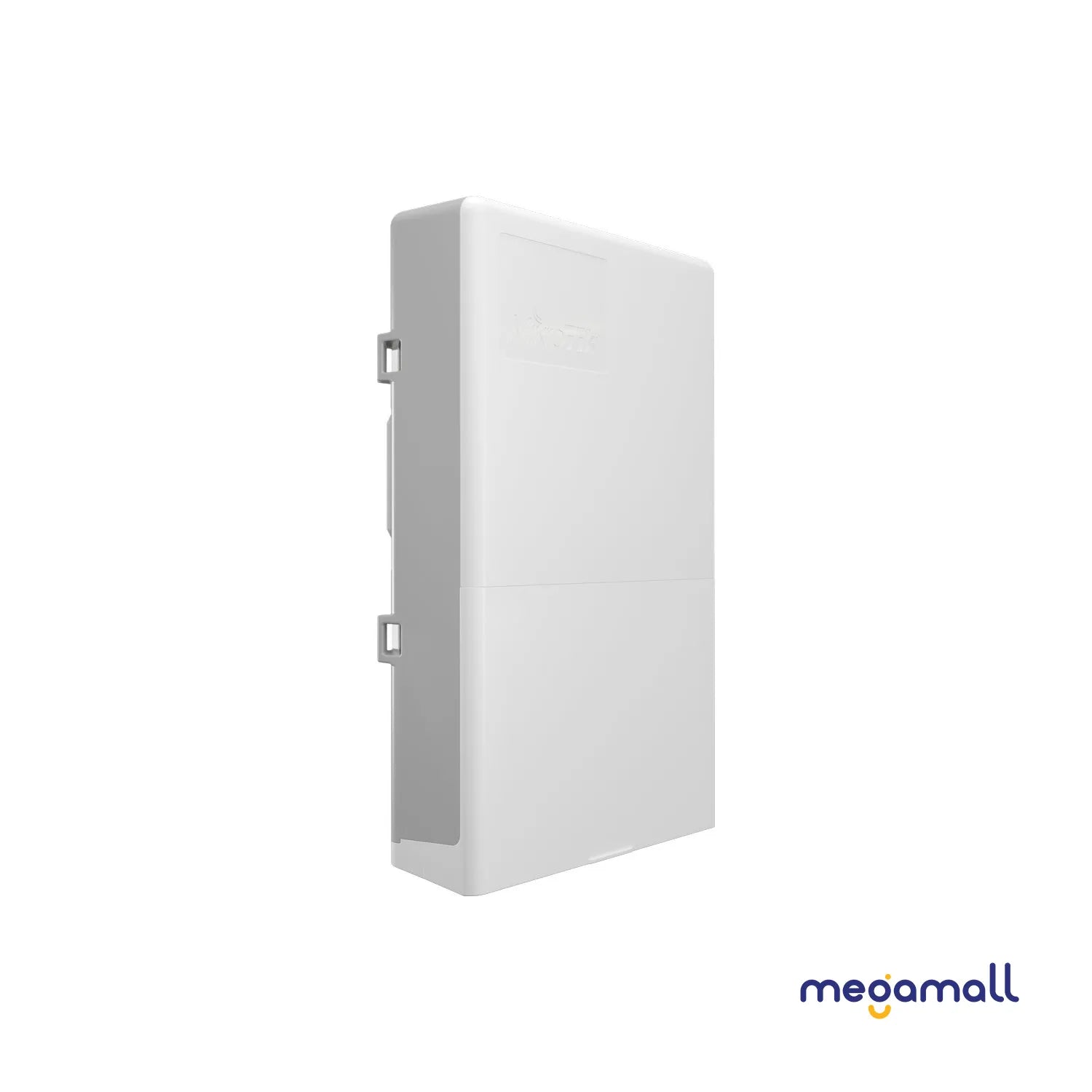

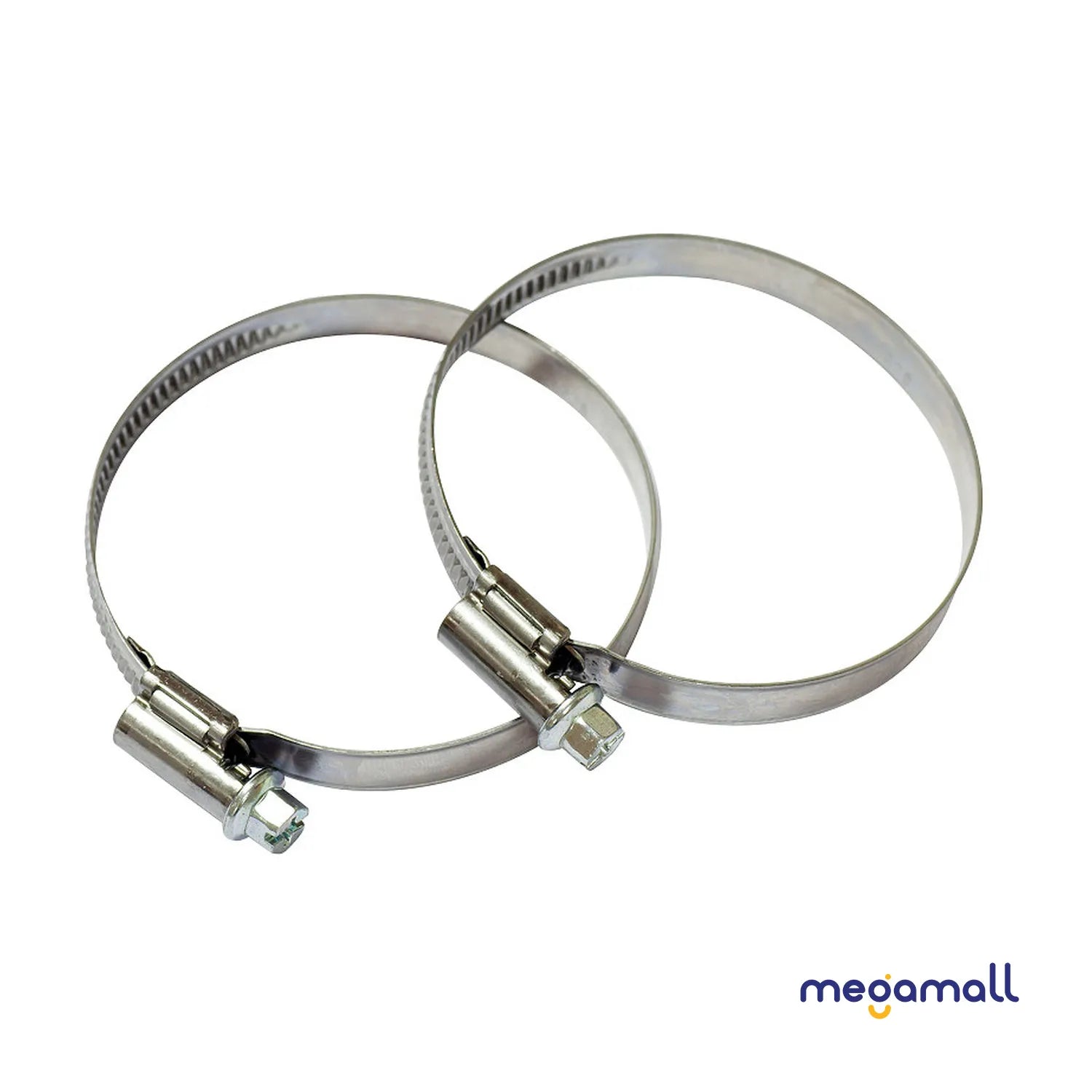

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!
netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

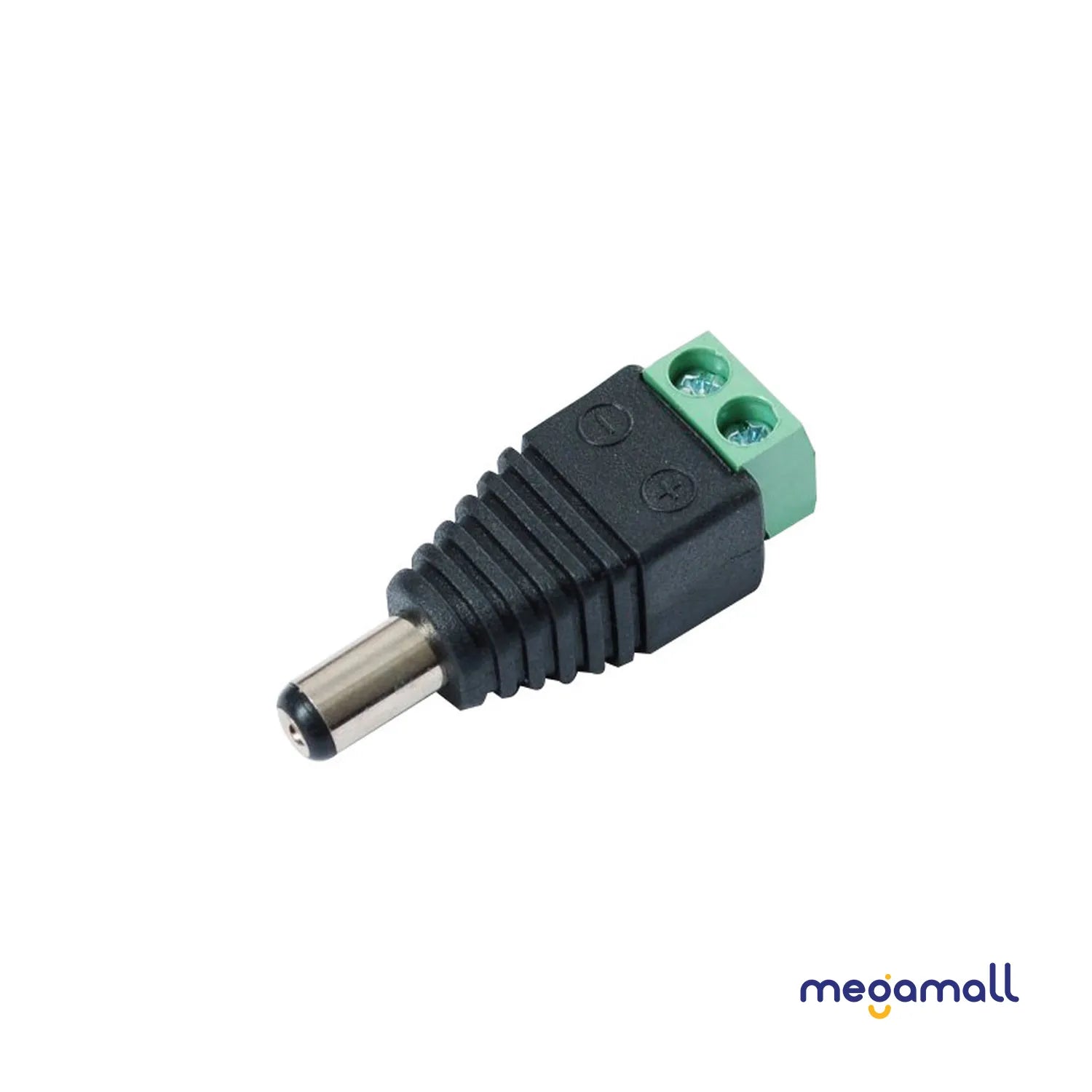

The power supply is NOT included with the product- must be purchased separately.
|
Specifications |
|
|
Product code |
CRS318-1Fi-15Fr-2S-OUT |
|
Architecture |
ARM 32bit |
|
CPU |
98DX224S |
|
CPU core count |
2 |
|
CPU nominal frequency |
800 MHz |
|
Switch chip model |
98DX224S |
|
Dimensions |
304 x 212 x 71 mm |
|
RouterOS license |
5 |
|
Operating System |
|
|
Size of RAM |
256 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
|
Number of DC inputs |
16 (PoE-IN, DC jack) |
|
DC jack input Voltage |
18-57 V |
|
Max power consumption |
29 W |
|
Max power consumption without attachments |
10 W |
|
PoE in |
Passive PoE |
|
Cooling type |
Passive |
|
PoE in input Voltage |
18-57 V (recommended 36-57V) |
|
PoE-out |
|
|
PoE-out ports |
Ether15 |
|
PoE out |
Passive PoE |
|
Max out per port output (input 18-30 V) |
0.75 A |
|
Max out per port output (input 30-57 V) |
0.5 A |
|
Max total out (A) |
0.75 A |
|
Ethernet |
|
|
10/100 Ethernet ports |
16 |
|
Fiber |
|
|
SFP ports |
2 |
|
Other |
|
|
CPU temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
IP54 |
|
Warranty |
|
|
Warranty |
1 Year |
