D53G-5HacD2HnD-TC&EG06-A - Chateau LTE6-US


Price:
Sale priceK 1,094,000

In stock at Mega Mall. Dispatch in 1-2 business day.

Description

Your best friend when it comes to mobile networks. Amazing in the hands of seasoned system administrators. Or in a household with zero IT skills. Or anything in-between. Chateau can do it all.

Let’s face it – most of the standard mass-produced access points can’t really satisfy the extremely diverse client base – they either lack features, users want more speed and higher gain, they look weird with all the spikes and antennas all over the place.. We decided to take all the aspects that truly matter to most home users and create a single device that will make them happy: the MikroTik Chateau.

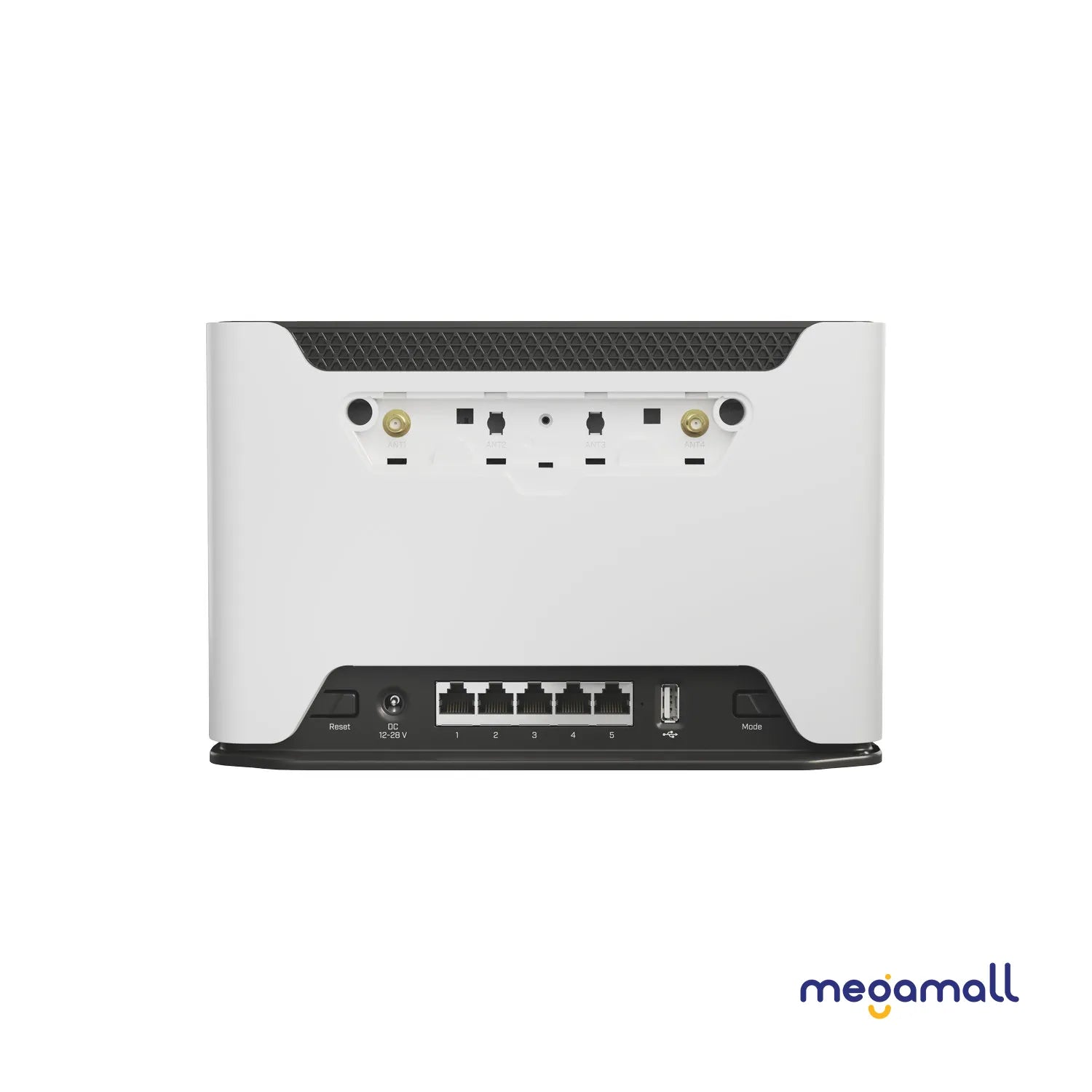

It is a high-speed, dual-band home access point with a powerful quad-core ARM CPU and our newest CAT6 LTE modem – for really fast Internet anywhere, anytime. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full-sized USB port for extra storage.

Remove the bottleneck in your mobile setup

With new rural relocation programmes popping up everywhere, more people have started moving to the countryside – away from the stress and challenges of busy urban areas. Should they be limited by the slower connectivity without the city cable networks, potentially risking all kinds of opportunities in education, entrepreneurship, and even hobbies? Absolutely not!

For most rural households, the limiting factor is a cheap, mass-produced LTE router that can’t handle even a fraction of what the local LTE tower could offer. Chateau is designed to solve these problems. Here’s an example: the leading mobile operator in Latvia – LMT – started swapping out their previous client routers. Our Chateau replaced the usual brands. And customer satisfaction went through the roof – just like that! Same LTE towers, same data plans, and a brand new Chateau. What is the point of having brand new phones, excellent LTE coverage, high-end laptops, and so on... if your old router is the bottleneck?

The freedom of LTE

Reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use multiple bands simultaneously. That is a huge advantage in areas with many LTE users. Chateau LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.

Perfect for all walks of life

Chateau comes with all the advanced RouterOS features, so you’re getting enterprise-level solutions with consumer-grade pricing. Run a secure VPN from the office directly to your home, enable all kinds of parental control, dive deep into specific firewall rules and IPsec hardware acceleration, configure VLANs, set up e-mail or SMS notifications... You can even automate complex trigger notifications. For example: “WARNING, WARNING! Your bandwidth has reached X amount for Y duration!” If you can imagine it – RouterOS can achieve it. However, if you don’t need all the complex stuff – Chateau can still be your best friend. In fact, this is the best choice for mobile operators that don’t want their clients to do any configuration. Chateau supports the TR-069 technology that allows creating custom remote client management options. You can have the most straightforward and basic router settings on the same web-page that you are using to pay the mobile bill. And we offer different label or printed branding options on volume orders.

Specifications

Product code

D53G-5HacD2HnD-TC&EG06-A

Architecture

ARM 32bit

CPU

IPQ-4019

CPU core count

4

CPU nominal frequency

488-896 (auto) MHz

Switch chip model

IPQ-4019

Dimensions

240 x 156 x 44 mm

RouterOS license

4

Operating System

RouterOS v7

Size of RAM

256 MB

Storage size

16 MB

Storage type

FLASH

MTBF

Approximately 200'000 hours at 25C

Tested ambient temperature

-40°C to 70°C

Powering

Number of DC inputs

1 (DC jack)

DC jack input Voltage

12-28 V

Max power consumption

19 W

Max power consumption without attachments

14.3 W

Cooling type

Passive

Mobile

3G Category

R8 (42.2Mbps Downlink, 5.76Mbps Uplink)

3G bands

2 (1900MHz) / 5 (850MHz) / 4 (1700MHz)

LTE Category

6 (300Mbit/s Downlink, 50Mbit/s Uplink)

LTE FDD bands

2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 7 (2600MHz) / 12 (700MHz) / 13 (700 MHz) / 25 (1900MHz) / 26 (850MHz) / 30 (2300 MHz) / 66 (1700MHz) / 29 (700 MHz)

TAC

1619900

Wireless specifications

Wireless 2.4 GHz Max data rate

300 Mbit/s

Wireless 2.4 GHz number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

3

Wireless 2.4 GHz chip model

IPQ-4019

Wireless 2.4 GHz generation

Wi-Fi 4

Wireless 5 GHz Max data rate

867 Mbit/s

Wireless 5 GHz number of chains

2

Wireless 5 GHz standards

802.11a/n/ac

Antenna gain dBi for 5 GHz

5.5

Wireless 5 GHz chip model

IPQ-4019

Wireless 5 GHz generation

Wi-Fi 5

Ethernet

10/100/1000 Ethernet ports

5

Peripherals

Number of SIM slots

1 Modem (Micro SIM)

Number of USB ports

1

USB Power Reset

Yes

USB slot type

USB type A

Max USB current (A)

1

Other

Mode button

Yes

Certification & Approvals

Certification

CE, FCC, EAC, ROHS

Wireless specifications

2.4 GHz

Transmit (dBm)

Receive Sensitivity

1MBit/s

25

-100

11MBit/s

25

-94

6MBit/s

26

-96

54MBit/s

23

-78

MCS0

26

-96

MCS7

22

-73

5 GHz

Transmit (dBm)

Receive Sensitivity

6MBit/s

26

-96

54MBit/s

22

-80

MCS0

26

-96

MCS7

21

-75

MCS9

19

-70

Warranty

Warranty

1 Year
