CPU

CPU Model

AMD Ryzen V1780B

CPU Quantity

1

CPU Cores

4

CPU Threads

8

CPU Architecture

64-bit

CPU Frequency

3.35 (base) / 3.6 (turbo) GHz

Hardware Encryption Engine

✓

Memory

System Memory

8 GB DDR4 ECC SODIMM

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage

Drive Bays

8

Maximum Drive Bays with Expansion Unit

18 (DX517 x 2)

M.2 Drive Slots

2 (NVMe)

Drive Type (See all supported drives)

3.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe SSD

Hot Swappable Drive*

✓

Notes

The hot swappable drive feature is not supported by M.2 SSD slots.
Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.

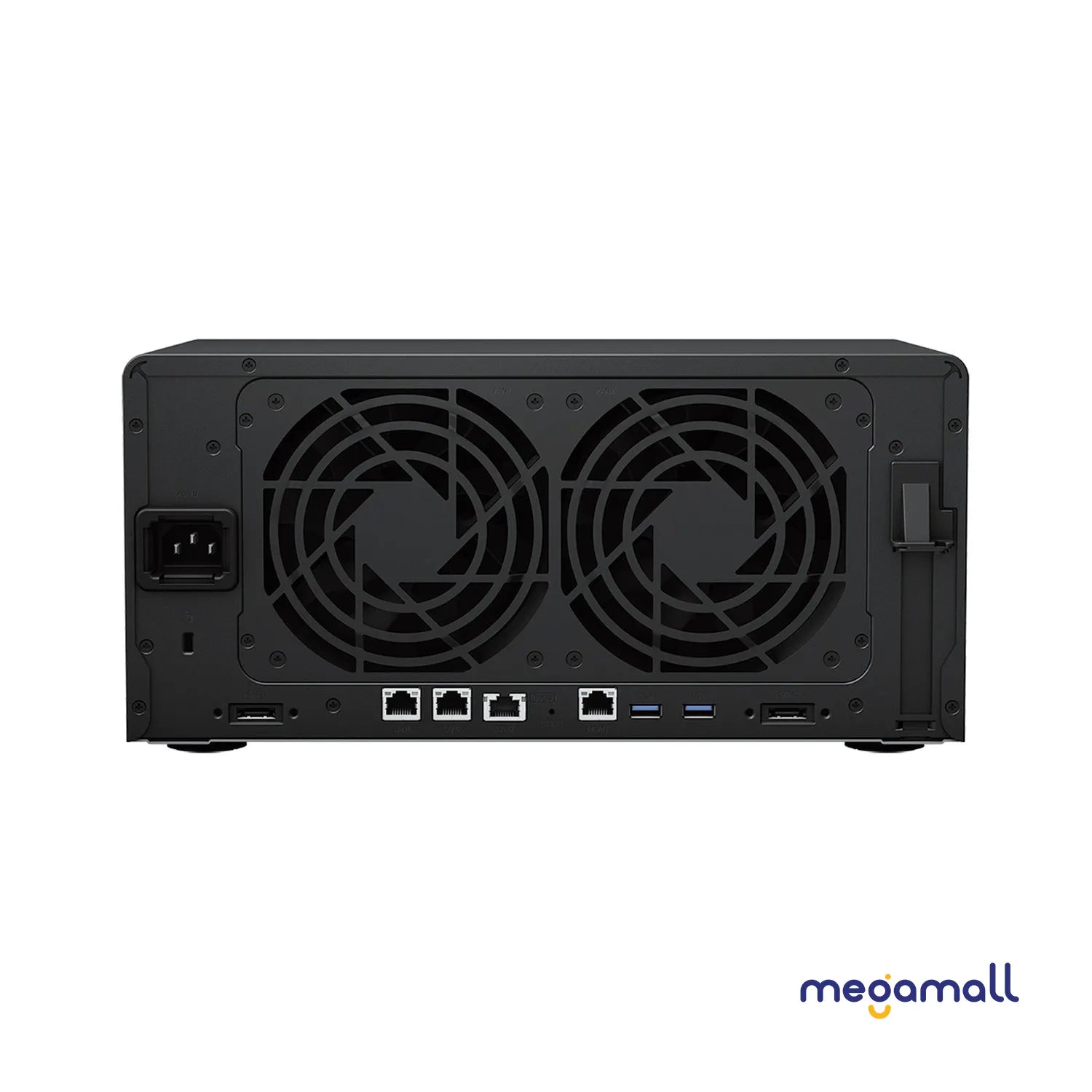

External Ports

RJ-45 1GbE LAN Port

2

RJ-45 10GbE LAN Port

1

Out-of-Band Management LAN Port

1

USB 3.2 Gen 1 Port

3

Expansion Port

2

Expansion Port Type

eSATA

Notes

MTU value of 1GbE LAN port has a limit of 1500.

PCIe

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

Appearance

Size (Height x Width x Depth)

166 mm x 343 mm x 243 mm

Weight

6.2 kg

Others

System Fan

120 mm x 120 mm x 2 pcs

Fan Speed Mode

Full-Speed Mode
Cool Mode
Quiet Mode

Easy Replacement System Fan

✓

Brightness Adjustable Front LED Indicators

✓

Power Recovery

✓

Noise Level*

23.6 dB(A)

Scheduled Power On / Off

✓

Wake on LAN / WAN

✓

Power Supply Unit / Adapter

250 watts

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

87.93 watts (Access)
28.37 watts (HDD Hibernation)

British Thermal Unit

300.23 BTU/hr (Access)
96.87 BTU/hr (HDD Hibernation)

Notes

For more information on how power consumption is measured, refer to this article.
Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Operating Humidity

8% to 80% RH

Storage Humidity

5% to 95% RH

Certification

Certification

FCC
CE
BSMI
VCCI
RCM
EAC
CCC
KC
BIS

Warranty

Warranty

5 Years

Notes

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

Environment

RoHS Compliant

Packaging Content

Packaging Content

Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1

Optional Accessories

Optional Accessories

DDR4 ECC SODIMM: D4ES03-8G/D4ES03-16G
Expansion Units: DX517
Enterprise Series 3.5" SATA HDD: HAT5300 Series
Plus Series 3.5" SATA HDD: HAT3300 Series
Enterprise Series 2.5" SATA SSD: SAT5200 Series
Enterprise Series M.2 2280 NVMe SSD: SNV3400 & SNV5400 Series
25GbE Network Interface Card: E25G30-F2
10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1
