CPU Model

AMD Ryzen V1780B

CPU Quantity

1

CPU Cores

4

CPU Threads

8

CPU Architecture

64-bit

CPU Frequency

✓

Hardware Encryption Engine

✓

Memory

System Memory

8 GB DDR4 ECC UDIMM

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.
For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage

Drive Bays

12

Maximum Drive Bays with Expansion Unit

24 (RX1223RP x 1)

Drive Type (See all supported drives)

3.5" SATA HDD
2.5" SATA SSD

Hot Swappable Drive*

Notes

Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.

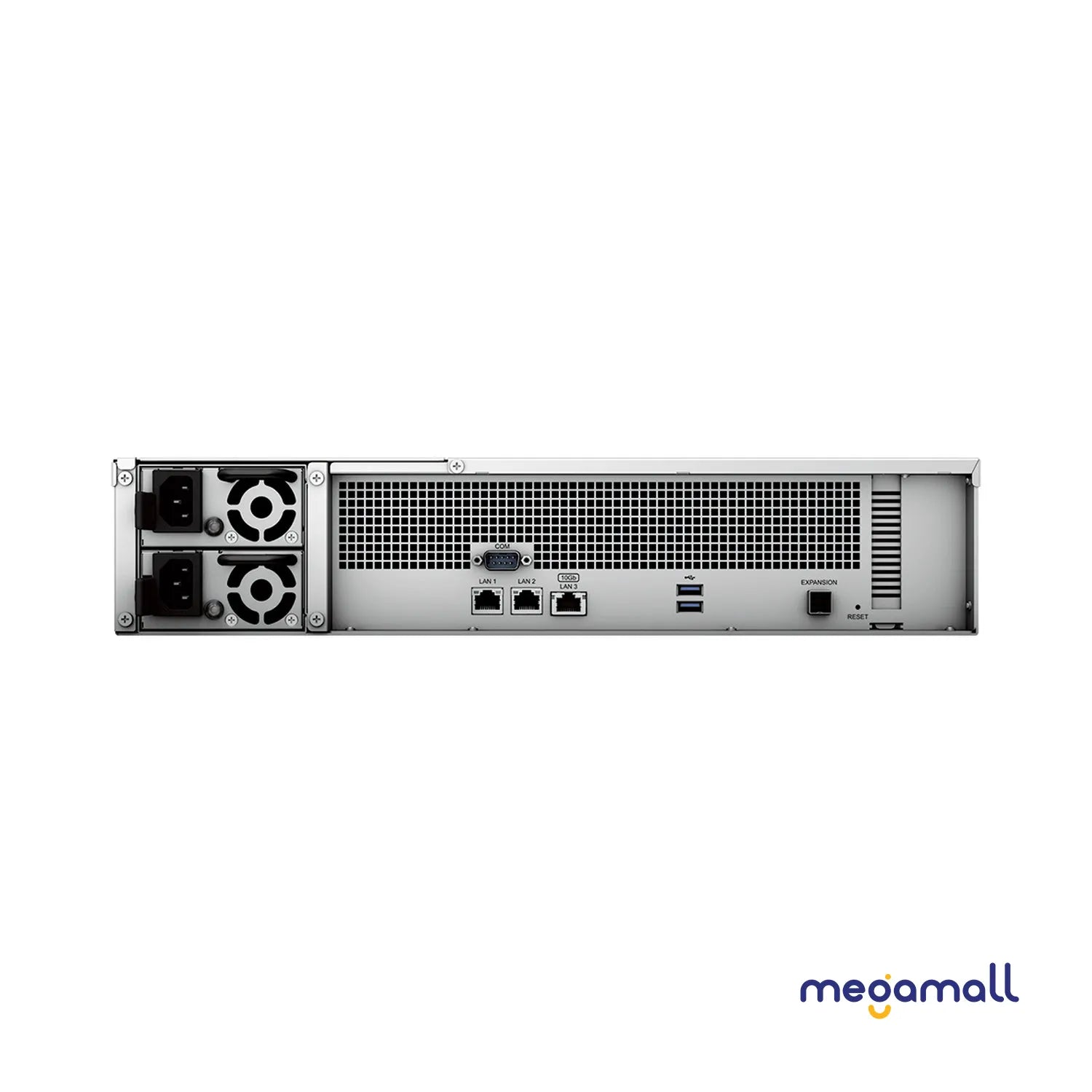

External Ports

RJ-45 1GbE LAN Port

2

RJ-45 10GbE LAN Port

1

USB 3.2 Gen 1 Port

2

Expansion Port

1

Expansion Port Type

Mini-SAS HD

Notes

This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.

PCIe

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

Appearance

Form Factor (RU)

2U

Size (Height x Width x Depth)

88 mm x 482 mm x 552 mm

Weight

11.5 kg

Rack Installation Support*

4-post 19" rack (Synology Rail Kit - RKS-02)

Notes

The rail kit is sold separately

Others

System Fan

60 mm x 60 mm x 3 pcs

Fan Speed Mode

Full-Speed Mode
Cool Mode
Quiet Mode

Easy Replacement System Fan

✓

Power Recovery

✓

Noise Level*

52.3 dB(A)

Scheduled Power On / Off

✓

Wake on LAN / WAN

✓

Power Supply Unit / Adapter

500 watts

Redundant Power Supply

✓

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

119.95 watts (Access)
46.21 watts (HDD Hibernation)

British Thermal Unit

409.56 BTU/hr (Access)
157.78 BTU/hr (HDD Hibernation)

Notes

For more information on how power consumption is measured, refer to this article.
Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Temperature

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Operating Humidity

8% to 80% RH

Storage Humidity

5% to 95% RH

Certification

FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
BIS
UL
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL

Warranty

Warranty

3-year hardware warranty

Notes

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.

Environment

Environment

RoHS Compliant

Packaging Content

Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
Quick Installation Guide X 1

Optional Accessories

DDR4 ECC UDIMM: D4EU02-8G/D4EU02-16G
Expansion Units: RX1223RP
Enterprise Series 3.5" SATA HDD: HAT5300 Series
Plus Series 3.5" SATA HDD: HAT3300 Series
Enterprise Series 2.5" SATA SSD: SAT5200 Series
M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
M.2 SSD Adapter Card: M2D20
25GbE Network Interface Card: E25G30-F2
10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1
Rail Kit Sliding: RKS-02

Notes

For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
