Description

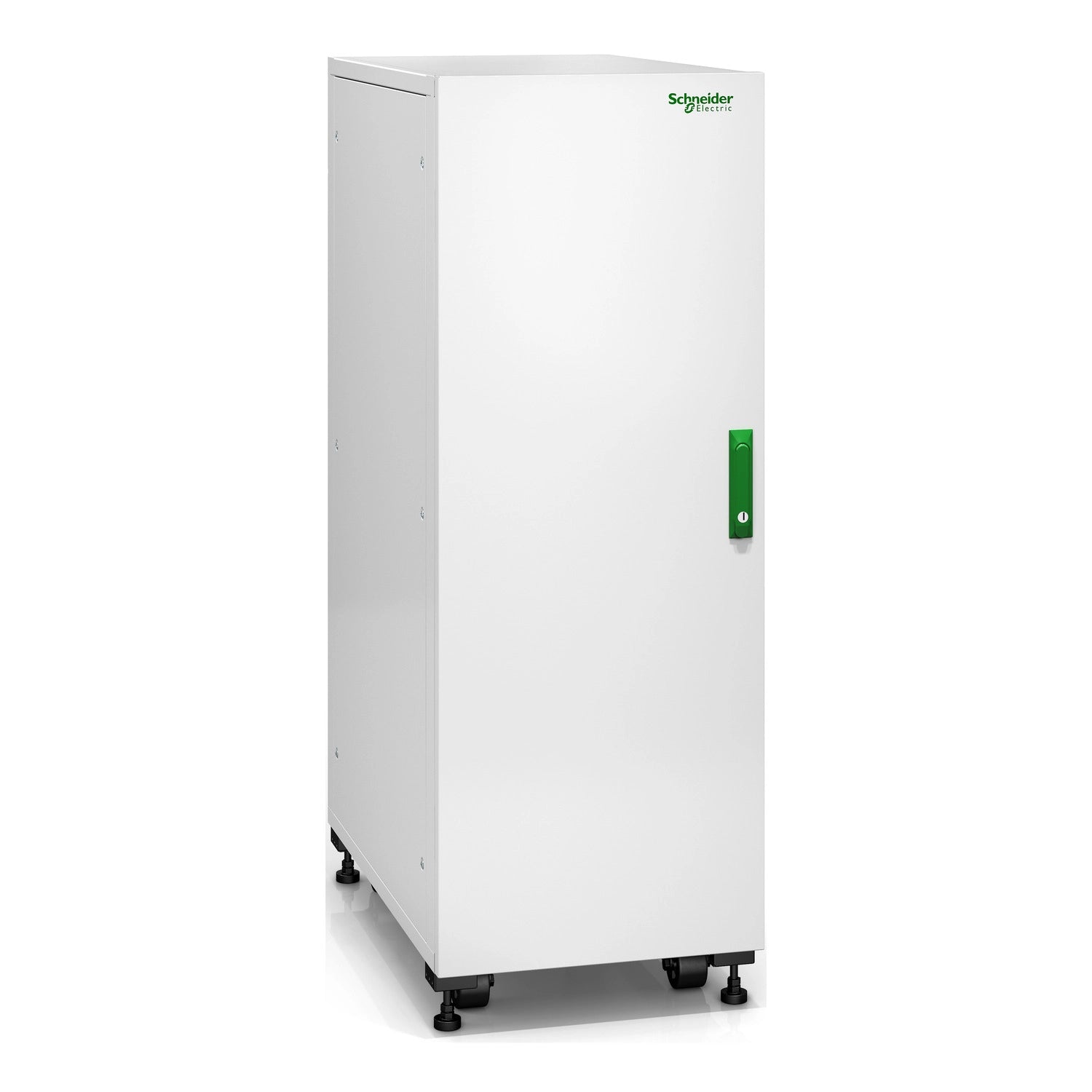

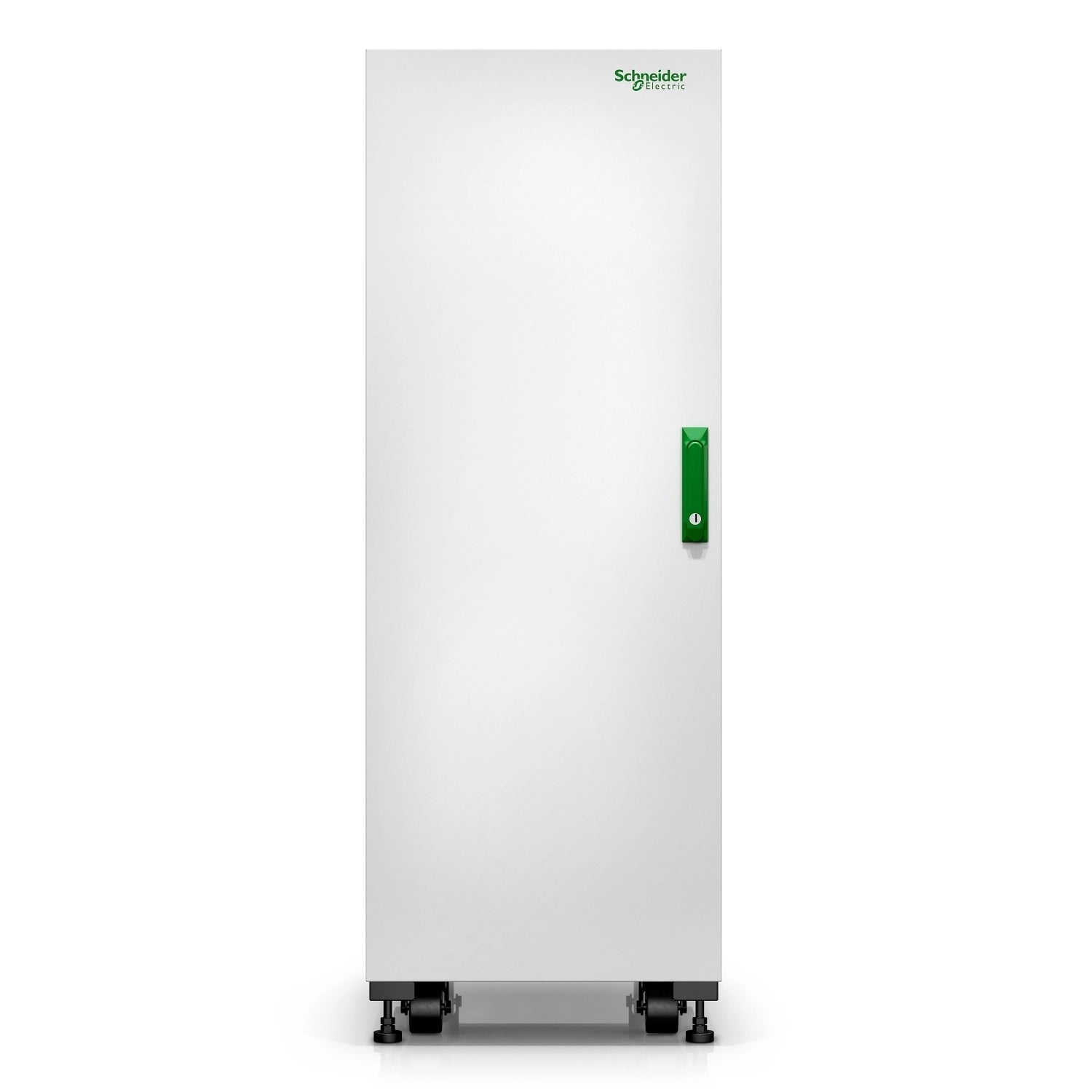

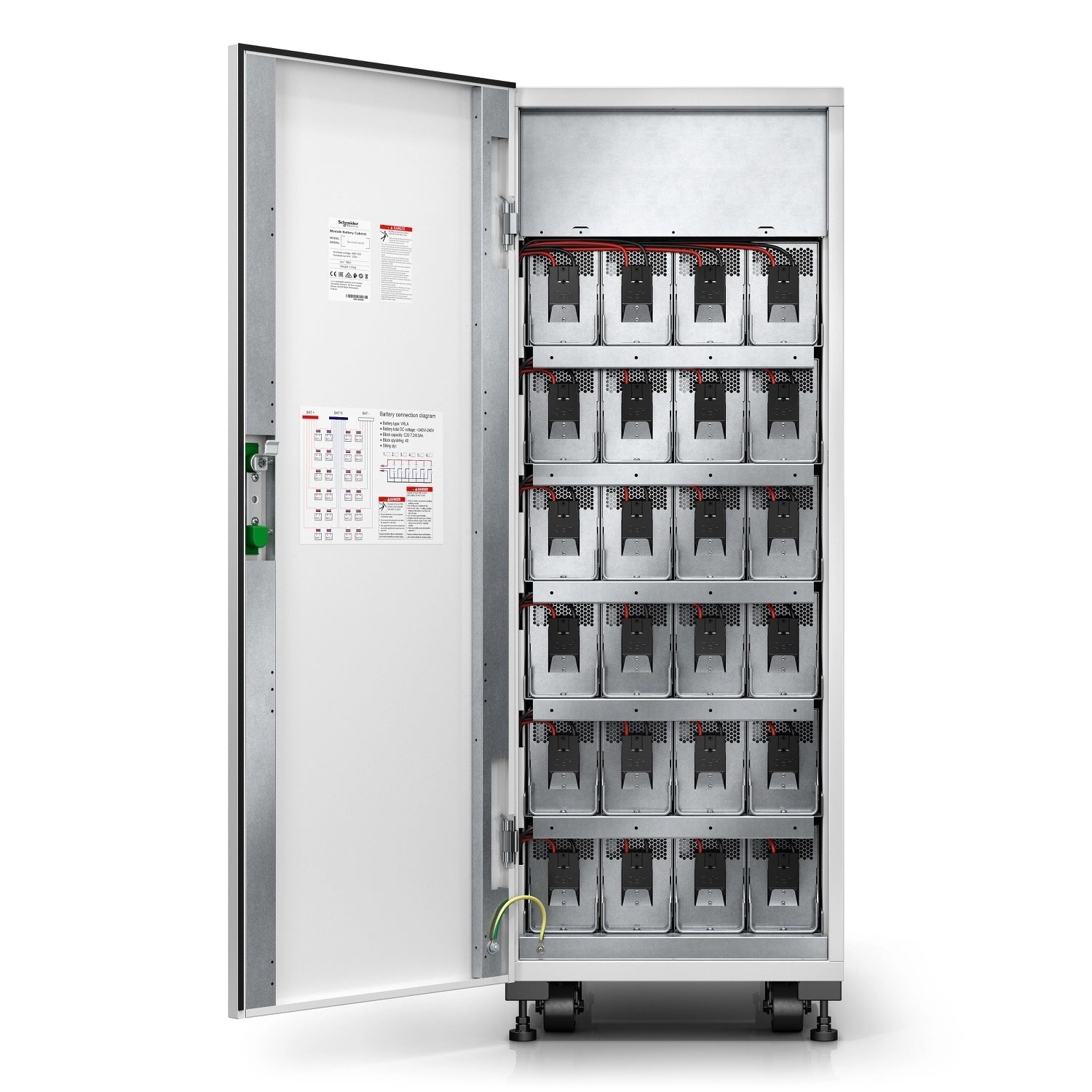

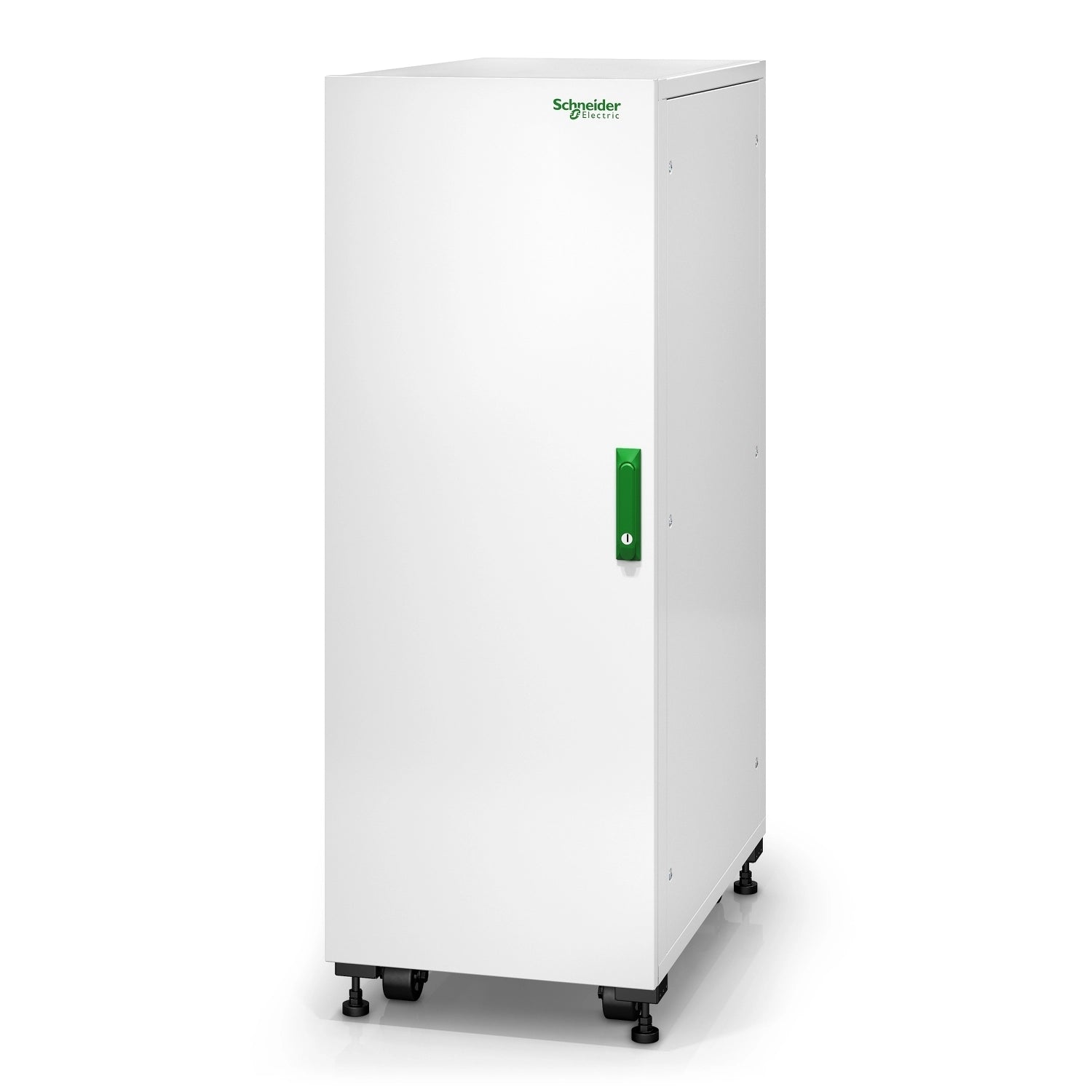

Modular battery cabinet E3SXR6 for extended runtime for UPSs with internal batteries. The cabinet is supplied without batteries, so batteries must be purchased separately. Up to six battery strings (E3SBT4 or E3SBTH4) can be installed in the cabinet.
- Cabinet for modular VRLA batteries (sold separately)
- Compatible with Easy UPS 3S with internal battery slots
- Install up to 6 battery strings
- 500 mm wide footprint
| Overview | |
| Presentation | Modular battery cabinet for extended runtime for UPSs with internal batteries. The cabinet is supplied without batteries, so batteries must be purchased separately. Up to six battery strings (E3SBT4 or E3SBTH4) can be installed in the cabinet. |
| Main | |
| Product or component type | Battery cabinet |
| Battery type | VRLA |
| Provided equipment | All connections for adjacent installation with UPS |
| Installation guide | |
| Batteries & Runtime | |
| Number of battery free slots | 6 |
| Number of battery filled slots | 0 |
| battery power in VAh | 0 VAh |
| Physical | |
| Height | 140 cm |
| Width | 50 cm |
| Depth | 94.9 cm |
| Product weight | 125 kg |
| Mounting mode | Not rack-mountable |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 102.000 cm |
| Package 1 Width | 65.000 cm |
| Package 1 Length | 162.000 cm |
| Package 1 Weight | 139.990 kg |
