Description

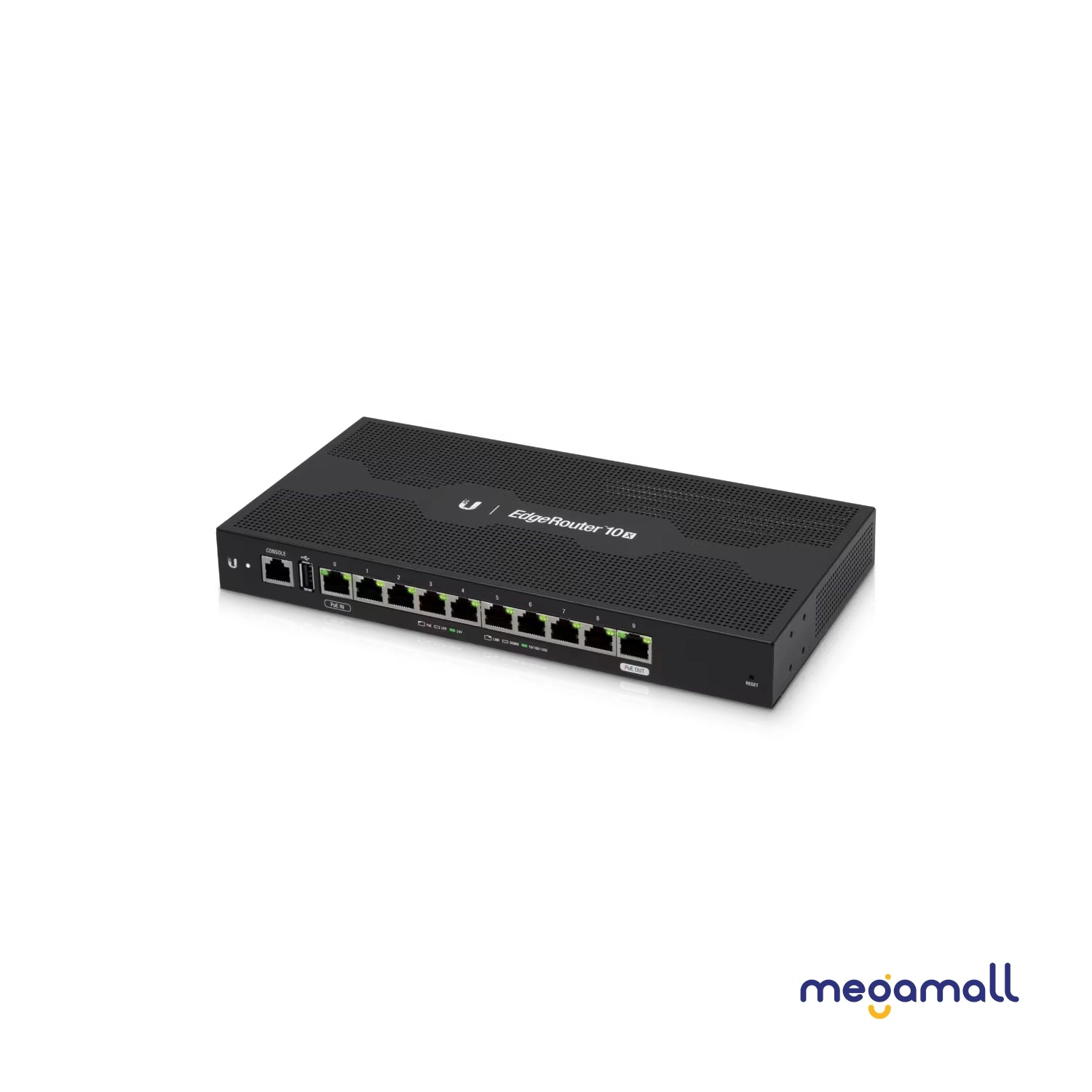

Gigabit router with a built-in Layer 2 switch, (10) Gigabit RJ45 ports, a PoE input, and PoE passthrough port.
|
Technical |
|
|
Mechanical |
|
|
Dimensions |
268.1 x 136.5 x 31.1 mm (10.6 x 5.4 x 1.2") |
|
Weight |
600 g (1.3 lb) |
|
Hardware |
|
|
Processor |
Dual-core 880 MHz, MIPS1004Kc |
|
System memory |
512 MB DDR3 RAM |
|
On-board flash storage |
512 MB NAND |
|
Networking interface |
(10) 10/100/1000 RJ45 ports |
|
Management interface |
(1) RJ45 serial port |
|
PoE interface |
PoE In: (1) 24V passive PoE port, 2-pair (4, 5+; 7, 8-) |
|
PoE Out: (1) 24V passive PoE port, 2-pair (4, 5+; 7, 8-) |
|
|
Power method |
AC/DC power adapter, 24W, 24V, 1A (Included) |
|
24V passive PoE |
|
|
Power supply |
External AC/DC adapter |
|
Supported voltage range |
DC: 9-30V DC |
|
24V passive PoE: 20-30V DC |
|
|
Max. power consumption |
8W (Excludes PoE output) |
|
Passive PoE Max. wattage per port |
15W (24V, 0.63A) |
|
Passive PoE output |
DC/PoE passthrough |
|
Button |
Factory reset |
|
LEDs |
Link/activity, PoE |
|
Layer 3 forwarding performance |
Packet size: 64 bytes - 260,000 pps |
|
Packet size: 1518 bytes or larger - 1 Gbps (Line rate) |
|
|
Mounting |
Wall, rack* |
|
With optional rack mount kit, model ER-RMKIT. |
|
|
Ambient operating temperature |
-10 to 45° C (14 to 113° F) |
|
Ambient operating humidity |
10 to 90% noncondensing |
|
Certifications |
CE, FCC, IC |
|
NDAA Compliant |
Yes |
