Description

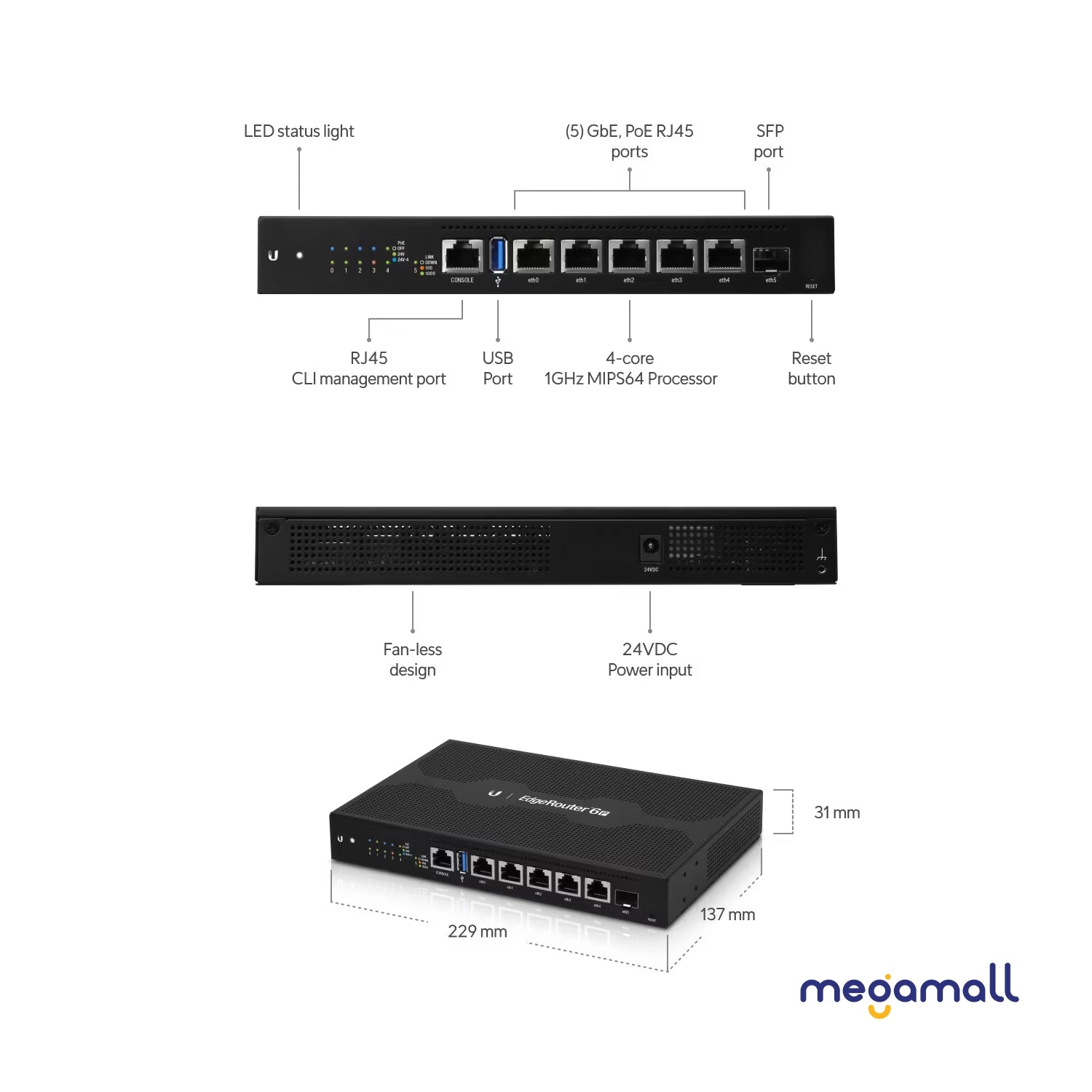

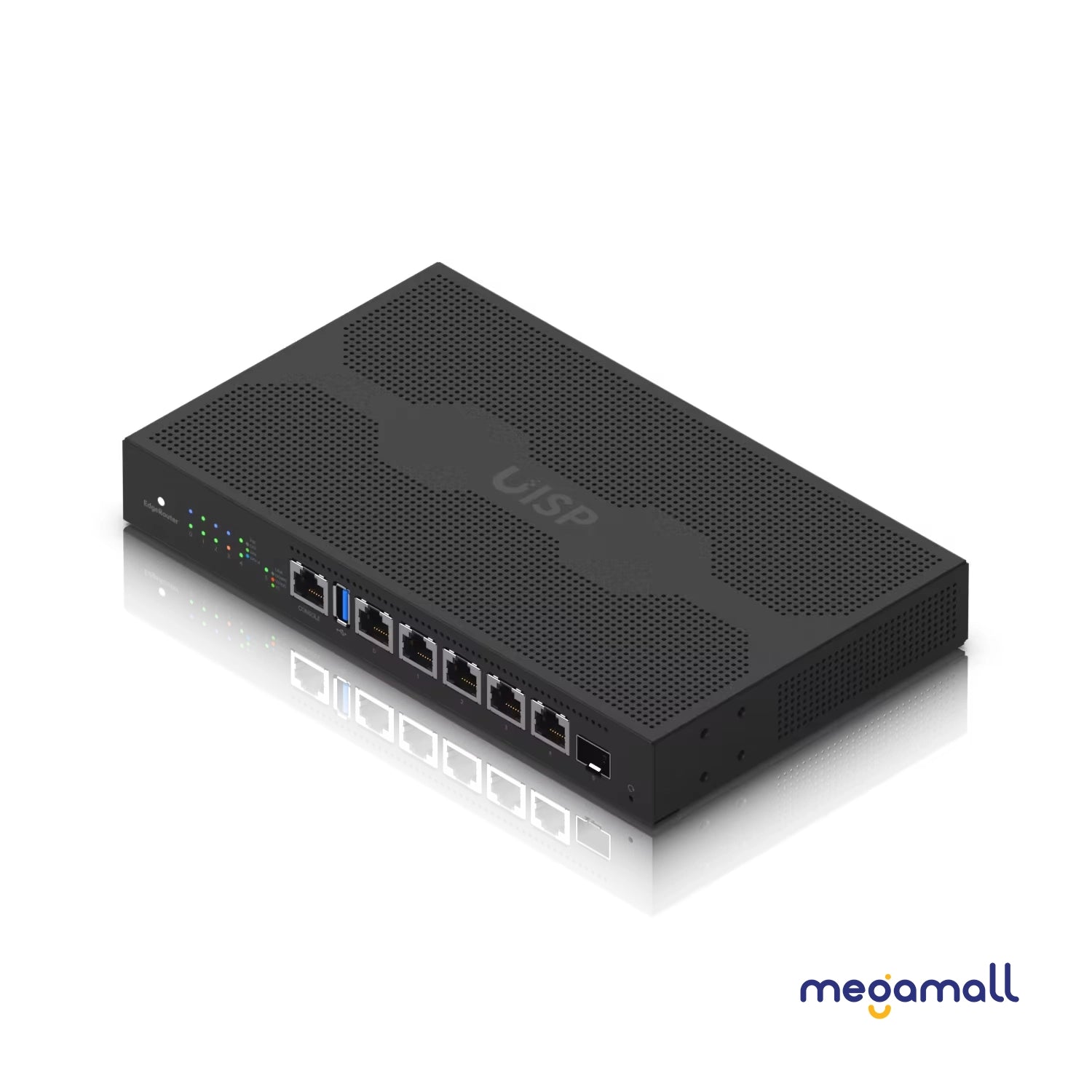

Fanless router with a four-core, 1 GHz MIPS64 processor, (5) Gigabit RJ45 ports, and an SFP port.
|
Mechanical |
|
|
Dimensions |
229 x 136.5 x 31.1 mm (9 x 5.4 x 1.2") |
|
Weight |
730 g (1.6 lb) |
|
Enclosure material |
Metal |
|
Hardware |
|
|
System memory |
1GB DDR3 RAM |
|
On-board flash storage |
4GB eMMC |
|
8MB SPI NOR |
|
|
Management interface |
(1) RJ45 serial port |
|
Networking interface |

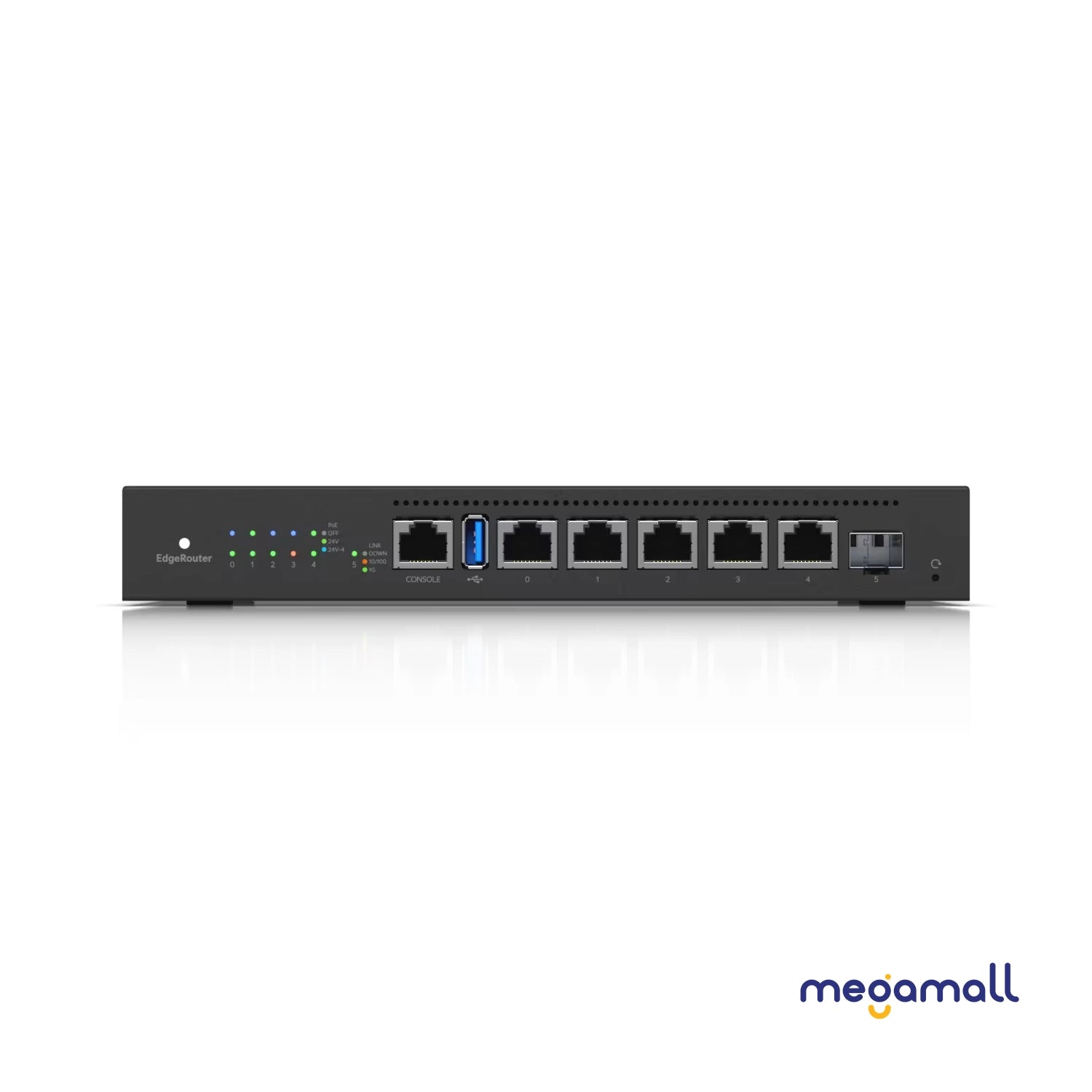

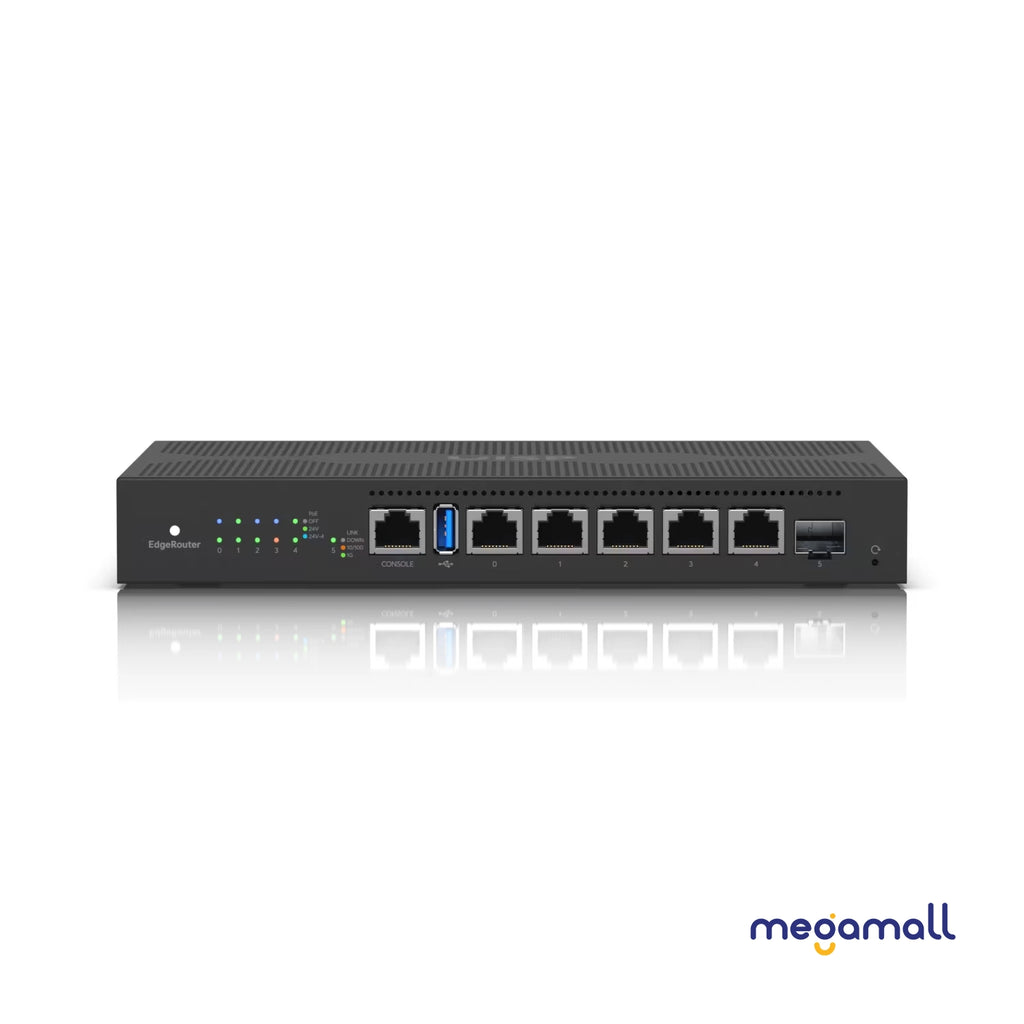

(5) GbE RJ45 ports |
|
(1) 1G SFP port |
|
|
PoE interface |
(5) 24V Passive PoE ports (2-pair and 4-pair) |
|
Power method |
AC/DC power adapter, 24V, 2.5A (Included) |
|
Power supply |
AC/DC adapter, external, 60W |
|
Supported voltage range |
16–30V DC |
|
Max. power consumption |
16W (Excluding PoE output) |
|
Max. PoE wattage per port |
24W (24V, 1A, 4-pair) |
|
12W (24V, 0.5A, 2-pair) |
|
|
LEDs |
Ethernet ports: PoE, link/speed/activity |
|
SFP port: link/activity |
|
|
Button |
Factory reset |
|
Mounting |
Wall, rack* |
|
*With optional Rack Mount Kit, model ER-RMKIT. |
|
|
Ambient operating temperature |
-10 to 50° C (14 to 122° F) |
|
Ambient operating humidity |
10 to 90% noncondensing |
|
Certifications |
CE, FCC, IC |
|
NDAA Compliant |
Yes |
