Description

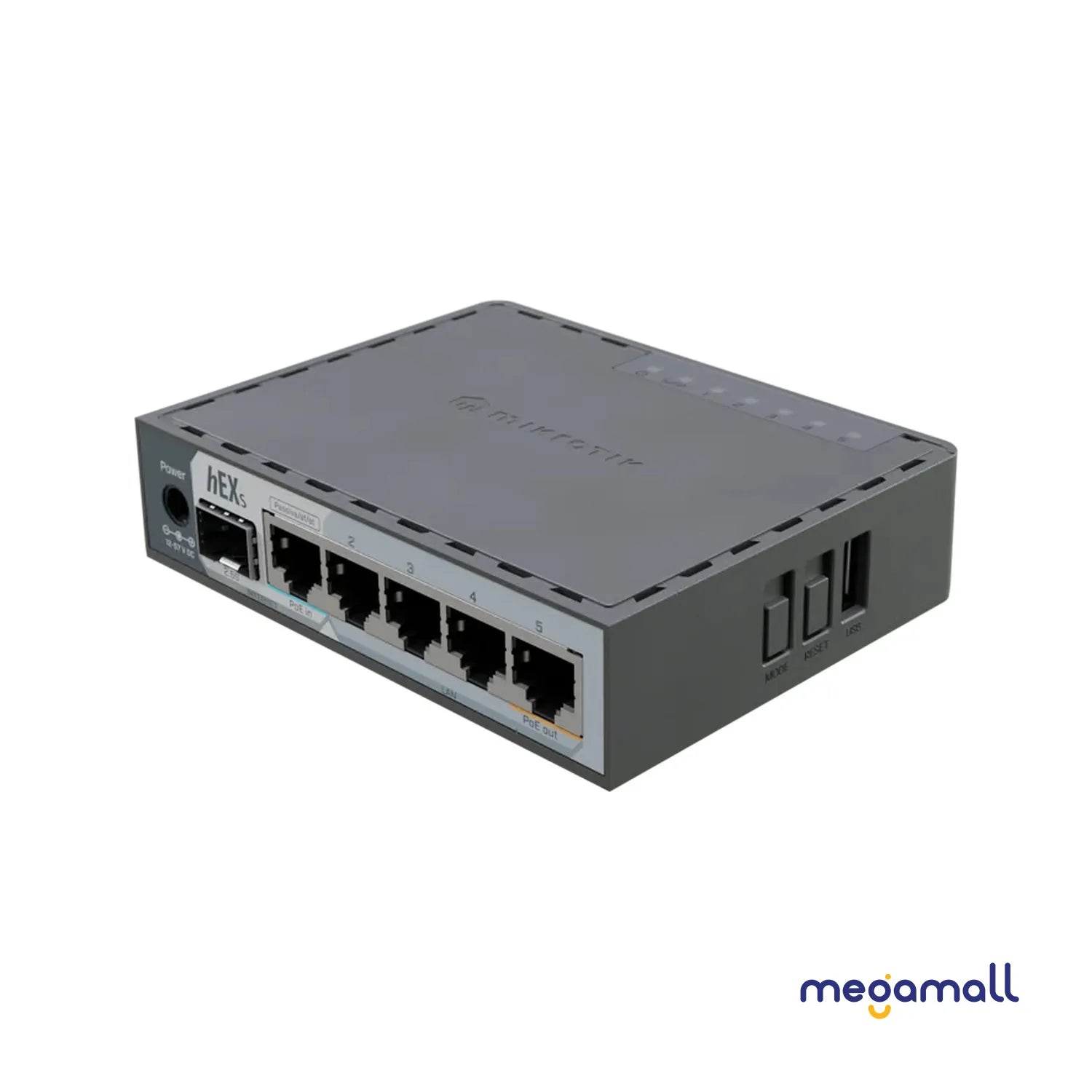

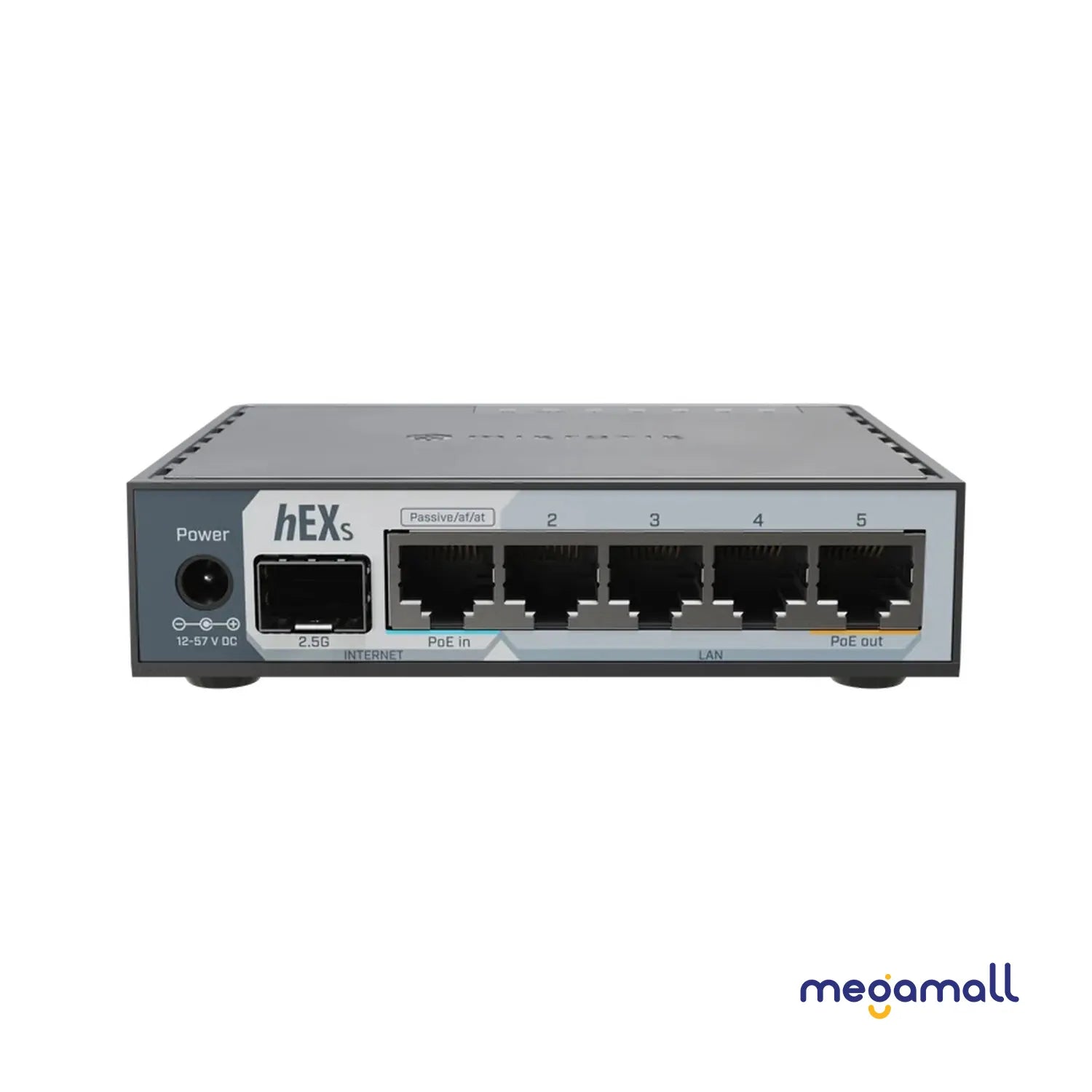

A compact, affordable wired router featuring a 2.5G SFP port, 5x Gigabit Ethernet, PoE out, USB, and a fast dual-core CPU – ideal for homes, offices, or underfunded labs that need reliable performance.
|
Specifications |
|
|
Product code |
E60iUGS |
|
Architecture |
ARM 32bit |
|
CPU |
EN7562CT |
|
CPU core count |
2 |
|
CPU nominal frequency |
950 MHz |
|
CPU Threads count |
2 |
|
Switch chip model |
EN7523 |
|
RouterOS license |
4 |
|
Operating System |
RouterOS v7 |
|
Size of RAM |
512 MB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF |
Approximately 100'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
12-57 V |
|
Max power consumption |
23 W |
|
Max power consumption without attachments |
5 W |
|
PoE in |
802.3af/at |
|
Cooling type |
Passive |
|
PoE in input Voltage |
18-57 V |
|
PoE-out |
|
|
PoE-out ports |
Ether5 |
|
PoE out |
Passive PoE up to 57V |
|
Low voltage PoE-Out current limit |
0.5 A |
|
High voltage PoE-Out current limit |
0.5 A |
|
Ethernet |
|
|
10/100/1000 Ethernet ports |
5 |
|
Number of 1G Ethernet ports with PoE-out |
1 |
|
Fiber |
|
|
SFP ports |
1 (2.5G supported) |
|
Peripherals |
|
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB 3.0 type A |
|
Max USB current (A) |
1 |
|
Other |
|
|
CPU temperature monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Mode button |
Yes |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
20 |
|
Included Parts |
24V 1.2A power adapter |
|
Note |
|
|
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase. |
|
|
Warranty Information |
|
|
Warranty |
1 Year(s) |
