Description

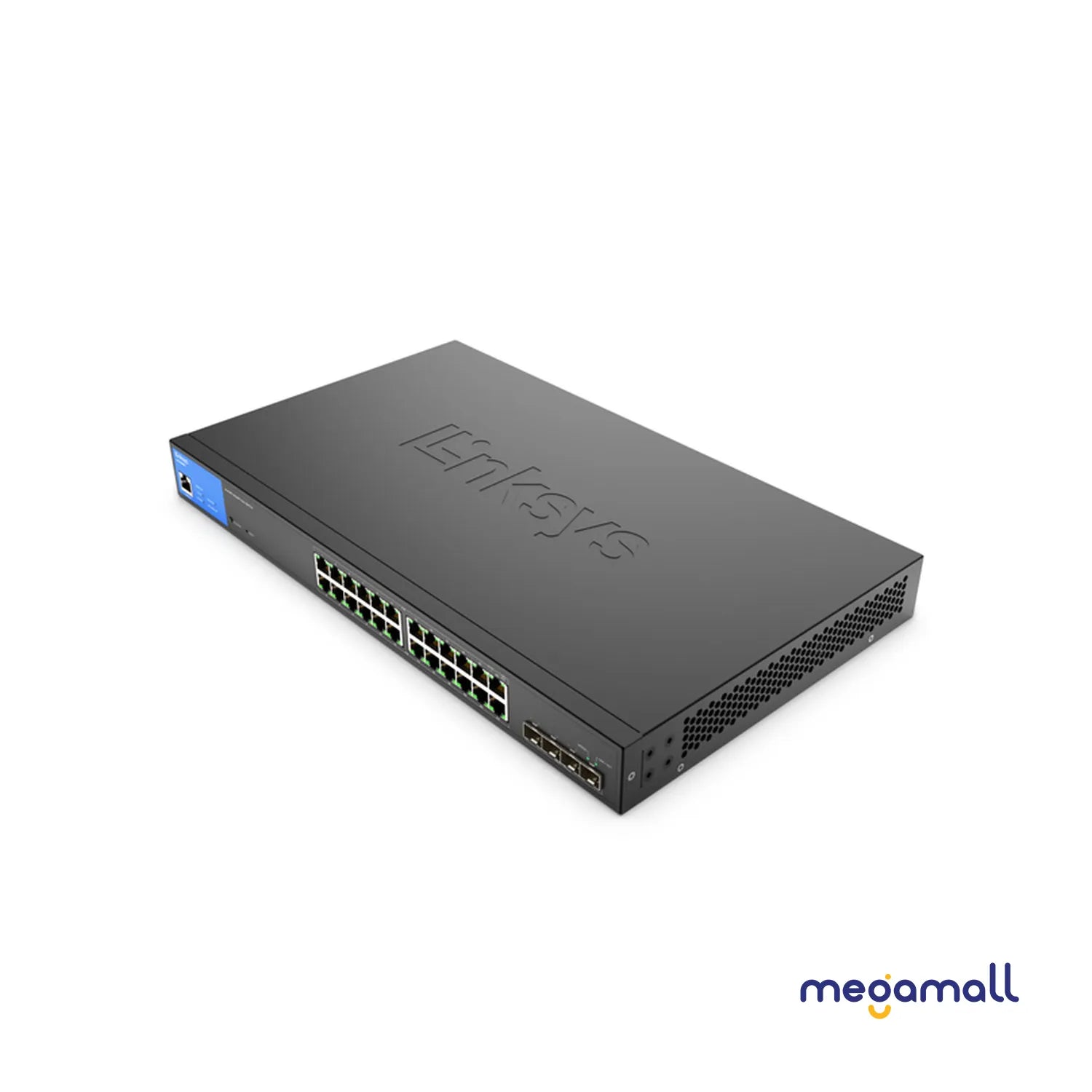

The Linksys LGS328MPC 24-Port Managed Gigabit PoE+ Switch is designed for business-class management, security, speed, and quality of service with 24 Gigabit Ethernet PoE+ ports, 4 10G SFP+ uplinks and 410W of total PoE power budget.
- Integrated Power over Ethernet Plus (410W)
- 10G SFP+ Uplink Ports (4)
- Advanced Network Security and QoS
- TAA Compliant
|
Switch Type |
Managed |
| Switch Ports | 24 |
| PoE+ Budget | 251W - 410W |
| PoE Support | Yes |
| Power Consumption | 500.46W |
| Jumbo Frame (FE, GE) | 12Kbytes |

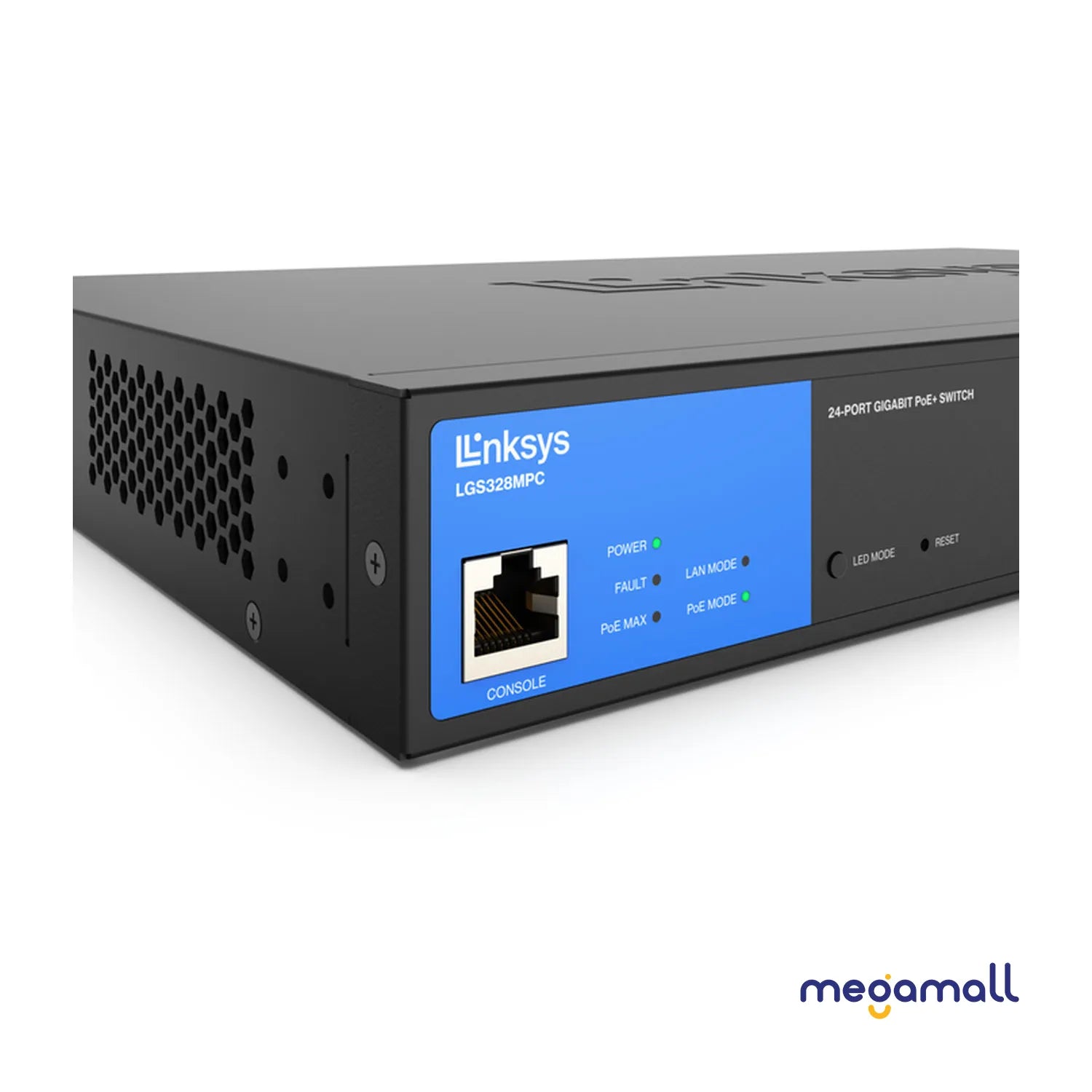

| LEDs | Power, Fault, PoE Max, LAN Mode, PoE Mode |
| VLAN | Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support |
| Memory | 512MB |
| Forwarding Rate | 95.4 Mpps |
| Dimensions (LxWxH) |
|
| Weight | 3798 g (8.73 lb) |
| Number of VLANs Supported | 256 active VLANs (4,096 range) |
| Operating Humidity | 10 to 90% RH |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Ports | 24 Gigabit Ethernet 4 10G SFP+ |
| Power Dedicated to PoE+ | 410W |
|
Security Features |
|
| Rate Limiting | Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps |
| Power Input | 100–240V / 50–60 Hz / 7A |
| Spanning Tree | IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances) |
| Quality Of Service | 8 hardware queues Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based Strict, Weighted Round Robin (WRR) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| RMON | Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis |
| MAC Address Table Size | 16K |
| Switching Capacity | 128 Gbps |
| HOL Blocking Prevention | Head of line (HOL) blocking prevention |
| Auto Voice VLAN | Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels |
|
Other Management |
Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP |
| Link Aggregation | IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group |
| Access Control | Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny |
| Storm Control | Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps |
| Management Interface |
|
| Routing | Static Routing, IPv4 (63 max entries), IPv6 (21 max entries) |
| SNMP |
|

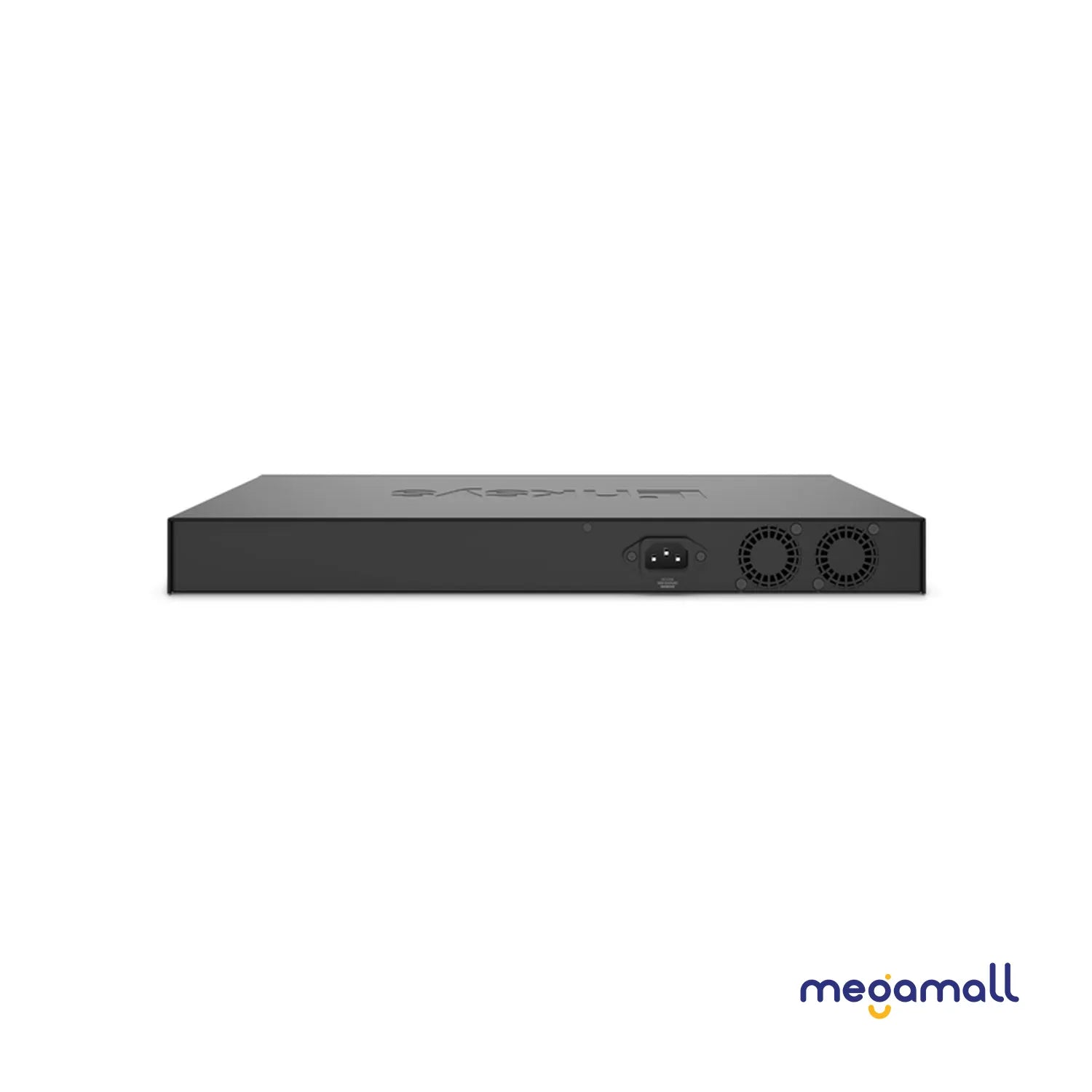

| Fans | 2, 8200 rpm (at full speed) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| IGMP Snooping | IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups |
| Power Saving | EEE |
| Port Mirroring | Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer |
| Firmware Upgrade |
|
| Warranty | 3 years |
