Mechanical

Dimensions

196 x 93 x 32 mm ( 7.7 x 3.7 x 1.3")

Weight

269 g (9.5 oz)

Enclosure material

White polycarbonate

Hardware

Networking interface

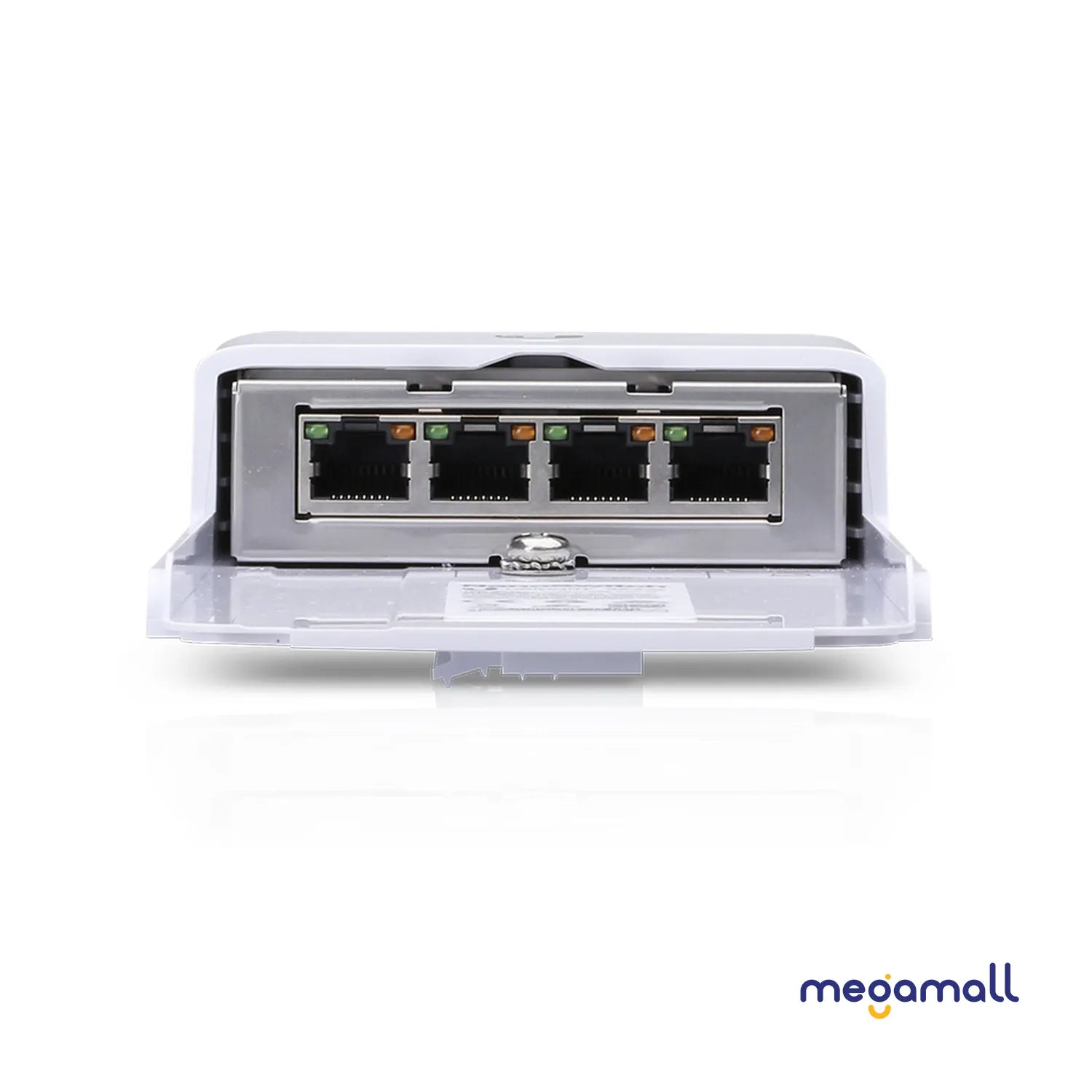

(4) GbE RJ45 ports [(1) PoE-in, (3) PoE passthrough]

Total non-blocking line rate

4 Gbps

Power method

Passive 24V, 2-pair PoE-in

Supported voltage range

21.6–30V

Power consumption

Typical: 1.5W

Max.: 30W

Power supply

POE-24-30W-G PoE adapter (Not included)

ESD/EMP protection

Air/contact: ± 24 kV

Passive PoE Max. Wattage per port

24V, 2-pair, 1A per port (24W)

Total passive PoE Max. Wattaget

24V, 2-pair, 1A for 3 ports (30W)

LEDs

Speed/Link/Activity (All ports)

Ambient operating temperature

-30 to 70° C (-22 to 158° F)

Ambient operating humidity

5 to 95% noncondensing

NDAA Compliant

Yes
