Description

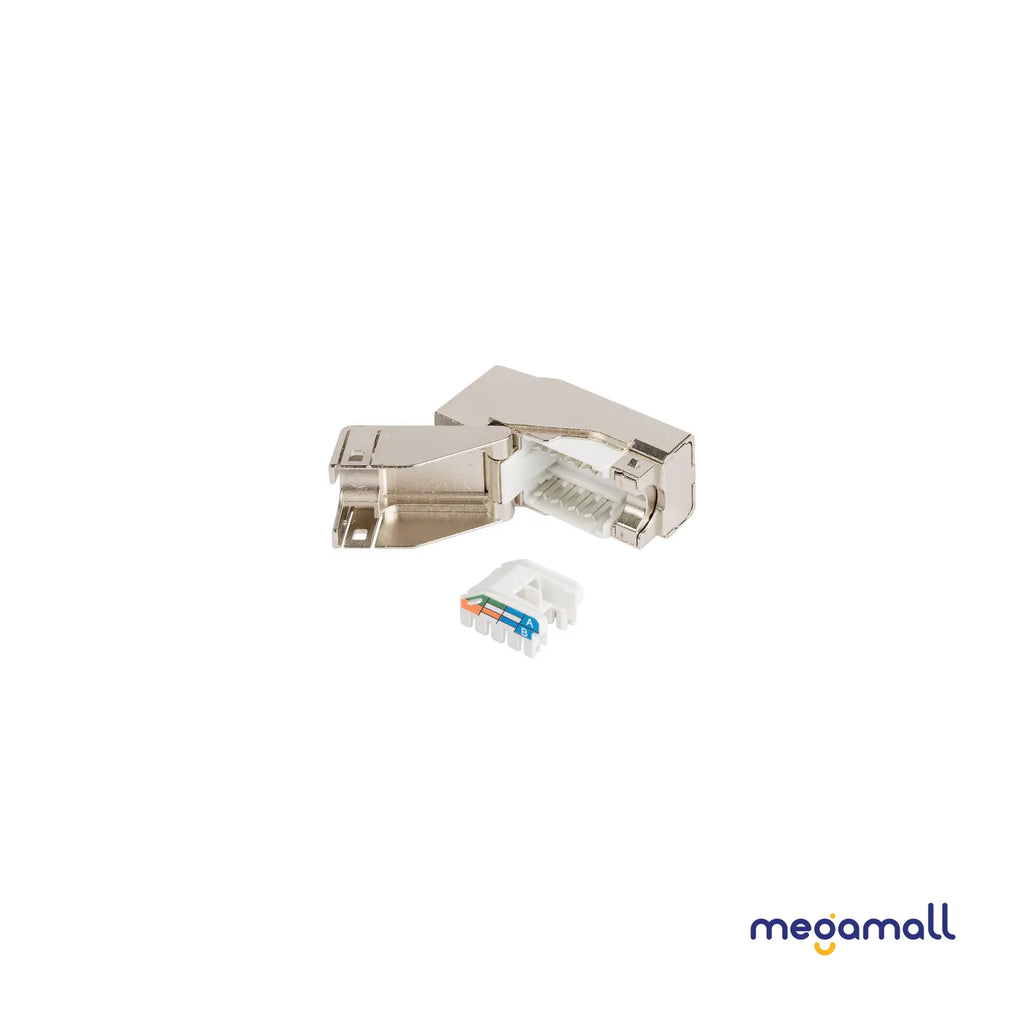

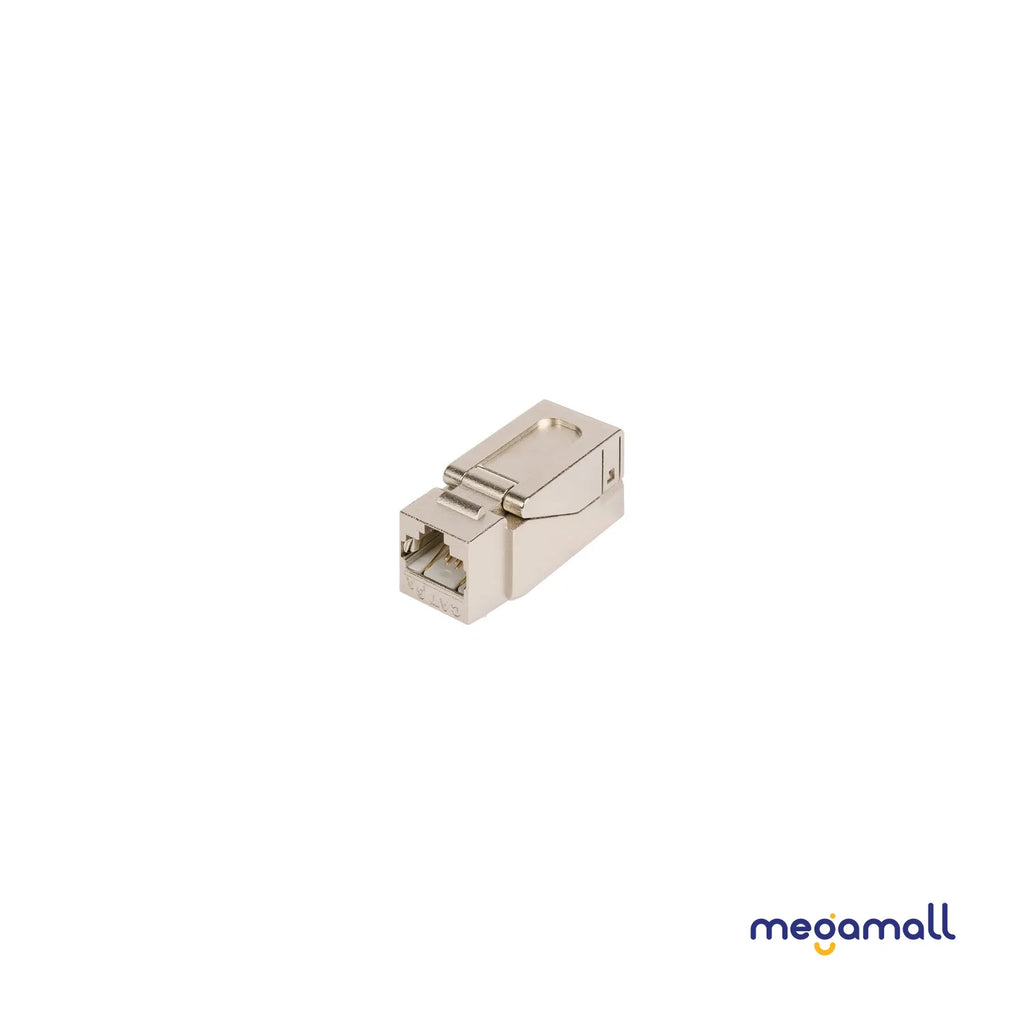

NIKOMAX Toolless jacks («NT» series), do not require a special tool for termination. The inner insert provides convenient and high quality termination with enhanced crosstalk characteristics. The jacks are fully compatible with all NIKOMAX components. Only 17 mm width and a standard height allows you to install them in any snap-in patch panels, including high density models with 0.5U height. NMC-KJSA2-NT-MT (Cat.6A), are made in fully shielded, zinc-aluminum alloy housing. After install, a shielded cable will be safely clamped between the hinged lid and the module’s built- in spring-loaded clip body. This design provides a constant and close contact with the screen, do not worsen over time.
|
Category |
6A |
|
Bandwidth, MHz |
500 |
|
Connection style |
Fully shielded |
|
Compliance |
Exceeds the requirements of the standards: ISO / IEC 11801, EN 50173 and ANSI / TIA -568-C.2 |
|
Supported applications |
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 10G-BASE-T (For Cat. 6 & 6А), ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive |
|
Temperature ranges |
Storage from -40 to +70 ° C. Installation from 0 to +50 ° C. Operation from -10 to +60 ° C |
|
Warranty |
5 years - extended; 25 years - as part of the certified NIKOMAX SCS |
|
Connector type |
RJ45/8P8C |
|
Connector material in connector |
Phosphor bronze |
|
Contact coating material |
Gold (50 micro-inches) over nickel (100 micro-inches) |
|
Number of cable connections |
Not less than 750 |
|
Type of IDC contacts (seal) |
Tool-Less |
|
Layout diagram |
T568A/B |
|
IDC Contact material |
Phosphor bronze |
|
IDC coating material |
Tin (100 micro-inches) |
|
Plastic material |
High-strength, non-flammable, compliant to UL94V-0 |
|
Installation |
Patch panels, surface mount box, faceplate |
|
Protection level |
Metallic (nickel) |
|
Insulation resistance |
At least 500 MΩ(at a constant voltage of 100 V) |
|
Maximum load-bearing capacity |
Up to 1000 V, 60 Hz for 1 minute |
|
Contact resistance, μΩ |
Not more than 20 |
|
IDC Contact resistance, μΩ |
Not more than 2.5 |
|
Permissible diameter of conductors |
~23-22 AWG (0.545-0.65 mm) |
|
Format |
Keystone |
|
Housing material |
Zinc-aluminum alloy |
|
Dimensions (WxHxD), mm |
17х19х40 |
|
Packaging |
Individual - Plastic bag |
