Description

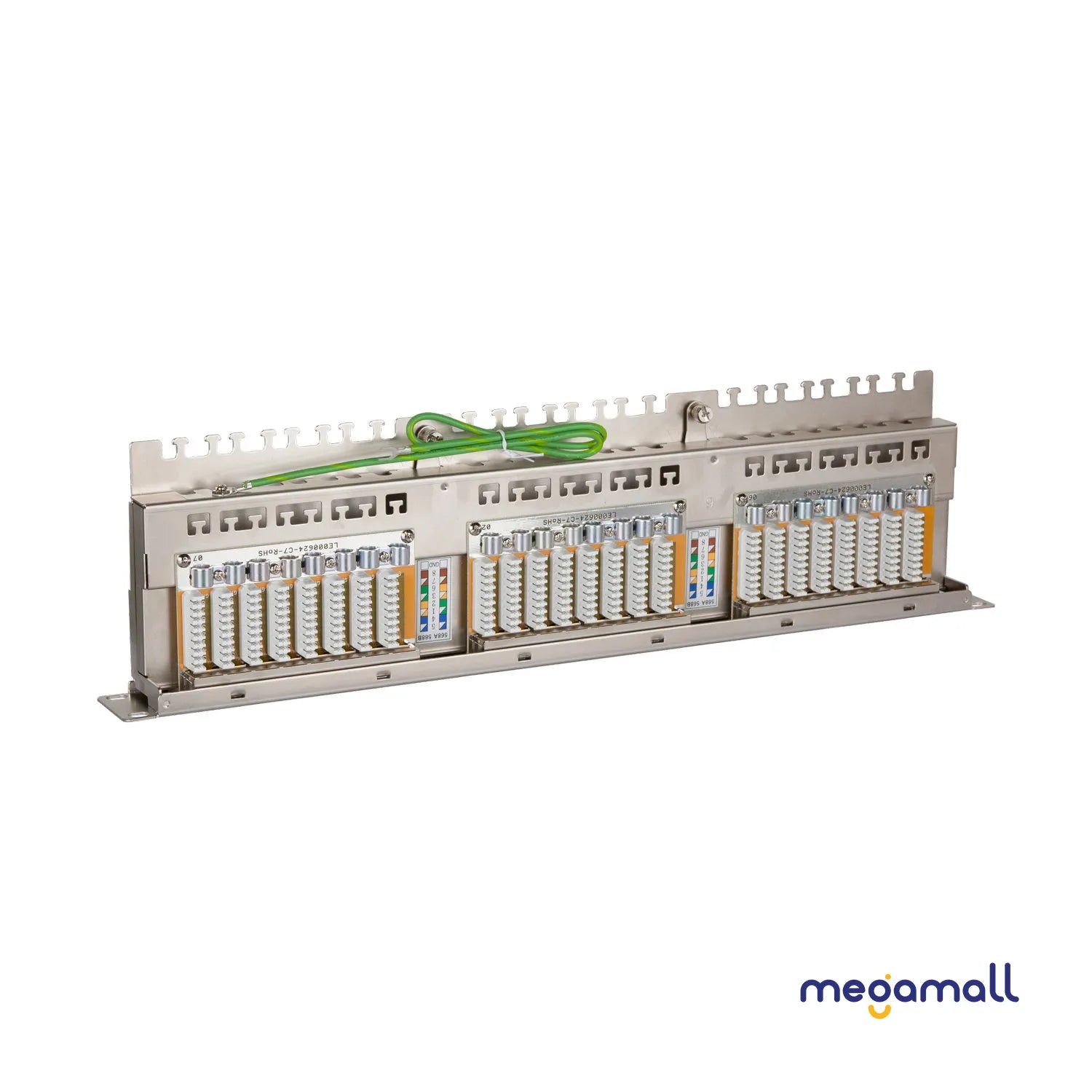

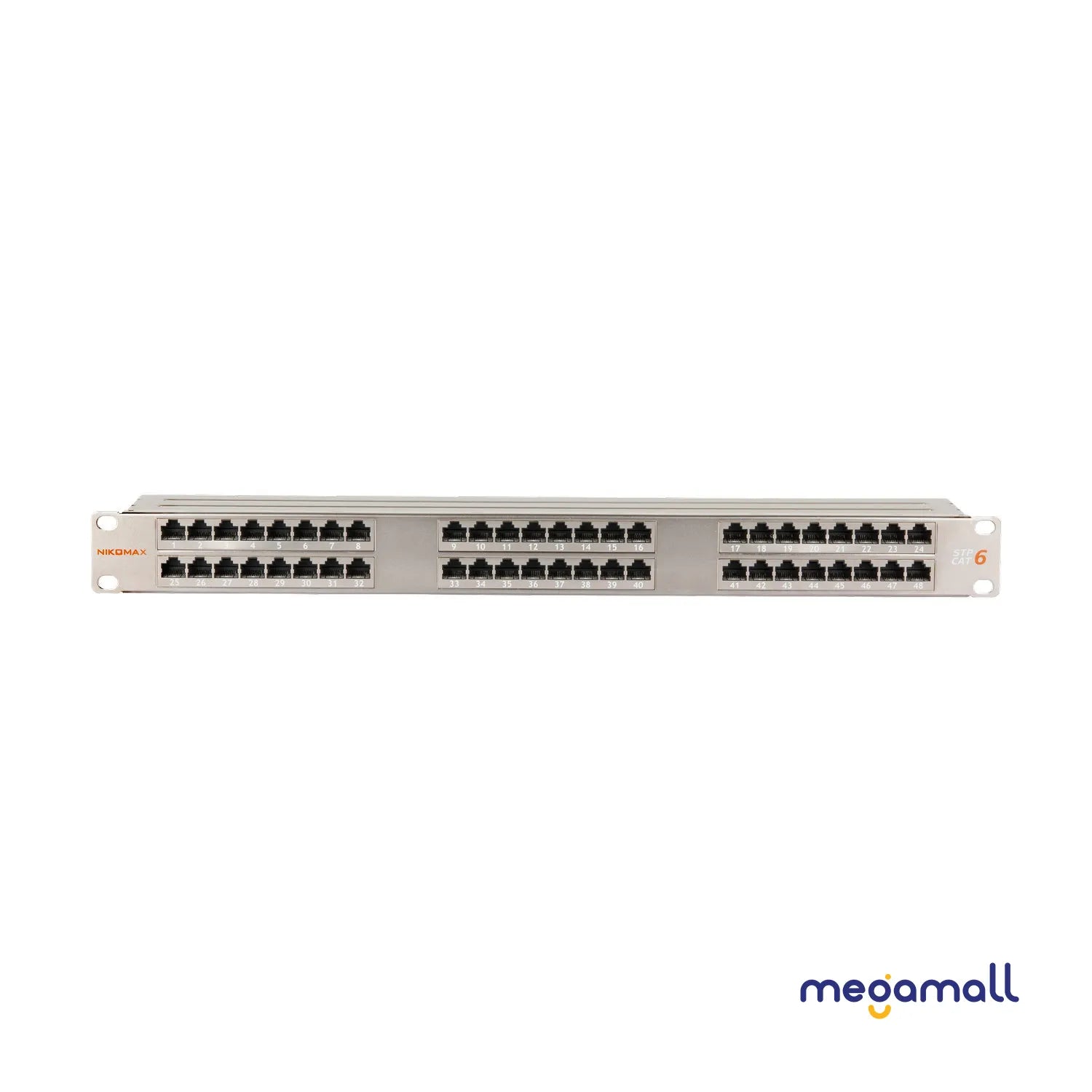

Shielded Patch Panels are designed for connecting different SCS subsystems and network equipment to each other with patch cords. NIKOMAX shielded patch panel are intended for installation in a 19’’cabinet or rack. NIKOMAX NMC-RP48SE2-1U-MT (Cat.6), high-density panels with shielded housings are intended for installation in 19’’ cabinets and racks. The panel contain 48 port RJ45/8P8C at a standard height of 1U only. This solution is ideal when it is necessary to provide a high port density (e.g., data centers) or to extend the network in the limited space of the cabinet. Universal IDC contacts for 110 / KRONE type knives are located on the rear side of panels . There are two wiring standards: T568 A and B. A built-in organizer for secure fastening of cables.
|
Category |
6 |
|
Bandwidth, MHz |
250 |
|
Connection style |
Shielded |
|
Connector type |
RJ45 / 8P8C |
|
Contact coating material |
Gold (50 micro-inches) over nickel (100 micro-inches) |
|
IDC Contact material |
Phosphor bronze |
|
IDC coating material |
Tin (100 micro-inches) |
|
Insulation resistance |
Not less than 500 M |
|
Maximum load-bearing capacity |
Up to 1000 V, 60 Hz for 1 minute |
|
Contact resistance, μΩ |
Not more than 20 |
|
IDC Contact resistance, μΩ |
Not more than 2.5 |
|
Permissible diameter of conductors |
~24-22 AWG (0.50-0.65 м) |
|
Depth in rack (with organizer), mm |
123 mm |
|
Number of ports |
48 |
|
Type of IDC contacts (seal) |
110/KRONE |
|
Number of cable connections |
Not less than 750 |
|
Warranty |
5 years - extended; 25 years - as part of the NIKOMAX SCS certified |
|
Packaging |
Individual - cardboard box |
|
Temperature ranges |
Storage -40 to +70 ° C. Installation 0 to +50 ° C. Operating -10 to +60 ° C |
|
Material of the supporting structure |
Steel 1.5 mm |
|
Height |
1U |
|
Outside dimension (LxWxH) |
19’’ Cabinet or rack |
|
Compliance |
ISO / IEC 11801, EN 50173 and ANSI/TIA-568-C.2 |
|
Supported applications |
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 10G-BASE-T (55M for Cat. 6), ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive |
|
Color |
Metallic (Nickel) |
|
Connector material |
Phosphor bronze |
