Nikomax
Price:
K 530,000

In stock at Mega Mall. Dispatch in 1-2 business day.

Description

Unshielded Patch Panels are designed for connecting different SCS subsystems and network equipment to each other with patch cords. NIKOMAX unshielded patch panel are in black and intended for installation in a 19’’ cabinet or rack.

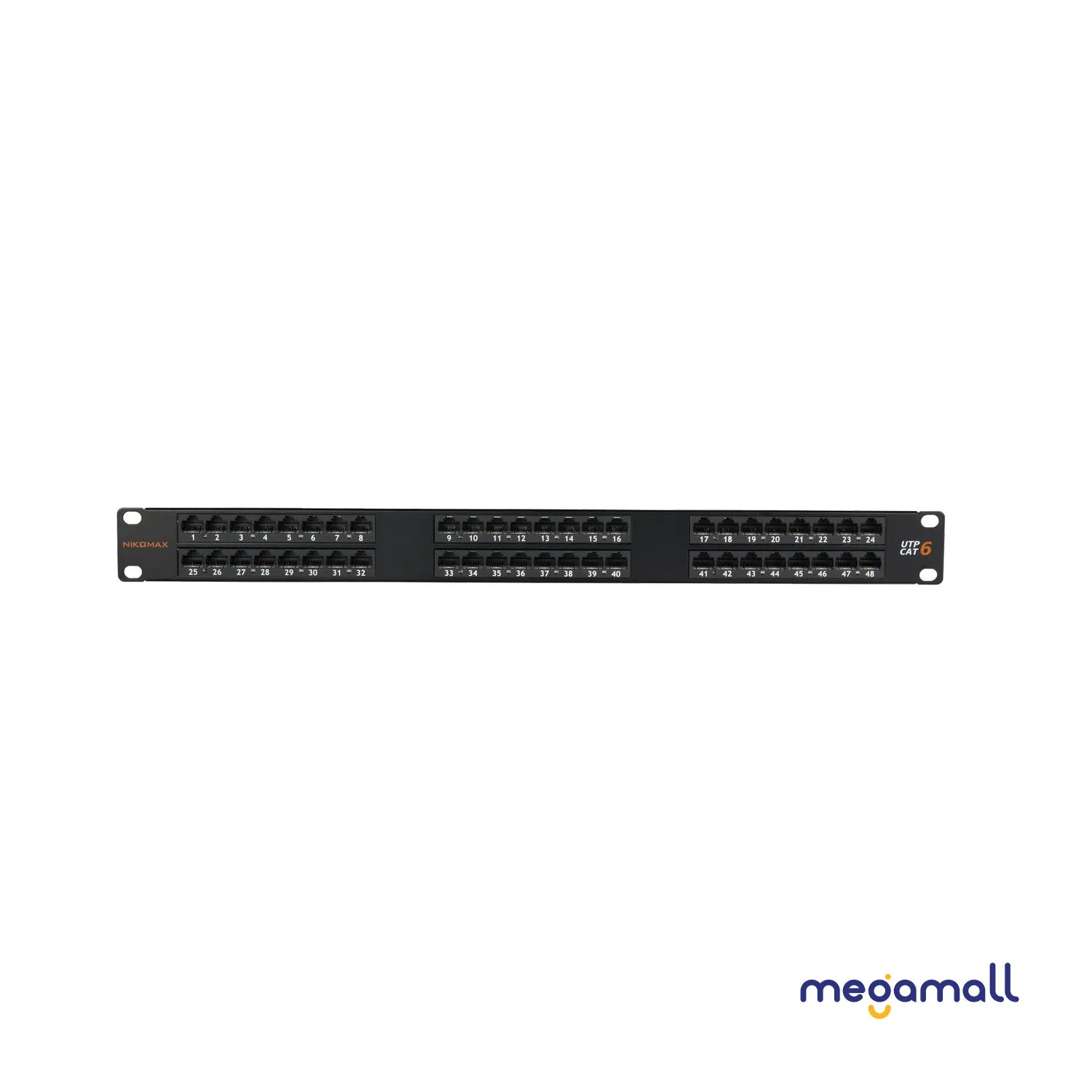

NIKOMAX NMC-RP48UE2-1U-BK (Cat.6), high-density panels with unshielded housings are intended for installation in 19’’ cabinets and racks. The panel contain 48 port RJ45/8P8C at a standatd height of 1U. This solution is ideal when it is necessary to provide a high density port (e.g., data centers) or to extend the network in the limited space of the cabinet.

Bandwidth, MHz

250

Connection style

Unshielded

Supported applications

10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 2.5GBASE-T, 5GBASE-T,ATM-25,ATM- 51,ATM-155, 100VG-AnyLan,TR4,TR-16 Active,TR-16 Passive

Warranty

5 years - extended; 25 years - as part of the NIKOMAX SCS certified

Connector type

RJ45 / 8P8C

Contact coating material

Gold (50 micro-inches) over nickel (100 micro-inches)

IDC Contact material

Phosphor bronze

IDC coating material

Tin (100 micro-inches)

Material of the supporting structure

Steel 1.5 mm

Insulation resistance

Not less than 500 MΩ

Maximum load-bearing capacity

Up to 1000 V, 60 Hz for 1 minute

Contact resistance, μΩ

Not more than 20

IDC Contact resistance, μΩ

Not more than 2.5

Permissible diameter of conductors

~24-22 AWG (0.50-0.65 mm)

Packaging

Individual - cardboard box

Depth in rack (with organizer), mm

75

Number of ports

48

Type of IDC contacts (seal)

110/KRONE

Number of cable connections

Not less than 750

Temperature ranges

Storage -40 to +70 ° C. Installation 0 to +50 ° C. Operating -10 to +60 ° C

Height

1U

Outside dimension (LxWxH)

19’’ Cabinet or rack

Category

6

Compliance

ISO / IEC 11801, EN 50173 and ANSI/TIA-568-C.2

Color

Black

Connector material

Phosphor bronze
