Description

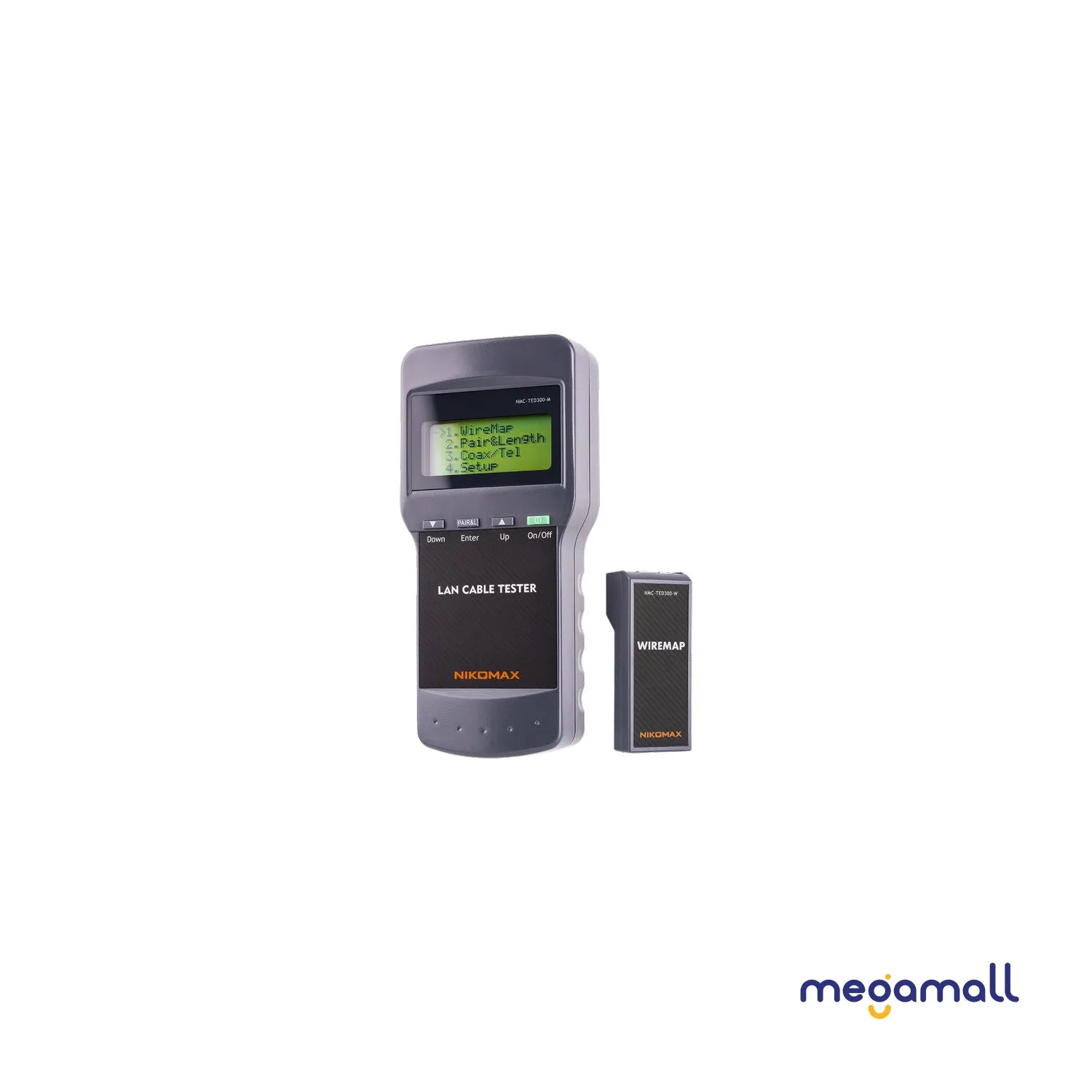

The NIKOMAX NMC-TED300 cable tester with LCD display is designed to work with twisted-pair cables terminated with RJ45 connectors. The tester is able to diagnose such line errors as a violation of the wiring layout of the conductors, breakage of conductors and short circuits, as well as measure the length of the cable line. The tester has several calibration parameters storage cells for working with cables of different manufacturers and categories.
|
Warranty |
1 year |
|
Protection level |
The main and remote module is gray |
|
Housing material |
Plastic |
|
Packaging |
Cardboard box |
|
Temperature range |
Storage from - 10 C to + 60 C, operation from - 10 C to + 60 C |
|
Connectors on the device |
2 x RJ45 (main and scan) |
|
Line testing for breaks and short-circuits |
Yes |
|
Checking for correct wiring |
Yes |
|
Shielding integrity check |
Yes |
|
Battery |
4 batteries 1.5V "AA" type (not included) |
|
Type of cable |
LAN UTP / STP |
|
The choice of units of length |
Yes, meters / feet / yards |
|
Setting screen auto-off |
Yes |
|
Cable length measurement |
Yes, up to 1000 meters |
|
Calibration |
Yes, storage up to 3 values |
|
Setting the auto-off tester |
Yes, 15 / 30 / 60 / 120 minutes |
|
Intercom system |
Yes |
|
Maximum length of tested lines |
1000 m |
