Description

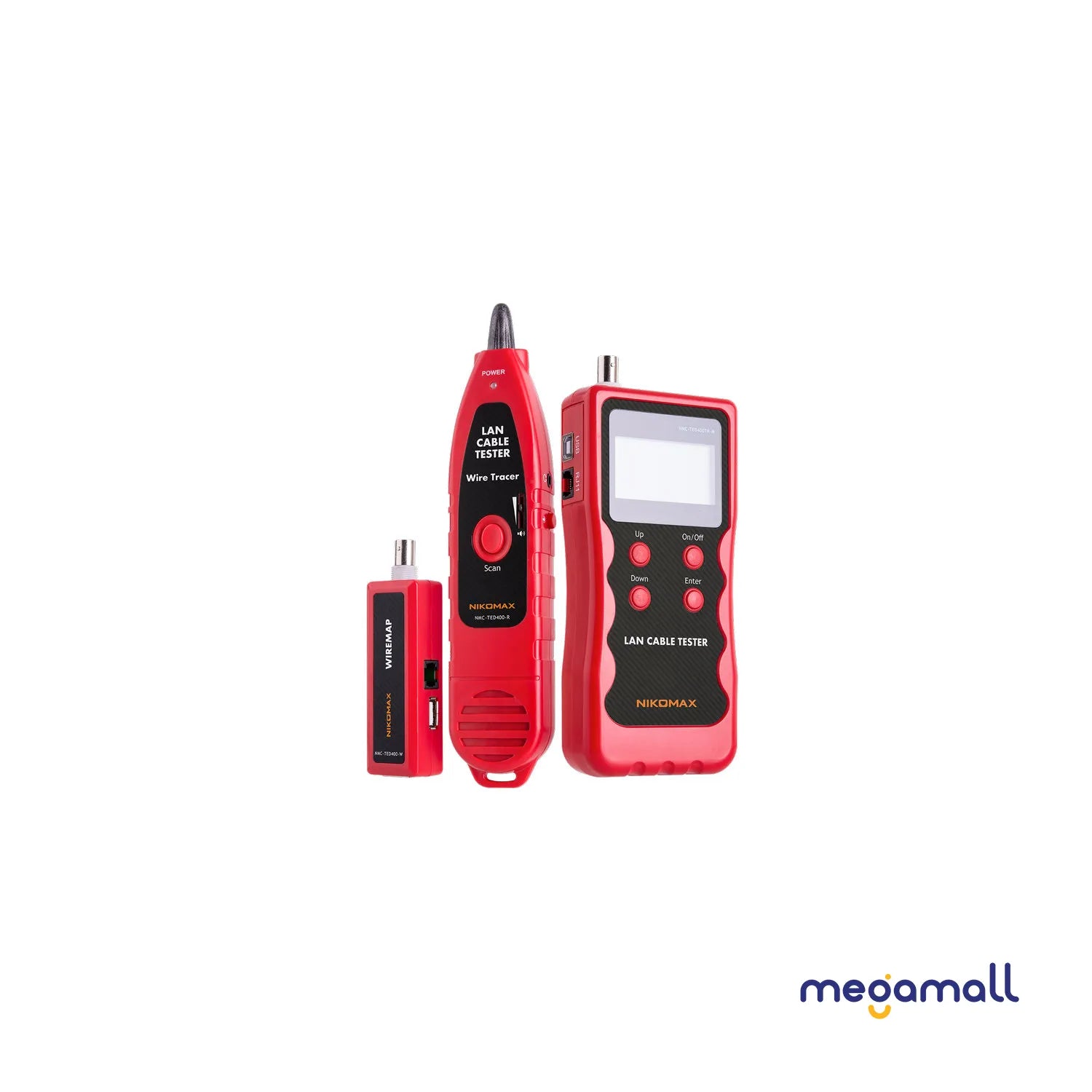

Cable tester NIKOMAX NMC-TED400TR with LCD display is designed to work with a wide range of cables. These are UTP / STP cables twisted pair, terminated with RJ45 connectors, coaxial cables with BNC connectors, telephone cables RJ11 / RJ12, USB cables (type A - type B). The tester is able to diagnose such errors in the line as a violation of the wiring layout of conductors, breakage of conductors and short circuits, is able to measure the length of the cable line, as well as equipped with a trace function, with which you can find the desired cable in a bundle suitable for finding hidden wiring. Cable tester NIKOMAX with LCD display, UTP / STP, RJ11, RJ12, RJ45, BNC, USB, with length measurement function and cable routing The tester kit consists of a main module, a remote unit and a cable probe detector for testing.
|
Warranty |
1 year |
|
Protection level |
The main and remote module is gray |
|
Housing material |
Plastic |
|
Packaging |
Cardboard box |
|
Temperature range |
Storage from - 10 C to + 60 C, operation from - 10 C to + 60 C |
|
Adjust screen contrast |
Yes |
|
Connectors on the device |
2 x RJ45 (main and scan), BNC, RJ11, USB type B |
|
Line testing for breaks and short-circuits |
Yes |
|
Checking for correct wiring |
Yes |
|
Shielding integrity check |
Yes |
|
Battery |
Battery type "Krona" (6LR61) |
|
Type of cable |
LAN UTP / STP, Tel. RJ11 / RJ12, Coax (BNC), UCB (type A-type B) |
|
Cable trace |
Yes |
|
The choice of units of length |
Yes, meters / feet / yards |
|
Setting screen auto-off |
Yes |
|
Cable length measurement |
Yes, up to 1000 meters |
|
Calibration |
Yes, storage up to 7 values |
|
Setting the auto-off tester |
Yes, 15 / 30 / 60 / 120 minutes |
|
Intercom system |
Yes |
|
Maximum length of tested lines |
1000 m |
