Description

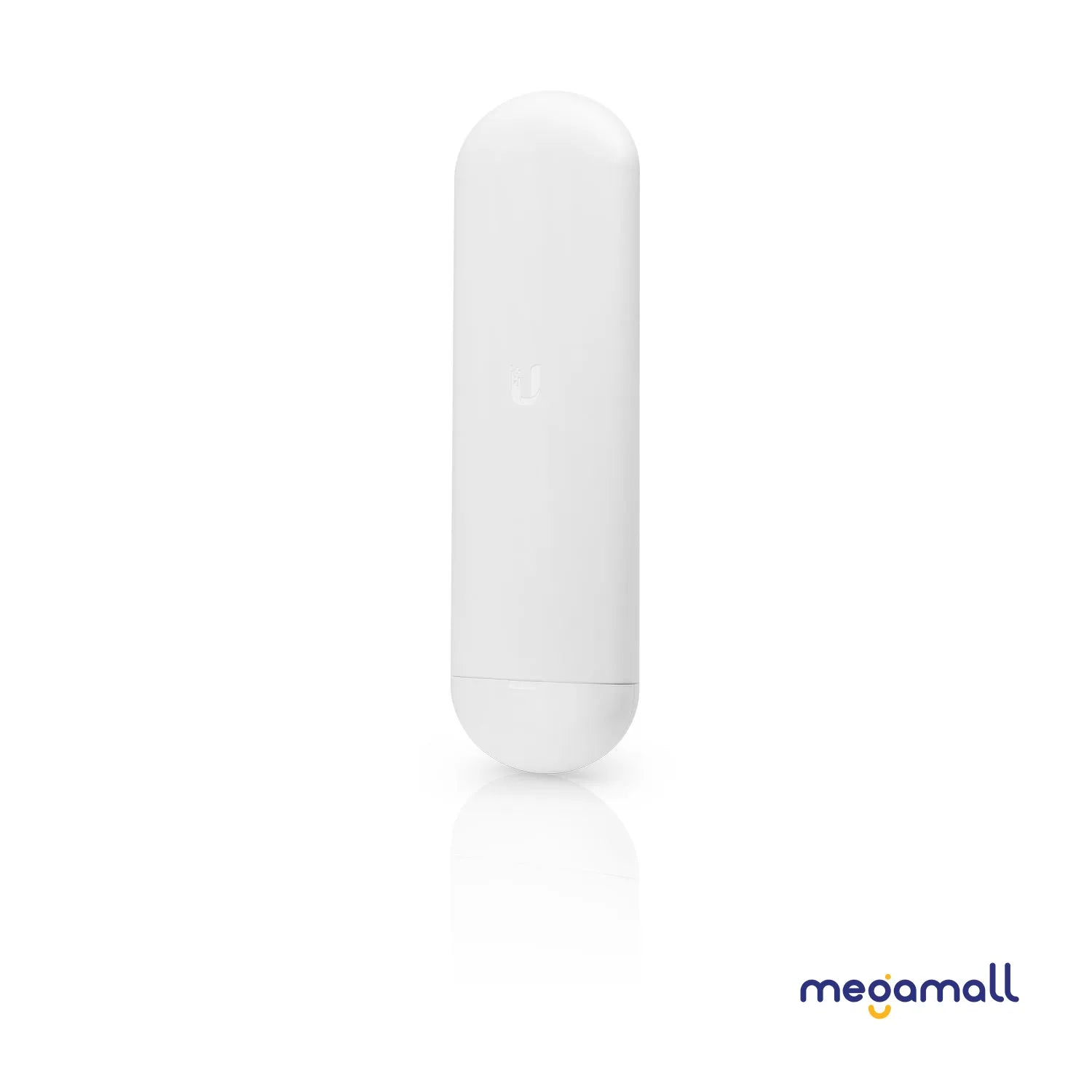

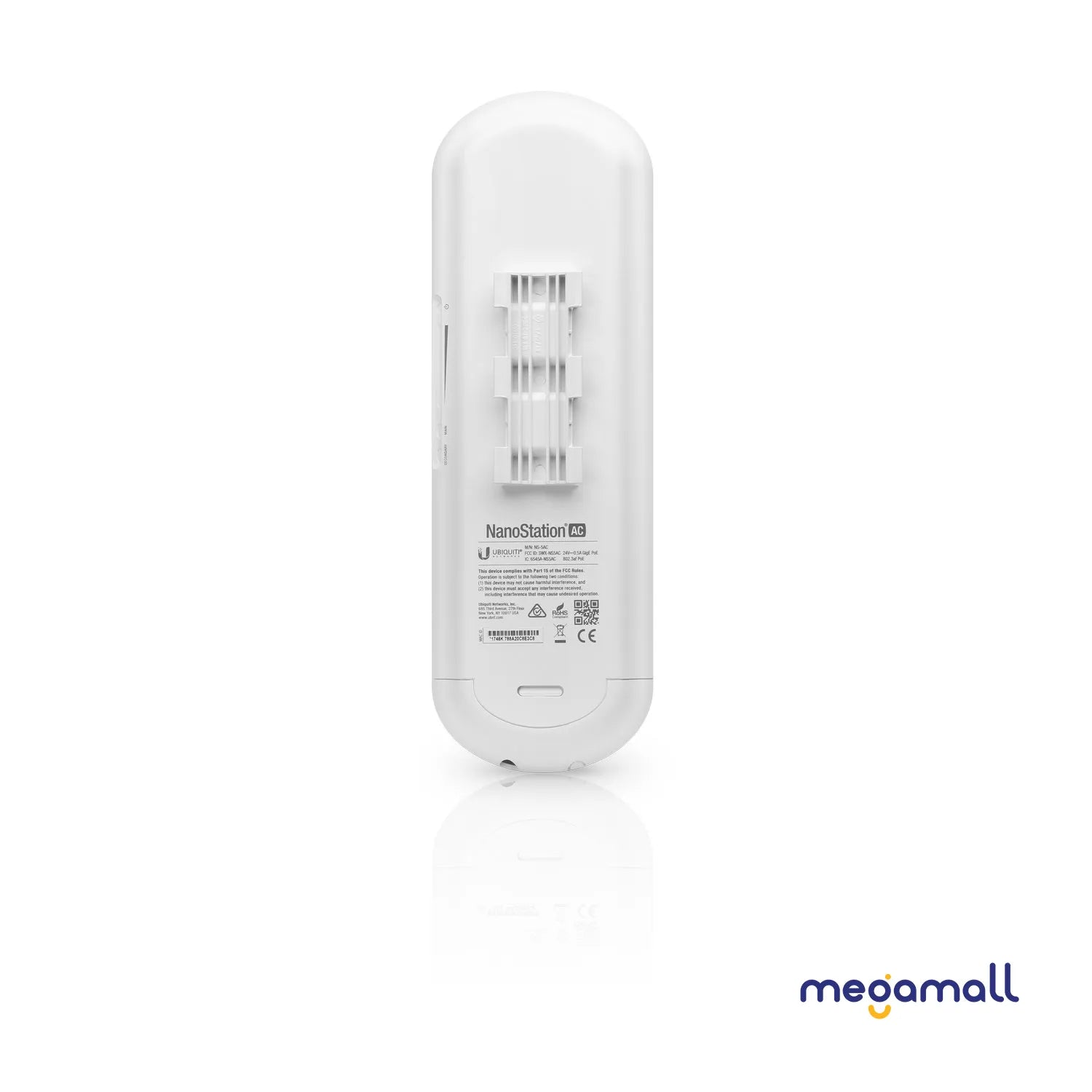

UISP-supported WiFi radio designed for point-to-point and customer premises applications.
|
Mechanical |
|
|
Dimensions |
Without mount: 257 x 84 x 41 mm (10.1 x 3.3 x 1.6") |
|
With mount: 257 x 84 x 30 mm (10.1 x 3.3 x 1.2") |
|
|
Weight |
233 g (8.2 oz) |
|
Enclosure material |
UV-resistant plastic |
|
Mounting |
Pole and wall mounting kits (Included) |
|
Hardware |
|
|
Networking interface |
(2) GbE RJ45 ports |
|
Power method |
PoE alternative A (pairs 1, 2+; 3, 6 Return) |
|
Passive PoE 2-pair (4, 5+; 7, 8 return) |
|
|
Power supply |
24V, 0.5A gigabit PoE adapter (Included) |
|
Supported voltage range |
44–54V DC |
|
22–27V DC |
|
|
Max. power consumption |
9W |
|
ESD/EMP protection |
Air/contact: ±24 kV |
|
LEDs |
Power, Ethernet, (4) signal strength |
|
Ambient operating temperature |
-40 to 70° C (-40 to 158° F) |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
System |
|
|
Gain |
16 dBi |
|
Channel bandwidths |
10/20/30/40/50/60/80 MHz |
|
Cross-pol isolation |
20 dB min. |
|
Max. VSWR |
1.6:1 |
|
Beamwidth |
45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
|
Polarization |
Dual linear |
|
Operating Frequency (MHz) |
|
|
Worldwide |
5150-5875 MHz |
|
USA |
|
|
U-NII-1 |
5150-5250 MHz |
|
U-NII-2A |
5250-5350 MHz |
|
U-NII-2C |
5240-5725 MHz |
|
U-NII-3 |
5725-5850 MHz |
|
Management Radio (MHz) |
|
|
Worldwide |
2412 - 2472 MHz |
|
US/CA |
2412 - 2462 MHz |
|
NDAA Compliant |
Yes |
