Hardware

Dimensions

294 x 31 x 80 mm (11.6 x 1.3 x 3.2")

Weight

400 g (14.1 oz)

Enclosure material

Outdoor UV-stabilized plastic

Mounting

Pole-mount (Kit included)

Hardware

Networking interface

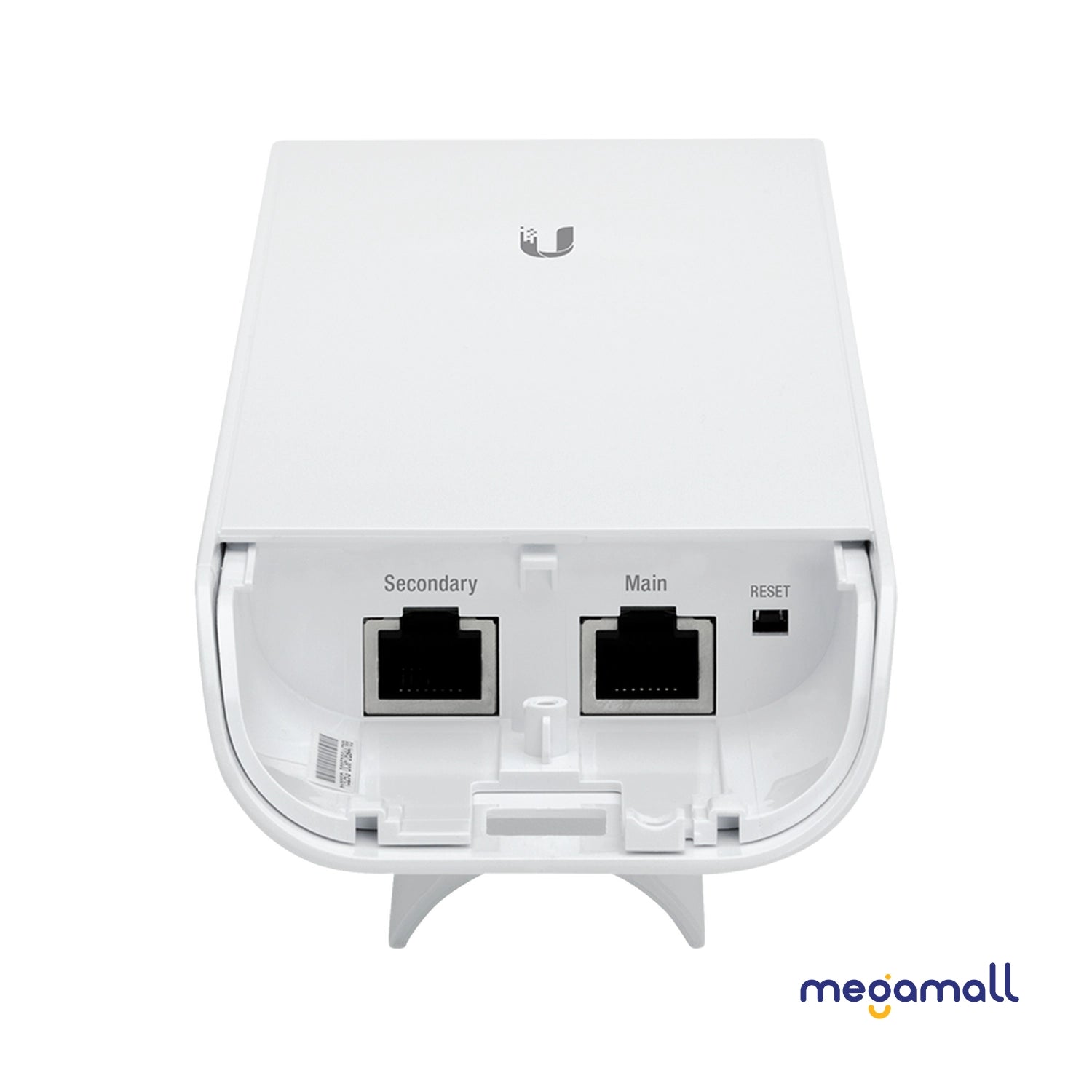

(2) 10/100 MbE RJ45 ports

Power method

Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply

24V, 0.5A PoE adapter (Included)

Supported voltage range

22–27V DC

Max. power consumption

8W

Ambient operating temperature

-30 to 75° C (-22 to 167° F)

Operating Humidity

5 to 95% noncondensing

Shock & vibration

ETSI300-019-1.4

Certifications

FCC, ICC, CE, RoHS

NDAA Compliant

Yes

System

Frequency

5 GHz

Operating frequency

Worldwide

5170-5875 MHz

USA

5725-5850 MHz

USA DFS

5250-5850 Mhz

Gain

14.6-16.1 dBi

Cross-pol isolation

22 dB Min.

Max. VSWR

1.6:1

Beamwidth

43° (H-pol) / 41° (V-pol) / 15° (Elevation)

Polarization

Dual Linear
