CPU

CPU Model

Realtek RTD1619B

CPU Quantity

1

CPU Cores

4

CPU Threads

4

CPU Architecture

64-bit

CPU Frequency

1.7 GHz

Hardware Encryption Engine

✓

Memory

System Memory

1 GB DDR4 non-ECC

Notes

Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.

Storage

Drive Bays

1

Drive Type (See all supported drives)

3.5" SATA HDD
2.5" SATA SSD (with optional 2.5" Disk Holder)

Hot Swappable Drive*

-

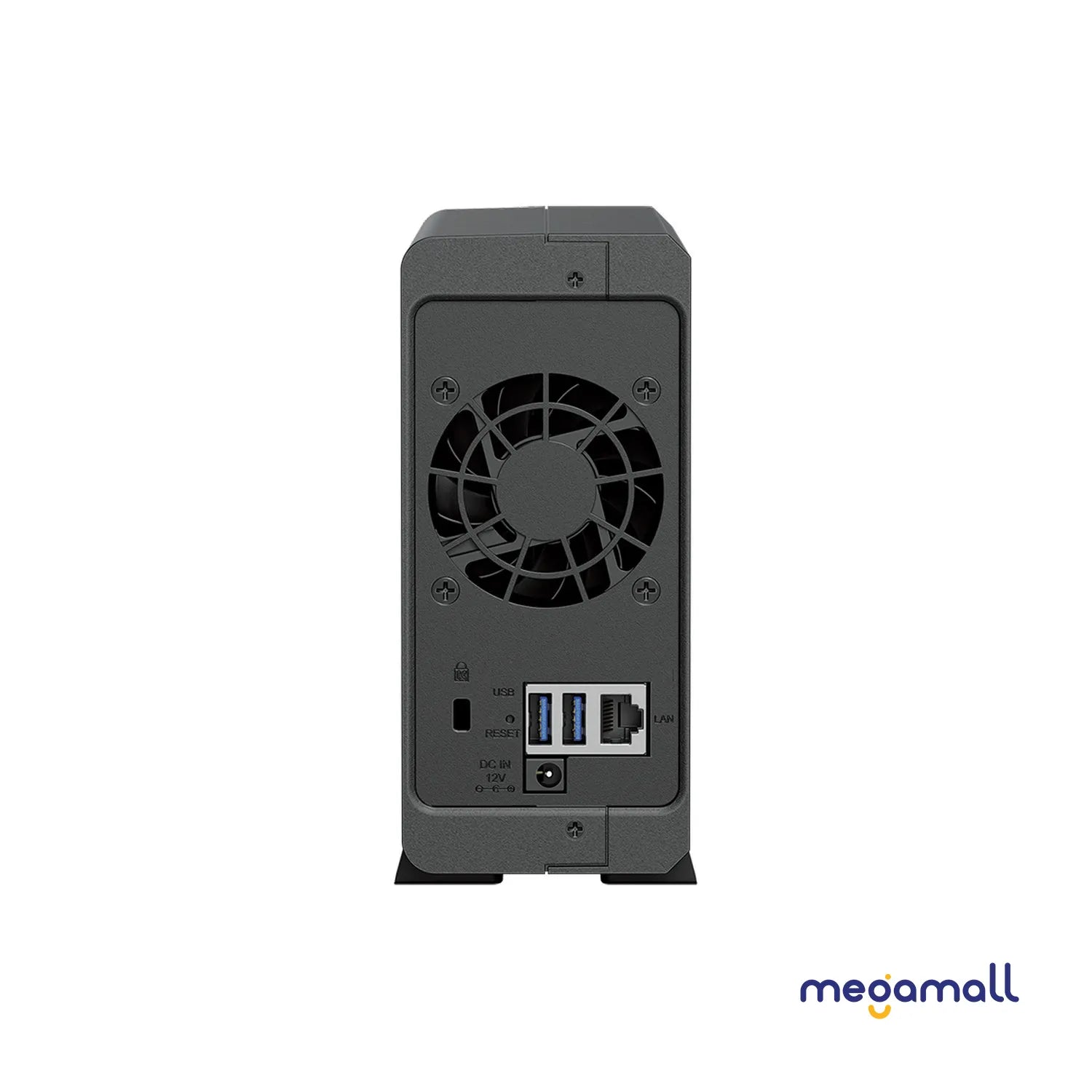

External Ports

RJ-45 1GbE LAN Port

1

USB 3.2 Gen 1 Port

2

Notes

This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.

Appearance

Size (Height x Width x Depth)

166 mm x 71 mm x 224 mm

Weight

0.7 kg

Others

System Fan

60 mm x 60 mm x 1 pcs

Fan Speed Mode

Full-Speed Mode
Cool Mode
Quiet Mode
Low-power Mode

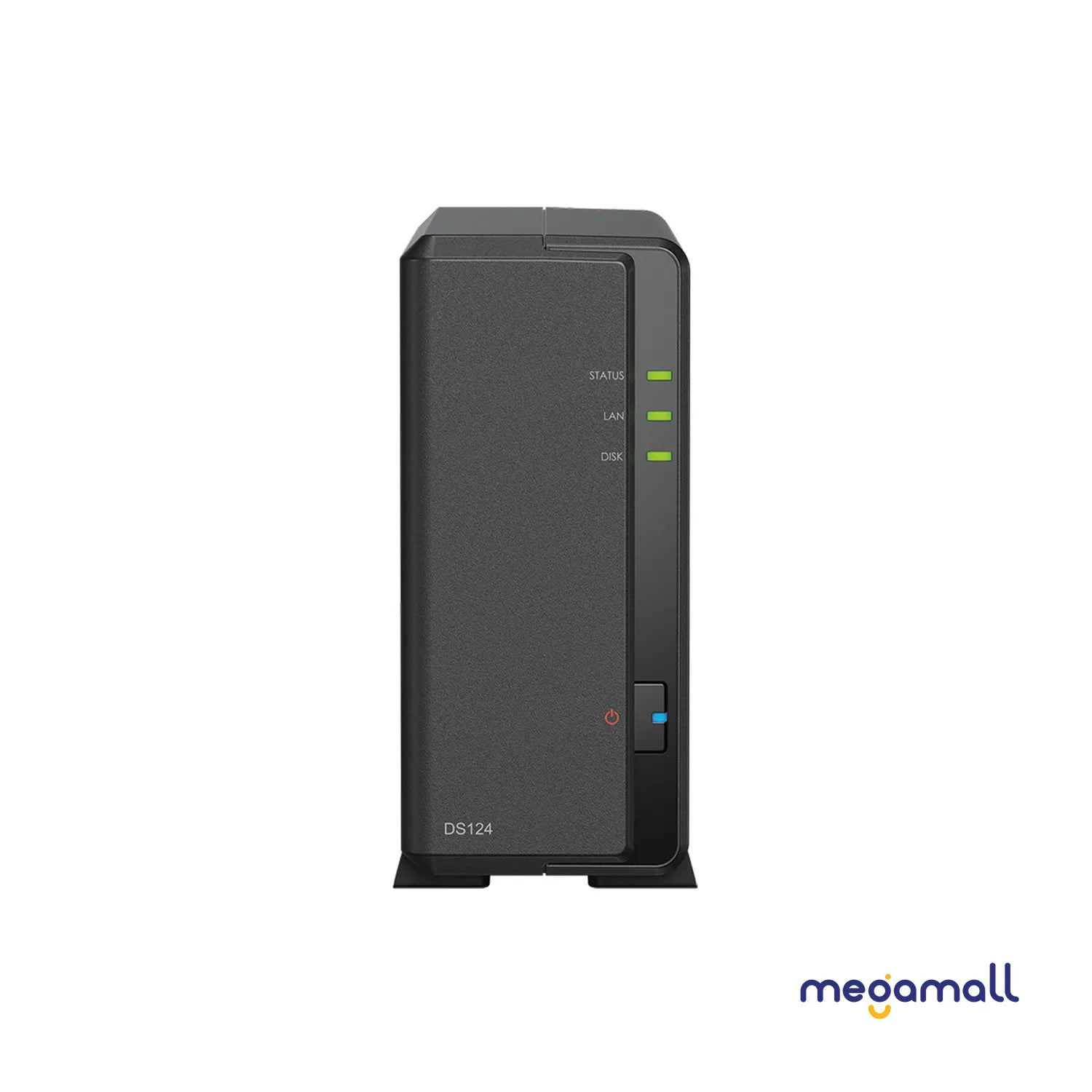

Brightness Adjustable Front LED Indicators

Power Recovery

✓

Noise Level*

19.0 dB(A)

Scheduled Power On / Off

✓

Wake on LAN / WAN

Power Supply Unit / Adapter

36 watts

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

10.69 watts (Access)
3.44 watts (HDD Hibernation)

British Thermal Unit

36.50 BTU/hr (Access)
11.75 BTU/hr (HDD Hibernation)

Notes

For more information on how power consumption is measured, refer to this article.
Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Operating Humidity

8% to 80% RH

Storage Humidity

5% to 95% RH

Certification

Certification

FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
BIS

Warranty

Warranty

2-year hardware warranty, extendable to 4 years with Extended Warranty Plus

Notes

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.

Environment

Environment

RoHS Compliant

Packaging Content

Packaging Content

Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1

Optional Accessories

Optional Accessories

Plus Series 3.5" SATA HDD: HAT3300 Series
