Description
5x Gigabit Ethernet, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4.

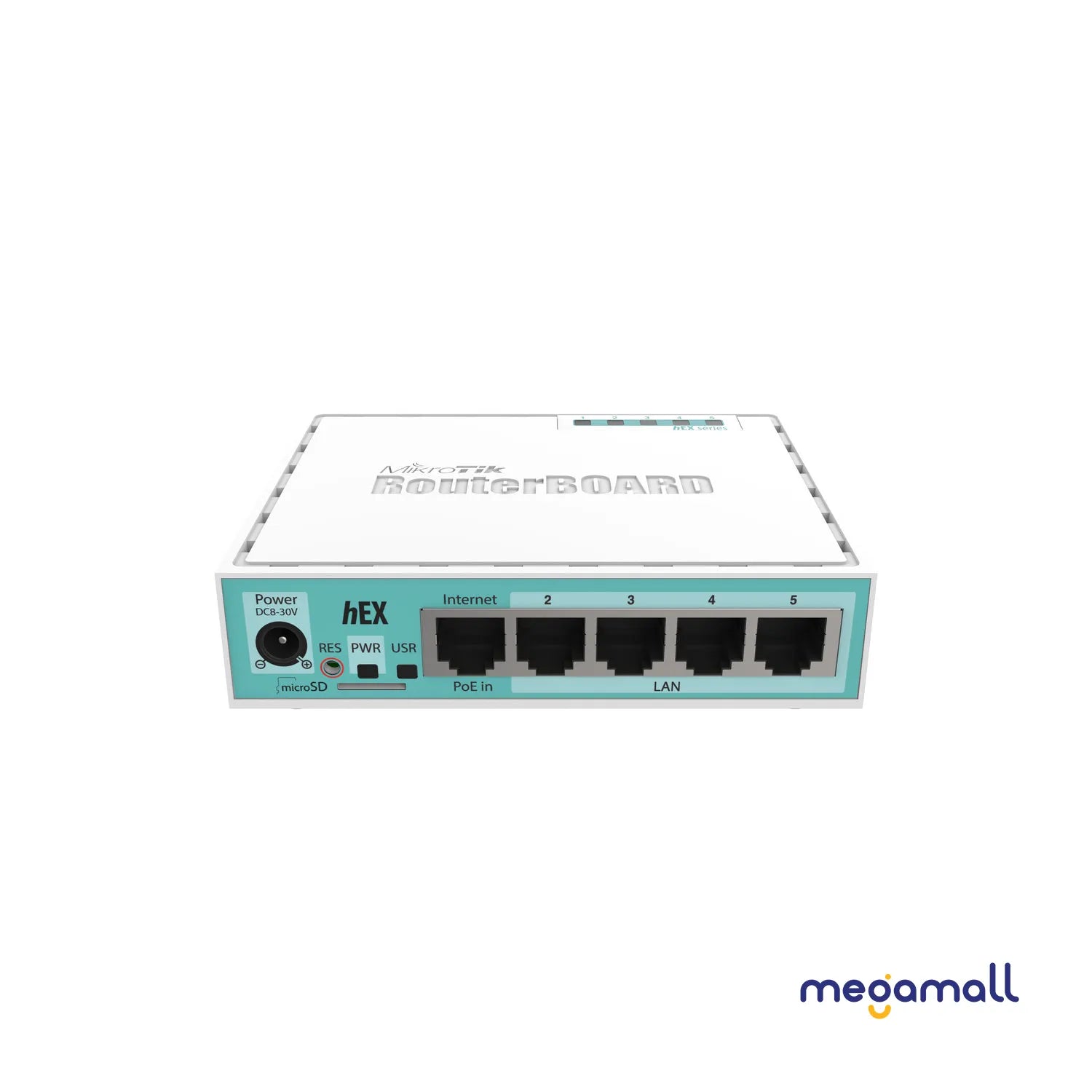

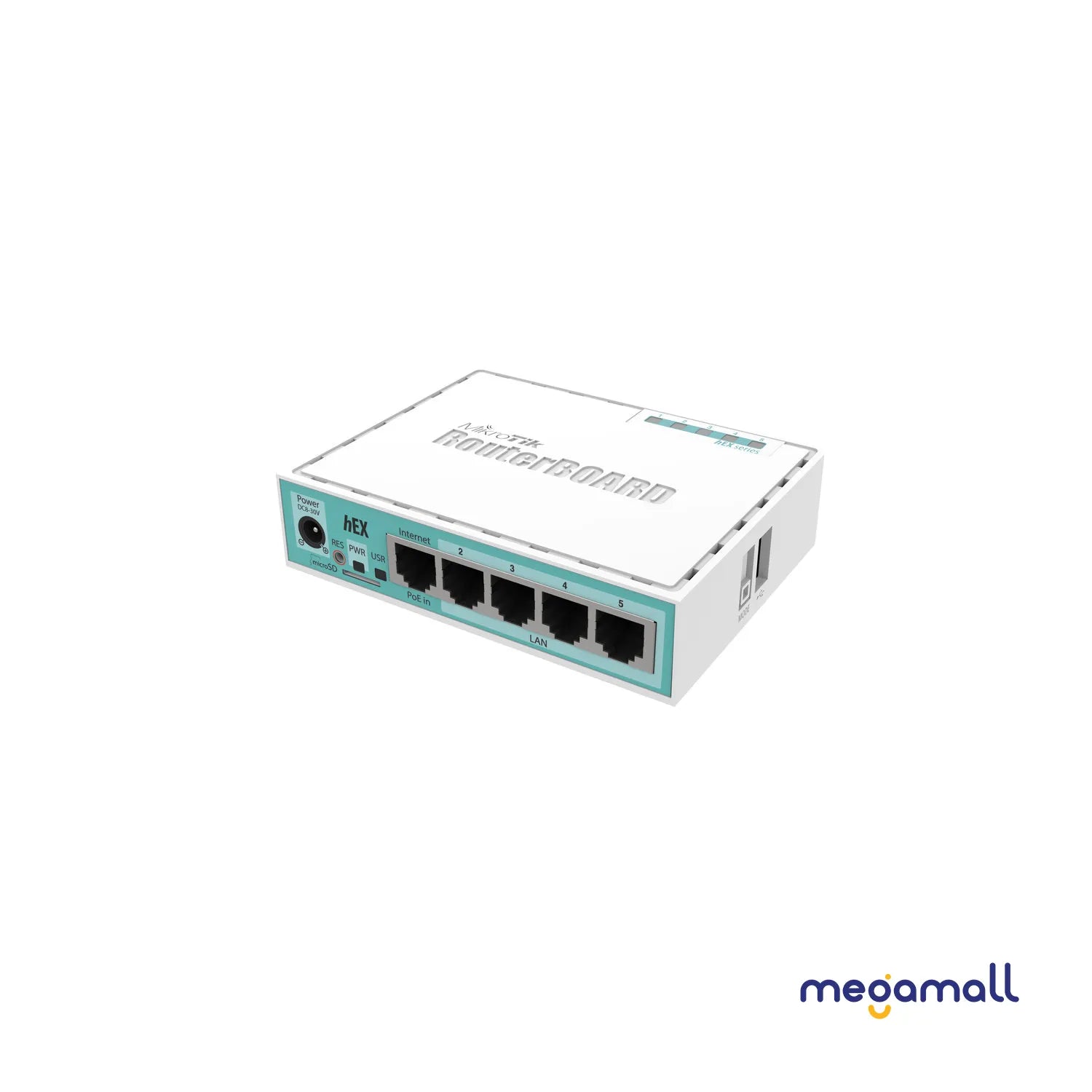

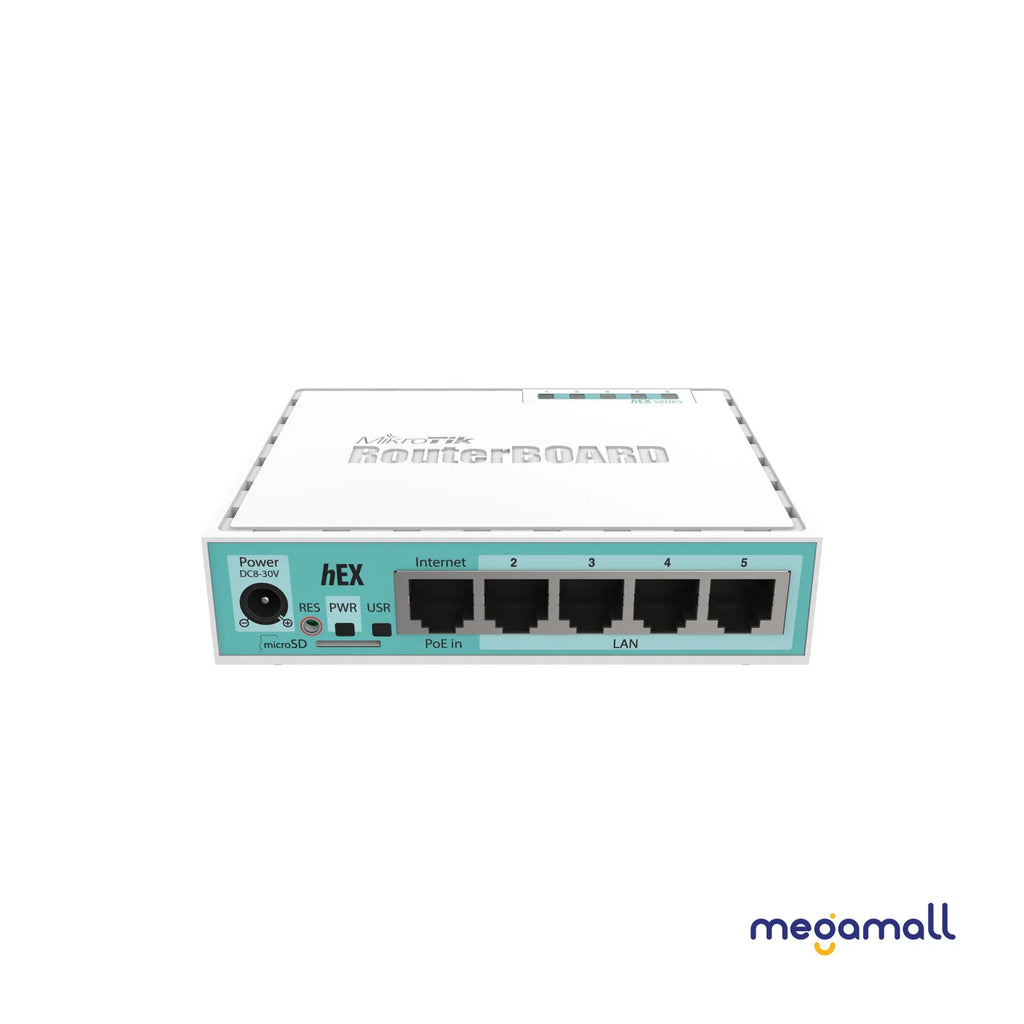

hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This new updated revision of the hEX brings several improvements in performance.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880MHz CPU and 256MB RAM, capable of all the advanced configurations that RouterOS supports.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
|
Specifications |
|
|
Product code |
RB750Gr3 |
|
Architecture |
MMIPS |
|
CPU |
MT7621A |
|
CPU core count |
2 |
|
CPU nominal frequency |
880 MHz |
|
CPU Threads count |
4 |
|
Switch chip model |
MT7621A |
|
Dimensions |
113x89x28mm |
|
RouterOS license |
4 |
|
Operating System |
|
|
Size of RAM |
256 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 100'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 60°C |
|
IPsec hardware acceleration |
Yes |
|
Powering |
|
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
8-30 V |
|
Max power consumption |
10 W |
|
Max power consumption without attachments |
5 W |
|
PoE in |
Passive PoE |
|
Cooling type |
Passive |
|
PoE in input Voltage |
8-30 V |
|
Ethernet |
|
|
10/100/1000 Ethernet ports |
5 |
|
Peripherals |
|
|
Memory card type |
microSD |
|
Memory Cards |
1 |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
|
Other |
|
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Mode button |
Yes |
|
Beeper |
Yes |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
IP20 |
|
Warranty |
|
|
Warranty |
1 Year |
