Description
Small weatherproof wireless access point with International LTE modem, two SIM slots and GPS.
The LtAP mini LTE kit is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38 and 40.

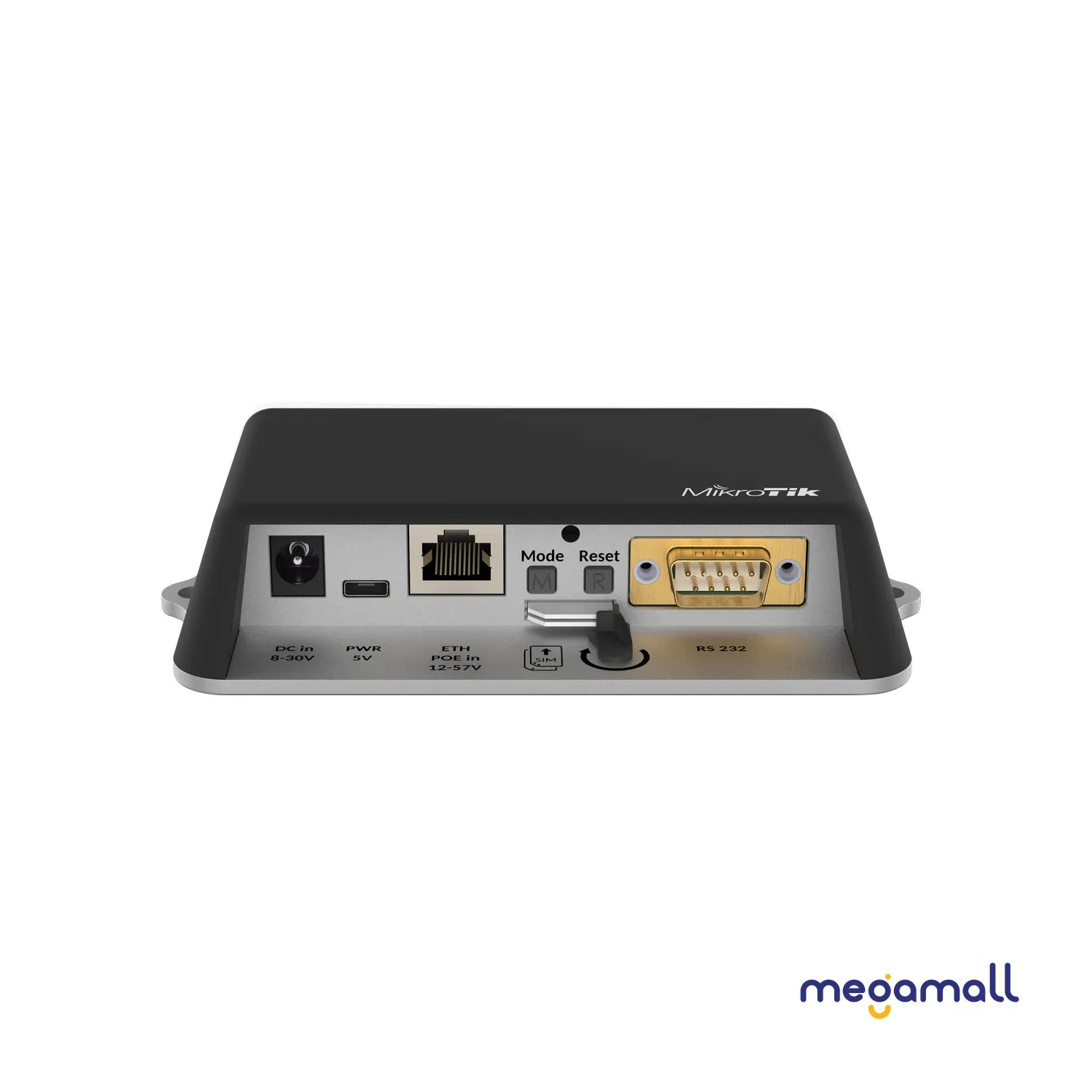

Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

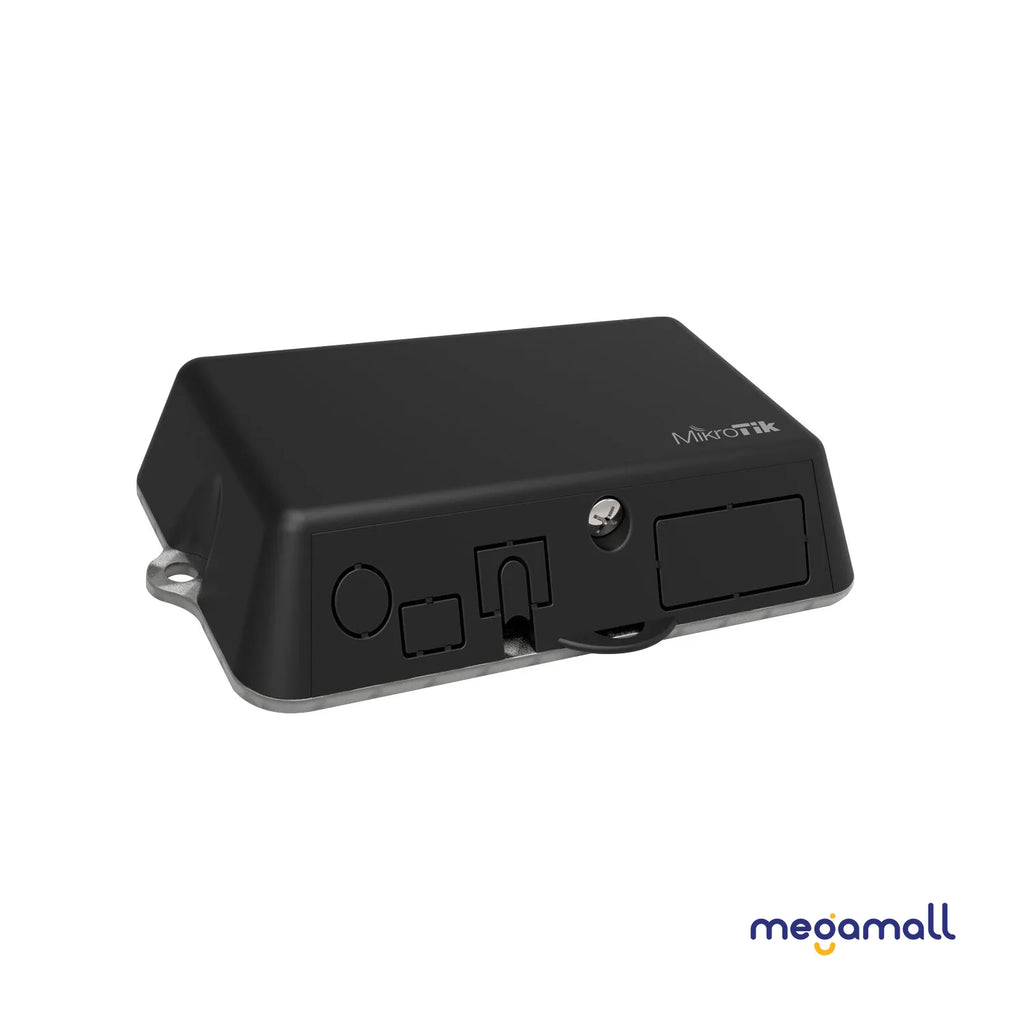

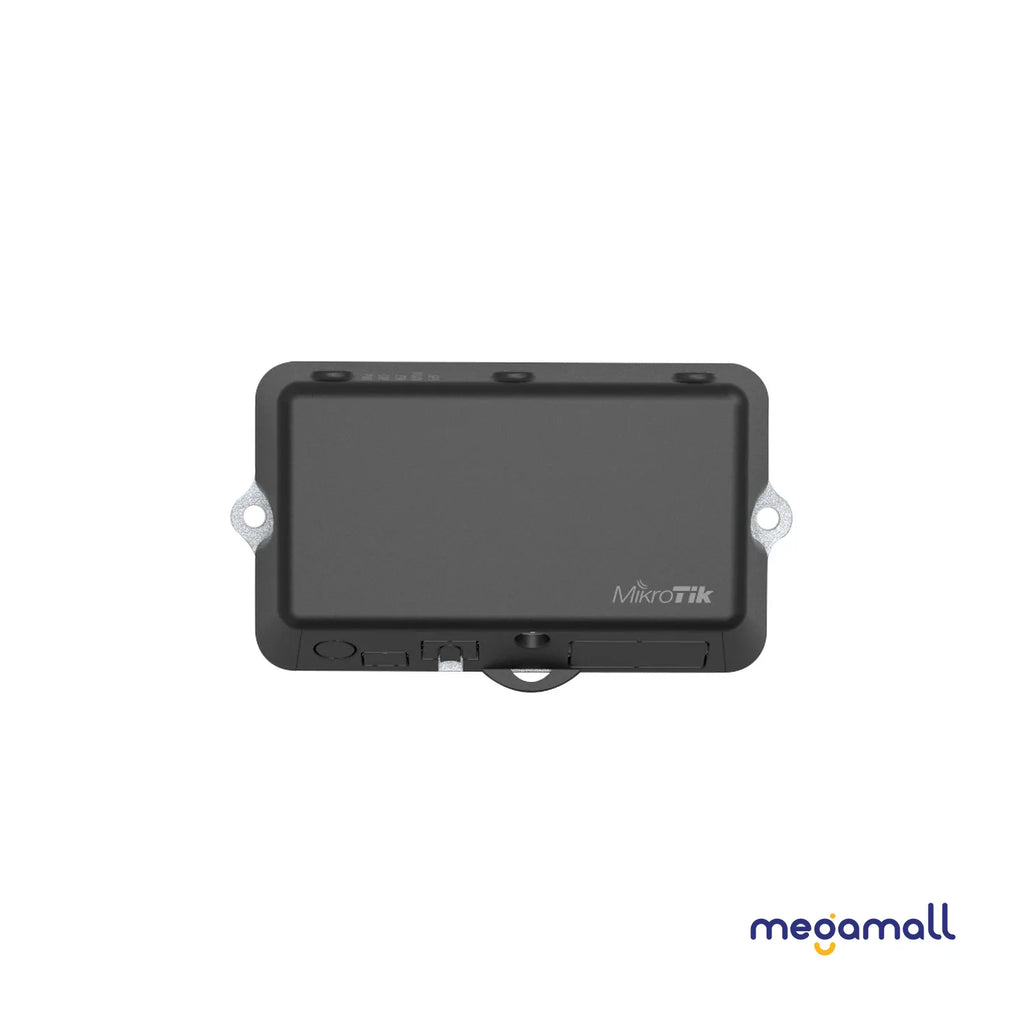

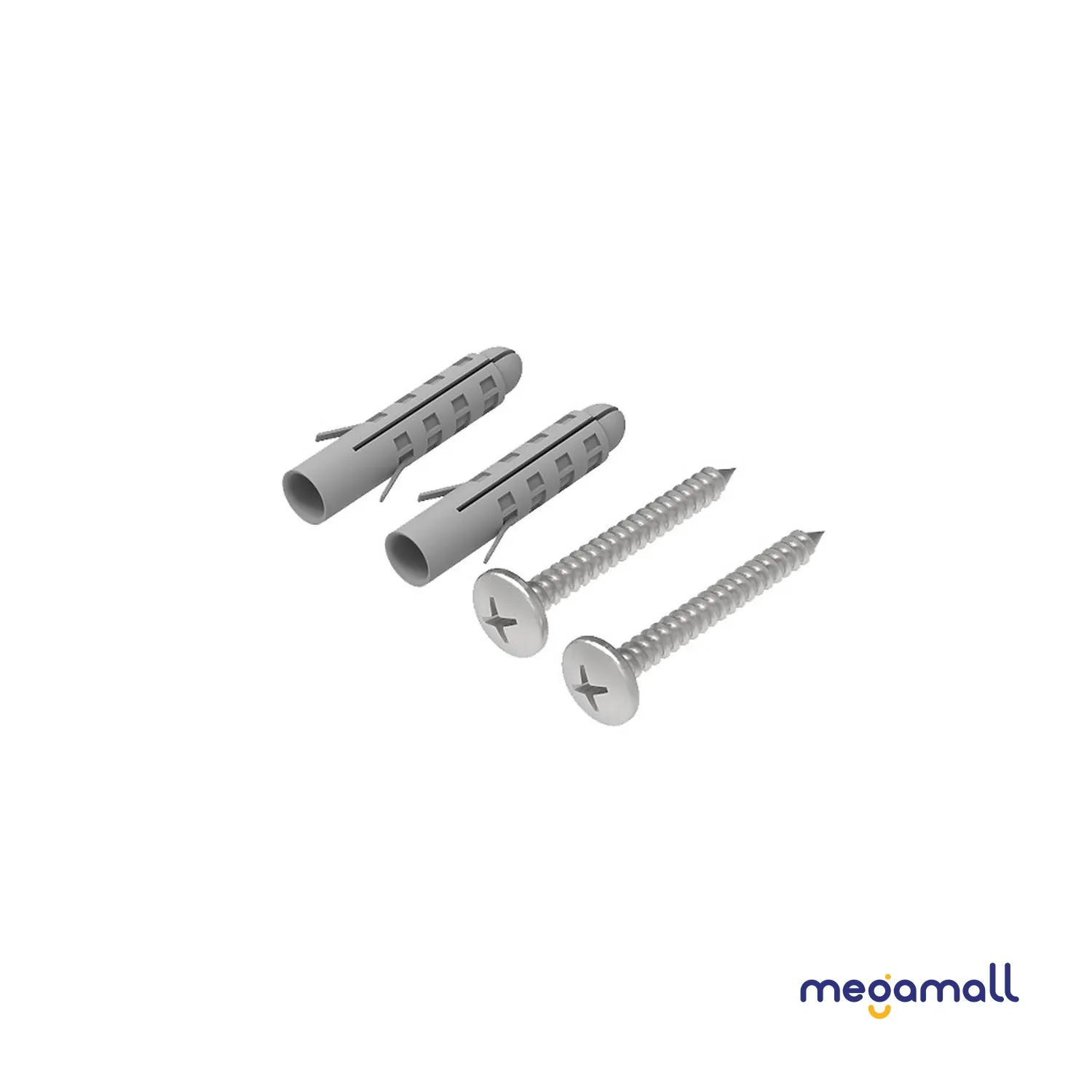

LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. External GPS antenna is available for ordering separately (not included, product code ACGPSA).

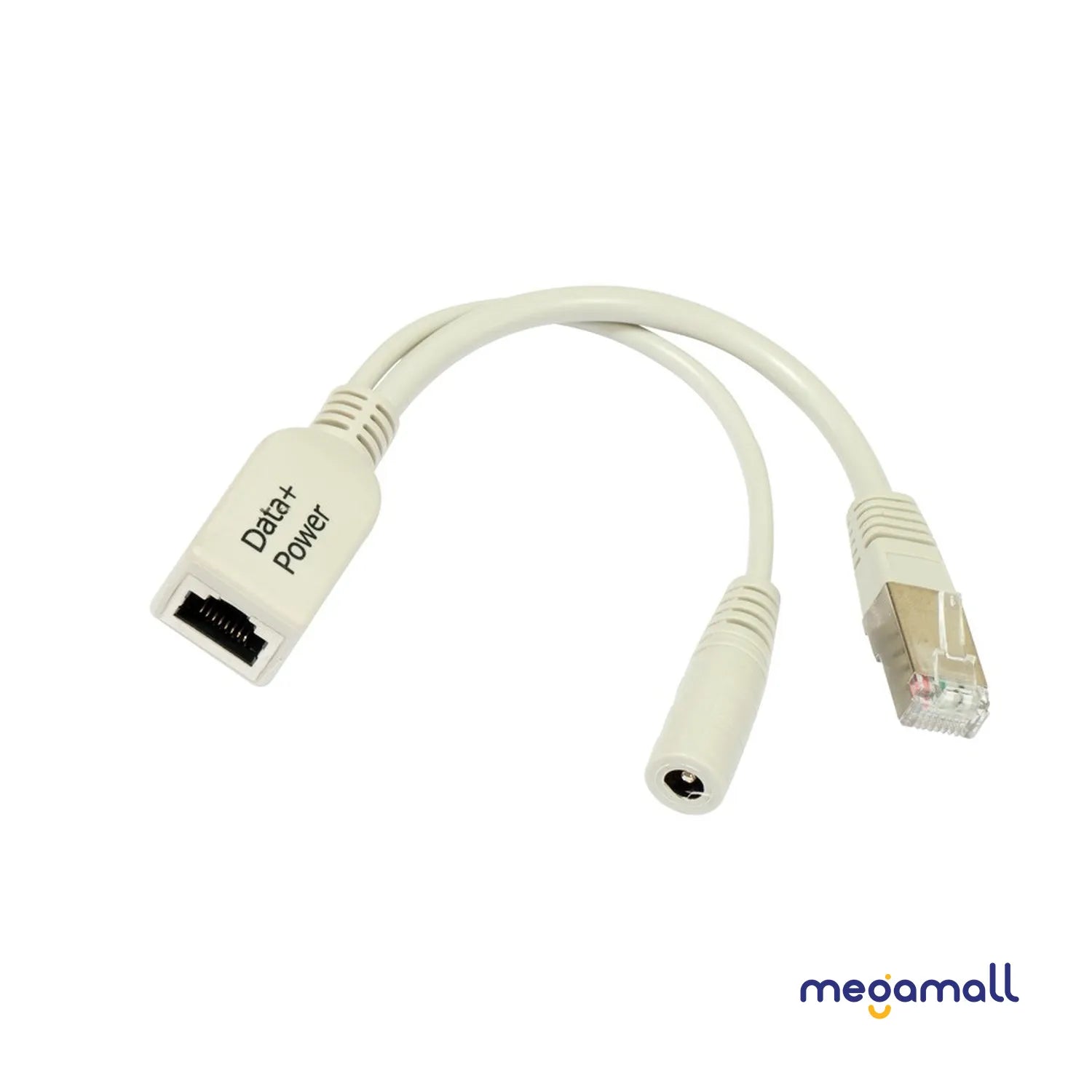

The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 12-57 V PoE-in by Ethernet port, 8-30 V DC jack and 5 V microUSB.
Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.
|
Specifications |
||
|
Product code |
RB912R-2nD-LTm |
|
|
Architecture |
MIPSBE |
|
|
CPU |
QCA9531 |
|
|
CPU core count |
1 |
|
|
CPU nominal frequency |
650 MHz |
|
|
Dimensions |
139 x 77 x 28,5 mm |
|
|
RouterOS license |
4 |
|
|
Operating System |
||
|
Size of RAM |
64 MB |
|
|
Storage size |
16 MB |
|
|
Storage type |
FLASH |
|
|
MTBF |
Approximately 100'000 hours at 25C |
|
|
Tested ambient temperature |
-40°C to 70°C |
|
|
Powering |
||
|
MicroUSB input Voltage |
5 V |
|
|
Number of DC inputs |
3 (DC jack, PoE-IN, MicroUSB) |
|
|
DC jack input Voltage |
8-30 V |
|
|
Max power consumption |
9 W |
|
|
Max power consumption without attachments |
4 W |
|
|
PoE in |
802.3af/at |
|
|
Cooling type |
Passive |
|
|
PoE in input Voltage |
12-57 V |
|
|
Wireless specifications |
||
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
|
Wireless 2.4 GHz number of chains |
2 |
|
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
|
Antenna gain dBi for 2.4 GHz |
1.5 |
|
|
Wireless 2.4 GHz chip model |
QCA9531 |
|
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
|
Ethernet |
||
|
10/100 Ethernet ports |
1 |
|
|
Peripherals |
||
|
Number of SIM slots |
2 Modem (Mini SIM) |
|
|
MiniPCI-e slots |
1 |
|
|
Serial console port |
RS232 |
|
|
Other |
||
|
Mode button |
Yes |
|
|
GNSS standards |
GPS |
|
|
GPS RF connector type |
uUFL |
|
|
Certification & Approvals |
||
|
Certification |
CE, FCC, IC, E-MARK, EAC, ROHS |
|
|
IP |
IP54 |
|
|
Wireless specifications |
||
|
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|
1MBit/s |
22 |
-96 |
|
11MBit/s |
22 |
-89 |
|
6MBit/s |
20 |
-93 |
|
54MBit/s |
18 |
-74 |
|
MCS0 |
20 |
-93 |
|
MCS7 |
16 |
-71 |
|
Warranty |
||
|
Warranty |
1 Year |
|
