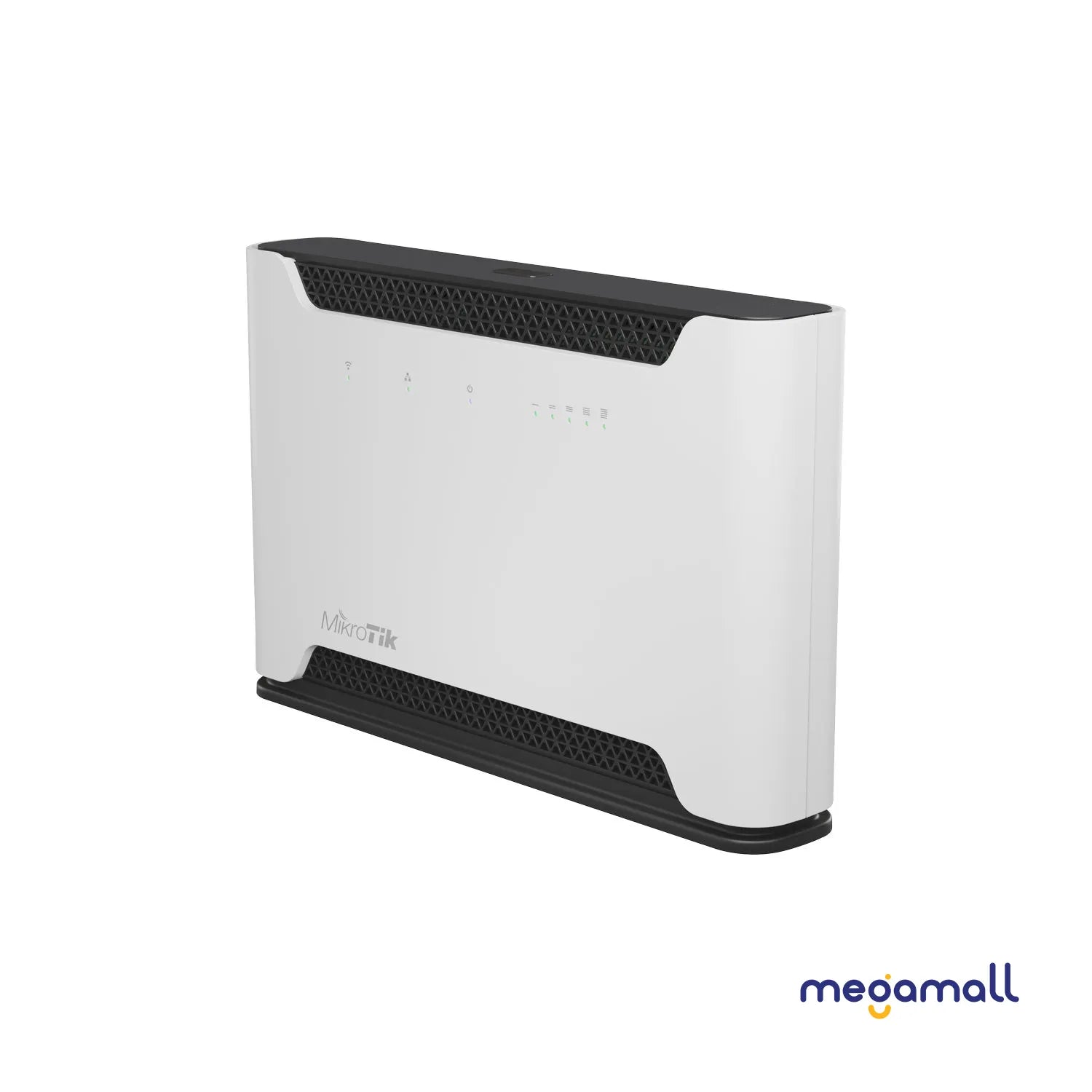

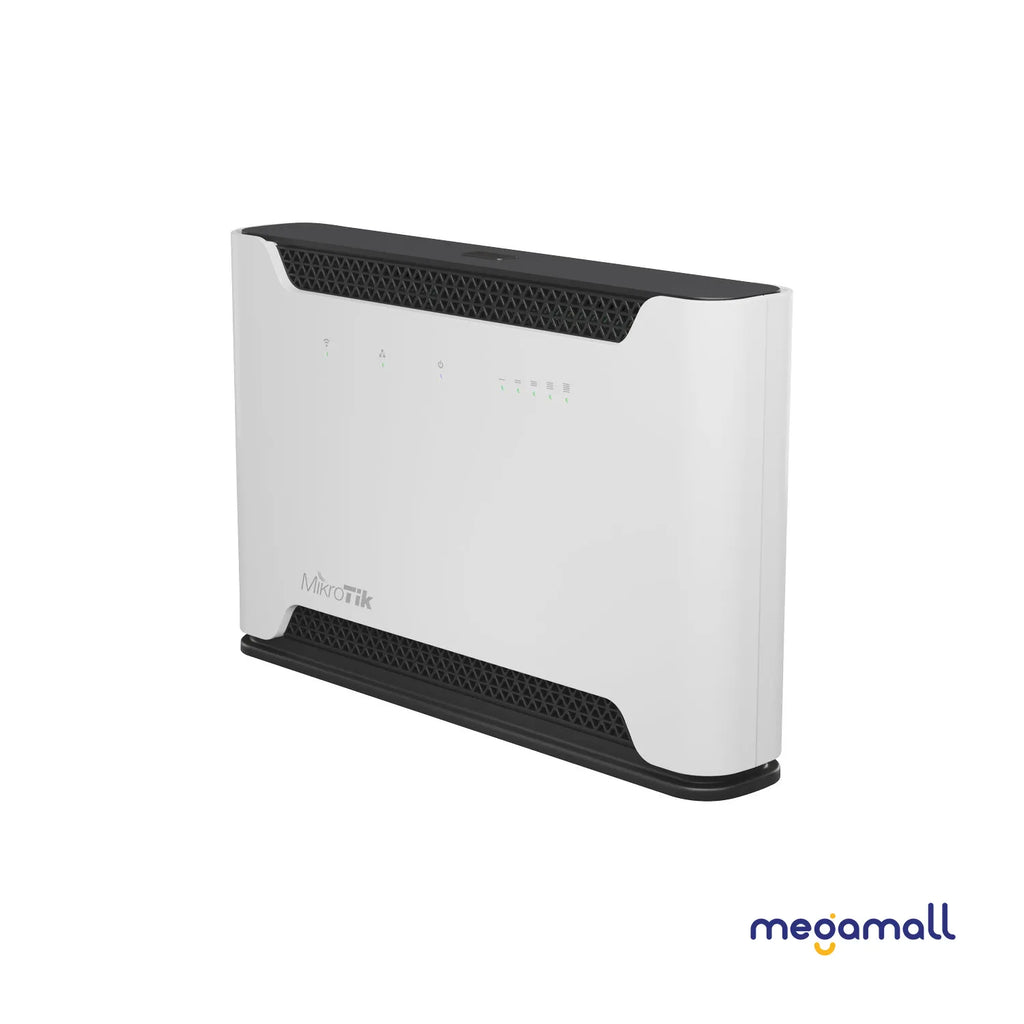

RBD53G-5HacD2HnD-TC&EG12-EA - Chateau LTE12


Price:
Sale priceK 1,299,000

In stock at Mega Mall. Dispatch in 1-2 business day.

Description

Let’s face it – most of the standard issue access points can’t really satisfy the extremely diverse client base – they either lack features, users want more speed and higher gain, the price is too high or they look weird. We decided to take all the aspects that are important for most home users and create a single device that will make them happy – this is the MikroTik Chateau.

It is a high-speed, dual-band home access point with CAT12 LTE – for really fast Internet anywhere, anytime. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

Not only our RouterOS software comes with robust security options, we also focus on the production security. There is no outsourcing, every device is assembled in our premises and all the components come from reputable, trusted partners – such as Qualcomm. We cooperate with European law-makers and work hard to ensure full compliance with all the necessary safety policies. MikroTik is all about smooth, long-term cooperation without surprises.

Reach speeds of up to 600 Mbps with carrier aggregation, as CAT12 allows devices to use three bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. Chateau LTE12 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.

Specifications

Product code

RBD53G-5HacD2HnD-TC&EG12-EA

Architecture

ARM 32bit

CPU

IPQ-4019

CPU core count

4

CPU nominal frequency

448-896 (auto) MHz

Switch chip model

IPQ-4019

Dimensions

240 x 156 x 44 mm

RouterOS license

4

Operating System

RouterOS v7

Size of RAM

256 MB

Storage size

16 MB

Storage type

FLASH

MTBF

Approximately 200'000 hours at 25C

Tested ambient temperature

-40°C to 70°C

IPsec hardware acceleration

Yes

Powering

Number of DC inputs

1 (DC jack)

DC jack input Voltage

12-28 V

Max power consumption

23 W

Max power consumption without attachments

17 W

Cooling type

Passive

Mobile

3G Category

R8 (42.2Mbps Downlink, 11.2Mbps Uplink)

3G bands

1 (2100MHz) / 5 (850MHz) / 8 (900MHz) / 3 (1800MHz)

LTE Category

12 (600Mbps Downlink, 150Mbps Uplink)

LTE FDD bands

1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)

LTE TDD bands

38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)

TAC

86056104

Wireless specifications

Wireless 2.4 GHz Max data rate

300 Mbit/s

Wireless 2.4 GHz number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

3

Wireless 2.4 GHz chip model

IPQ-4019

Wireless 2.4 GHz generation

Wi-Fi 4

Wireless 5 GHz Max data rate

867 Mbit/s

Wireless 5 GHz number of chains

2

Wireless 5 GHz standards

802.11a/n/ac

Antenna gain dBi for 5 GHz

4

Wireless 5 GHz chip model

IPQ-4019

Wireless 5 GHz generation

Wi-Fi 5

Ethernet

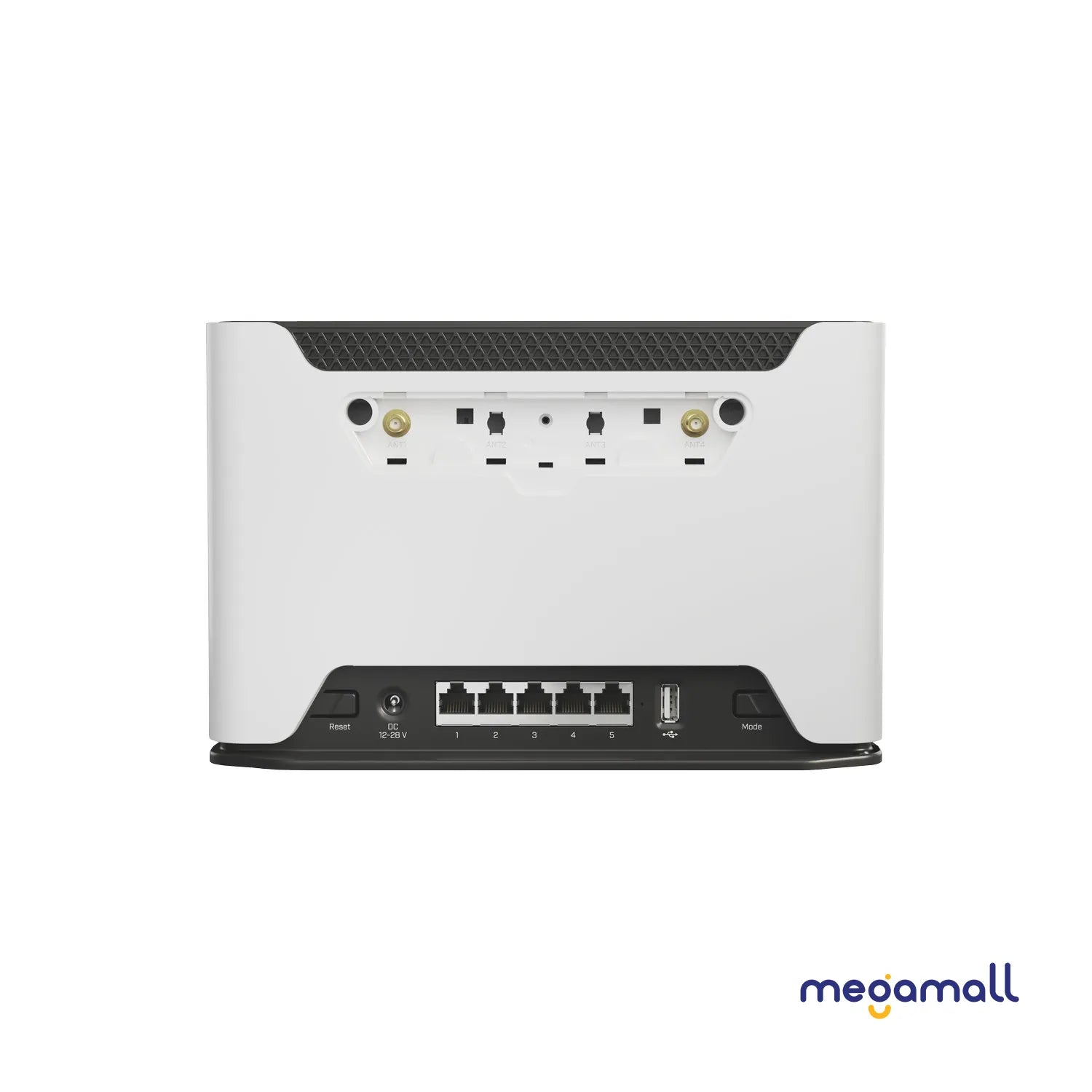

10/100/1000 Ethernet ports

5

Peripherals

Number of SIM slots

1 Modem (Micro SIM)

Number of USB ports

1

USB Power Reset

Yes

USB slot type

USB type A

Max USB current (A)

1

Other

Mode button

Yes

Certification & Approvals

Certification

CE, EAC, ROHS

IP

IP20

Wireless specifications

2.4 GHz

Transmit (dBm)

Receive Sensitivity

1MBit/s

25

-100

11MBit/s

25

-94

6MBit/s

26

-96

54MBit/s

23

-78

MCS0

26

-96

MCS7

22

-73

5 GHz

Transmit (dBm)

Receive Sensitivity

6MBit/s

26

-96

54MBit/s

22

-80

MCS0

26

-96

MCS7

21

-75

MCS9

19

-70

Warranty

Warranty

1 Year
