Description

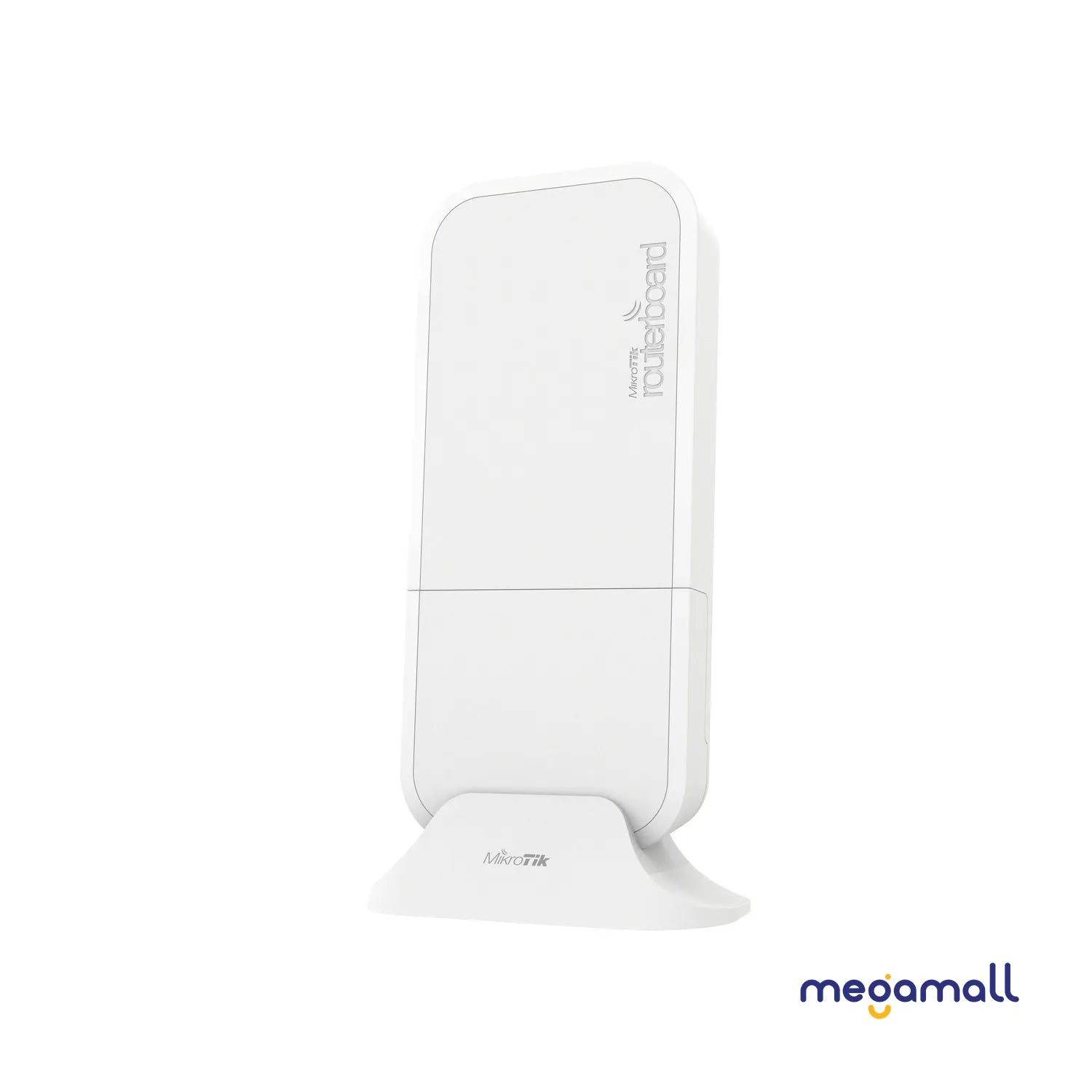

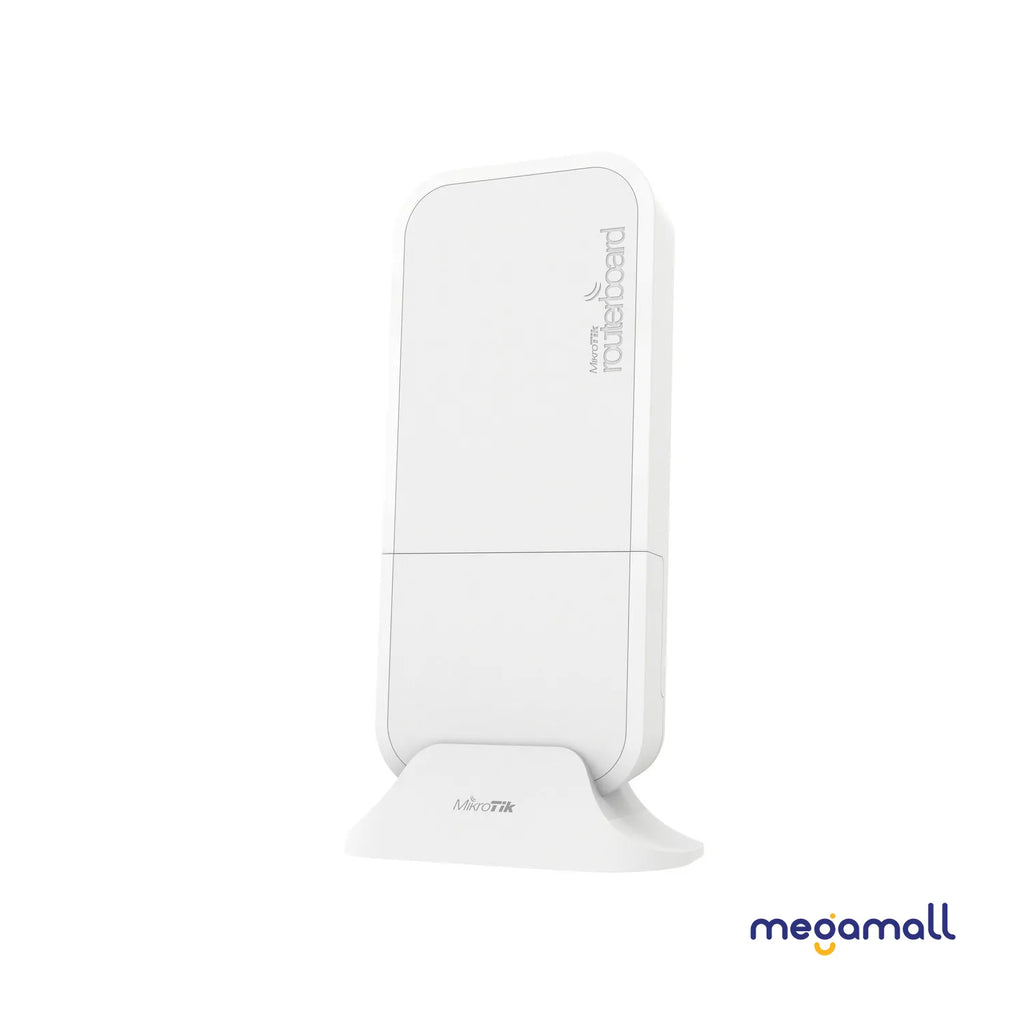

Powerful and versatile dual-band wireless access point with CAT6 LTE support.
A small package with huge ambition – the wAP ac LTE6 kit is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor. Its new CAT6 LTE modem enables even greater download speed – up to 300 Mbps!
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

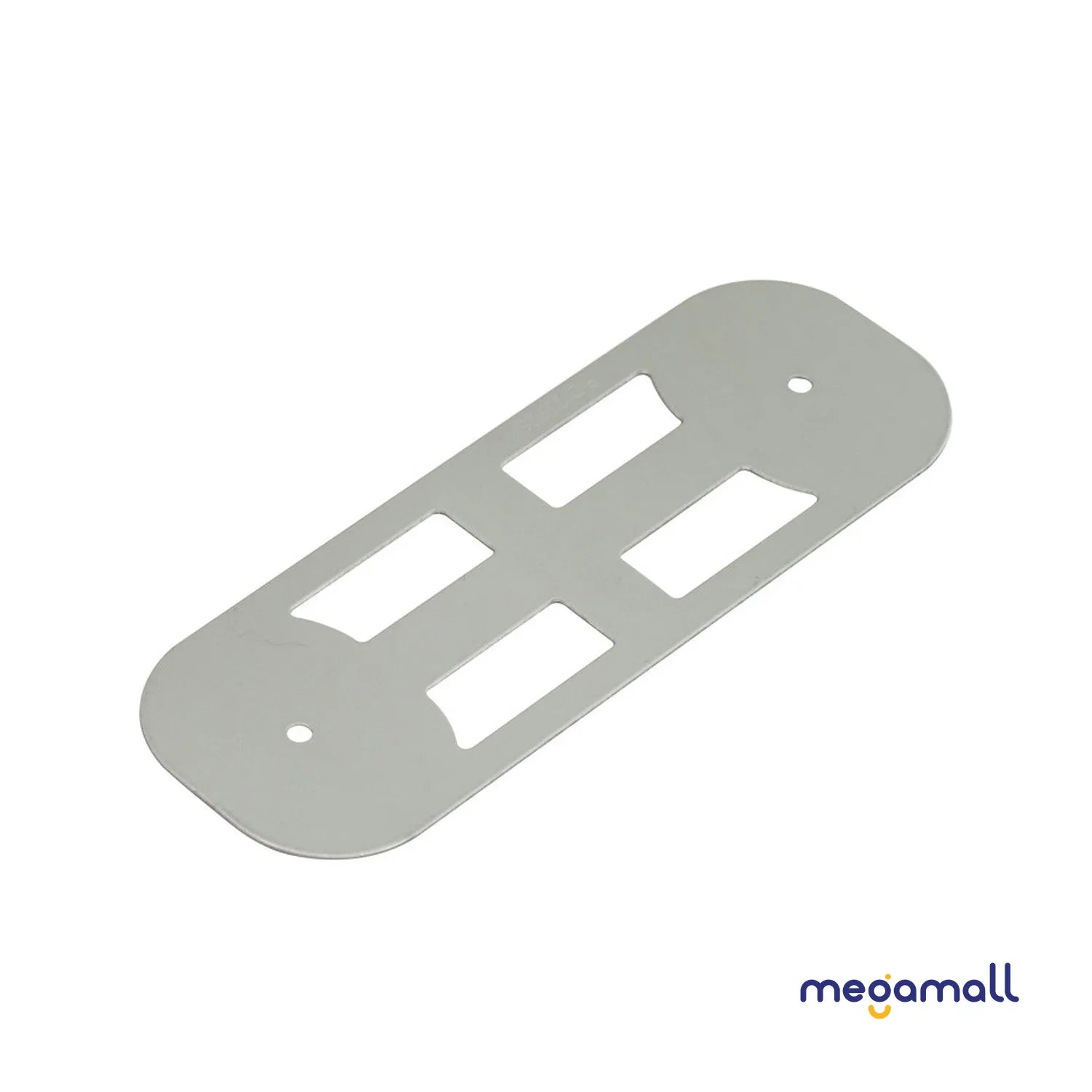

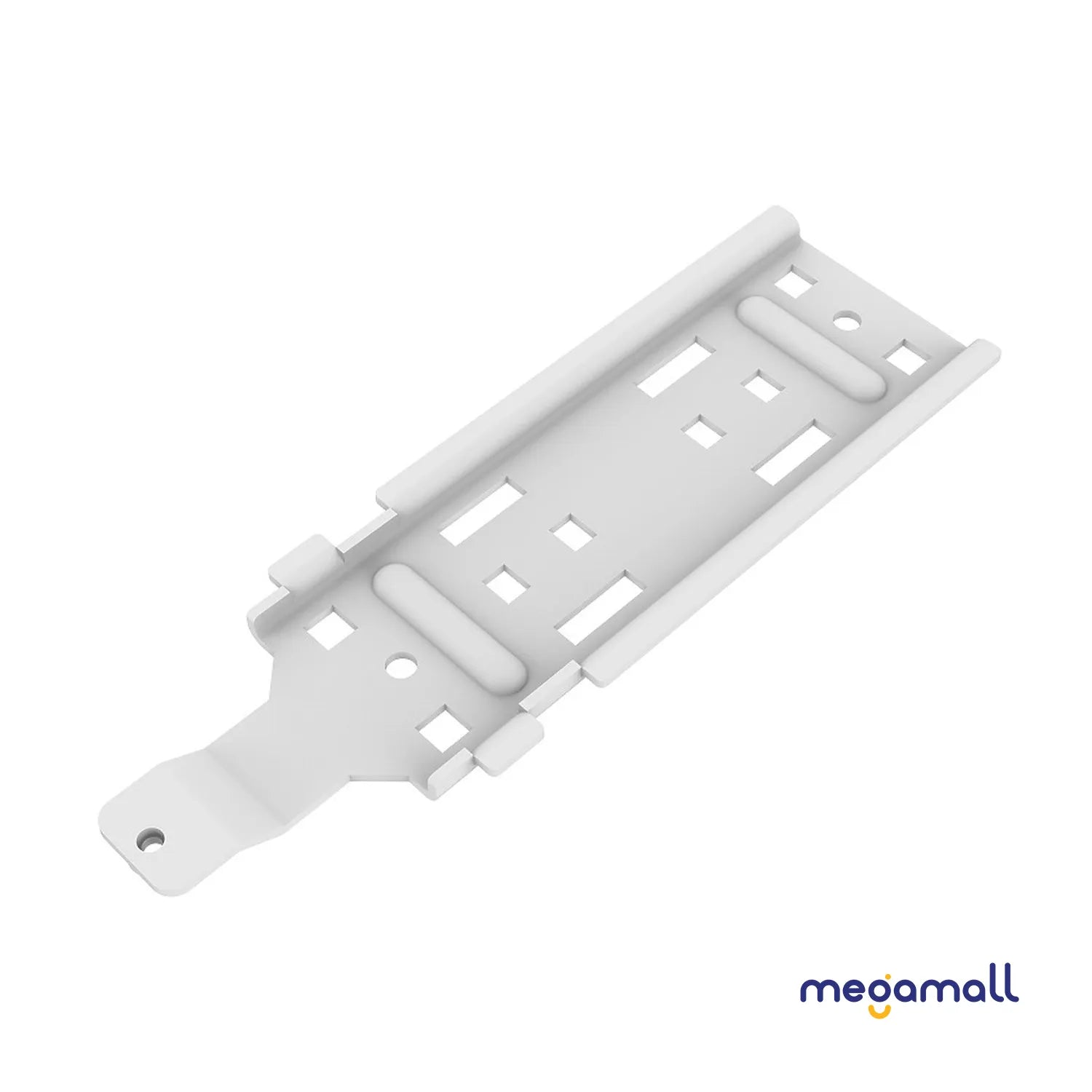

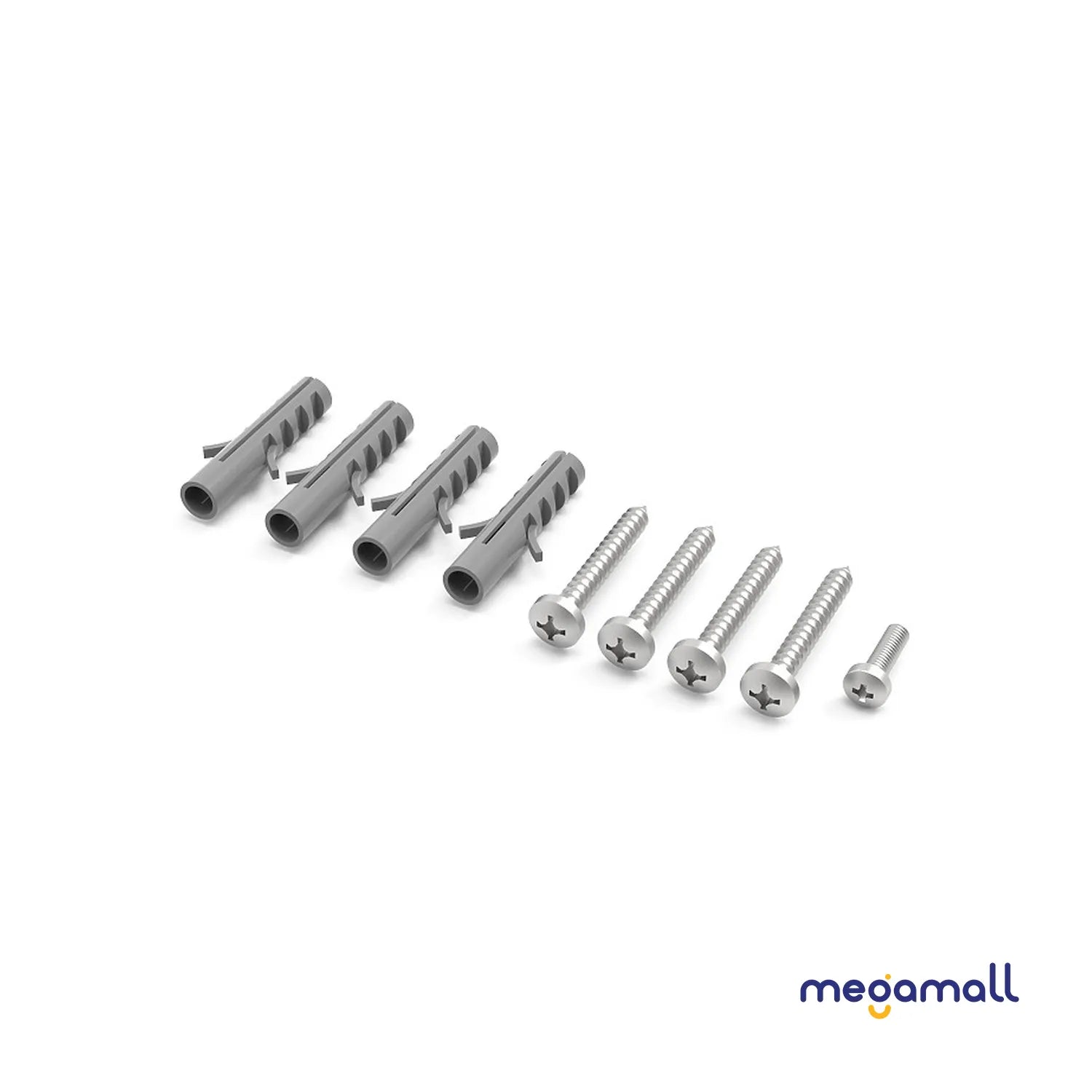

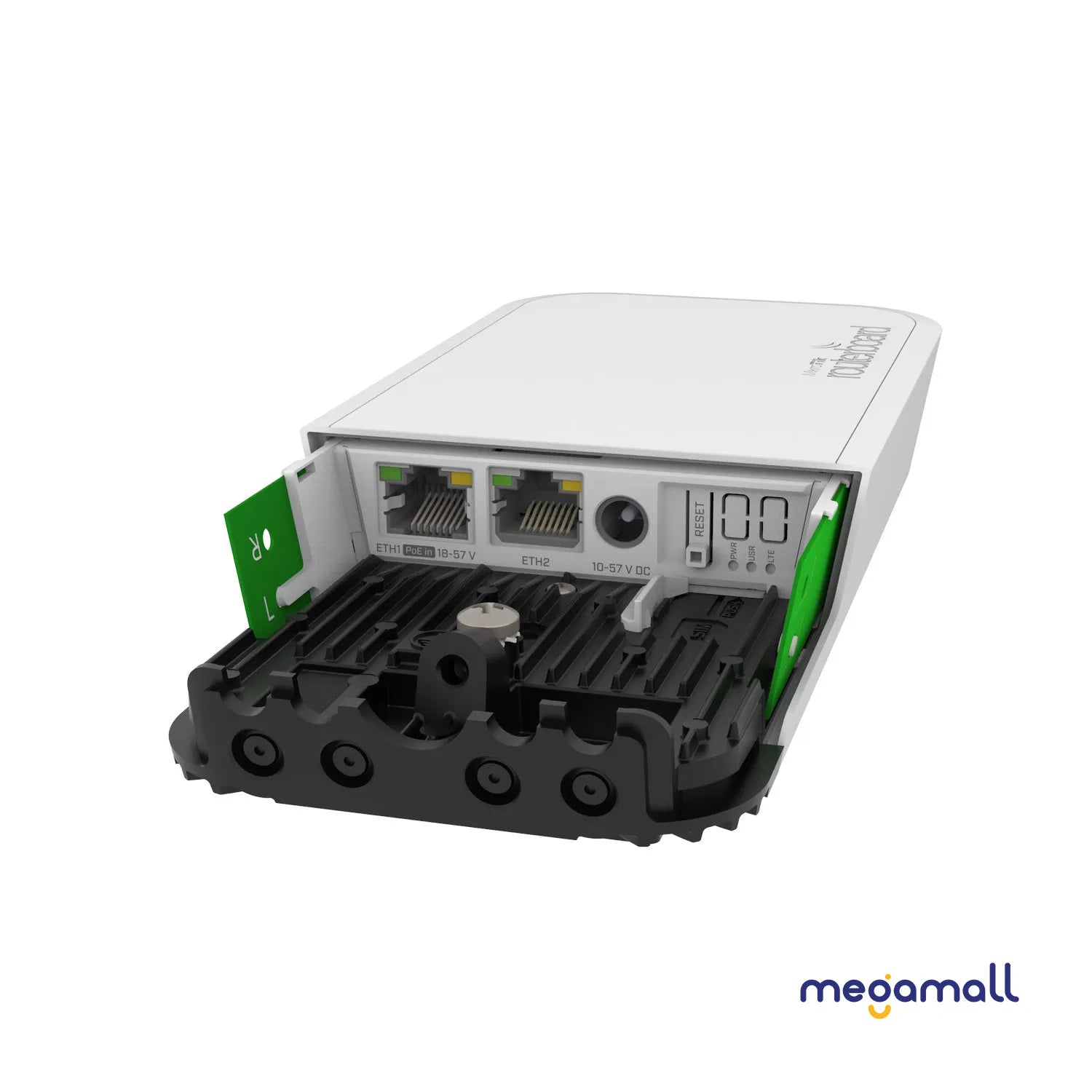

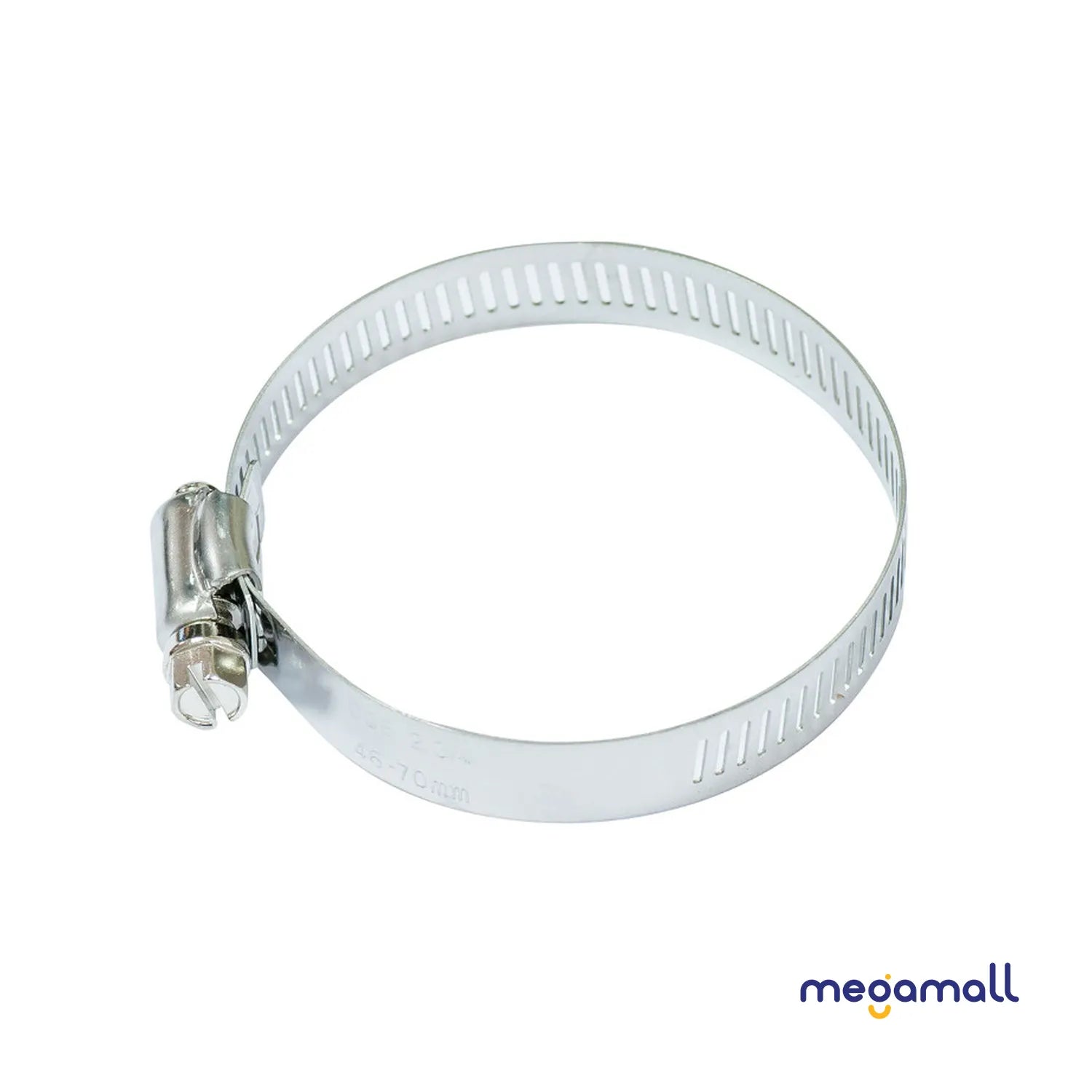

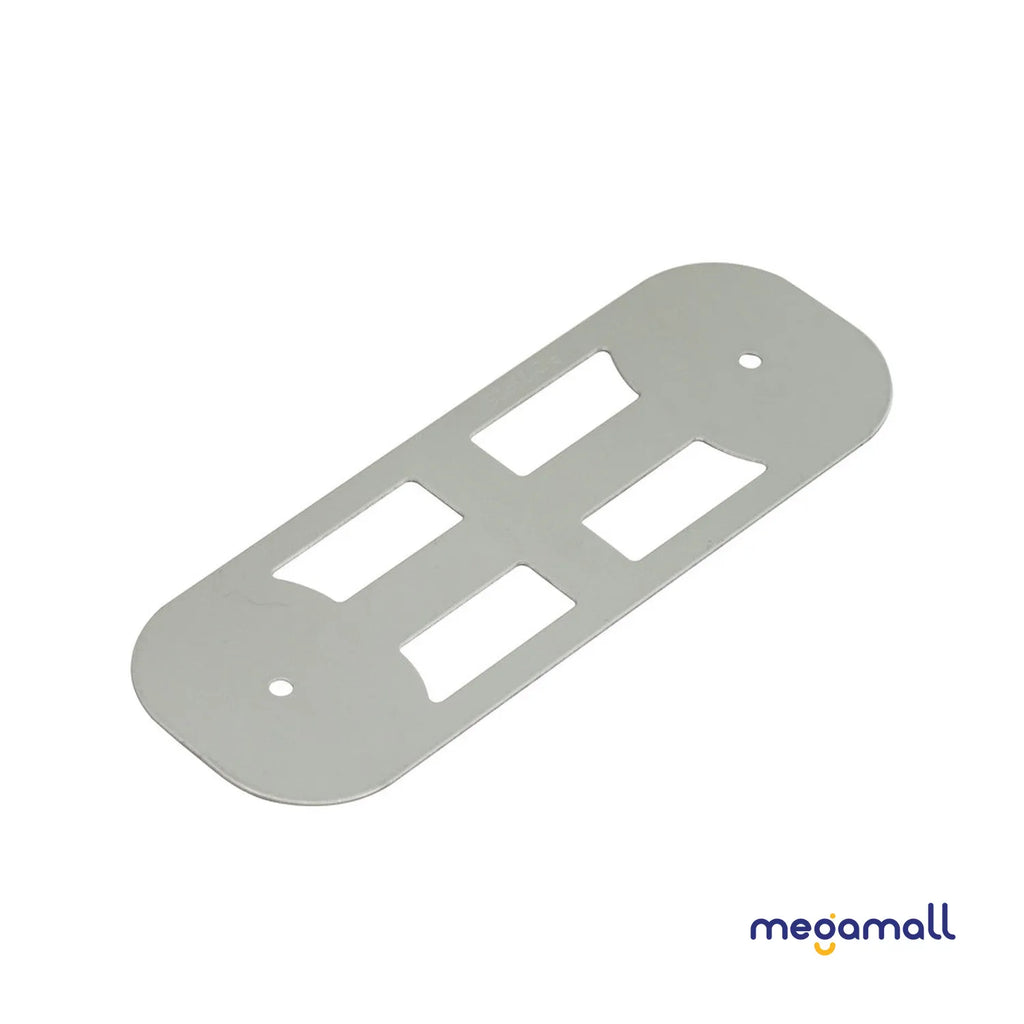

wAP ac LTE6 kit has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.
|
Specifications |
||
|
Product code |
RBwAPGR-5HacD2HnD&R11e-LTE6 |
|
|
Architecture |
ARM 32bit |
|
|
CPU |
IPQ-4018 |
|
|
CPU core count |
4 |
|
|
CPU nominal frequency |
488-896 (auto) MHz |
|
|
Switch chip model |
IPQ-4018 |
|
|
RouterOS license |
4 |
|
|
Operating System |
||
|
Size of RAM |
128 MB |
|
|
Storage size |
16 MB |
|
|
Storage type |
FLASH |
|
|
MTBF |
Approximately 100'000 hours at 25C |
|
|
Tested ambient temperature |
-30°C to 60°C |
|
|
IPsec hardware acceleration |
Yes |
|
|
Powering |
||
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
|

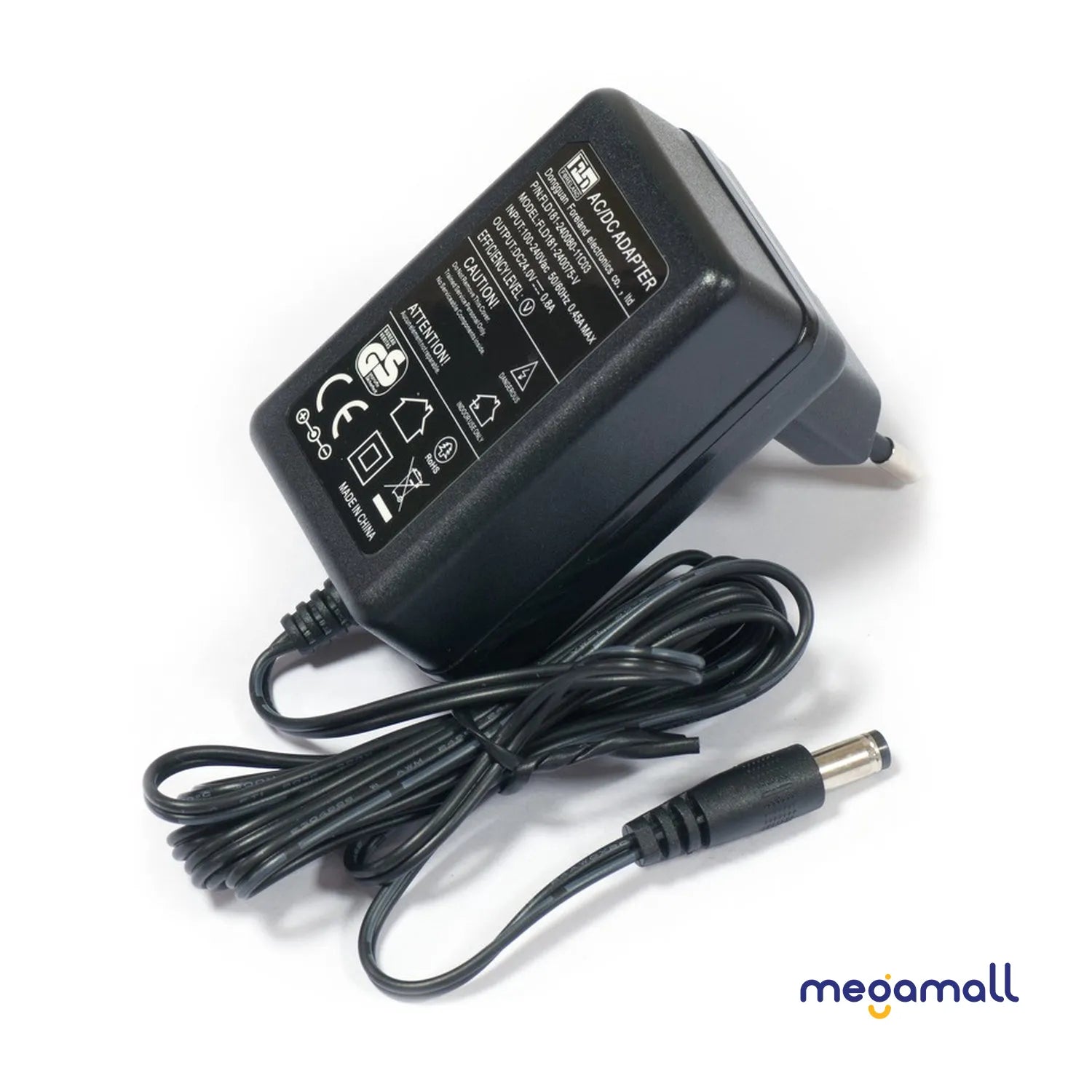

DC jack input Voltage |
10-57 V |
|
|
Max power consumption |
16 W |
|
|
Max power consumption without attachments |
10 W |
|
|

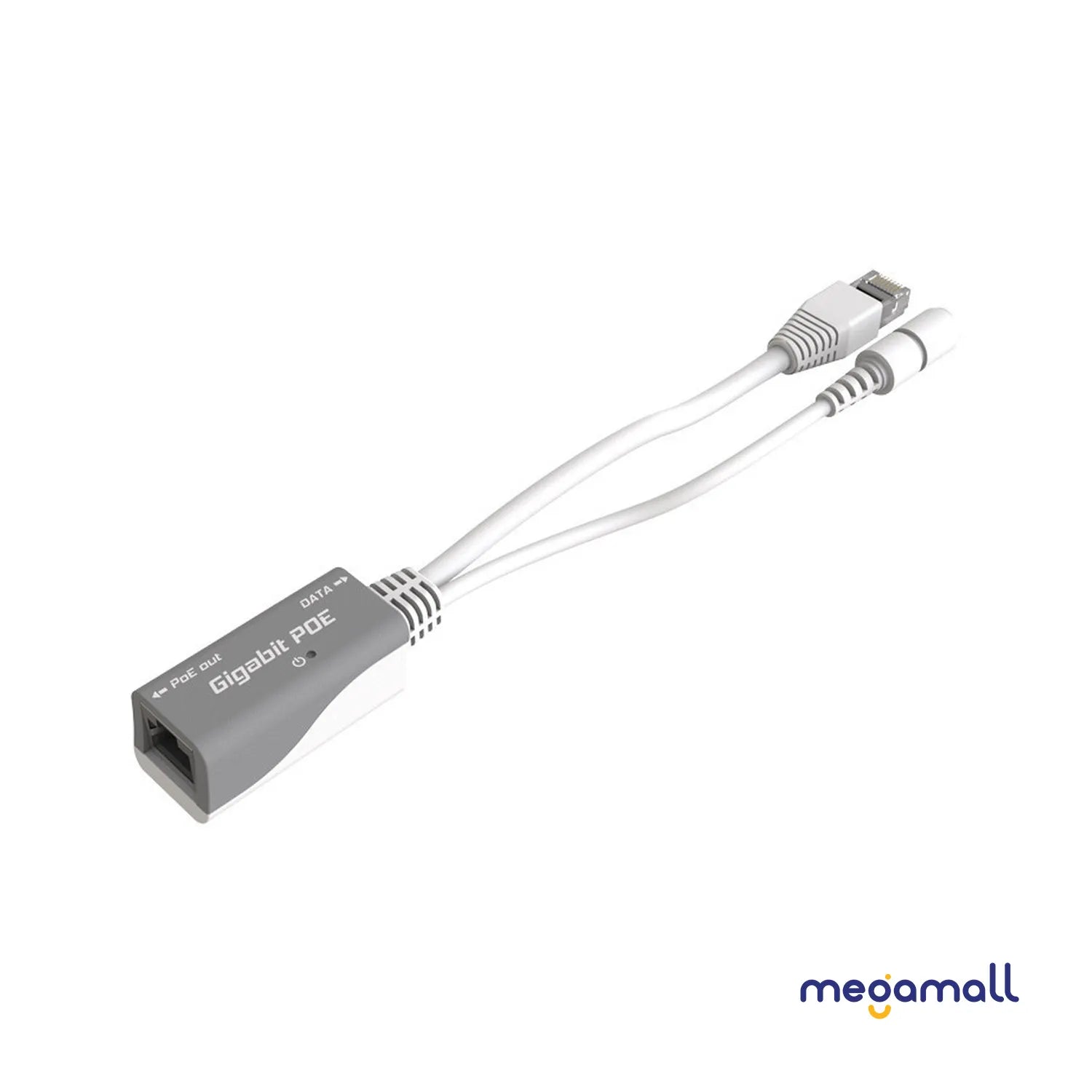

PoE in |
802.3af/at |
|
|
Cooling type |
Passive |
|
|
PoE in input Voltage |
18-57 V |
|
|
Mobile |
||
|
2G Category |
Class12 |
|
|
2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
|
|
3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
|
|
3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
|
|
LTE Category |
6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
|
|
LTE FDD bands |
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
|
|
LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
|
|
TAC |
35666210 |
|
|
Wireless specifications |
||
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
|
Wireless 2.4 GHz number of chains |
2 |
|
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
|
Antenna gain dBi for 2.4 GHz |
2.5 |
|
|
Wireless 2.4 GHz chip model |
IPQ-4018 |
|
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
|
Wireless 5 GHz Max data rate |
867 Mbit/s |
|
|
Wireless 5 GHz number of chains |
2 |
|
|
Wireless 5 GHz standards |
802.11a/n/ac |
|
|
Antenna gain dBi for 5 GHz |
2.5 |
|
|
Wireless 5 GHz chip model |
IPQ-4018 |
|
|
Wireless 5 GHz generation |
Wi-Fi 5 |
|
|
Ethernet |
||
|
10/100/1000 Ethernet ports |
2 |
|
|
Peripherals |
||
|
Number of SIM slots |
1 Modem (Micro SIM) |
|
|
MiniPCI-e slots |
1 |
|
|
Other |
||
|
PCB temperature monitor |
Yes |
|
|
Voltage Monitor |
Yes |
|
|
Certification & Approvals |
||
|
Certification |
CE, FCC, IC, EAC, ROHS |
|
|
IP |
IP54 |
|
|
Wireless specifications |
||
|
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|
1MBit/s |
22 |
-100 |
|
11MBit/s |
22 |
-94 |
|
6MBit/s |
23 |
-95 |
|
54MBit/s |
19 |
-78 |
|
MCS0 |
23 |
-95 |
|
MCS7 |
18 |
-73 |
|
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
|
6MBit/s |
24 |
-95 |
|
54MBit/s |
20 |
-78 |
|
MCS0 |
24 |
-95 |
|
MCS7 |
19 |
-73 |
|
MCS9 |
17 |
-68 |
|
Warranty |
||
|
Warranty |
1 Year |
|
