Description

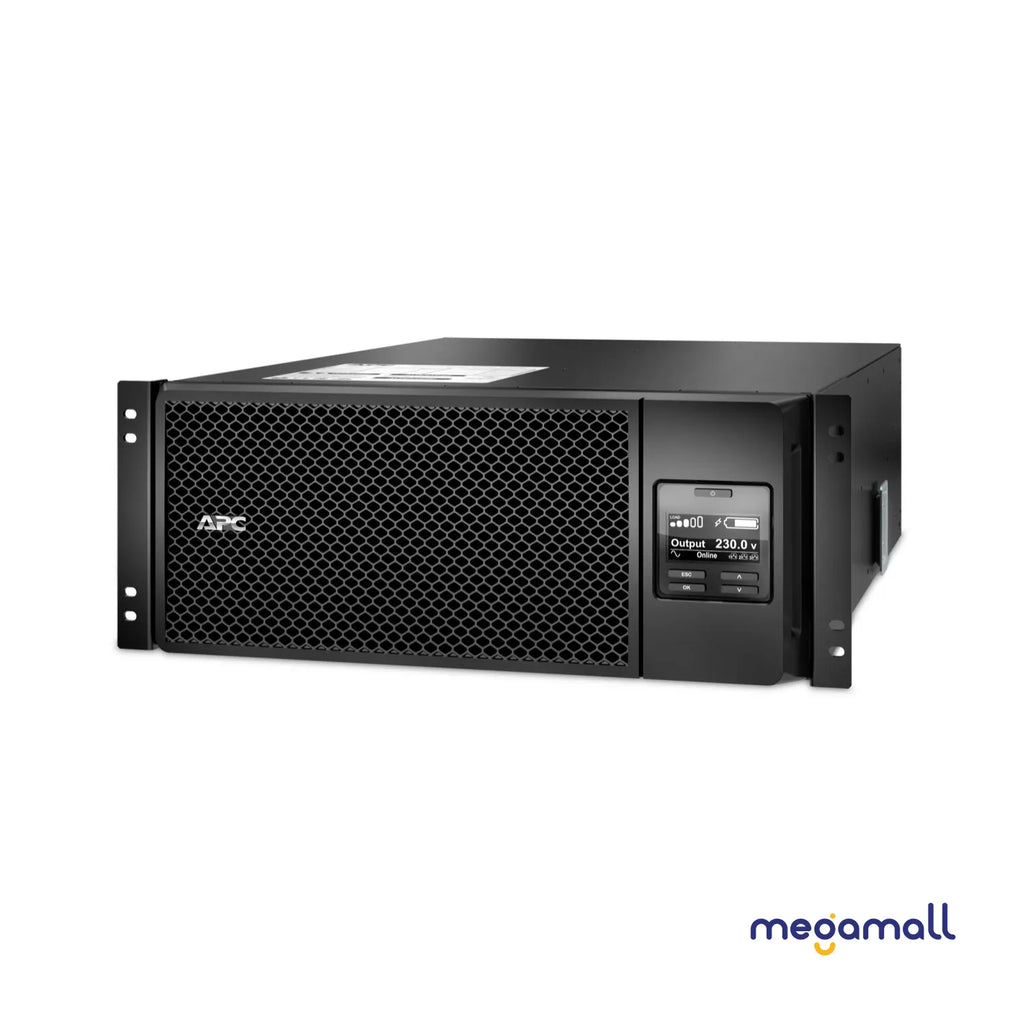

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 6000VA/6000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 4U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with hard wire 3-wire input, 6x IEC 320 C13, 4x IEC 60320 C19 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 719mm (depth) x 174mm (height) x 432mm (width) and weighs 60.00kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
- Replacement batteryis available
- 6kVA/6kW double-conversion on-line pure sine wave 4U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- 1-Year Secure Network Management Card subscription included
- Add up to 10 external battery packs (SRT192RMBP) for extended runtime
|
Overview |
|
|
Presentation |
High density, double-conversion on-line power protection with scalable runtime. |
|
Main |
|
|
Run time for load 6000 W Min-max: 600-6000 W |
2min 28s |
|
Max. Capacity Used |
100% |
|
Main Input Voltage |
220 V AC 1 phase |
|
Input voltage |
220 V |
|
Input Connection Type |
IEC 320 Hard Wire 3-wire |
|
Input voltage limits |
100...275 V adjustable (half load) |
|
Number of input connectors |
1 hard wire 3-wire (1P + N + E) |
|
Network frequency |
40...70 Hz auto-sensing |
|
Output voltage |
220 V AC 1 phase |
|
Output voltage |
220 V |
|
Rated power in W |
6000 W |
|
rated power in VA |
6000 VA |
|
Output connection type |
6 IEC 60320 C13 |
|
Output connector type |
Hard wire 3-wire (H N + E) for 1 zone(s) |
|
Bypass type |
Internal bypass (automatic and manual) |
|
Crest factor |
3:01 |
|
Harmonic distortion |
Less than 2 % |
|
Maximum configurable power in VA |
6000 VA |
|
Maximum configurable power in W |
6000 W |
|
UPS type |
On-Line |
|
Wave type |
Sine wave |
|
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Complementary |
|
|
Battery type |
Lead-acid internal included |
|
Emergency power off |
Yes |
|
Free slots |
1 |
|
Preinstalled device |
Network management card 3 with environmental monitoring |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
UPS connectivity |
Serial port |
|
Surge energy rate |
480 J |
|
Number of rack unit |
4U |
|
Number of cables |
2 |
|
Colour |
Black |
|
Height |
174 mm |
|
Width |
432 mm |
|
Depth |
719.4 mm |
|
Net weight |
60 kg |
|
Mounting location |
Front |
|
Mounting preference |
Lower |
|
Mounting mode |
Rack-mounted |
|
Two post mountable |
0 |
|
USB compatible |
Yes |
|
Mounting position |
Horizontal |
|
Mounting mode |
Rack-mounted with included kit |
|
Provided equipment |
CD with software |
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Additional specification |
High density |
|
Redundant |
No |
|
Range of product |
Smart-UPS On-Line |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product certifications |
CE |
|
Marking |
CE Mark |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-15…45 °C |
|
Storage altitude |
0…15240 m |
|
IP degree of protection |
IP20 |
|
Relative humidity |
0…95 % non-condensing |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
55 dBA |
|
Heat dissipation |
1300 Btu/h |
|
Operating altitude |
0...10000 ft |
|
Batteries & Runtime |
|
|
Run Time |
View Runtime Graph |
|
Efficiency |
View Efficiency Graph |
|
Battery type |
Lead-acid battery |
|
Battery voltage |
192 V |
|
Extended runtime |
1 |
|
Number of battery filled slots |
0 |
|
Battery recharge time |
1.5 h |
|
Number of battery replacement quantity |
1 |
|
Battery life |
3…5 year(s) |
|
Replacement battery |
APCRBC140 |
|
Battery charger power |
597 W rated |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
37.000 cm |
|
Package 1 Width |
61.000 cm |
|
Package 1 Length |
96.000 cm |
|
Package 1 Weight |
67.000 kg |
|
Contractual warranty |
|
|
Warranty (in months) |
36 UPS|24 Battery |
