Description
- 20kVA/20kW double-conversion on-line pure sine wave 9U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Add up to 10 external battery packs (SRV120RLBP2-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information on UPS status
|
Main |
|
|
Run time for load 20000 W Min-max: 2000-20000 W |
2min 1s |
|
Max. Capacity Used |
100% |
|
Main Input Voltage |
230 V AC 1 phase |
|
Input voltage |
220 V |
|
Input voltage limits |
110...300 V half load |
|
Number of input connectors |
1 hard wire 3-wire (1P + N + E) |
|
Network frequency |
40...70 Hz auto sensing |
|
Output voltage |
230 V AC 1 phase |
|
Output voltage |
220 V |
|
Rated power in W |
20000 W |
|
rated power in VA |
20000 VA |
|
Output connector type |
Hard wire 3-wire (1P + N + E) for 1 zone(s) |
|
Bypass type |
Internal bypass (automatic and manual) |
|
Crest factor |
3:01 |
|
Harmonic distortion |
2% |
|
Maximum configurable power in VA |
20000 VA |
|
Maximum configurable power in W |
20000 W |
|
UPS type |
On-Line |
|
Wave type |
Sine wave |
|
Efficiency |
95 % (full load) |
|
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Graphs |
|
|
Run Time |
View Runtime Graph |
|
Efficiency |
View Efficiency Graph |
|
Complementary |
|
|
Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
|
Battery type |
Lead-acid external included |
|
Control panel |
Multifunction LCD status and control console |
|
Emergency power off |
Yes |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
UPS connectivity |
Serial port |
|
Surge energy rate |
600 J |
|
Number of rack unit |
9U |
|
Colour |
Black (RAL 7010) |
|
Height |
393 mm |
|
Width |
438 mm |
|
Depth |
690 mm |
|
Net weight |
157 kg |
|
Mounting location |
Front |
|
Mounting preference |
No preference |
|
Mounting mode |
Rack-mounted |
|
USB compatible |
Yes |
|
Mounting position |
Horizontal |
|
Mounting mode |

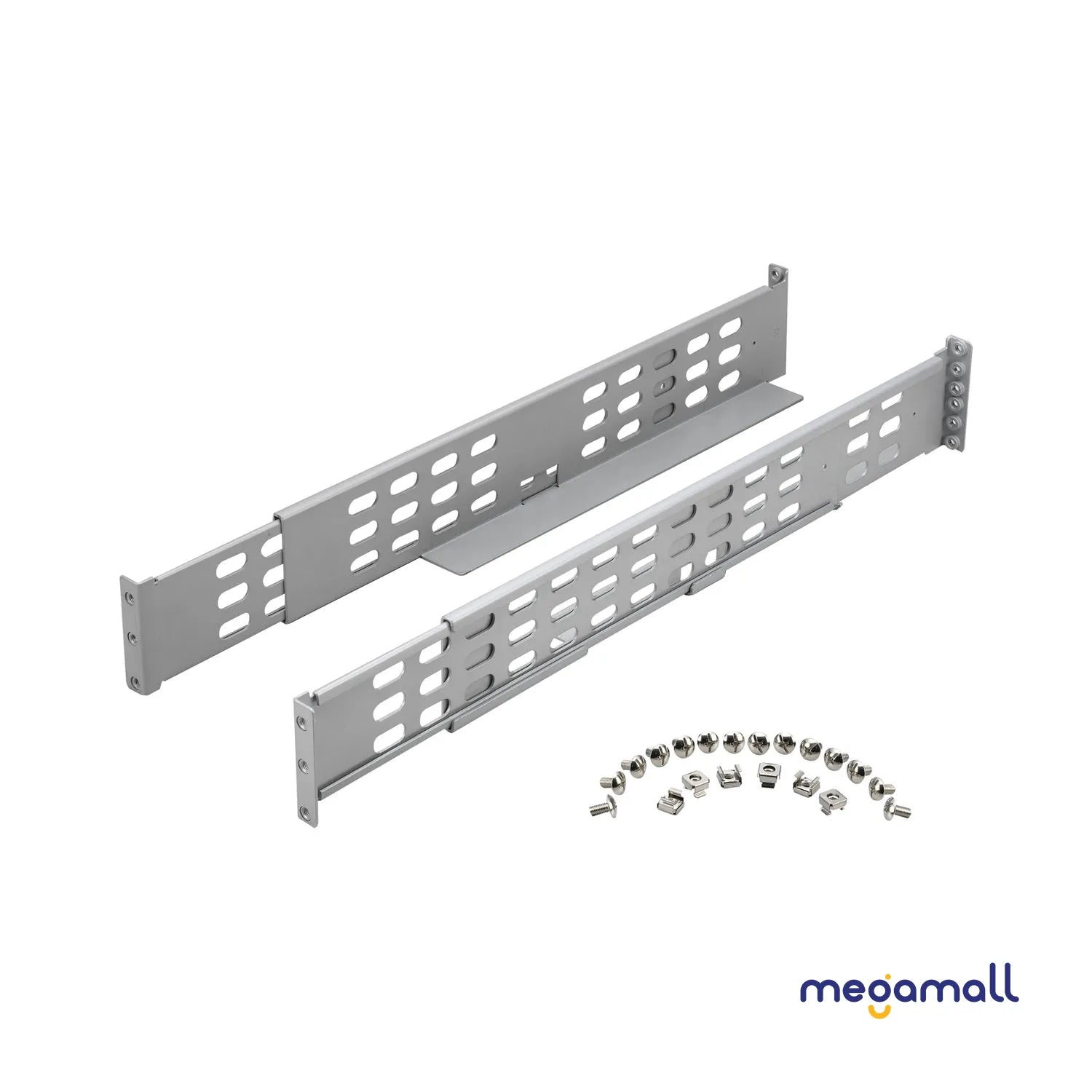

Rack-mounted with included kit |
|
Redundant |
No |
|
Range of product |
Easy UPS On-Line |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product certifications |
CE |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-20…60 °C |
|
Storage altitude |
0…15000 m |
|
IP degree of protection |
IP20 |
|
Relative humidity |
0…95 % non-condensing |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
65 dBA |
|
Heat dissipation |
3712 Btu/h |
|
Operating altitude |
0...3000 m |
|
Batteries & Runtime |
|
|
Battery type |
Lead-acid battery |
|
Battery voltage |
+/- 120 V |
|
Extended runtime |
1 |
|
Number of battery filled slots |
0 |
|
Number of battery free slots |
0 |
|
Battery recharge time |
6 h |
|
Battery charger power |
2340 W rated |
|
Battery power in VAH |
3400 VAh runtime |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
100 cm |
|
Package 1 Width |
90 cm |
|
Package 1 Length |
60 cm |
|
Package 1 Weight |
196 kg |
|
Contractual warranty |
|
|
Warranty (in months) |
24 |
