Description

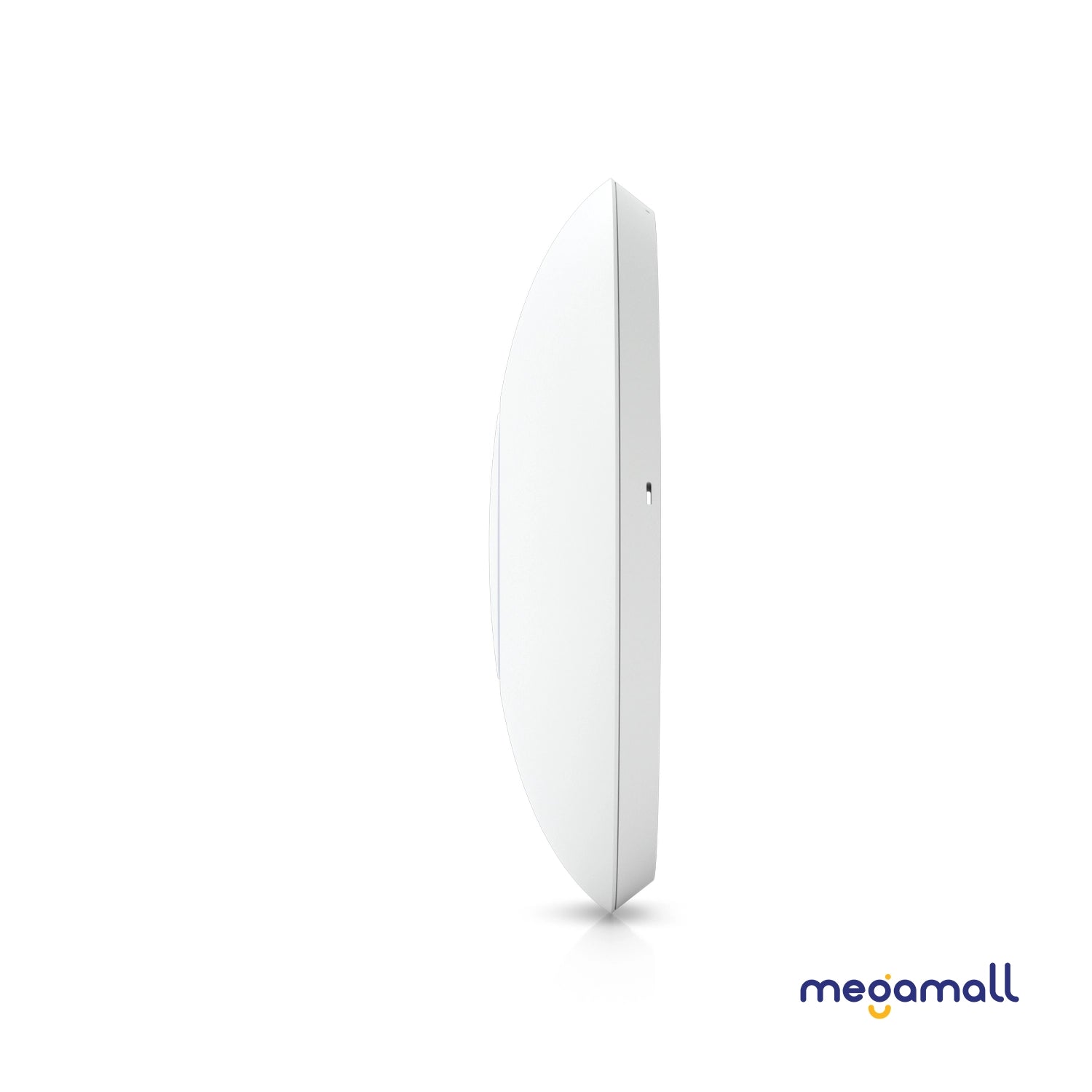

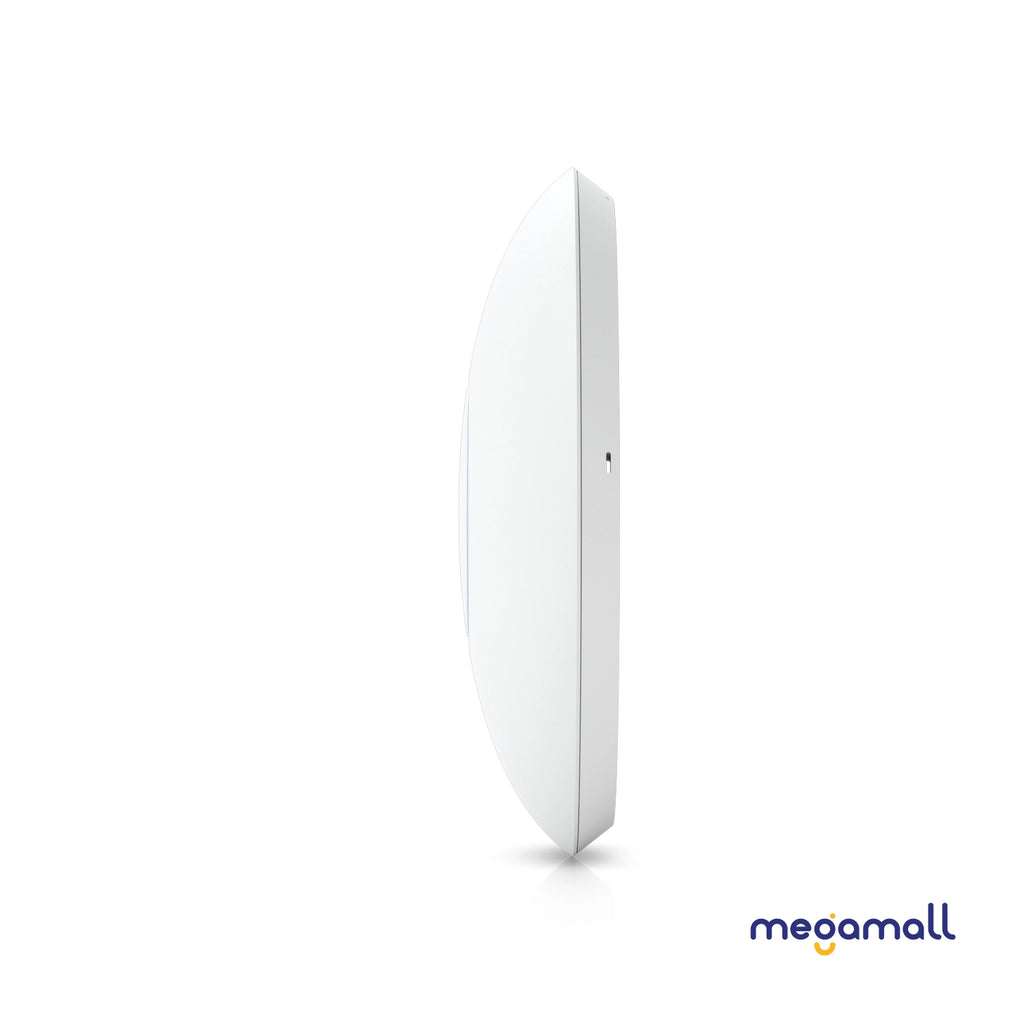

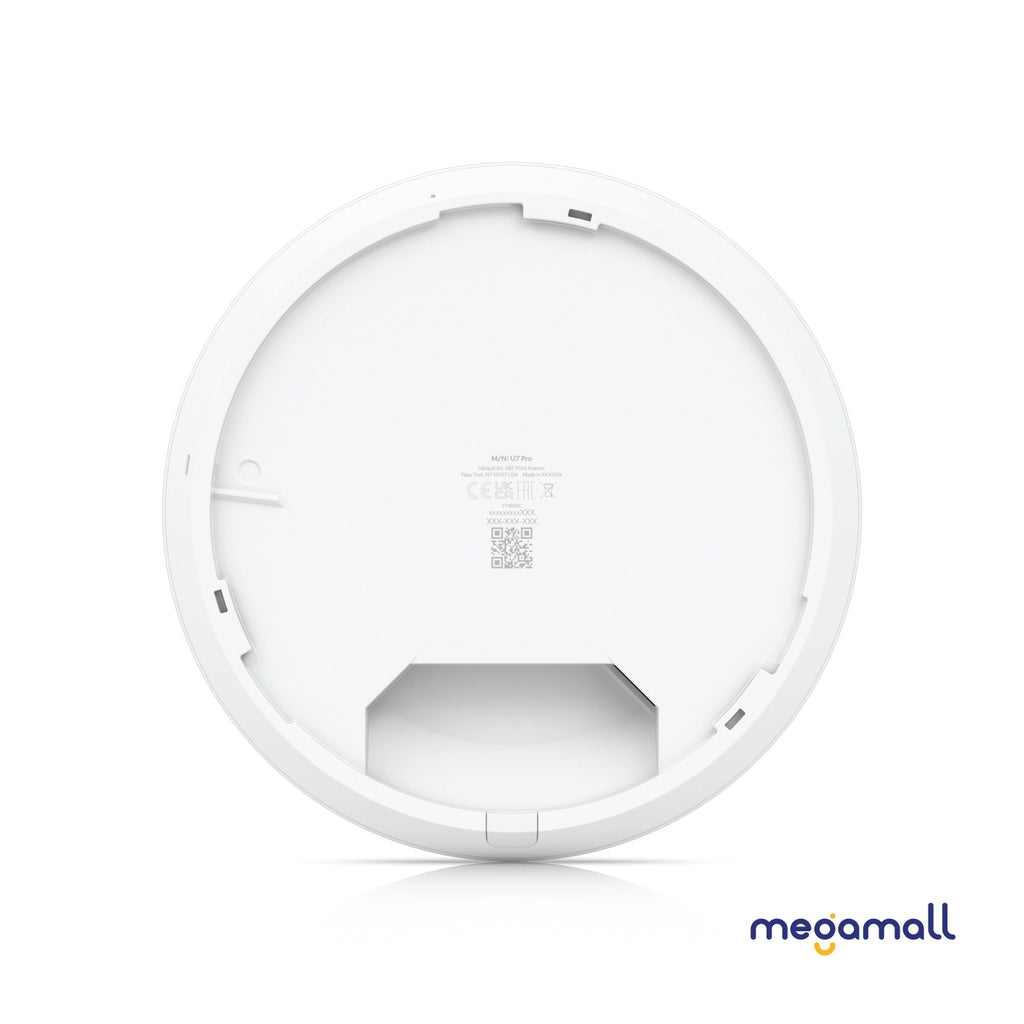

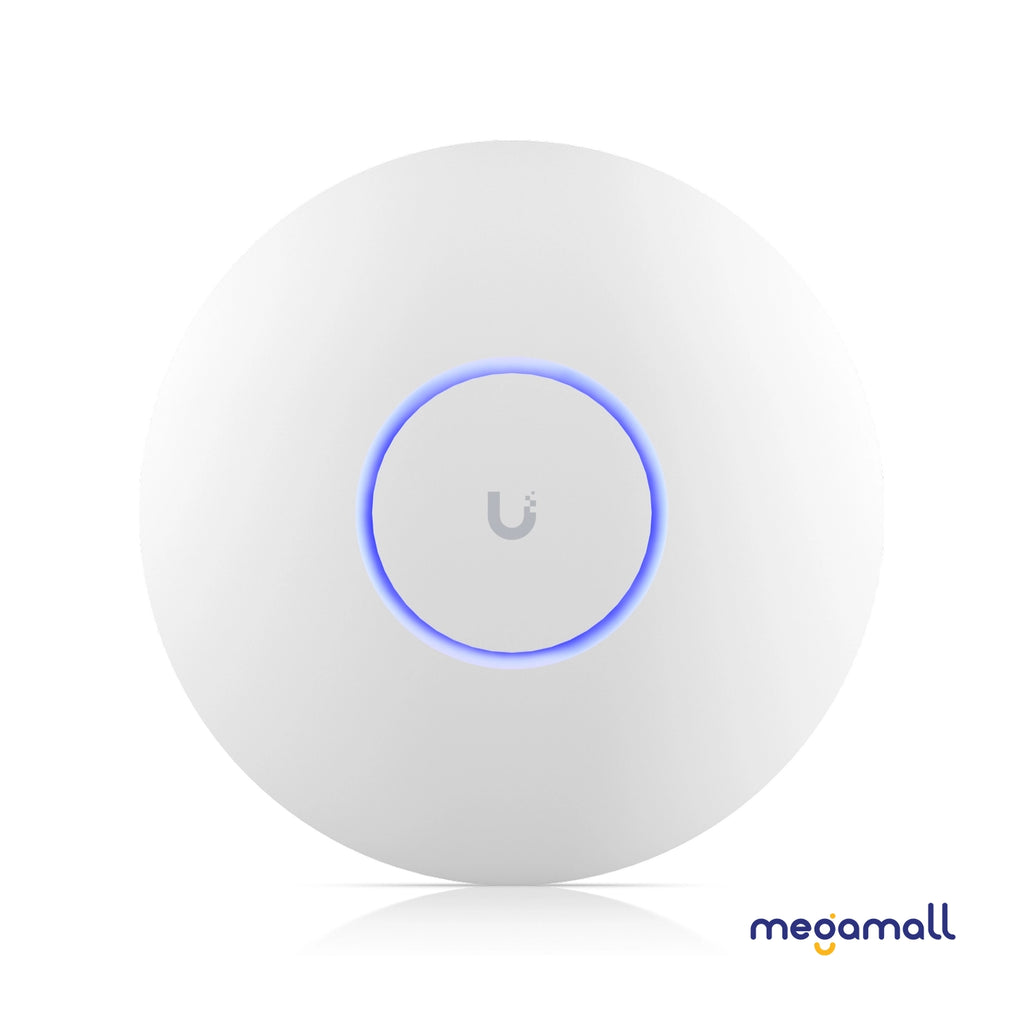

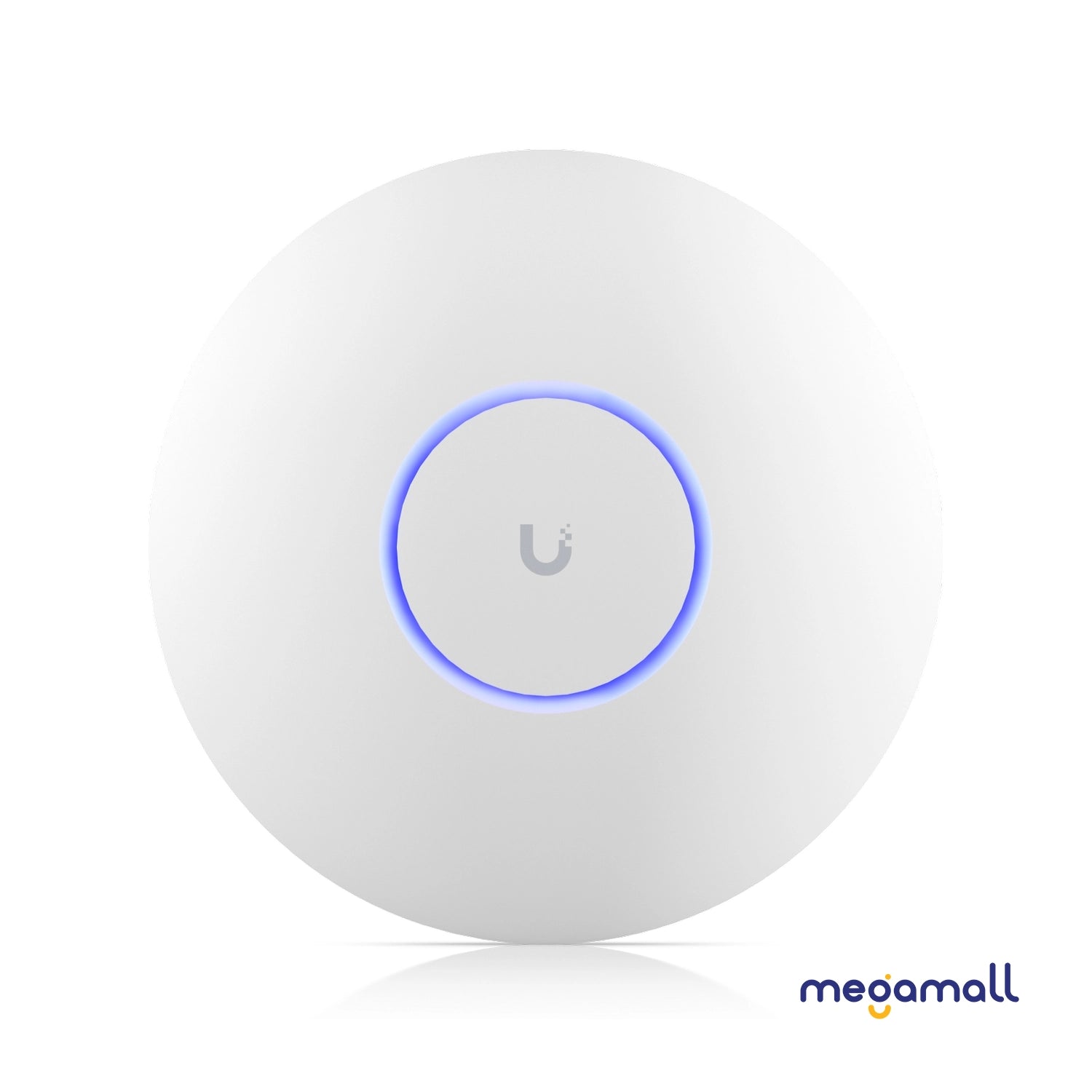

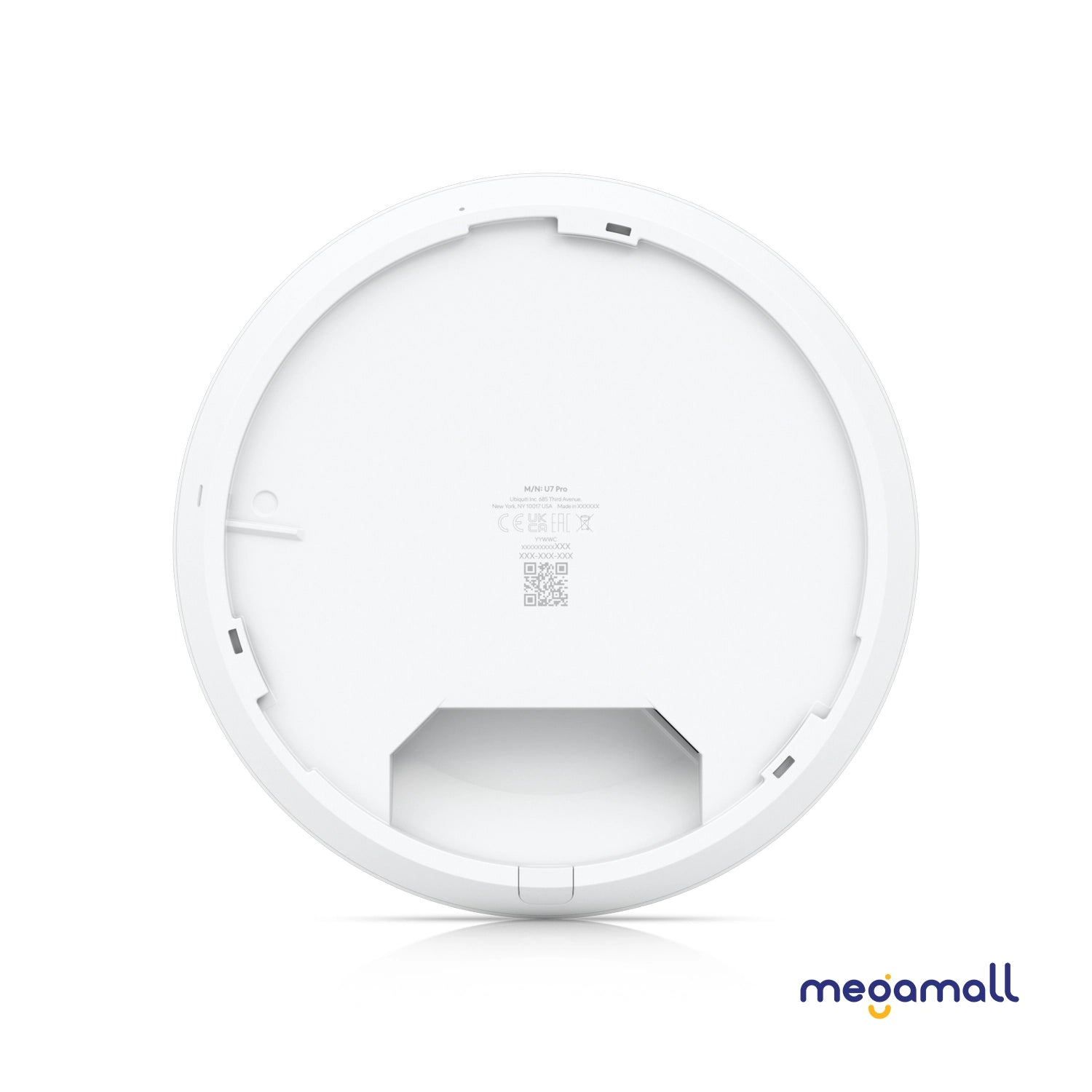

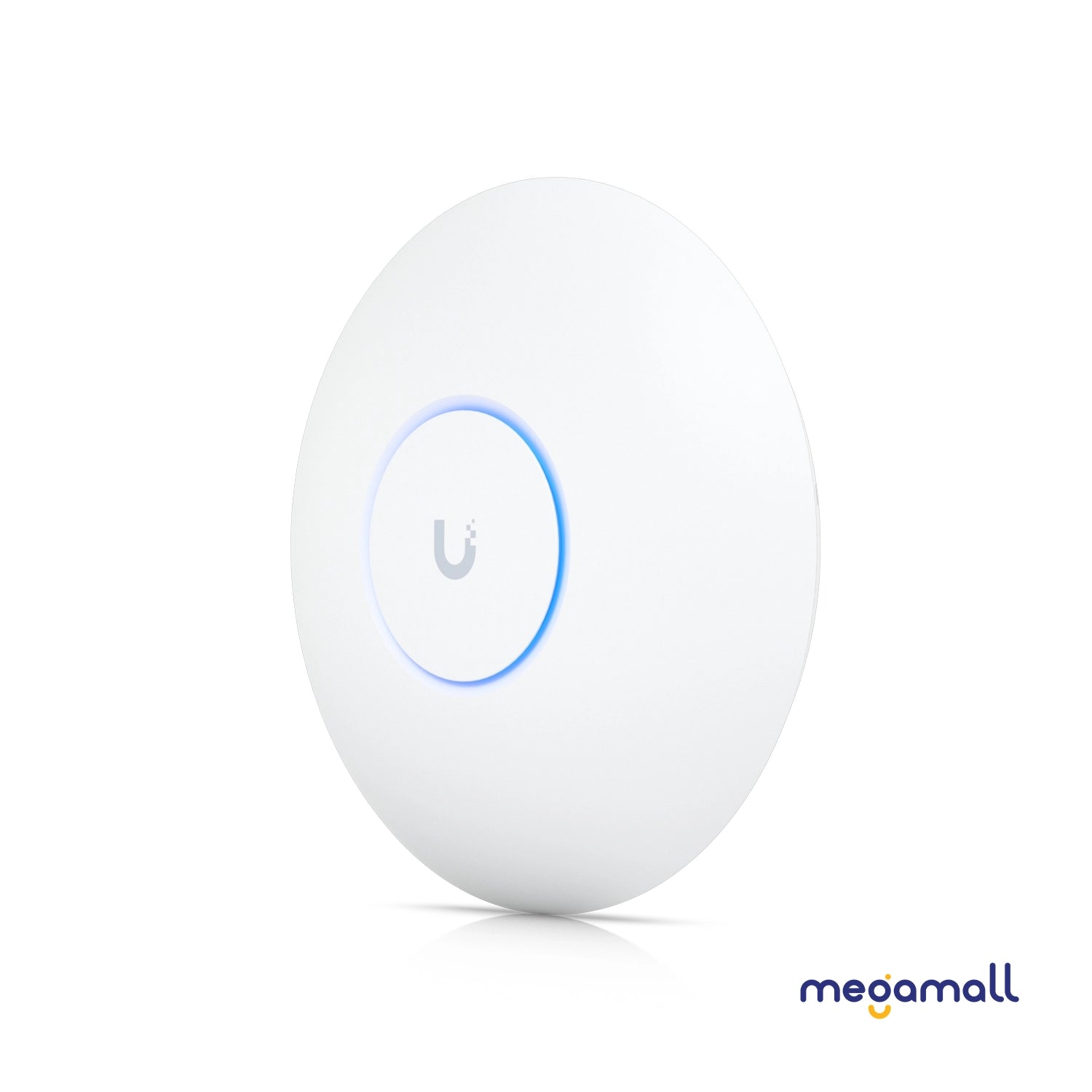

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
Note. 6 GHz operation is supported in these countries.
Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.
|
Overview |
||
|
Dimensions |
Ø206 x 46 mm (Ø8.1 x 1.8") |
|
|
WiFi Standard |
WiFi 7 |
|
|
Spatial Streams |
6 |
|
|
Coverage Area |
140 m² (1,500 ft²) |
|
|
Max. Client Count |
300+ |
|
|
Uplink |
2.5 GbE |
|
|
Mounting |
Ceiling, Wall (Pro Mount Included) |
|
|
Power Method |
PoE+ |
|
|
Performance |
||
|
MIMO |
||
|
6 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
|
5 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
|
2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
|
Max. Data Rate |
||
|
6 GHz |
5.8 Gbps (BW320) |
|
|
5 GHz |
4.3 Gbps (BW240) |
|
|
2.4 GHz |
688 Mbps (BW40) |
|
|
Antenna Gain |
||
|
6 GHz |
5.8 dBi |
|
|
5 GHz |
6 dBi |
|
|
2.4 GHz |
4 dBi |
|
|
Max. TX Power |
||
|
6 GHz |
23 dBm |
|
|
5 GHz |
26 dBm |
|
|
2.4 GHz |
22 dBm |
|
|
Max. BSSIDs |
8 per Radio |
|
|
Supported Data Rates |
||
|
802.11be (WiFi 7) |
7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
|
|
802.11ax (WiFi 6/6E) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
|
|
802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
|
|
802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
|
Features |
||
|
Wireless Meshing |
✓ |
|
|
Band Steering |
✓ |
|
|
802.11v BSS Transition Management |
✓ |
|
|
802.11r Fast Roaming |
✓ |
|
|
802.11k Radio Resource Management (RRM) |
✓ |
|
|
Advanced Radio Management |
✓ |
|
|
Passpoint (Hotspot 2.0) |
✓ |
|
|
Captive Hotspot Portal |
||
|
Custom Branding Landing Page |
✓ |
|
|
Voucher Authentication |
✓ |
|
|
Payment-Based Authentication |
✓ |
|
|
External Portal Server Support |
✓ |
|
|
Password Authentication |
✓ |
|
|
Guest Network Isolation |
✓ |
|
|
Private Pre-Shared Key (PPSK) |
✓ |
|
|
WiFi Speed Limiting |
✓ |
|
|
Client Device Isolation |
✓ |
|
|
WiFi Schedules |
✓ |
|
|
RADIUS over TLS (RadSec) |
✓ |
|
|
Dynamic RADIUS-assigned VLAN |
✓ |
|
|
Hardware |
||
|
Max. Power Consumption |
21W |
|
|
Supported Voltage Range |
44—57V DC |
|
|
Networking Interface |

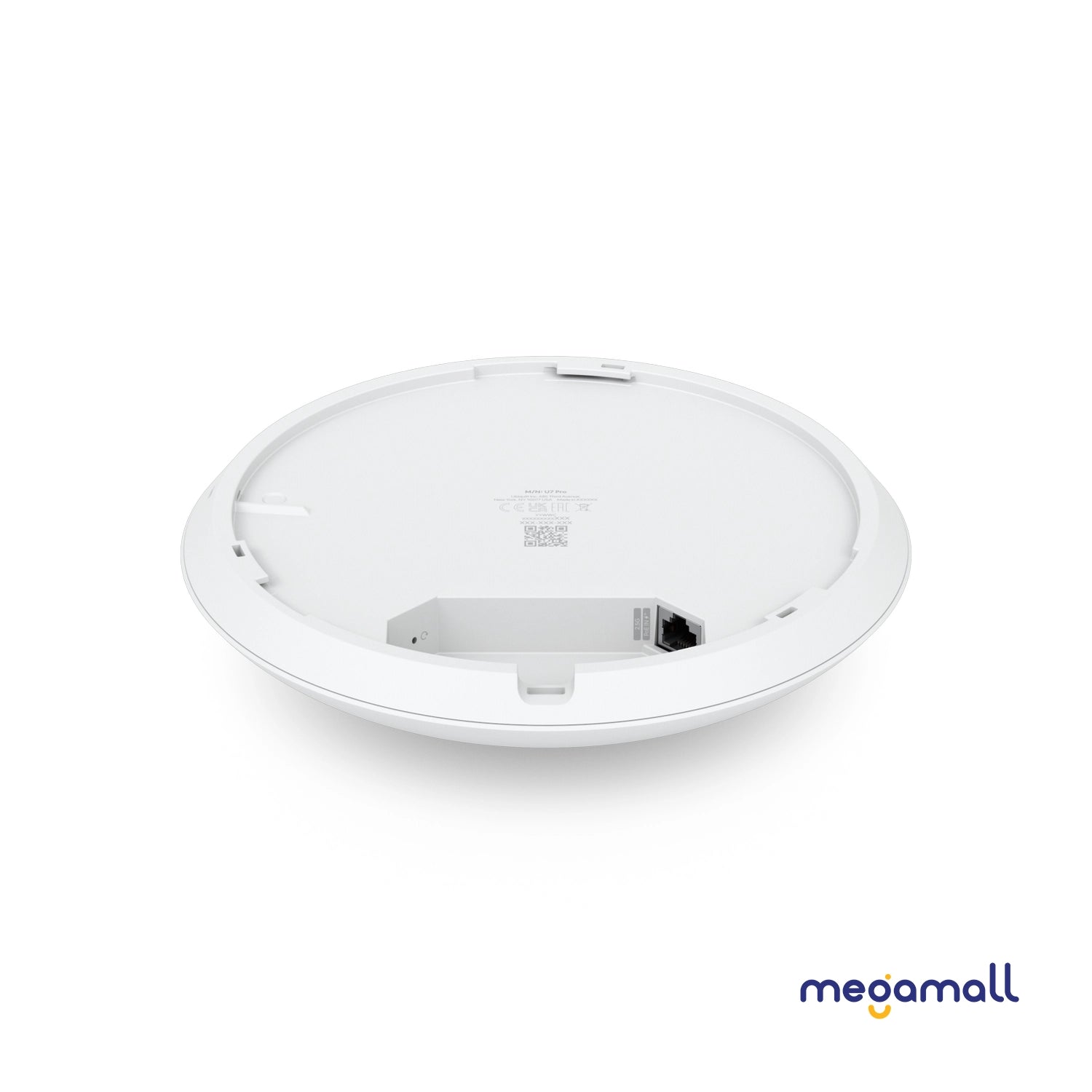

(1) 1/2.5 GbE RJ45 port |
|
|
Weight |
680 g (1.5 lb) |
|
|
Management |
Ethernet |
|
|
Enclosure Material |
Polycarbonate, metal |
|
|
Mount Material |
Stainless steel (SUS304), galvanized steel (SGCC) |
|
|
LEDs |
||
|
System |
White/Blue |
|
|
Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Operating Frequency |
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz |
|
|
Ambient Operating Temperature |
-30 to 40° C (-22 to 104° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 8.0.28 and later |
|
