Description

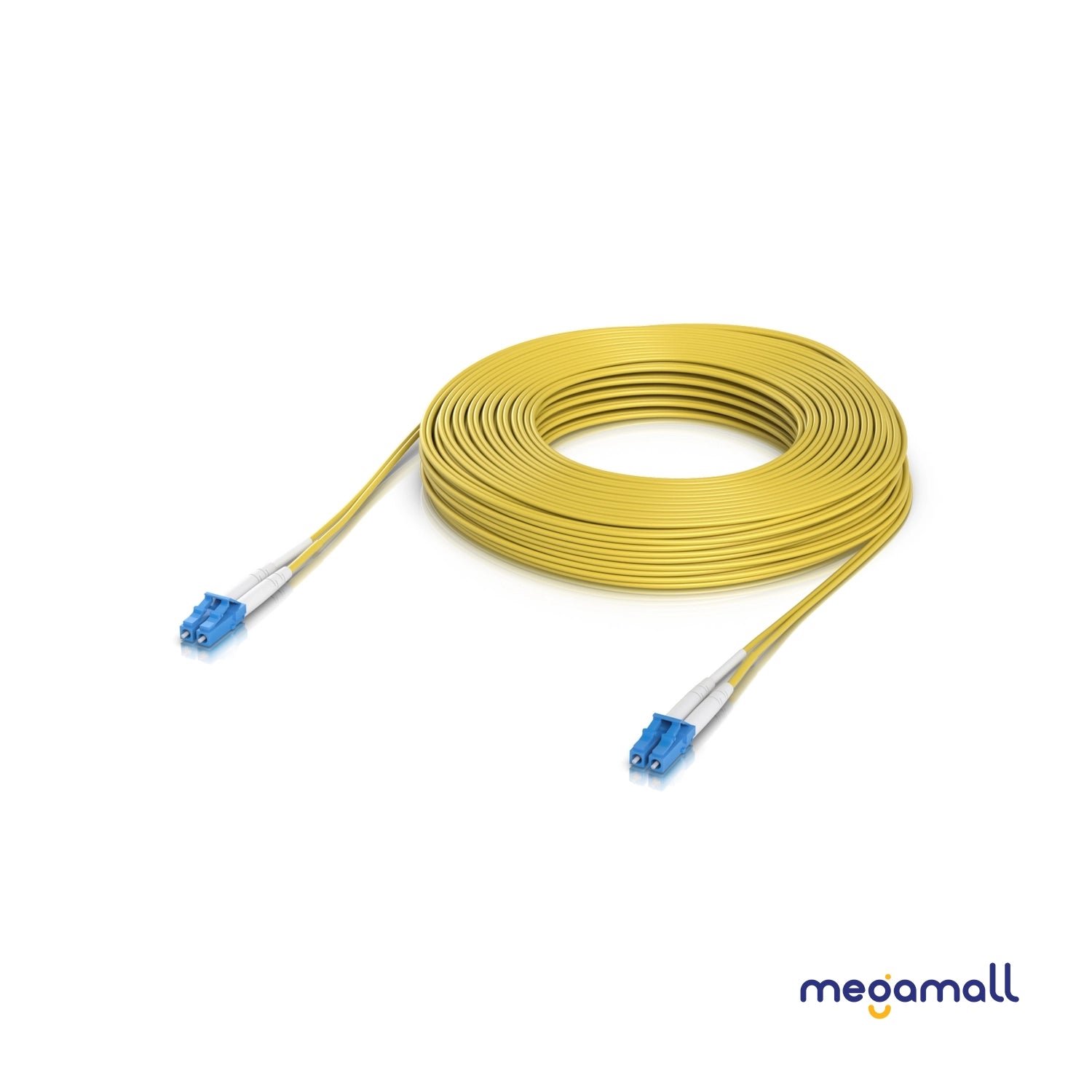

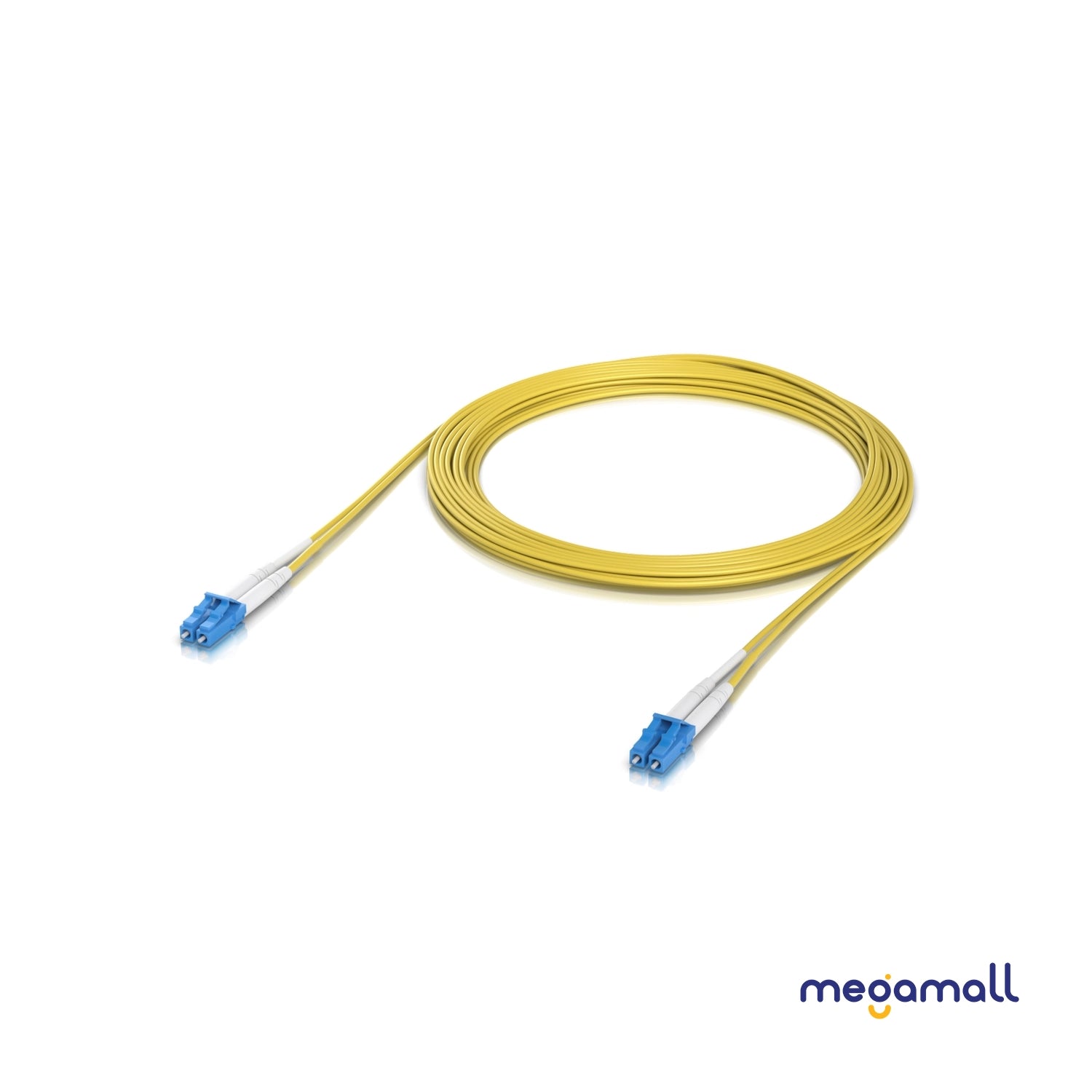

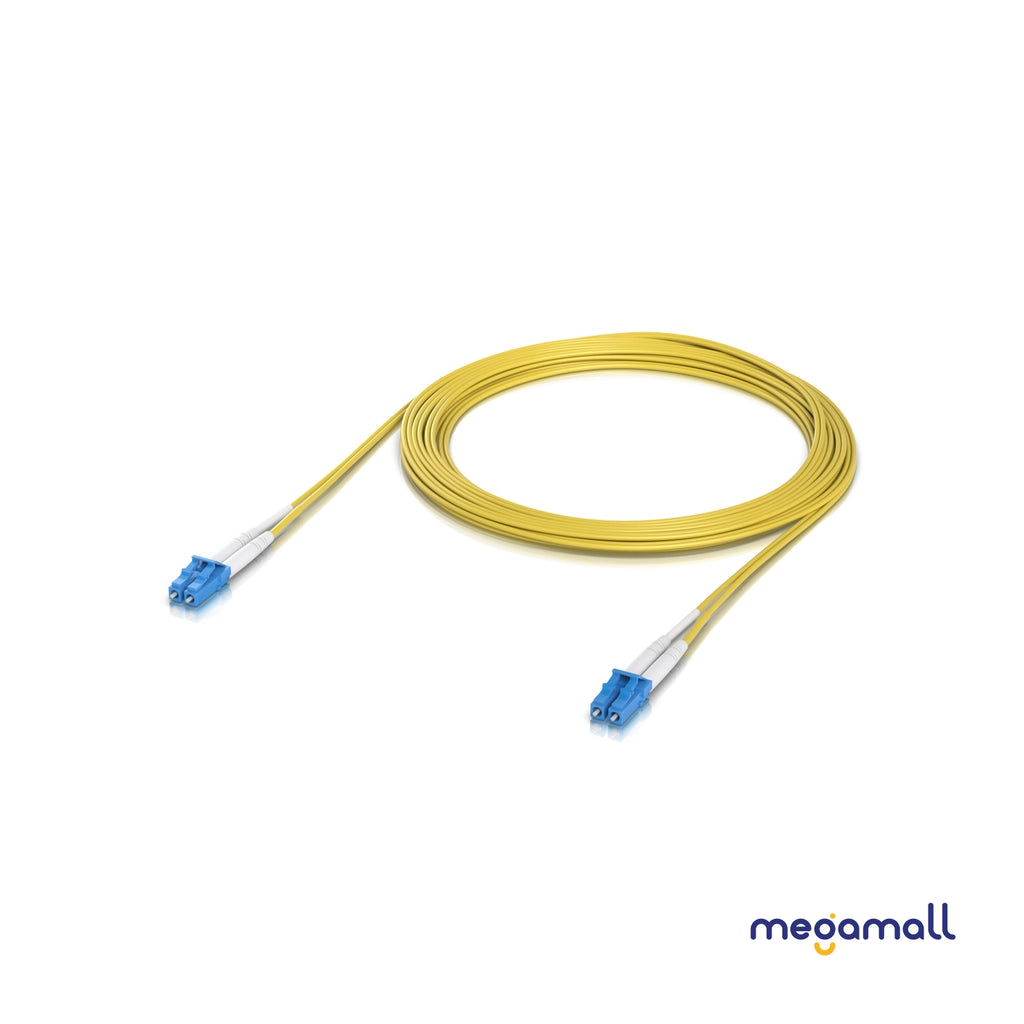

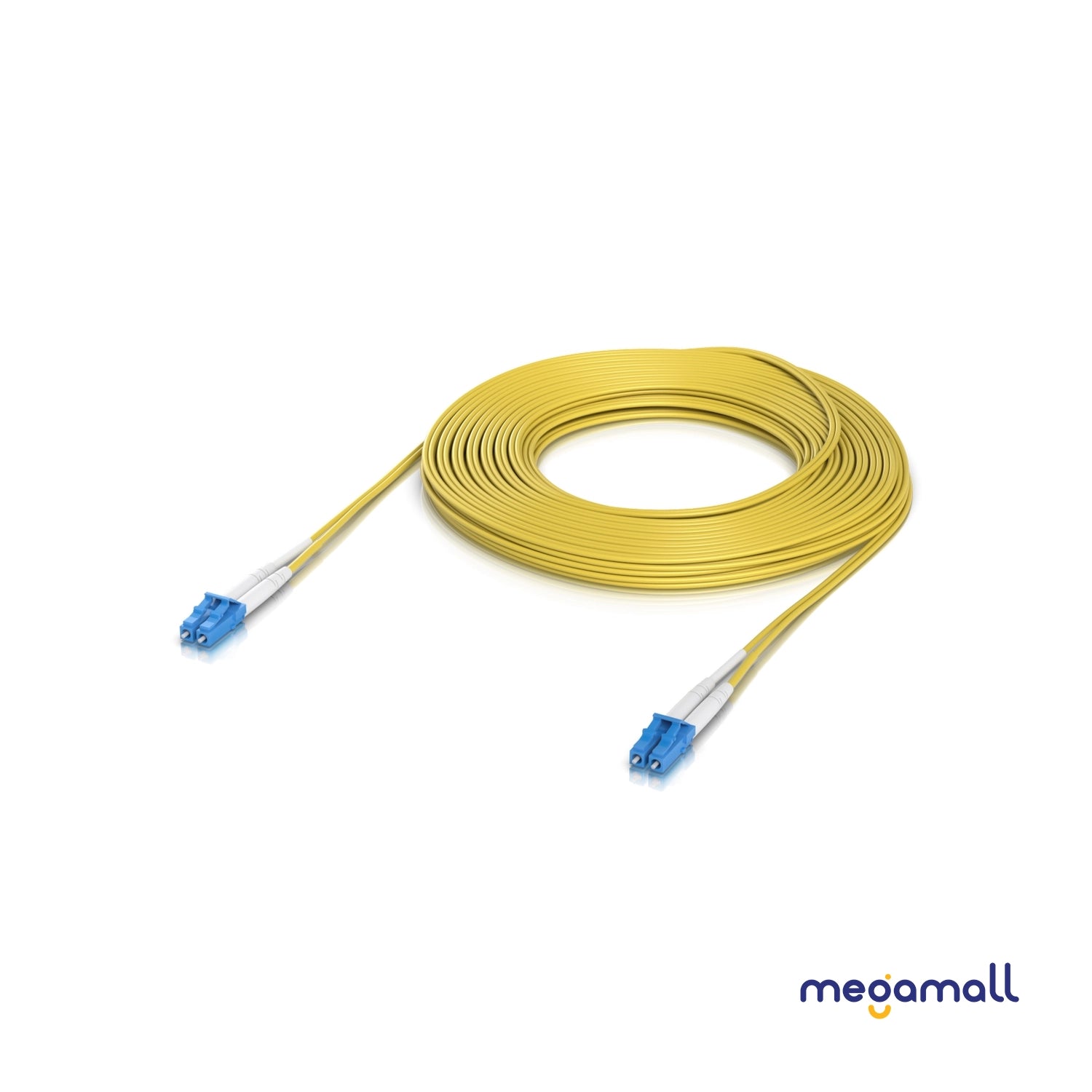

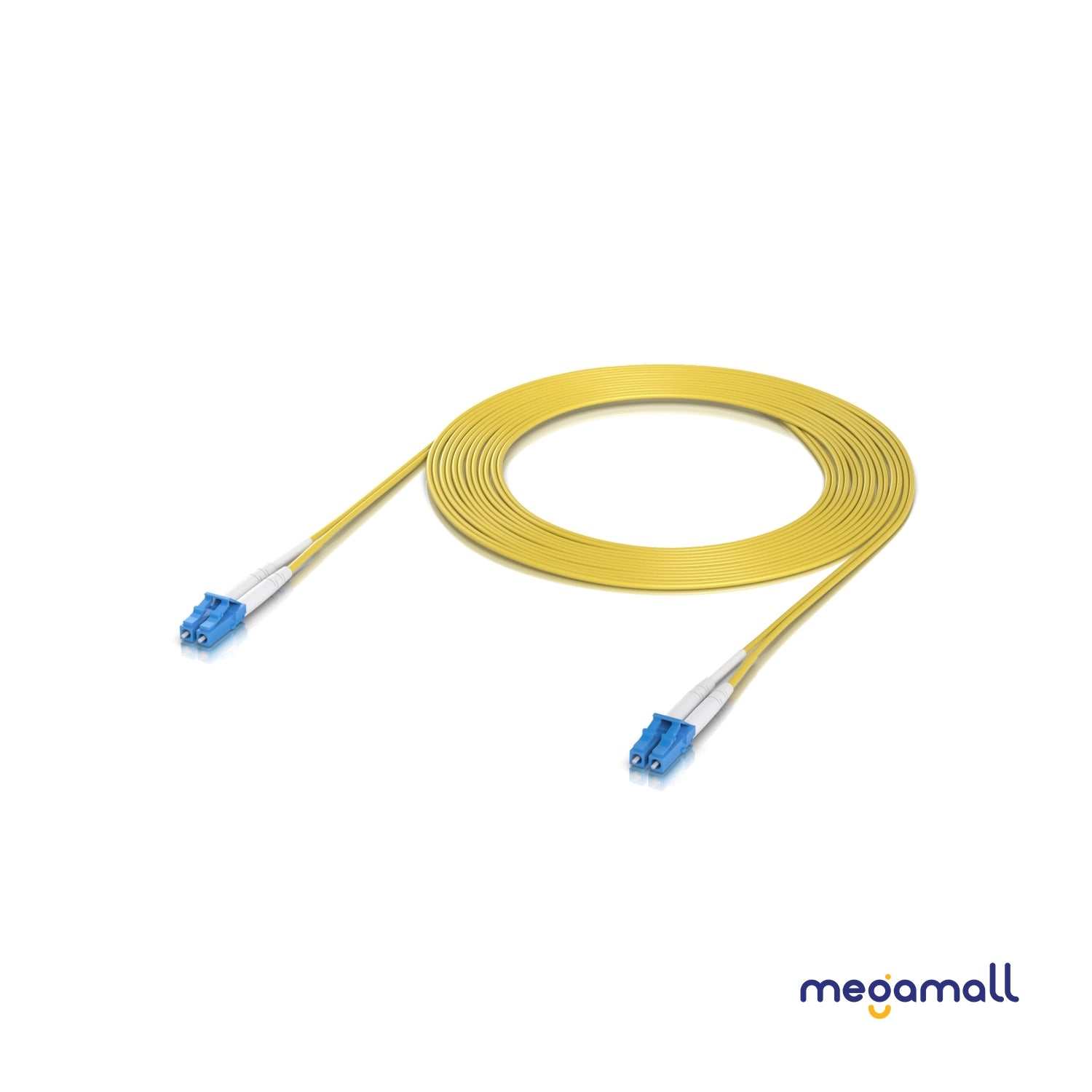

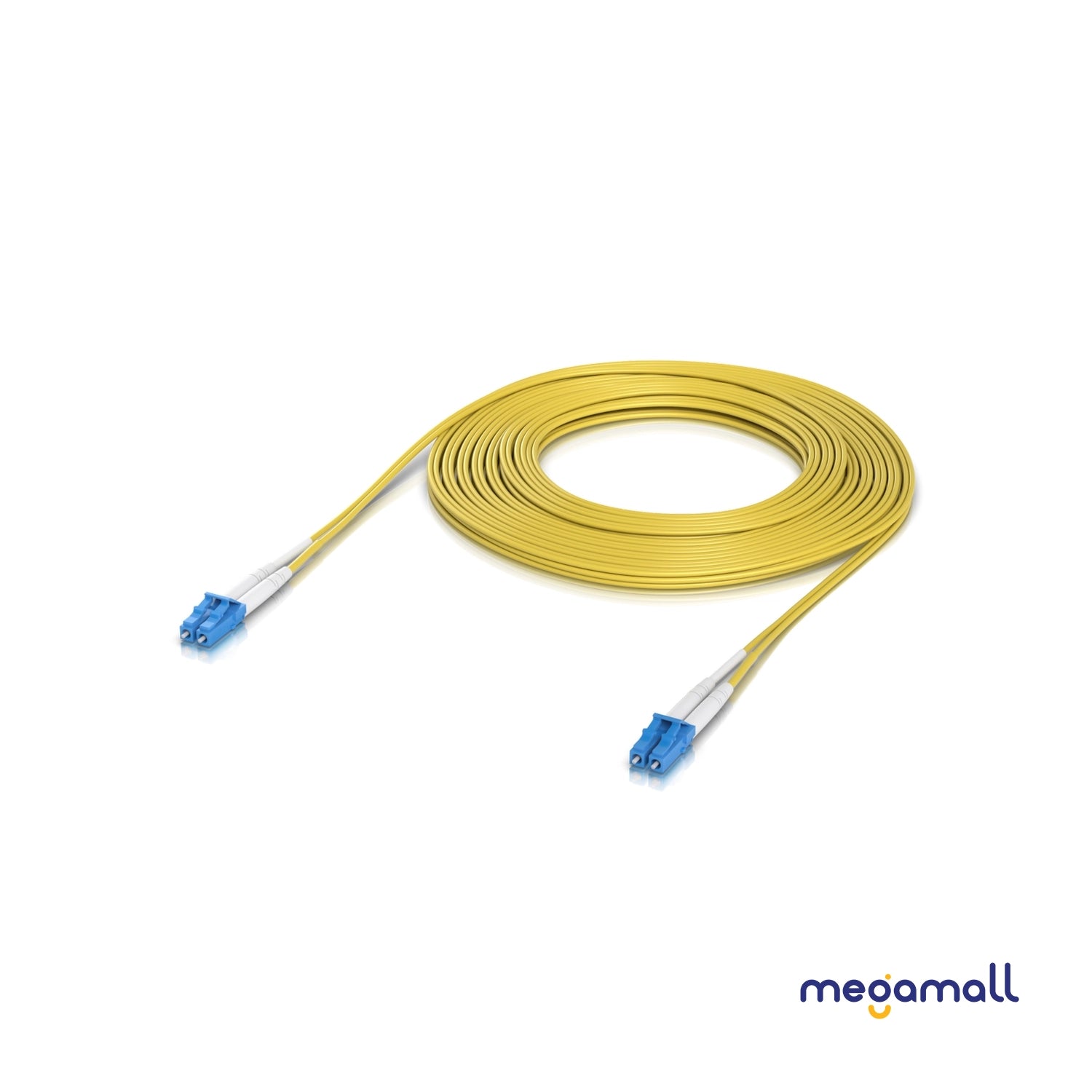

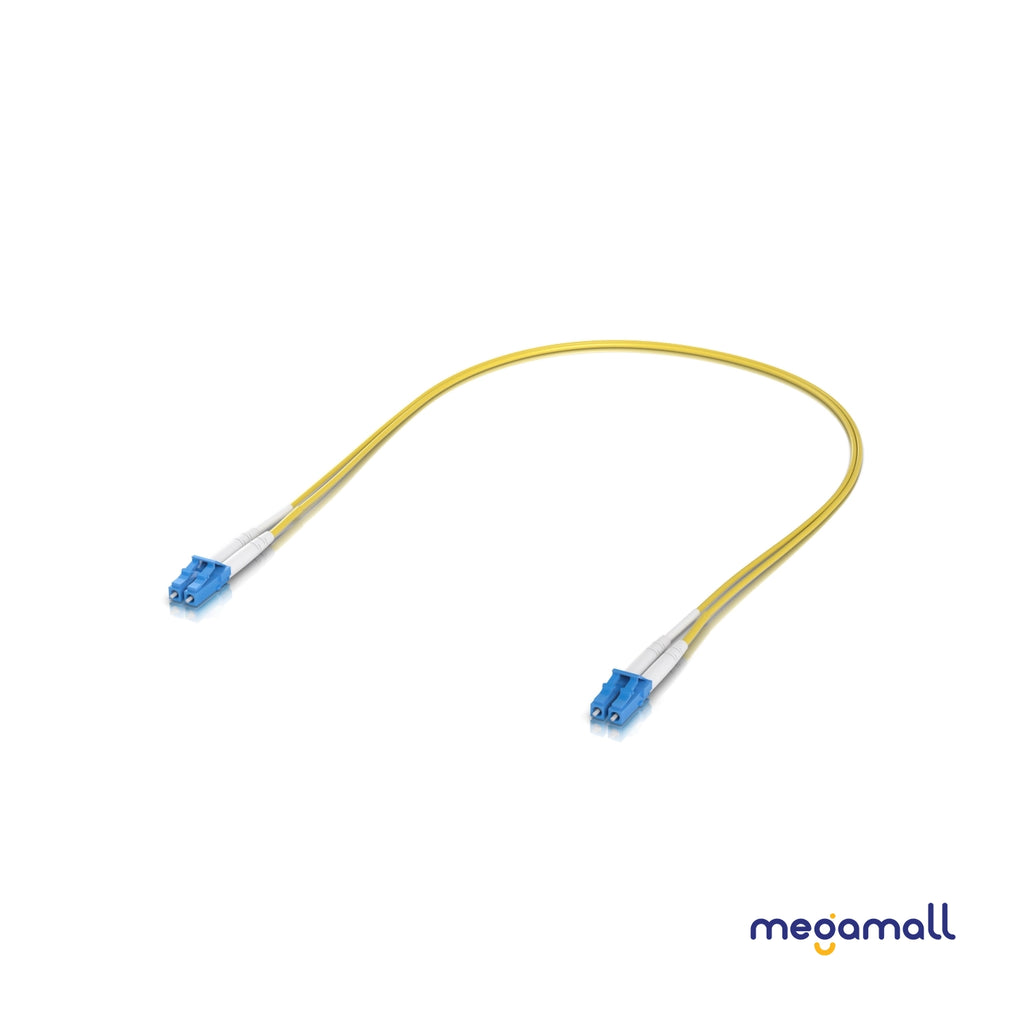

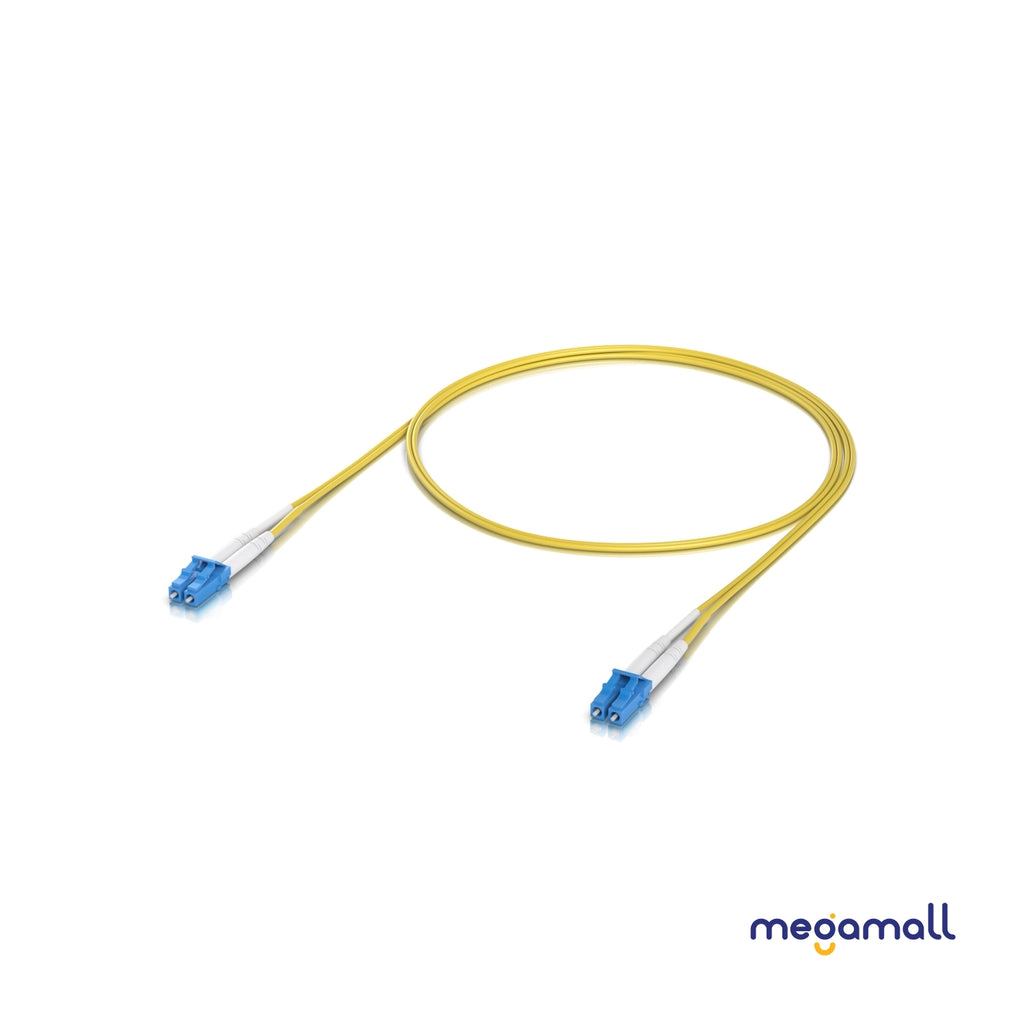

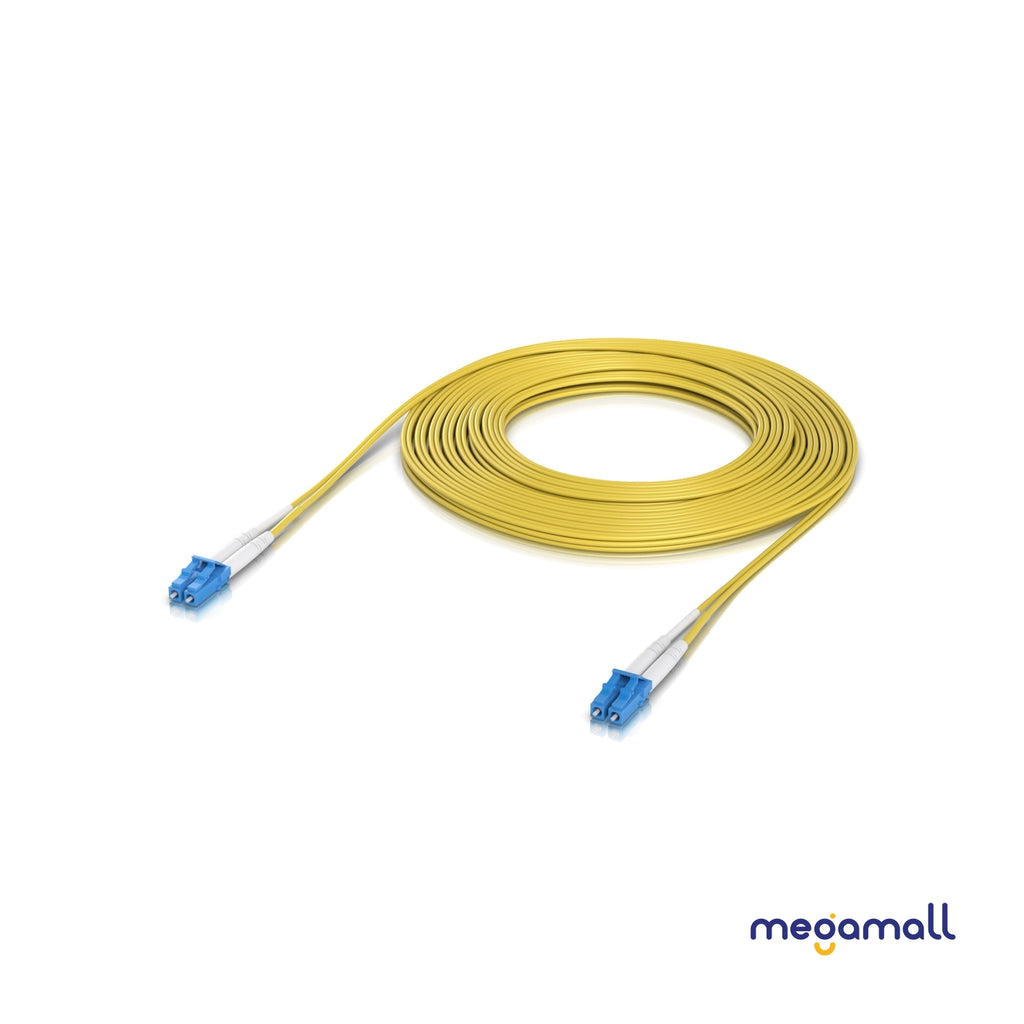

Lightweight fiber patch cable for up to 100G connections.
OS2 single-mode fiber
Duplex LC UPC connectors
Cable length 0.5 to 30 m
|
Overview |
||
|
Available Lengths |
1, 3, 5, 10, 15, 30 m (3.3, 9.8, 16.4, 32.8, 49.2, 98.4 ft) |
|
|
Connector |
LC-LC |
|
|
Fiber |
||
|
Type |
Duplex |
|
|
Mode |
OS2 |
|
|
Cable |
||
|
Jacket Material |
Low smoke zero halogen (LSZH) |
|
|
Jacket Outer Diameter |
2.0 mm |
|
|
Jacket Color |
Yellow |
|
|
Polish |
UPC to UPC |
|
|
Wavelength |
1310/1550 nm |
|
|
Insertion Loss |
≤ 0.3 dB |
|
|
Return Loss |
≥ 50 dB |
|
|
Repeatability |
≤ 0.1 dB |
|
|
Durability |
≤ 0.2 dB (1,000 times mating) |
|
|
Pack Options |
Single Unit (0.5, 1, 3, 5, 10, 15, 30 m ) 50-Pack (0.5, 1, 3 m) |
|
|
Ambient Operating Temperature |
-40 to 75° C (-40 to 167° F) |
|
