Description
ndoor/outdoor WiFi 5 AP with 6 spatial streams and extended signal range for maximum coverage.
Note. PoE power adapter included with single unit purchase.
|
Overview |
||
|

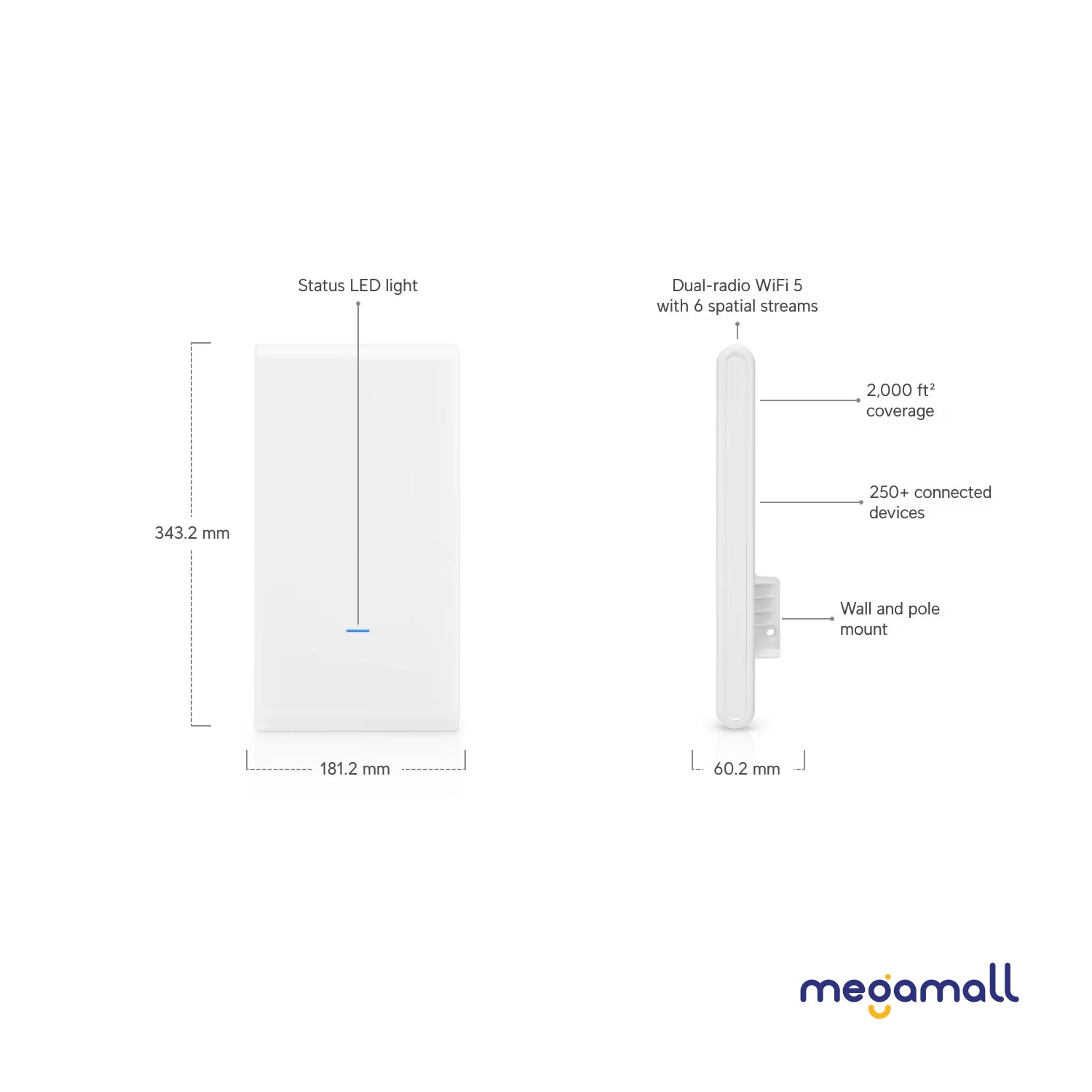

Dimensions |
343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4") |
|
|
WiFi Standard |
WiFi 5 |
|
|
Spatial Streams |
6 |
|
|
Coverage Area |
185 m² (2,000 ft²) |
|
|
Max. Client Count |
250+ |
|
|
Uplink |
GbE |
|
|

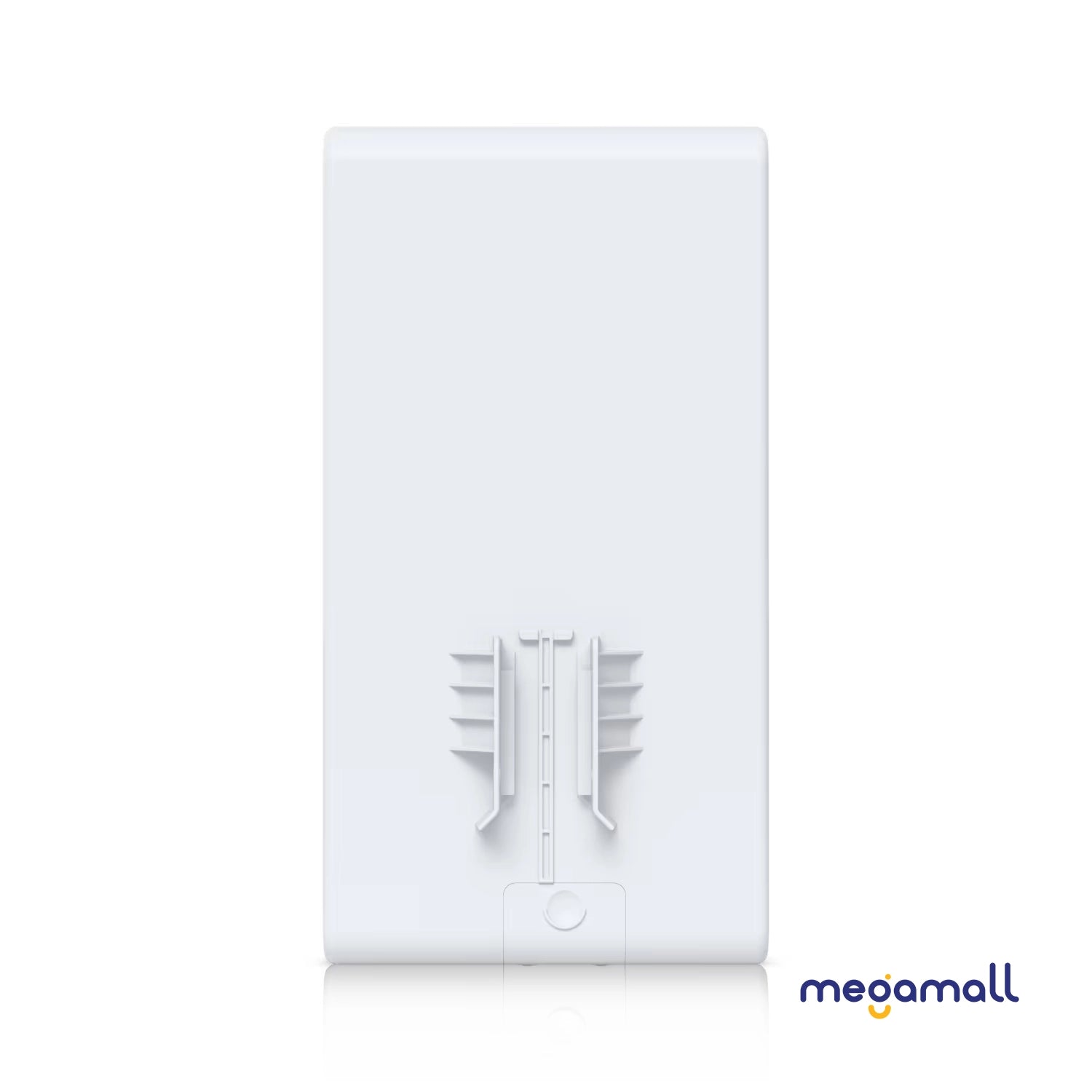

Mounting |
Wall, Pole (Mounts Included) |
|
|
Weatherproofing |
IPX4 |
|
|

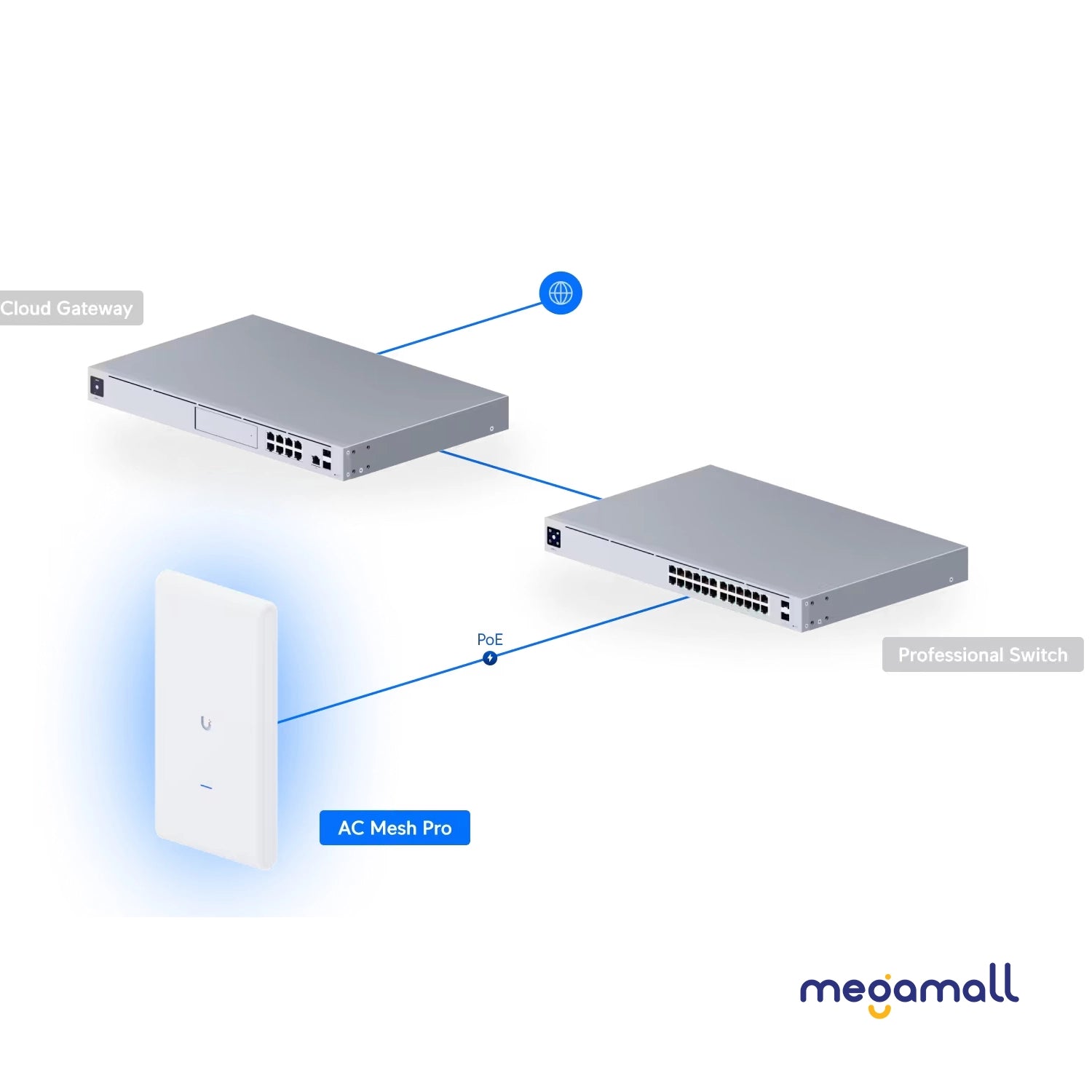

Power Method |
PoE |
|
|
Performance |
||
|
MIMO |
||
|
5 GHz |
3 x 3 (DL MU-MIMO) |
|
|
2.4 GHz |
3 x 3 (DL MU-MIMO) |
|
|
Max. Data Rate |
||
|
5 GHz |
1.3 Gbps (BW80) |
|
|
2.4 GHz |
450 Mbps (BW40) |
|
|
Antenna Gain |
||
|
5 GHz |
8 dBi |
|
|
2.4 GHz |
8 dBi |
|
|
Max. TX Power |
||
|
5 GHz |
22 dBm |
|
|
2.4 GHz |
22 dBm |
|
|
Max. BSSIDs |
8 per Radio |
|
|
Supported Data Rates |
||
|
802.11ac (WiFi 5) |
6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
|
|
802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
|
Features |
||
|
Wireless Meshing |
✓ |
|
|
Band Steering |
✓ |
|
|
802.11v BSS Transition Management |
✓ |
|
|
802.11r Fast Roaming |
✓ |
|
|
802.11k Radio Resource Management (RRM) |
✓ |
|
|
Advanced Radio Management |
✓ |
|
|
Passpoint (Hotspot 2.0) |
✓ |
|
|
Captive Hotspot Portal |
||
|
Custom Branding Landing Page |
✓ |
|
|
Voucher Authentication |
✓ |
|
|
Payment-Based Authentication |
✓ |
|
|
External Portal Server Support |
✓ |
|
|
Password Authentication |
✓ |
|
|
Guest Network Isolation |
✓ |
|
|
Private Pre-Shared Key (PPSK) |
✓ |
|
|
WiFi Speed Limiting |
✓ |
|
|
Client Device Isolation |
✓ |
|
|
WiFi Schedules |
✓ |
|
|
RADIUS over TLS (RadSec) |
✓ |
|
|
Dynamic RADIUS-assigned VLAN |
✓ |
|
|
Hardware |
||
|
Max. Power Consumption |
9W |
|
|
Includes PoE Adapter |
✓ |
|
|
Supported Voltage Range |
44—57V DC |
|
|

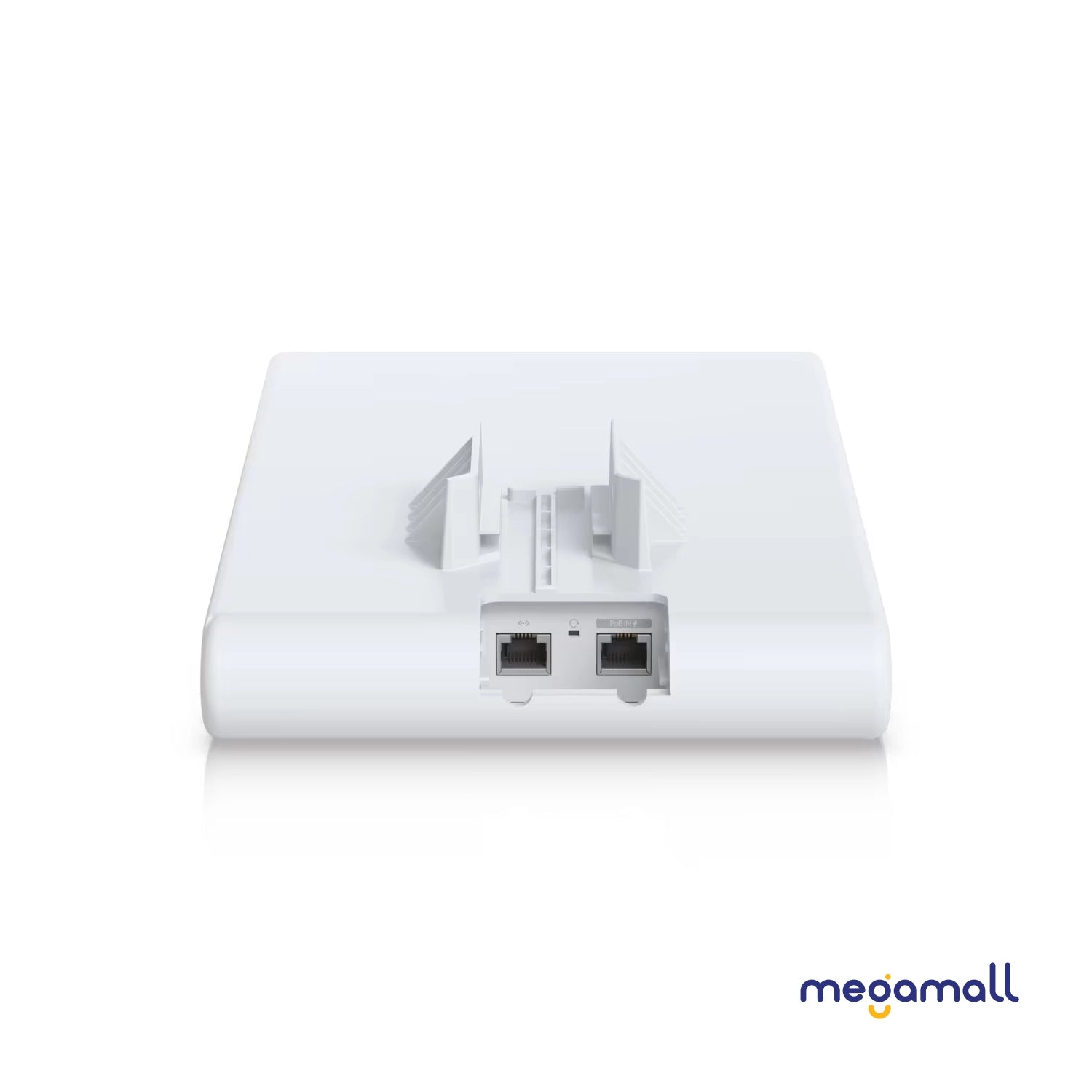

Networking Interface |

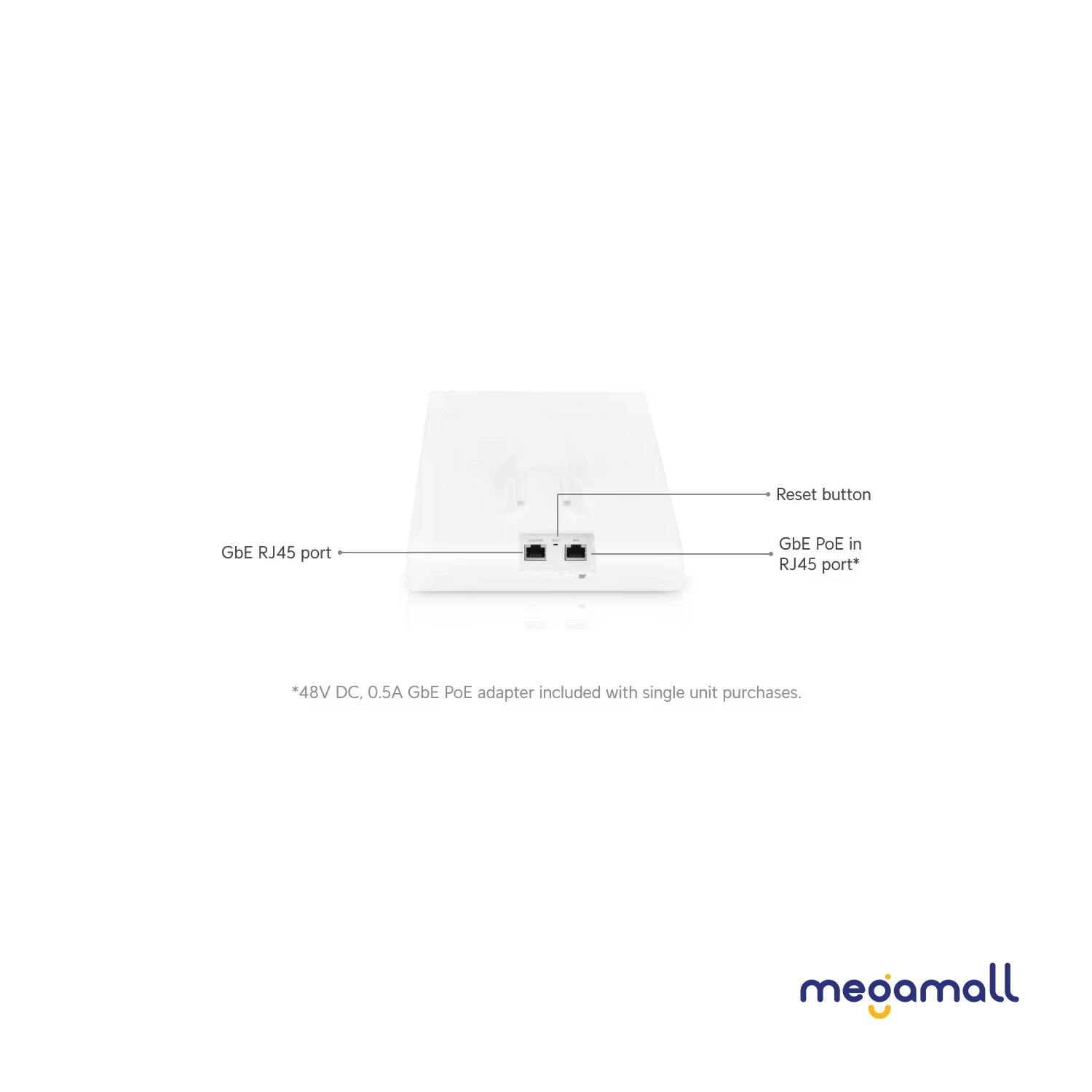

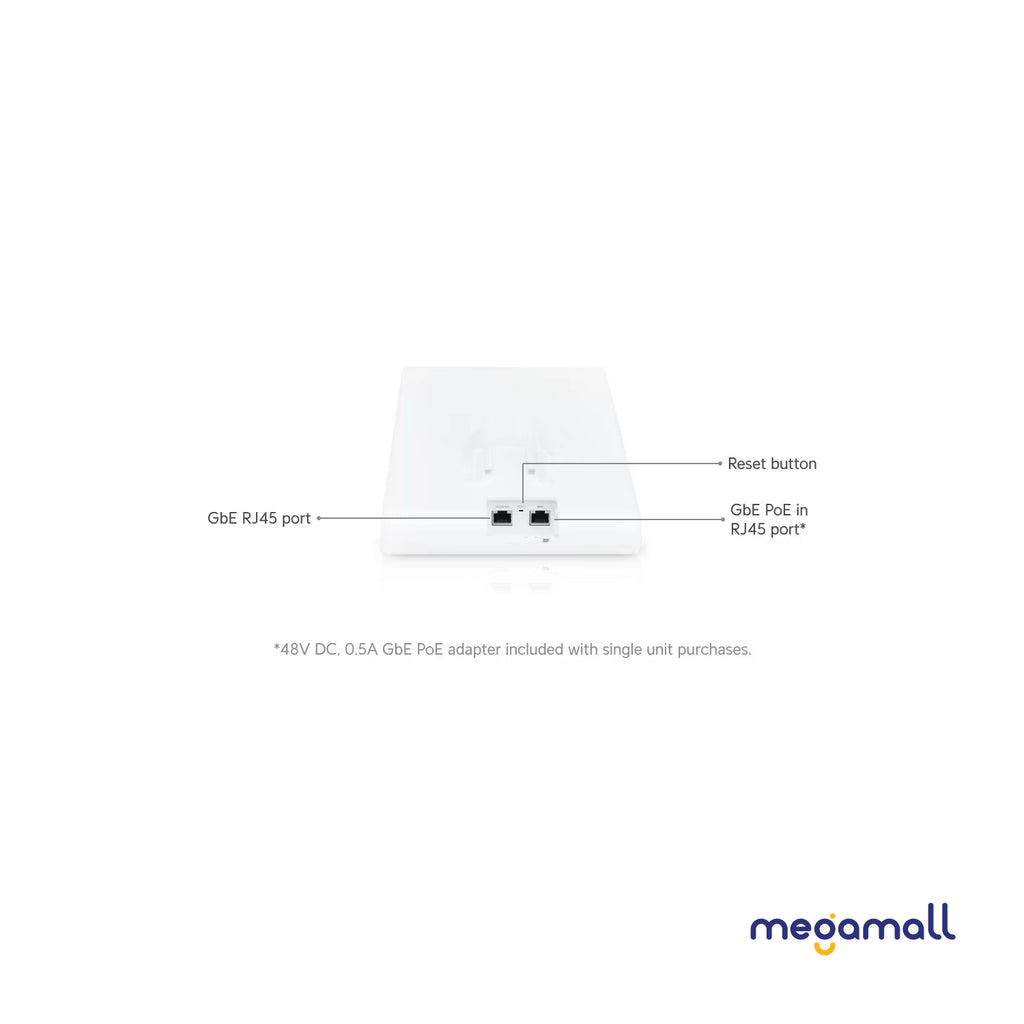

(2) GbE RJ45 ports |
|
|
Weight |
633 g (1.4 lb) |
|
|
Pole Mount Diameter |
1–2.5" (25–63.5 mm) |
|
|
Management |
Ethernet |
|
|
Enclosure Material |
Polycarbonate |
|
|

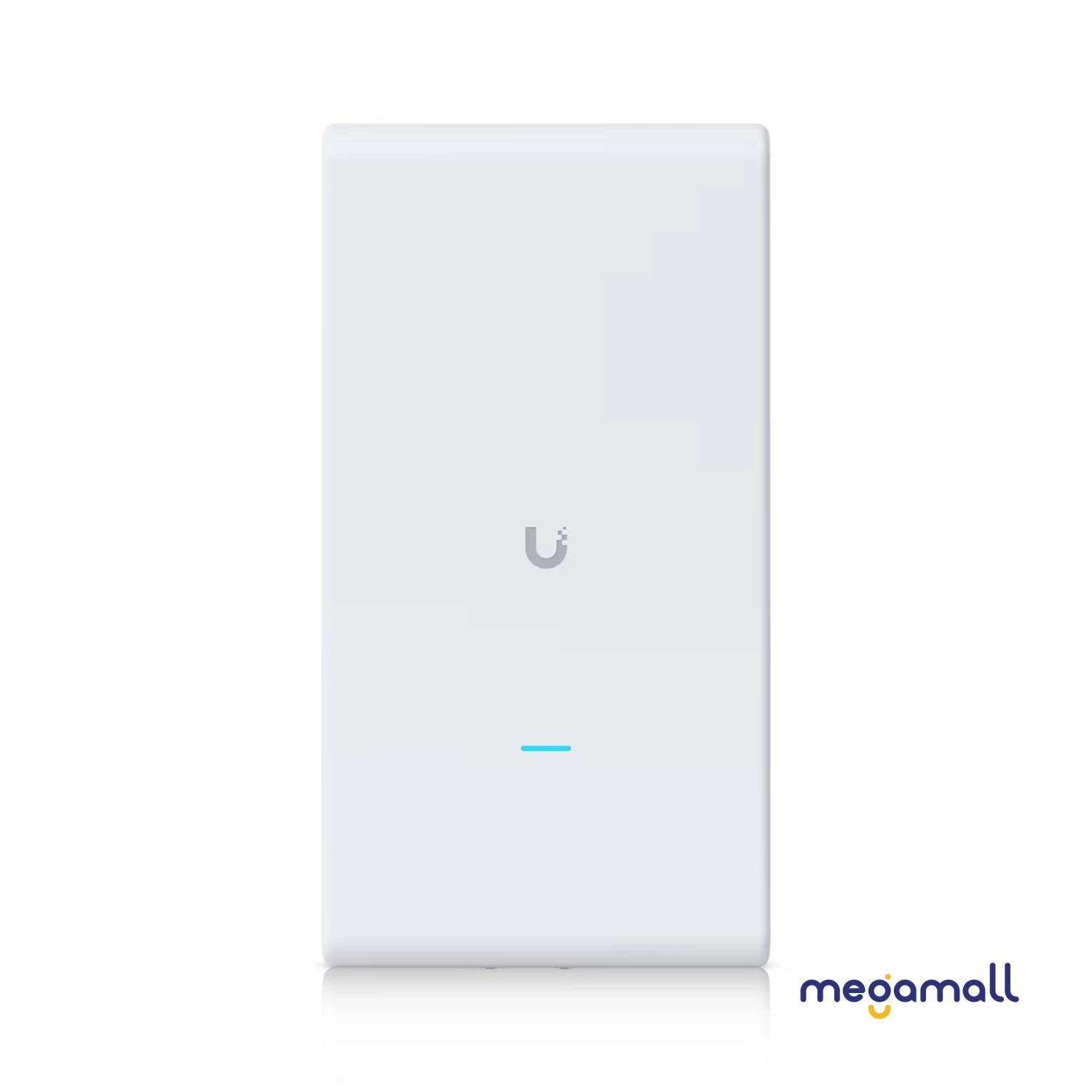

LEDs |
||
|
System |
Status |
|
|
Channel Bandwidth |
HT 20/40, VHT 20/40/80 (MHz) |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Operating Frequency |
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz |
|
|
Ambient Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 6.0.45 and later |
|
