Description
Compact UniFi Console that connects directly to the Site Manager at unifi.ui.com for powerful, multi-application site management.
Includes full UniFi application suite for device management
Pre-installed 1TB SSD
Connect and power using PoE
Optional USB-C power with Quick Charge 2.0/3.0 compliant adapter only
Bluetooth for instant setup
|
Overview |
||
|
Dimensions |
131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3") |
|
|
UniFi Application Suite |
||
|
Network |
✓ |
|
|
Protect |
✓ |
|
|
Access |
✓ |
|
|
Talk |
✓ |
|
|
Connect |
✓ |
|
|
Managed Cameras |
(24) HD (14) 2K (8) 4K |
|
|

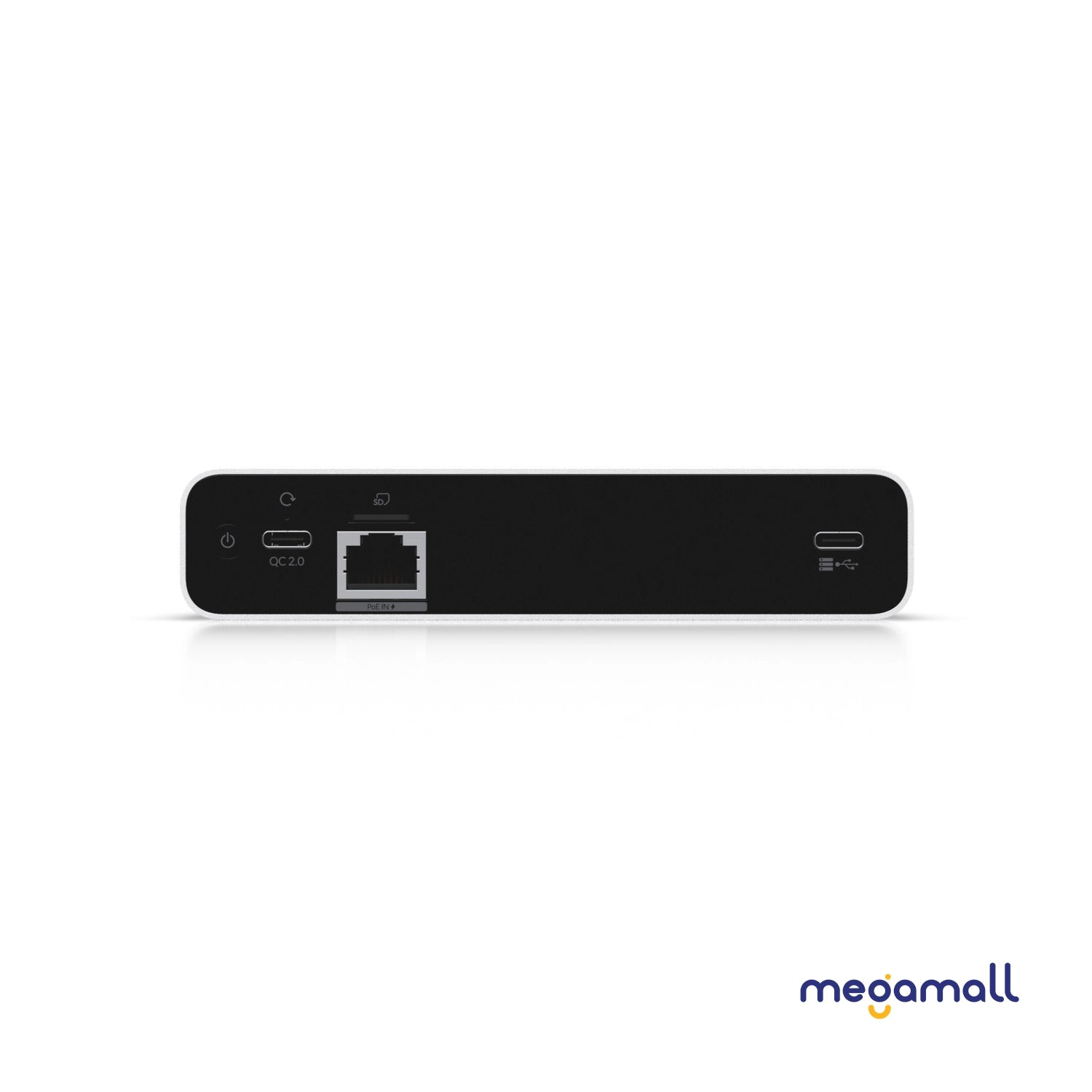

Networking Interface |
(1) GbE RJ45 |
|
|
Form Factor |
Compact Desktop |
|
|
Hardware |
||
|
Hard Drive Capacity |
1 TB 2.5" SATA SSD (User-upgradeable) |
|
|
Max. Power Consumption |
9.6W |
|
|
Power Method |
PoE USB-C power with Quick charge 2.0/3.0 power adapter, 9V DC, 2A (Optional) |
|
|
Processor |
Octa-core Arm® Cortex®-A53 based chip |
|
|
Memory |
32 GB eMMC 3 GB RAM |
|
|
Management |
Ethernet Bluetooth |
|
|

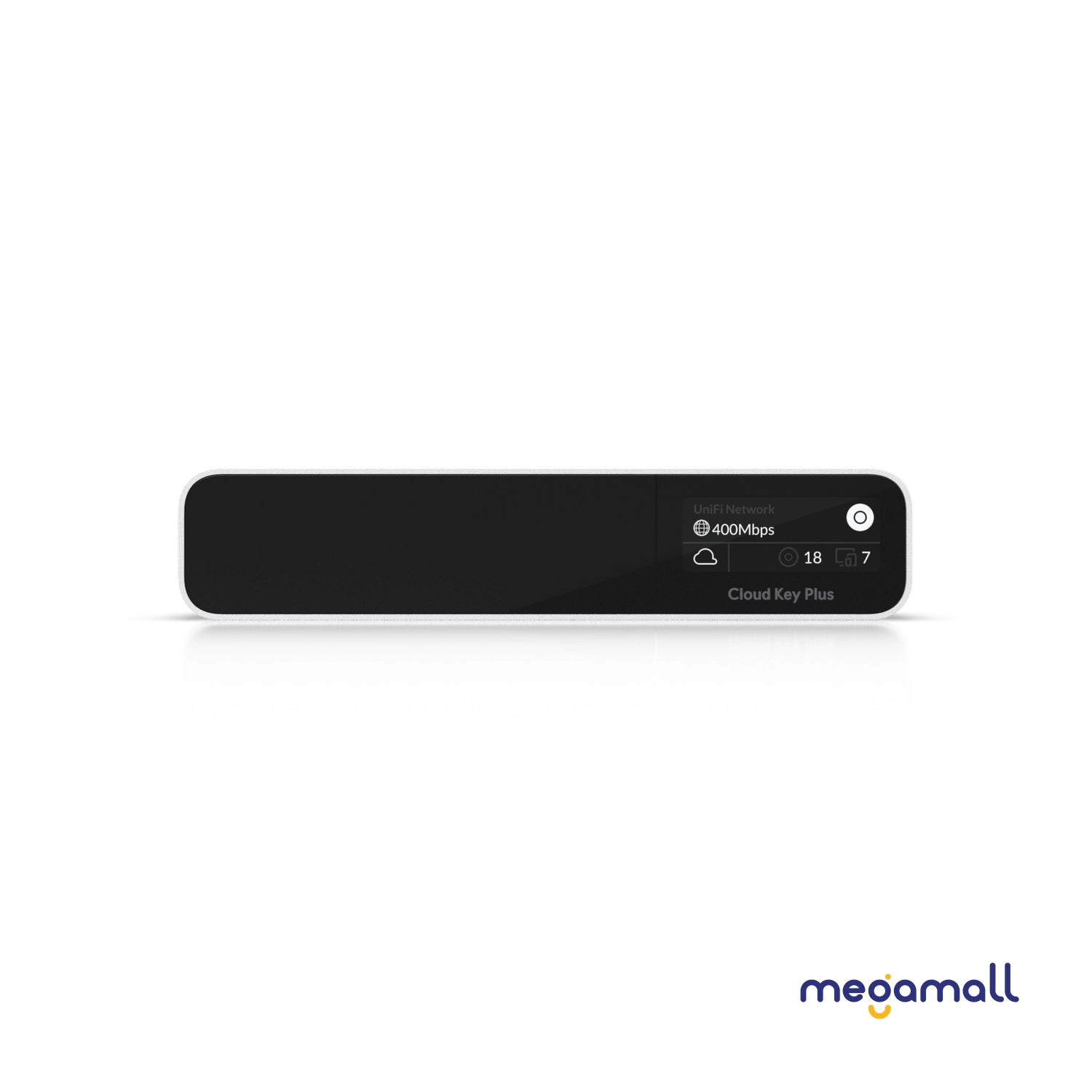

Display |
1.42" gray-scale OLED |
|
|
Weight |
560 g (1.2 lb) |
|
|
Enclosure Material |
Anodized Aluminum |
|
|
Ambient Operating Temperature |
0 to 35° C (32 to 95° F) |
|
|
Ambient Operating Humidity |
20 to 80% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel, SRRC |
|
