Description

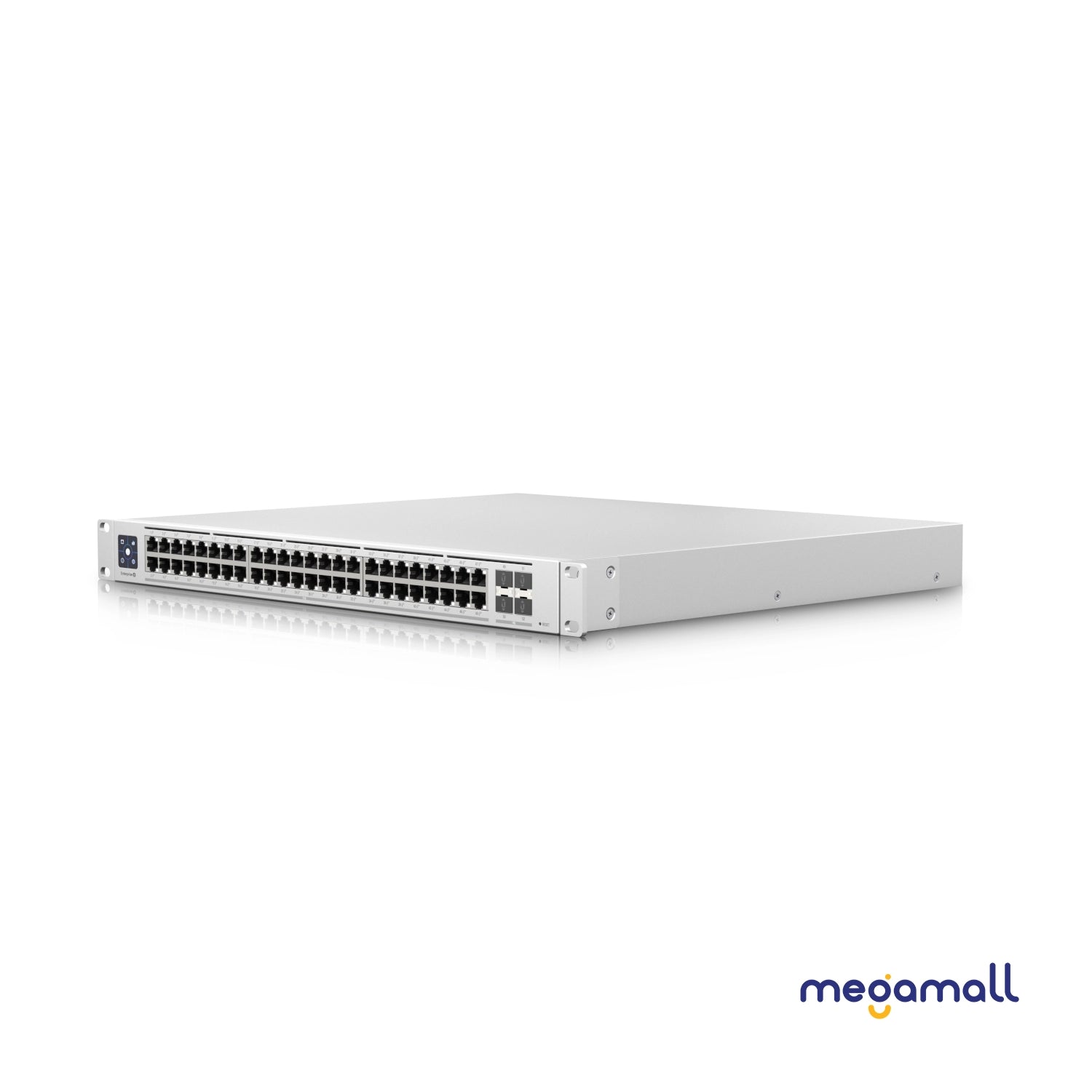

A 48-port, Layer 3 switch with 2.5 GbE PoE+ output.
Note. These switches are not compatible with the PoE++ requirements of the new U7 and E7 Access Points. We recommend using Enterprise Campus switches for such deployments.
|
Overview |
||
|
Dimensions |
442 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
|
|
Port Layout |
||
|
2.5 GbE RJ45 |
48 (All PoE+) (2.5G/1G/100M/10M) |
|
|
10G SFP+ |
4 |
|
|
Max. PoE Output |
Up to PoE+ |
|
|
Total PoE Availability |
720W |
|
|
Redundancy |
DC Power Backup |
|
|
Layer 3 |
✓ |
|
|
Form Factor |
Rack mount (1U) |
|
|
Performance |
||
|
Switching Capacity |
160 Gbps |
|
|
Total Non-Blocking Throughput |
160 Gbps |
|
|
Forwarding Rate |
238 Mpps |
|
|
Supported VLANs |
1000 |
|
|
MAC Address Table Size |
32000 |
|
|
L3 Table Size |
||
|
ARP Entries |
16000 |
|
|
IPv4 Routes |
16000 |
|
|
Packet Buffer Size |
4 MB |
|
|
Access Lists |
||
|
IPv4 |
128 |
|
|
MAC |
128 |
|
|
Layer 3 Features |
||
|
DHCP Server (Local Networks) |
✓ |
|
|
DHCP Relay |
✓ |
|
|
Inter-VLAN Routing (Local Networks) |
✓ |
|
|
Static Routing (Local Networks) |
✓ |
|
|
Layer 2 Features |
||
|
LACP Port Aggregation |
✓ |
|
|
STP & RSTP |
✓ |
|
|
QoS (DSCP) |
✓ |
|
|
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
✓ |
|
|
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
✓ |
|
|
IGMP Snooping |
✓ |
|
|
802.1X Control |
✓ |
|
|
MAC-Based ACLs & Device Isolation |
✓ |
|
|
DHCP Snooping & Guarding |
✓ |
|
|
Egress Rate Limit |
✓ |
|
|
Flow Control |
✓ |
|
|
Storm Control |
✓ |
|
|
Multicast & Broadcast Rate Limiting |
✓ |
|
|
MAC Address Blocking |
✓ |
|
|
IP-Based ACLs & Network Isolation |
✓ |
|
|
MAC-Based Port Restriction |
✓ |
|
|
Port Isolation |
✓ |
|
|
Port Mirroring |
✓ |
|
|
Jumbo Frames |
✓ |
|
|
LLDP-MED |
✓ |
|
|
Voice VLAN |
✓ |
|
|
Loop Protection |
✓ |
|
|
Hardware |
||
|
PoE Ports |
||
|
PoE+ |
48 |
|
|
Max. PoE Wattage per Port by PSE |
||
|
PoE+ |
32W |
|
|
Max. Power Consumption |
150W (Excluding PoE Output) 870W (Including PoE Output) |
|
|
Power Method |
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
|
|
Power Input Method |
AC input |
|
|
Power Supply |
AC/DC, internal, 870W |
|
|
Supported Voltage Range |
100—240V AC |
|
|
Management |
Ethernet AR |
|
|
Heat Dissipation (Excluding PoE Output) |
511.8 BTU/hr |
|
|
Weight |
Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
|
|
Enclosure Material |
SGCC steel |
|
|
Mount Material |
SGCC steel |
|
|
Supported Rack Depth |
600 - 1,200 mm (23.6- 47.2" ) |
|
|
LCM Display |
1.3" touchscreen |
|
|
ESD/EMP Protection |
Air: ± 16kV, contact: ± 12kV |
|
|
Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 6.2.26 and later |
|
