Description

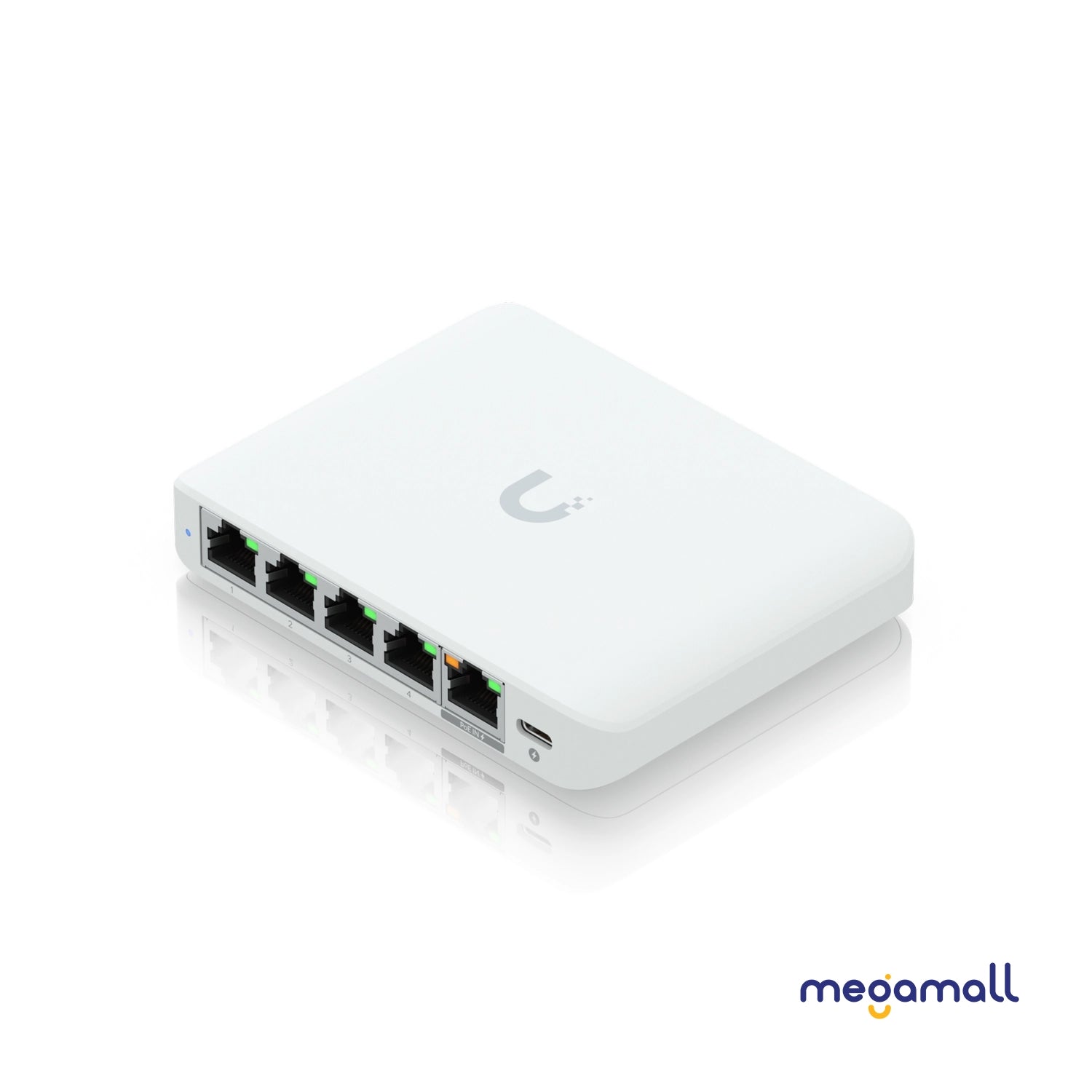

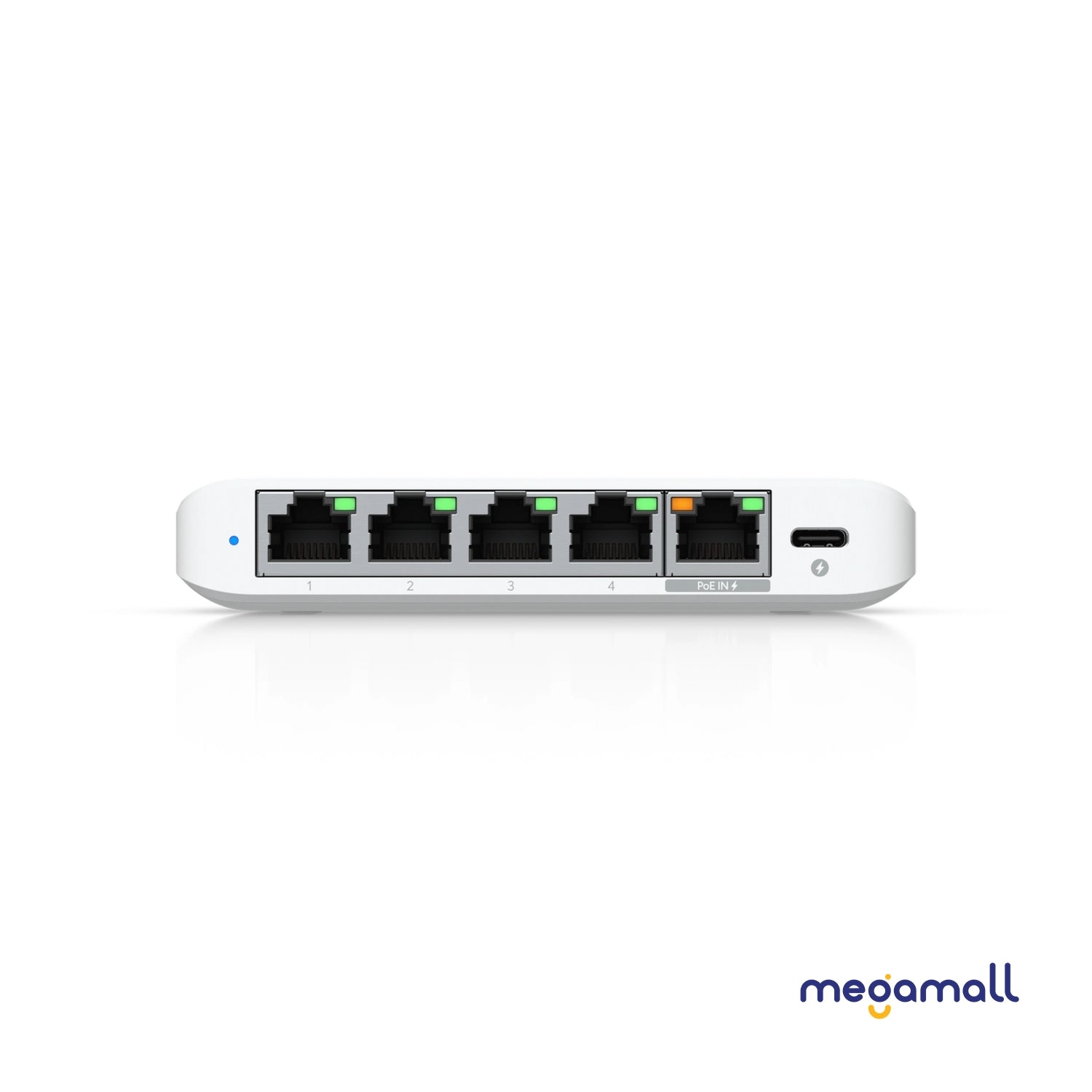

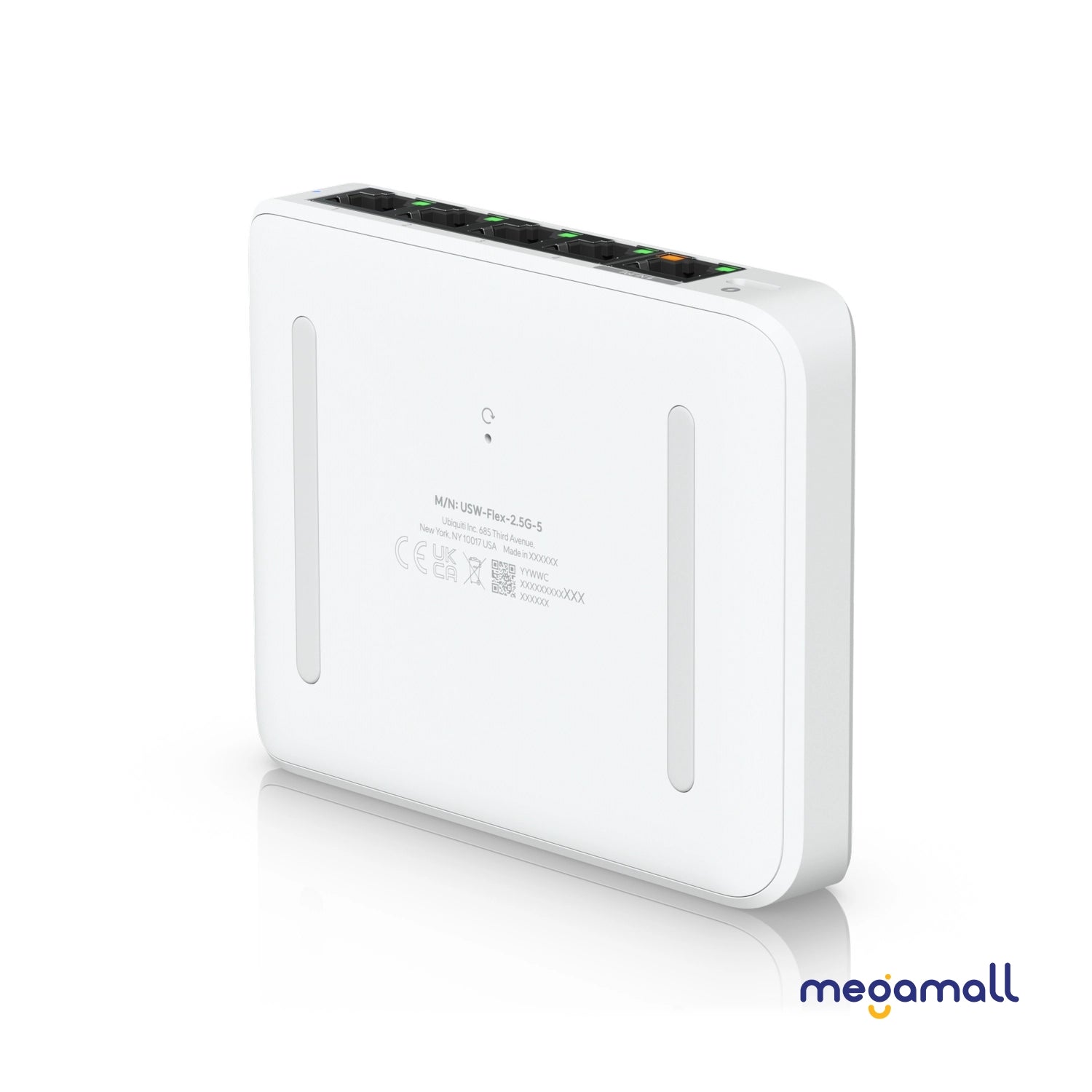

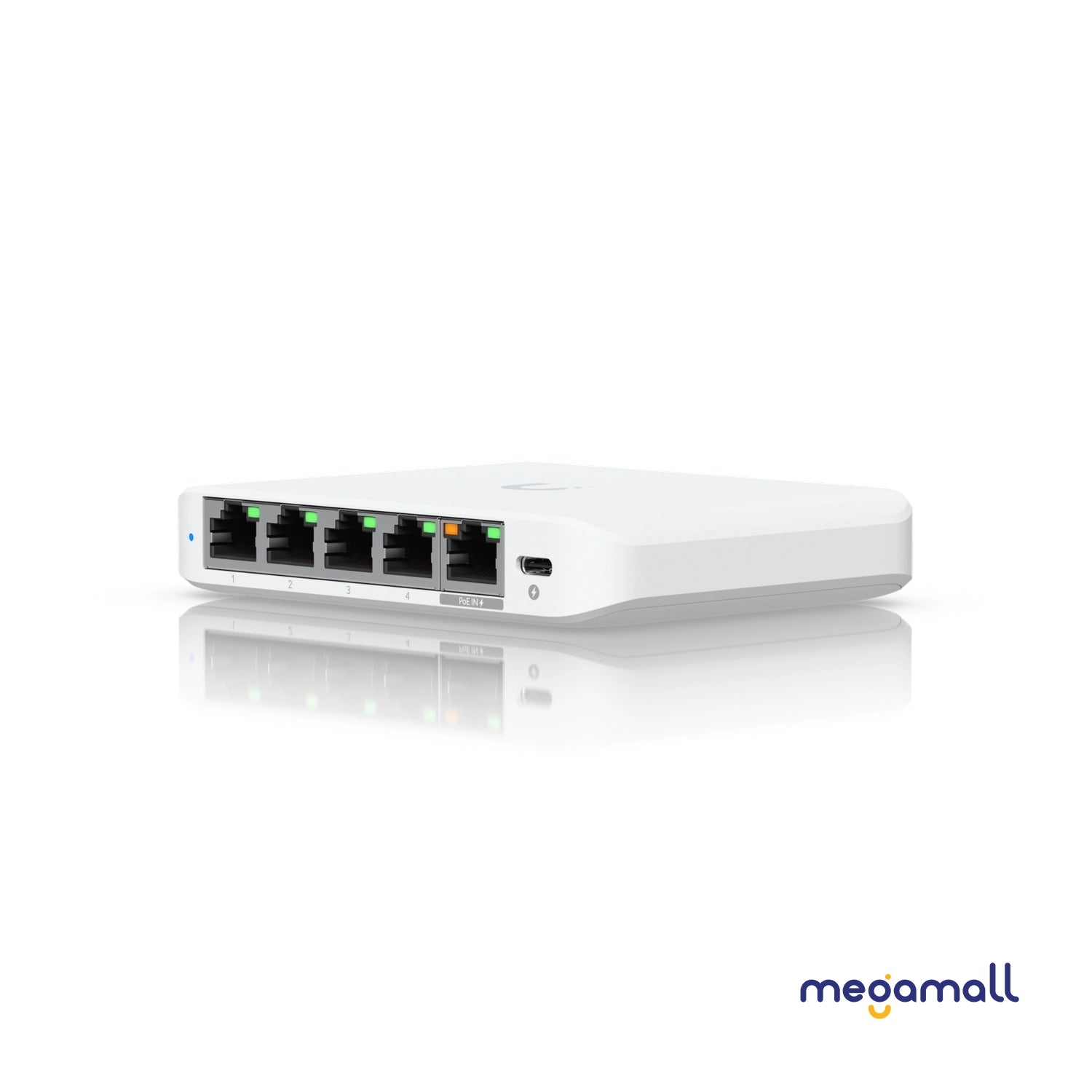

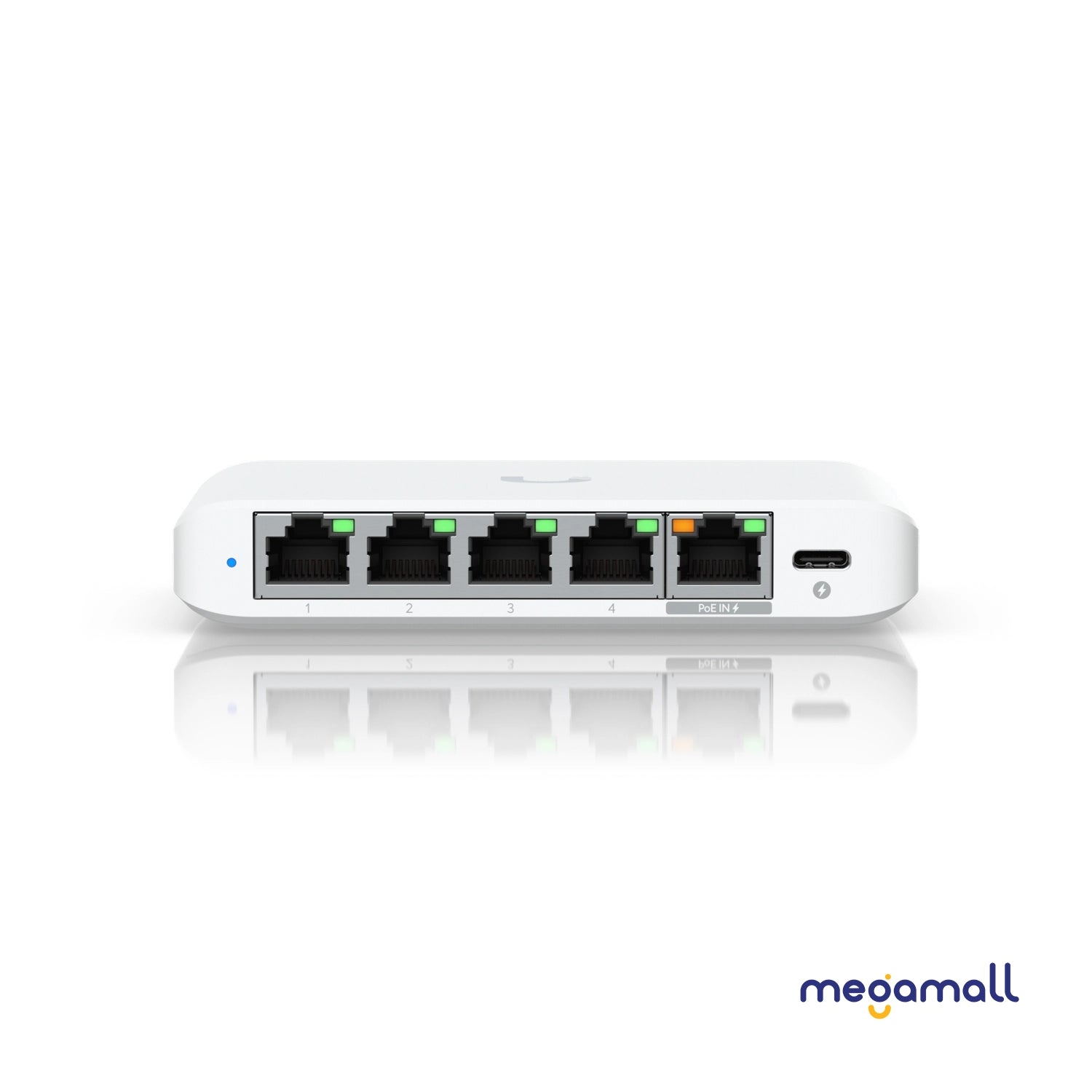

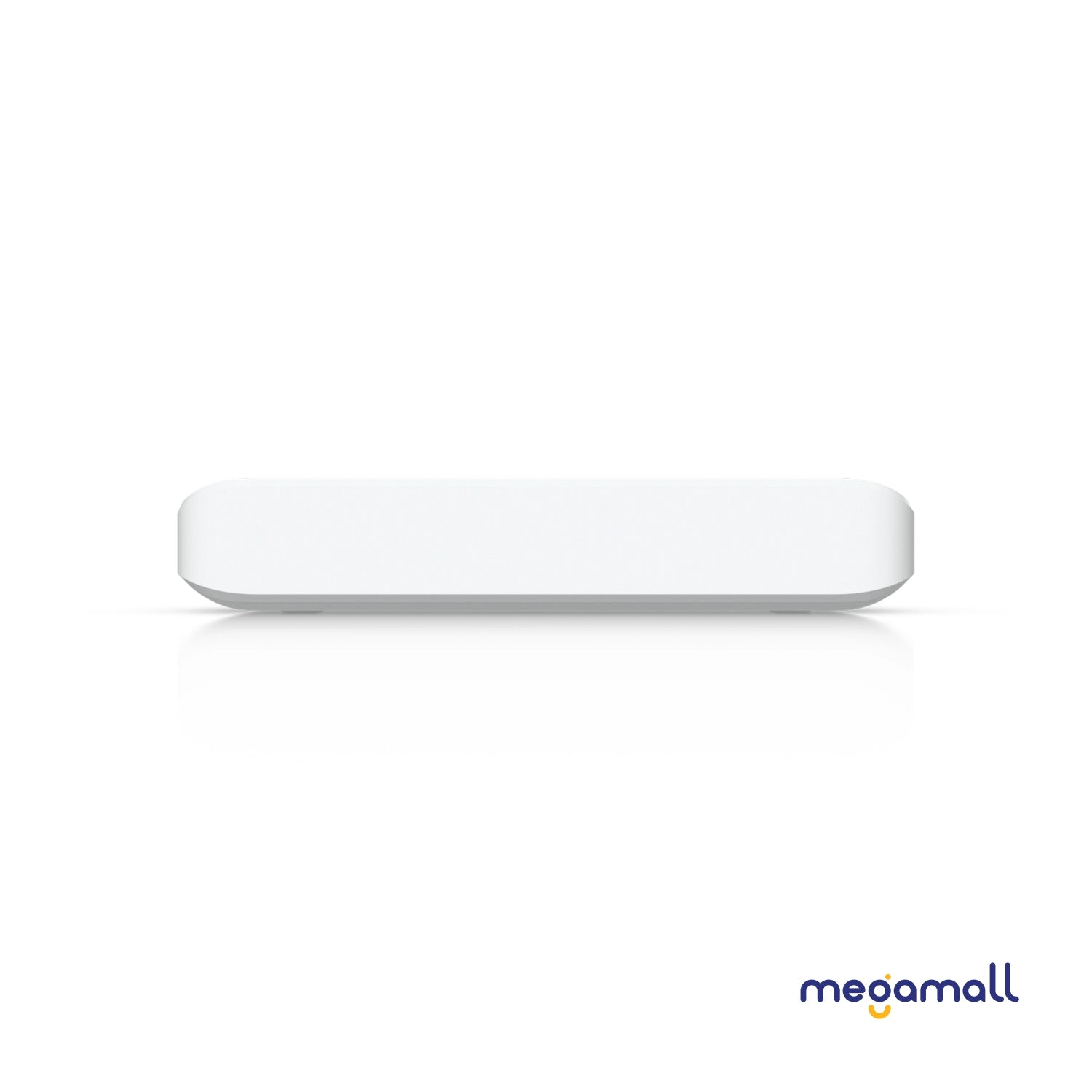

Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.
|
Overview |
||
|
Dimensions |
117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8") |
|
|
Port Layout |
||
|
2.5 GbE RJ45 |
5 (2.5G/1G/100M/10M) |
|
|
Form Factor |
Compact desktop |
|
|
Performance |
||
|
Switching Capacity |
25 Gbps |
|
|
Total Non-Blocking Throughput |
12.5 Gbps |
|
|
Forwarding Rate |
19 Mpps |
|
|
Supported VLANs |
256 |
|
|
MAC Address Table Size |
4000 |
|
|
Layer 2 Features |
||
|
STP & RSTP |
✓ |
|
|
Egress Rate Limit |
✓ |
|
|
Flow Control |
✓ |
|
|
Storm Control |
✓ |
|
|
Multicast & Broadcast Rate Limiting |
✓ |
|
|
Port Isolation |
✓ |
|
|
Port Mirroring |
✓ |
|
|
Jumbo Frames |
✓ |
|
|
Loop Protection |
✓ |
|
|
Hardware |
||
|
Max. Power Consumption |
5W (AC/DC input) 6.4W (PoE input) |
|
|
Power Method |
(1) USB Type-C, 5V DC, 1A (1) PoE |
|
|
Power Input Method |
USB Input PoE |
|
|
Power Supply |
AC/DC, external, 5W |
|
|
Supported Voltage Range |
4.8—5.2V DC/USB 44V—57V PoE |
|
|
Management |
Ethernet |
|
|
Weight |
206 g (7.3 oz) |
|
|
Enclosure Material |
Polycarbonate |
|
|
Ambient Operating Temperature |
-20 to 45° C (-4 to 113° F) |
|
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 8.6.9 and later |
|
