Description
|
Overview |
||
|
Dimensions |
135 x 185 x 32 mm (5.3 x 7.3 x 1.3") |
|
|

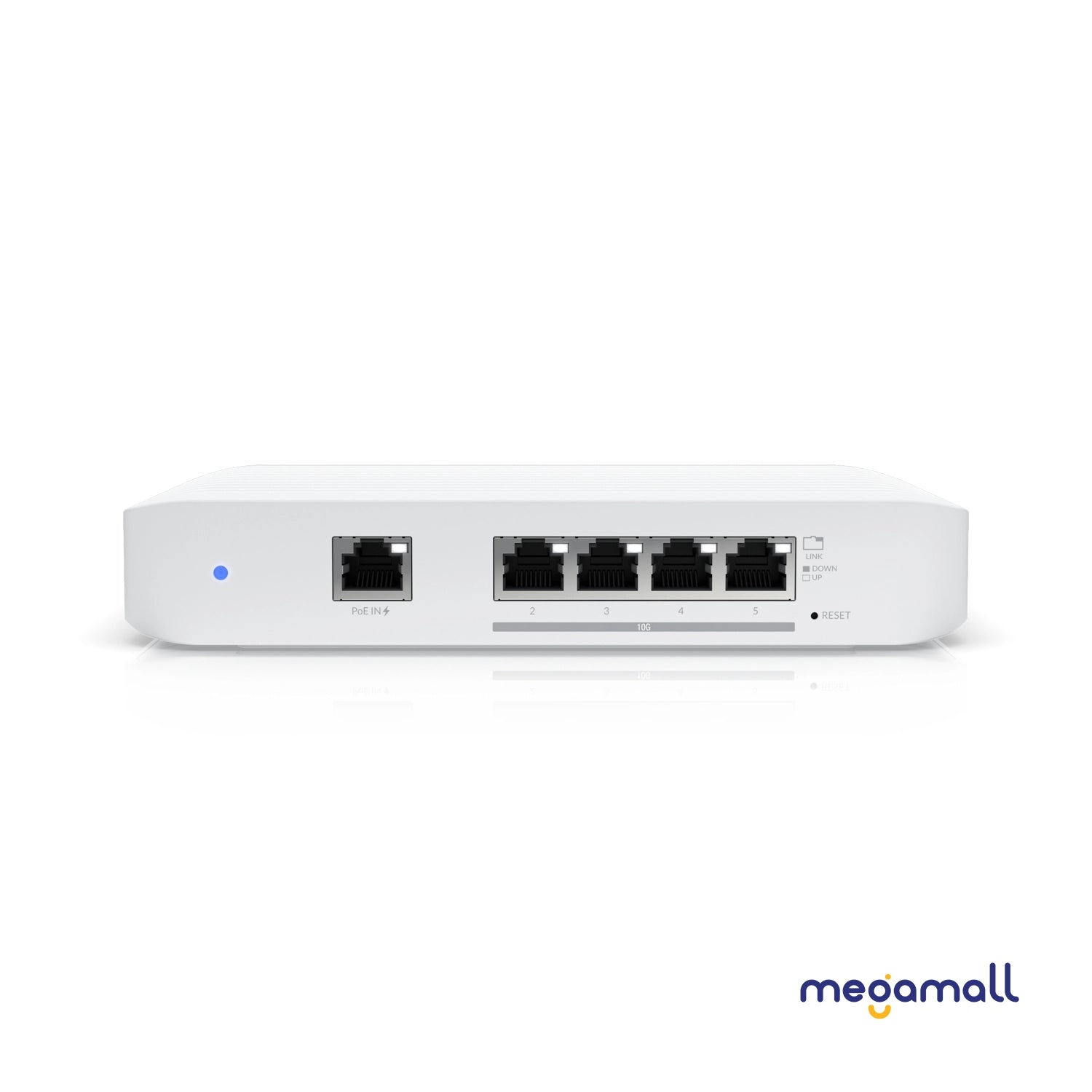

Port Layout |
||
|
1 GbE RJ45 |
1 (1G/100M/10M) |
|
|
10 GbE RJ45 |
4 |
|
|
Form Factor |
Compact desktop, wall |
|
|
Performance |
||
|
Switching Capacity |
82 Gbps |
|
|
Total Non-Blocking Throughput |
41 Gbps |
|
|
Forwarding Rate |
61 Mpps |
|
|
Supported VLANs |
1000 |
|
|
MAC Address Table Size |
16000 |
|
|
Packet Buffer Size |
1.5 MB |
|
|
Access Lists |
||
|
IPv4 |
12 |
|
|
MAC |
10 |
|
|
Layer 2 Features |
||
|
LACP Port Aggregation |
✓ |
|
|
STP & RSTP |
✓ |
|
|
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
✓ |
|
|
IGMP Snooping |
✓ |
|
|
802.1X Control |
✓ |
|
|
MAC-Based ACLs & Device Isolation |
✓ |
|
|
DHCP Snooping & Guarding |
✓ |
|
|
Egress Rate Limit |
✓ |
|
|
Flow Control |
✓ |
|
|
Storm Control |
✓ |
|
|
Multicast & Broadcast Rate Limiting |
✓ |
|
|
MAC Address Blocking |
✓ |
|
|
IP-Based ACLs & Network Isolation |
✓ |
|
|
MAC-Based Port Restriction |
✓ |
|
|
Port Isolation |
✓ |
|
|
Port Mirroring |
✓ |
|
|
Jumbo Frames |
✓ |
|
|
LLDP-MED |
✓ |
|
|
Voice VLAN |
✓ |
|
|
Loop Protection |
✓ |
|
|
Hardware |
||
|
Max. Power Consumption |
25W |
|
|
Power Method |
(1) PoE+ (1) USB Type-C, 5V DC, 5A |
|
|
Power Input Method |
USB Input PoE |
|
|
Power Supply |
AC/DC, external, 25W |
|
|
Supported Voltage Range |
4.8—5.2V DC/USB 44V—57V PoE |
|
|
Management |
Ethernet |
|
|
Heat Dissipation (Excluding PoE Output) |
85.3 BTU/hr |
|
|
Weight |
1.2 kg (2.7 lb) |
|
|
Enclosure Material |
Polycarbonate |
|
|
ESD Protection |
Air: ± 16kV, contact: ± 12kV |
|
|
Ambient Operating Temperature |
-5 to 45° C (23 to 113° F) |
|
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 6.1.67 and later |
|
