Description

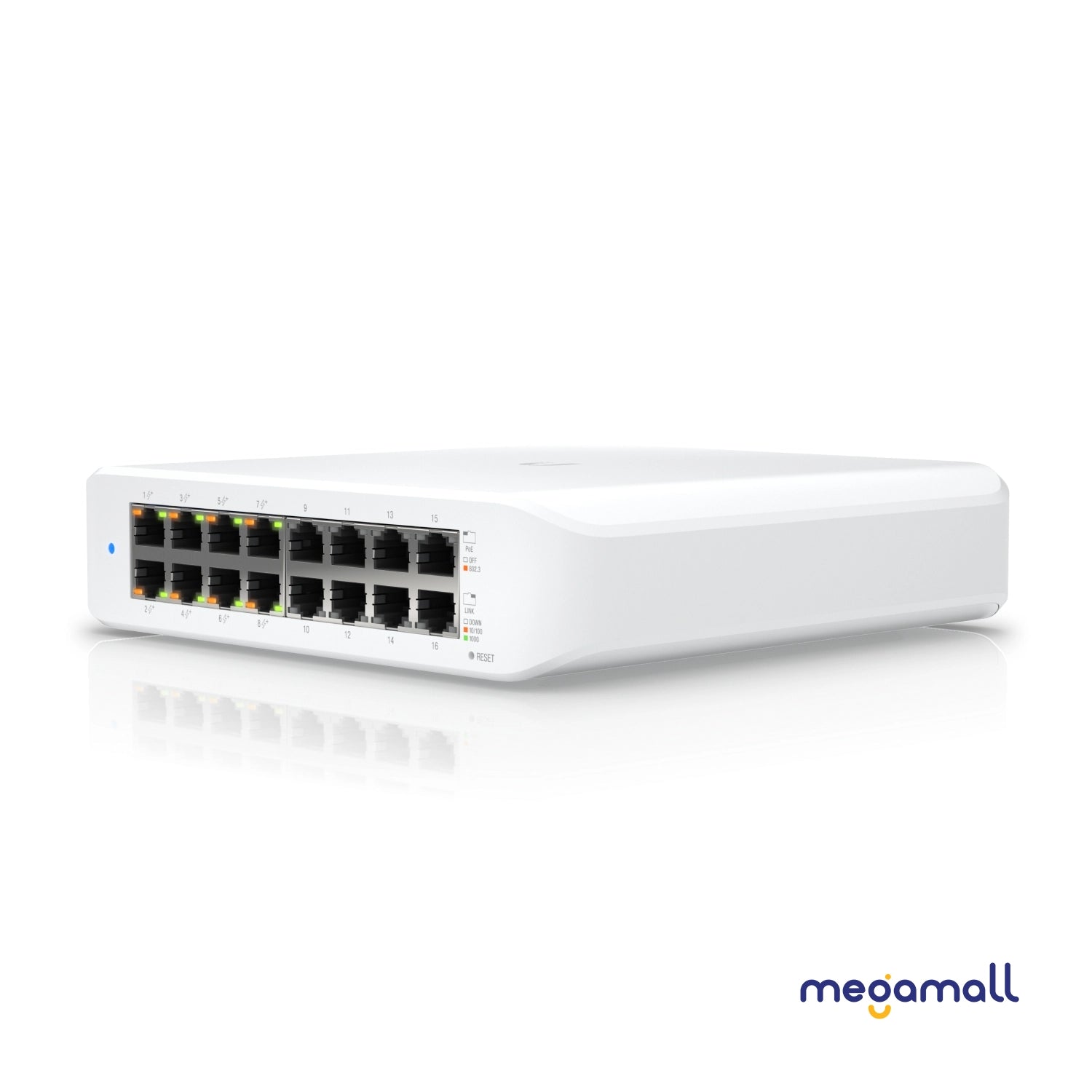

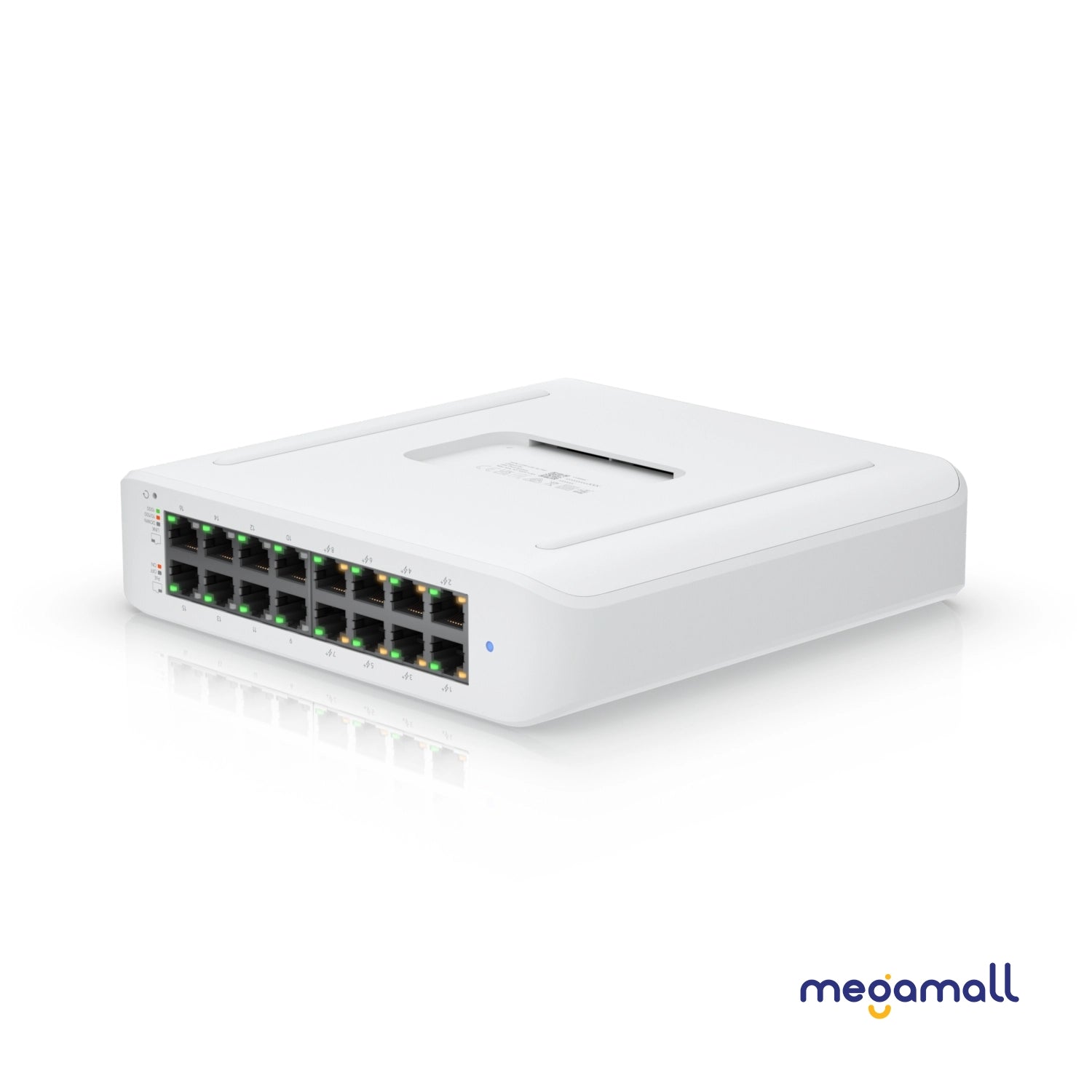

A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.
|
Overview |
||
|
Dimensions |
192 x 185 x 44 mm (7.6 x 7.3 x 1.7") |
|
|
Port Layout |
||
|
1 GbE RJ45 |
16 (8 PoE+) (1G/100M/10M) |
|
|
Max. PoE Output |
Up to PoE+ |
|
|
Total PoE Availability |
45W |
|
|
Form Factor |
Compact desktop, wall |
|
|
Performance |
||
|
Switching Capacity |
32 Gbps |
|
|
Total Non-Blocking Throughput |
16 Gbps |
|
|
Forwarding Rate |
24 Mpps |
|
|
Supported VLANs |
1000 |
|
|
MAC Address Table Size |
8000 |
|
|
Packet Buffer Size |
0.5 MB |
|
|
Access Lists |
||
|
IPv4 |
128 |
|
|
MAC |
128 |
|
|
Layer 2 Features |
||
|
LACP Port Aggregation |
✓ |
|
|
STP & RSTP |
✓ |
|
|
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
✓ |
|
|
IGMP Snooping |
✓ |
|
|
802.1X Control |
✓ |
|
|
MAC-Based ACLs & Device Isolation |
✓ |
|
|
DHCP Snooping & Guarding |
✓ |
|
|
Egress Rate Limit |
✓ |
|
|
Flow Control |
✓ |
|
|
Storm Control |
✓ |
|
|
Multicast & Broadcast Rate Limiting |
✓ |
|
|
MAC Address Blocking |
✓ |
|
|
IP-Based ACLs & Network Isolation |
✓ |
|
|
MAC-Based Port Restriction |
✓ |
|
|
Port Isolation |
✓ |
|
|
Port Mirroring |
✓ |
|
|
Jumbo Frames |
✓ |
|
|
LLDP-MED |
✓ |
|
|
Voice VLAN |
✓ |
|
|
Loop Protection |
✓ |
|
|
Hardware |
||
|
PoE Ports |
||
|
PoE+ |
8 |
|
|
Max. PoE Wattage per Port by PSE |
||
|
PoE+ |
32W |
|
|
Max. Power Consumption |
15W (Excluding PoE Output) 60W (Including PoE Output) |
|
|
Power Method |

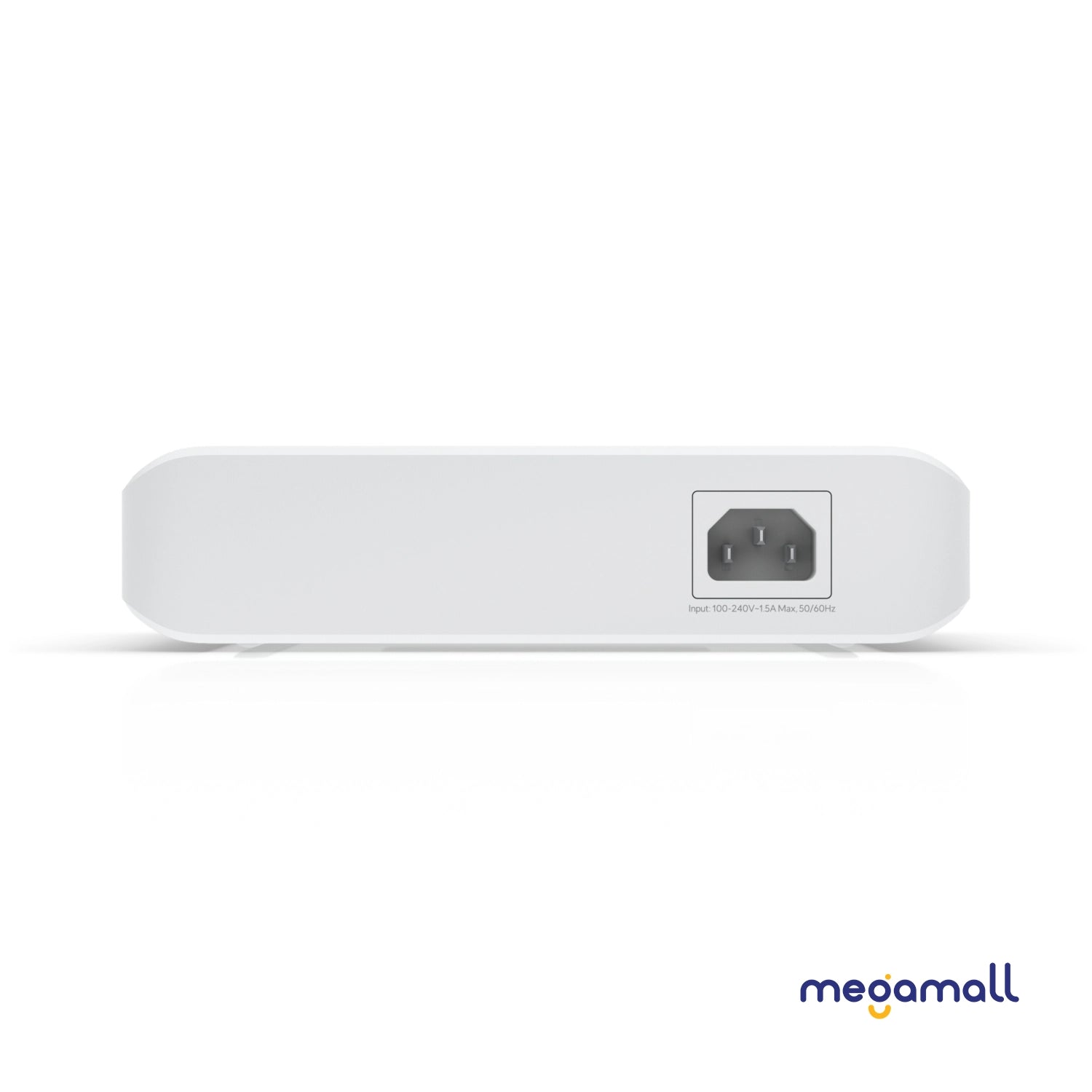

Universal input, 100—240V AC, 50/60 Hz |
|
|
Power Input Method |
AC input |
|
|
Power Supply |
AC/DC, internal, 60W |
|
|
Supported Voltage Range |
100—240V AC |
|
|
Management |
Ethernet |
|
|
Heat Dissipation (Excluding PoE Output) |
51.18 BTU/hr |
|
|
Weight |
1.2 kg (2.6 lb) |
|
|
Enclosure Material |
Polycarbonate |
|
|
Mount Material |
Polycarbonate |
|
|
Supported Rack Depth |
400~1200 mm (15.7-47.2") |
|
|
Ambient Operating Temperature |
-15 to 40° C (5 to 104° F) |
|
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 7.2.94 and later |
|
