Mechanical

Dimensions

118.3 x 46.8 x 25.8 mm (4.7 x 1.8 x 1")

Weight

Without mount: 130 g (4.59 oz)

With flat wall mount: 178 g (6.28 oz)

With 20° wedge mount: 200 g (7.05 oz)

Enclosure material

Polycarbonate

Mount materials

Flat wall mount: aluminum alloy

20° wedge mount: polycarbonate

Weatherproofing

IPX4

Optics

Sensor

5MP CMOS sensor

Lens

Fixed focal length

View angle

H: 138°, V: 114°, D: 155°

Night mode

Built-in IR LED illumination and IR cut filter

Video

Resolution

2MP 1600 x 1200 (4:3)

Max. frame rate

30 FPS

System

Processor

Quad-core Arm® Cortex®-A53 based chip

Networking interface

802.11a/b/g/n/ac WiFi

Bluetooth™ 4.2

Max. power consumption

12W

Power requirements

16—24V AC, 1.25A max., 50/60 Hz

Supported voltage range

16—24V AC

LED

Link/activity

Buttons

(1) Ring button

(1) Factory reset

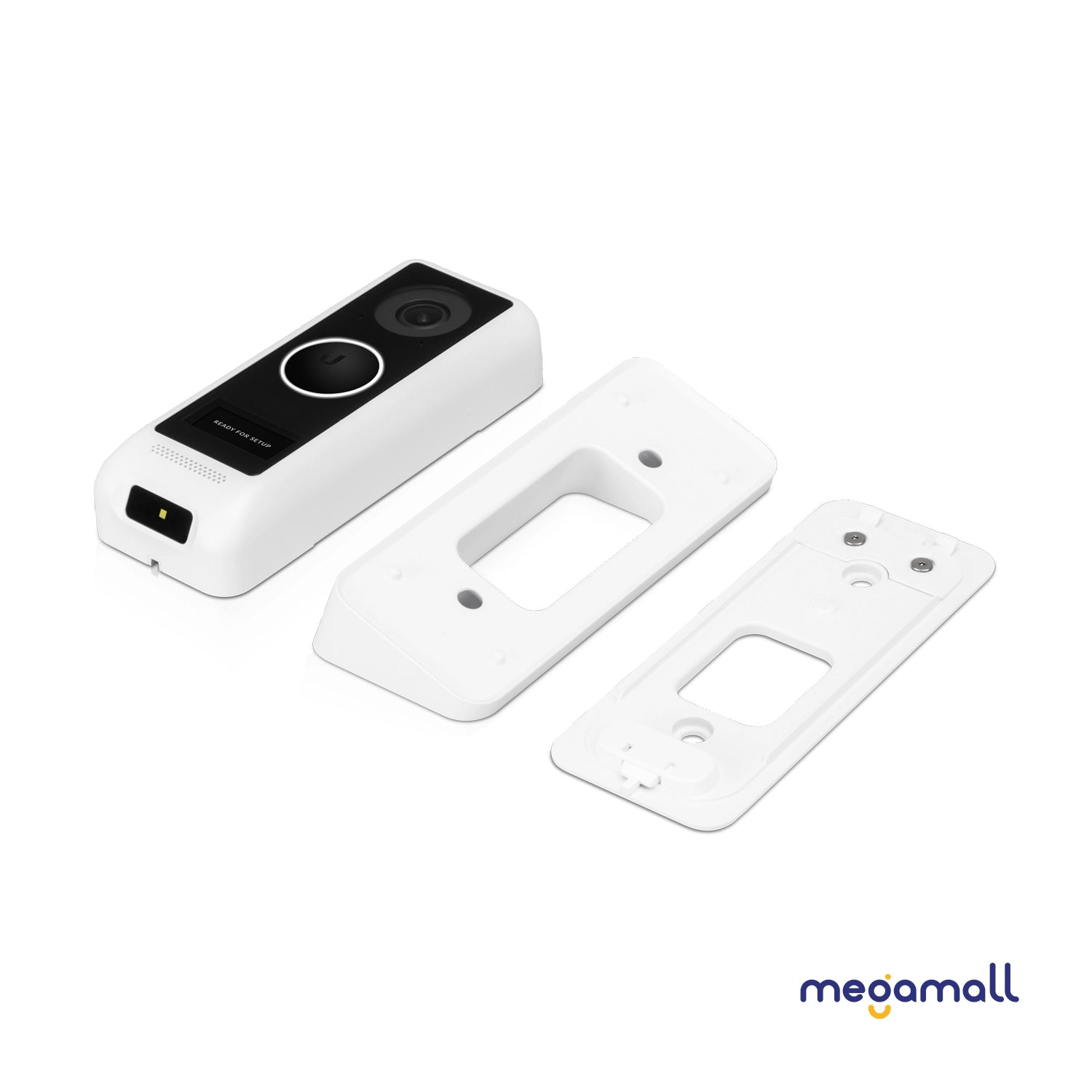

Mounting

Flat wall, 20° wedge (Included)

Ambient operating temperature

-10 to 40º C (14 to 104º F)

Ambient operating humidity

0 to 90% noncondensing

Certifications

FCC, IC, CE

NDAA Compliant

Yes

Audio

Microphone

Yes (Can be disabled)

Speaker

Yes

Software

Web application

UniFi Protect

Mobile app

UniFi Protect iOS™ and Android™

Compatible Mechanical Chimes

Manufacturer

Model

Broan-NuTone

LA126WH

Broan-NuTone

LA11WH

Heath Zenith

SL-2735

Craftmade

CTPW-RG

Broan-NuTone

LA39WH

Newhouse Hardware

CHM3D

Compatible Digital Chimes

Manufacturer

Model

Broan-NuTone

LA600WH

IQ AMERICA

DW-2850

IQ AMERICA

DW-2840

Transformer Specifications (EU Version)

Input rating (5, 6)

230V, 50/60Hz

Output rating (1, 4)

16V AC, 15VA

Ambient operating temperature

-5 to 35 º C (23 to 95º F)
