Description

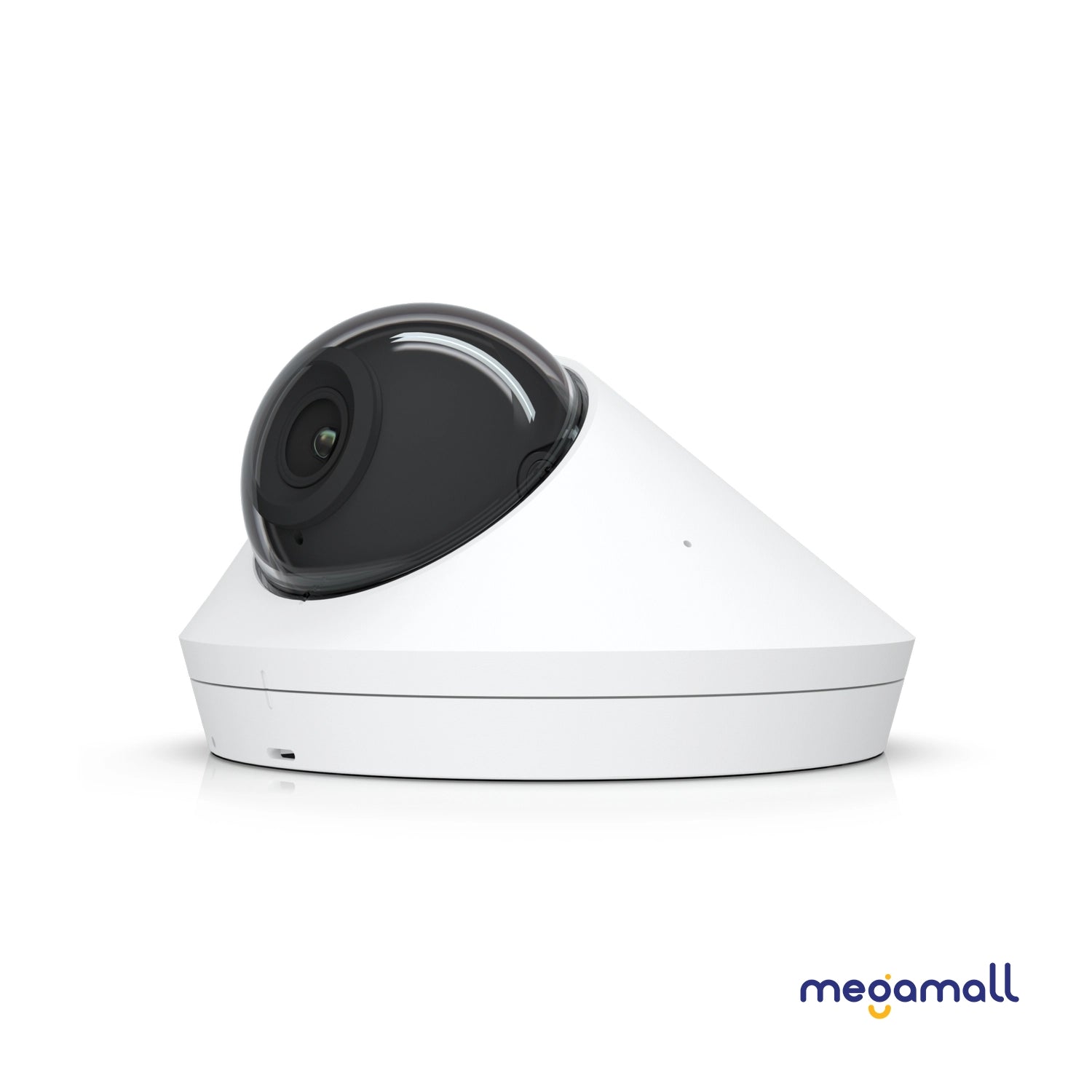

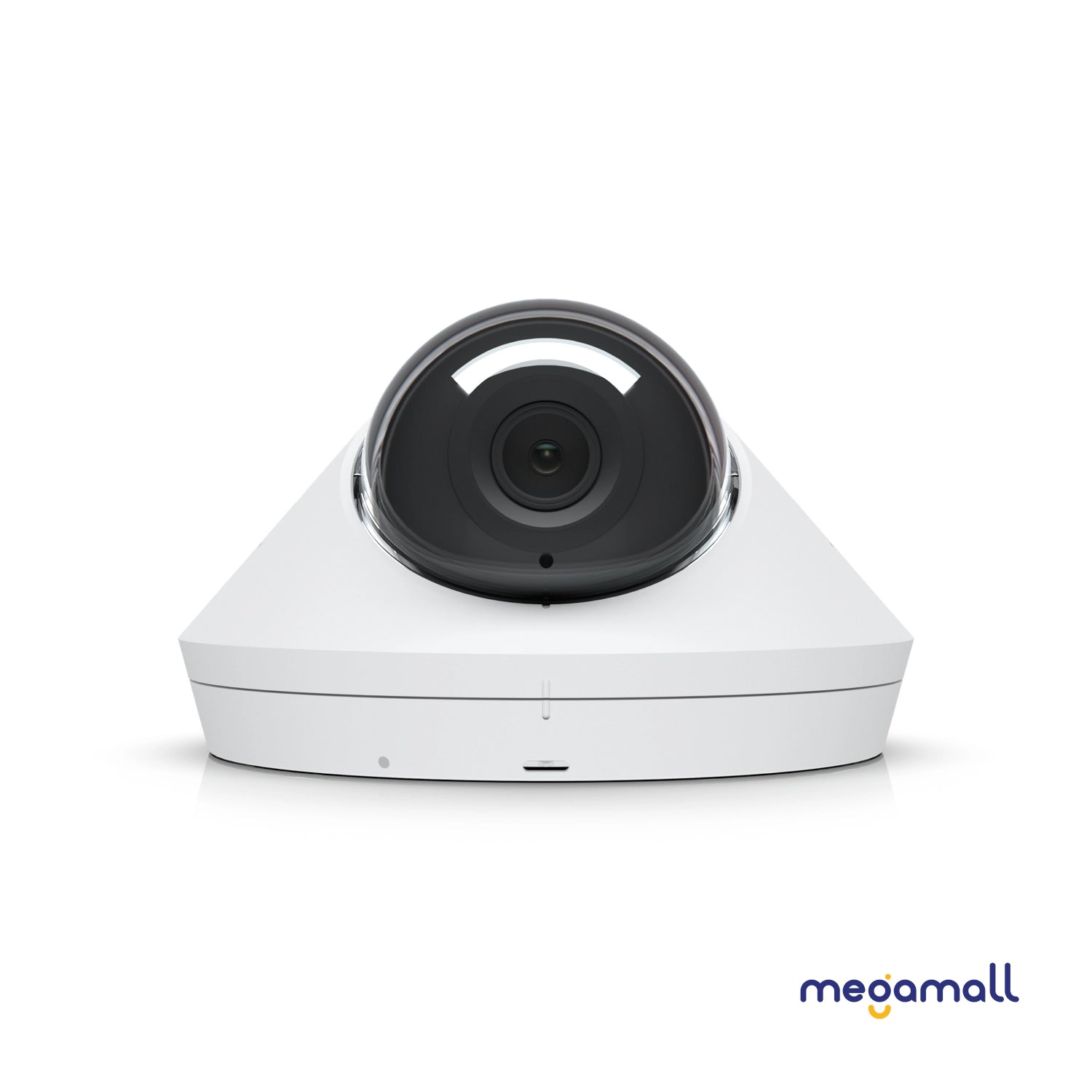

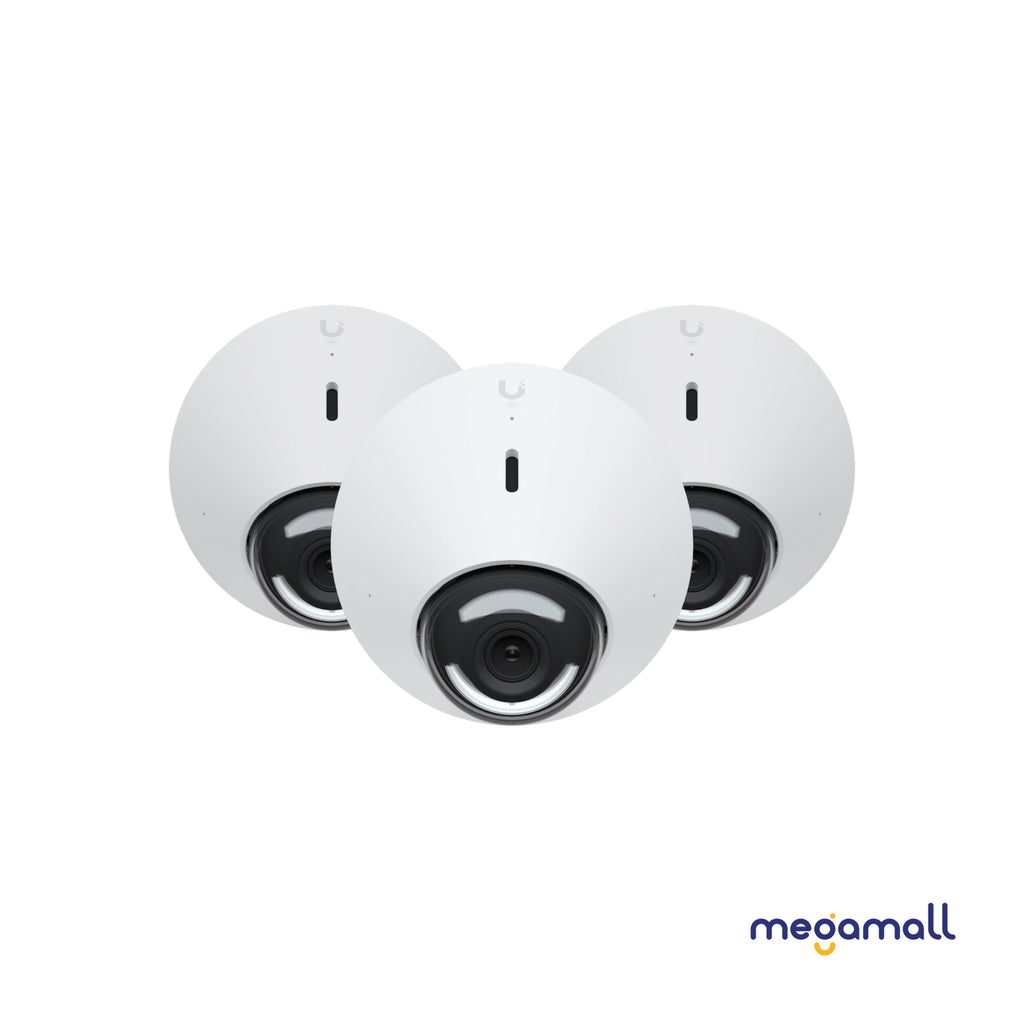

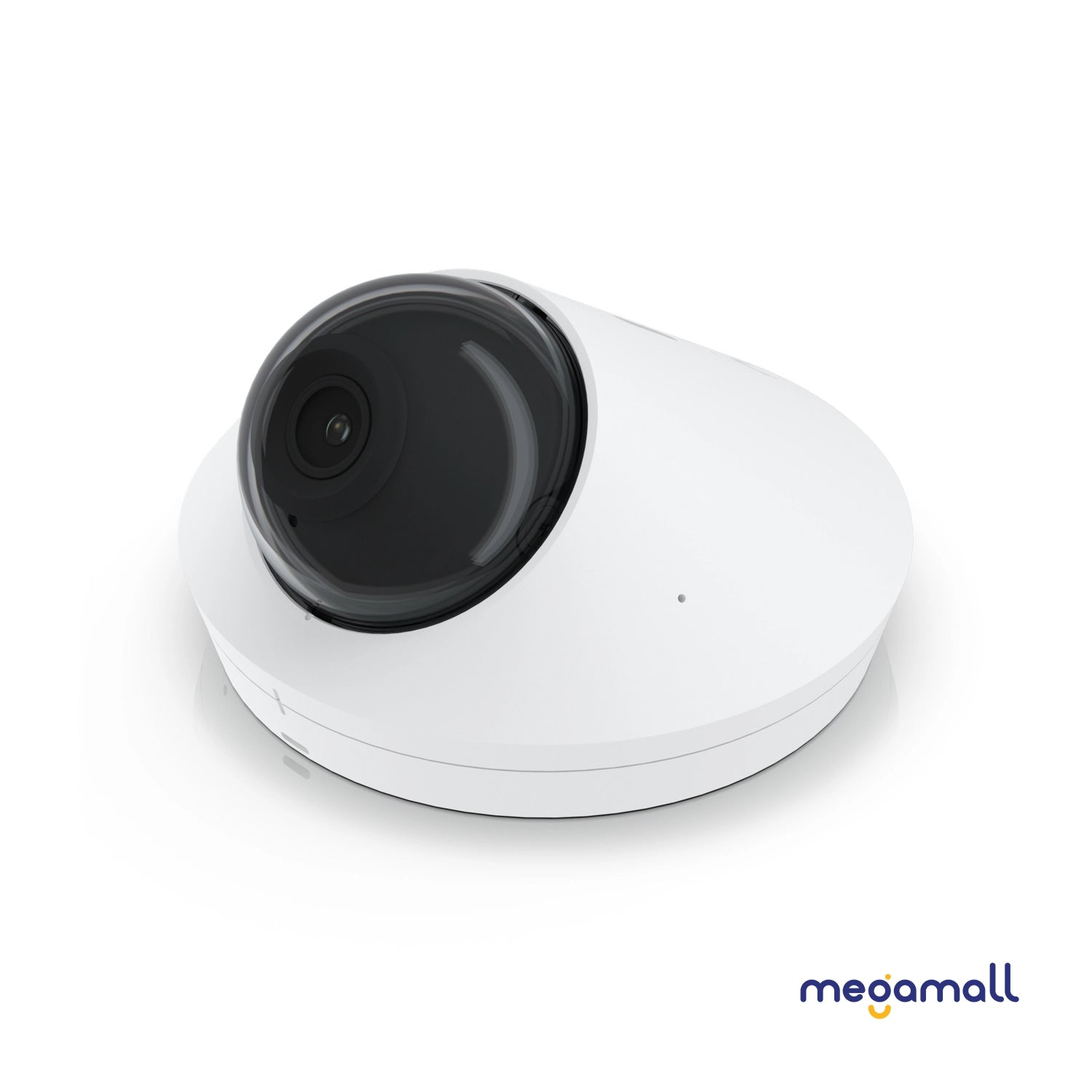

Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.
|
Overview |
||
|
Dimensions |
Ø109.2 x 64.5 mm (Ø4.3 x 2.5") |
|
|
IR Night Vision |
9 m (30 ft) |
|
|
Smart Detections (People, Vehicles, Animals) |
✓ |
|
|
Resolution |
2K |
|
|
Field of View |
H: 102.4°, V: 54.9°, D: 120.6° |
|
|
Audio |
Two-way audio |
|
|
Weatherproofing |
IPX4 (While Covered) |
|
|
Tamper Resistance |
IK08 |
|
|
Mounting |
Wall, ceiling mount (Included) Junction box, arm mount (Optional) |
|
|
Performance |
||
|
Networking Interface |
10/100 MbE RJ45 port |
|
|
Video |
||
|
Image Settings |
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
|
|
Max. Frame Rate |
30 FPS |
|
|
Resolution |
4MP 2688 x 1512 (16:9) |
|
|
Optics |
||
|
Sensor |
5MP CMOS |
|
|
Lens |
Fixed focal length |
|
|
Night Mode |
Built-in IR LED illumination and IR cut filter |
|
|
Hardware |
||
|
Max. Power Consumption |
5W |
|
|
Supported Voltage Range |
37—57V DC |
|
|
Power Method |
PoE |
|
|
Processor |
Dual-core Arm® Cortex®-A7 based chip |
|
|
Weight |
Without mount: 370 g (13.1 oz) With mount: 390 g (13.8 oz) |
|
|
Enclosure Material |
Aluminum alloy, polycarbonate, hard-coated dome |
|
|
Mount Material |
Polycarbonate, stainless steel |
|
|
Button |
(1) Factory-reset |
|
|
Ambient Operating Temperature |
-20 to 40° C (-4 to 104° F) |
|
|
Ambient Operating Humidity |
0 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC |
|
