Description

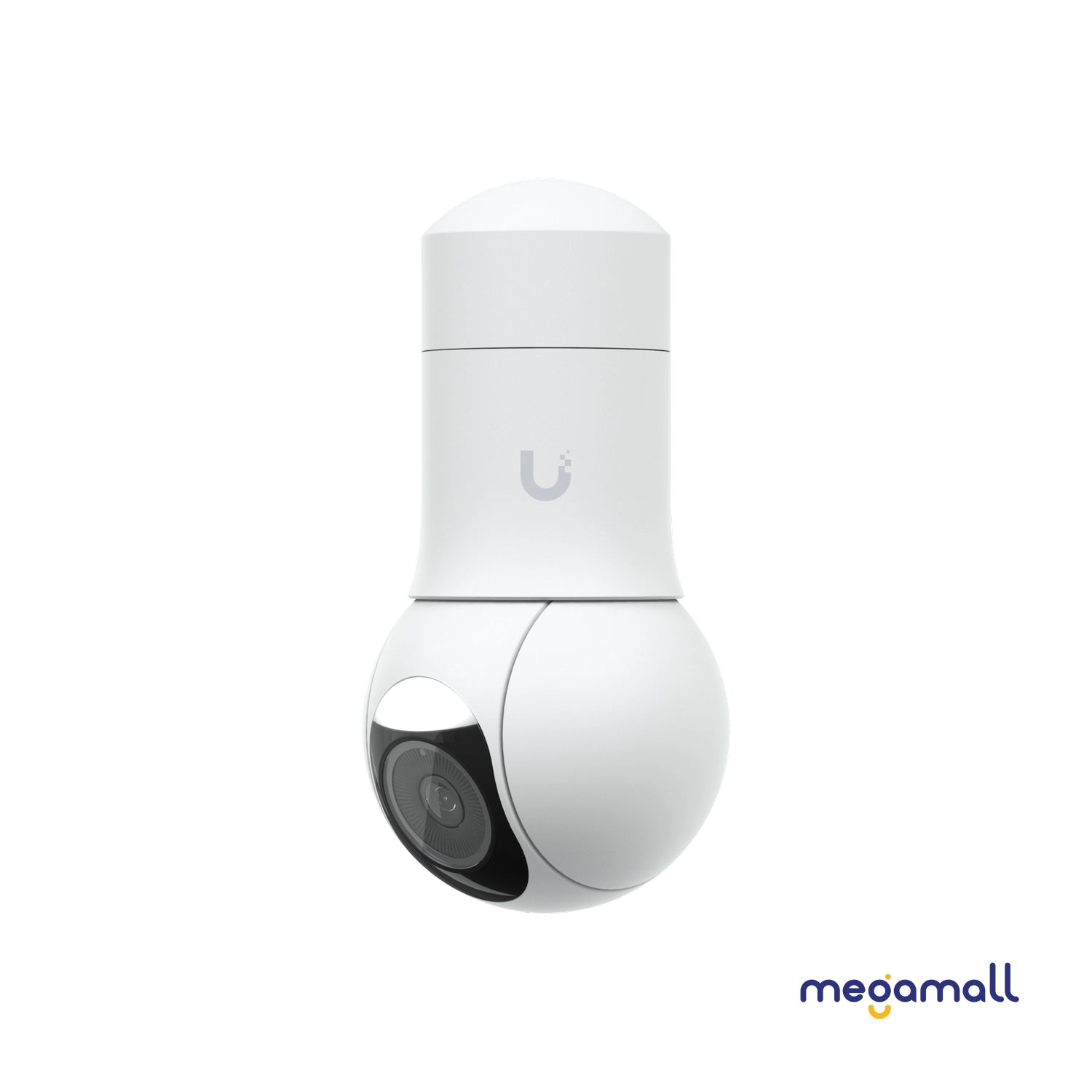

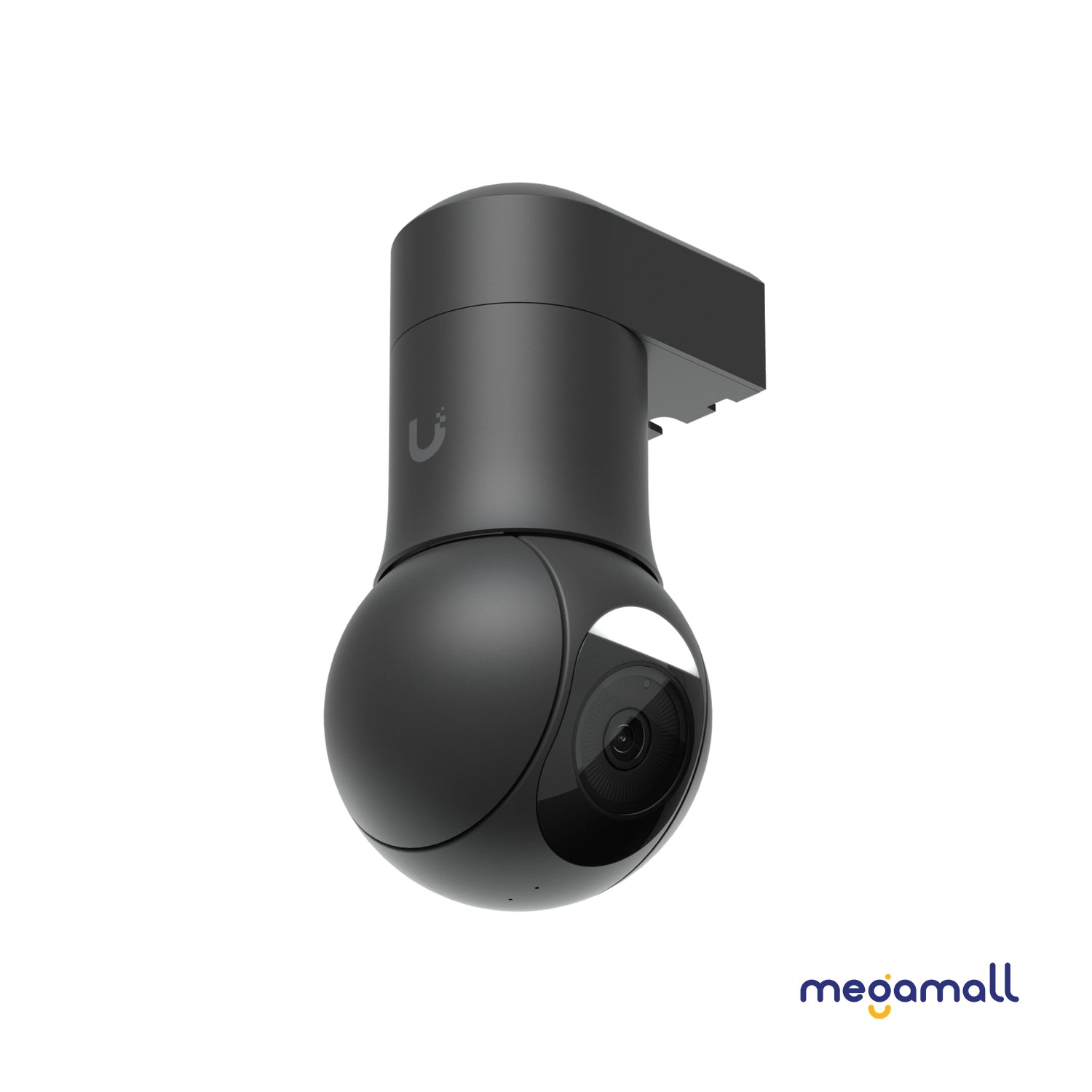

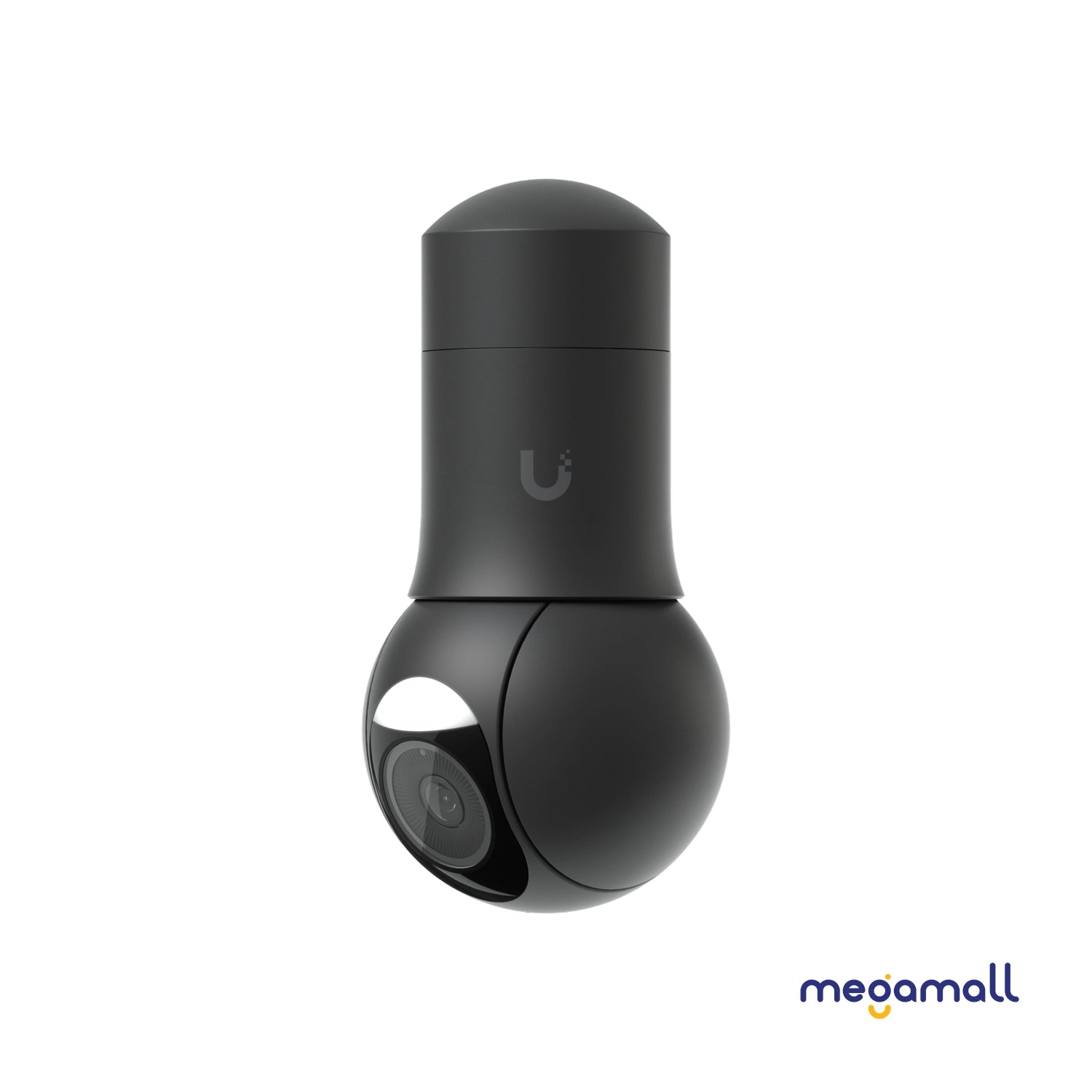

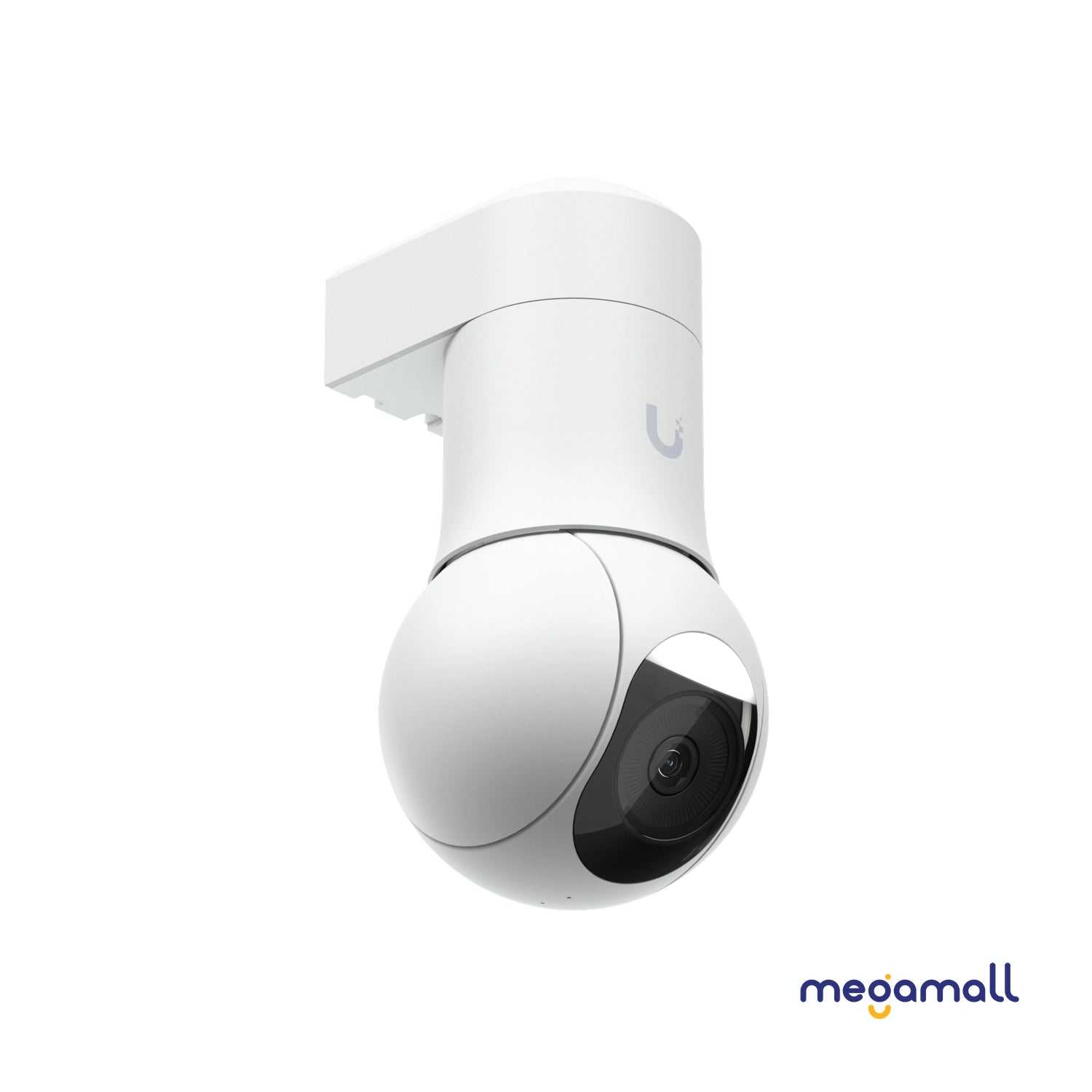

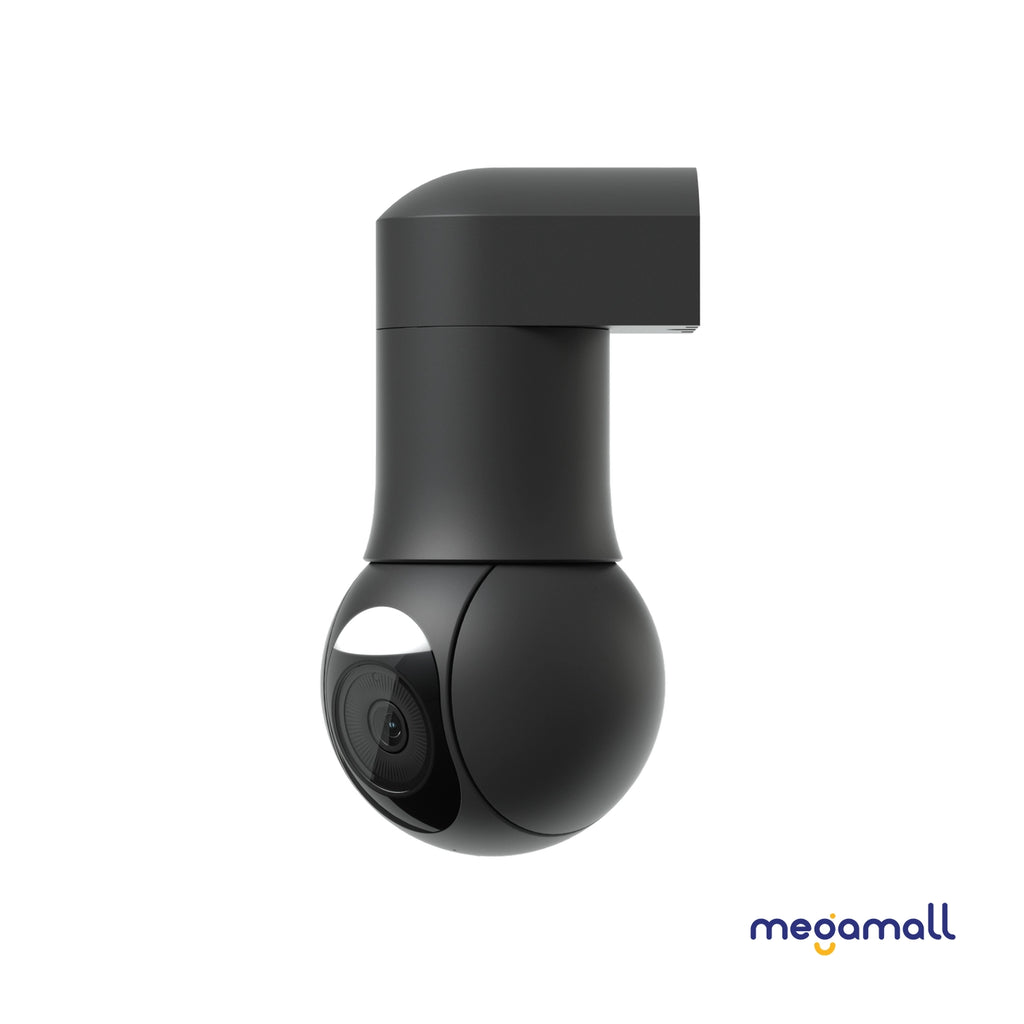

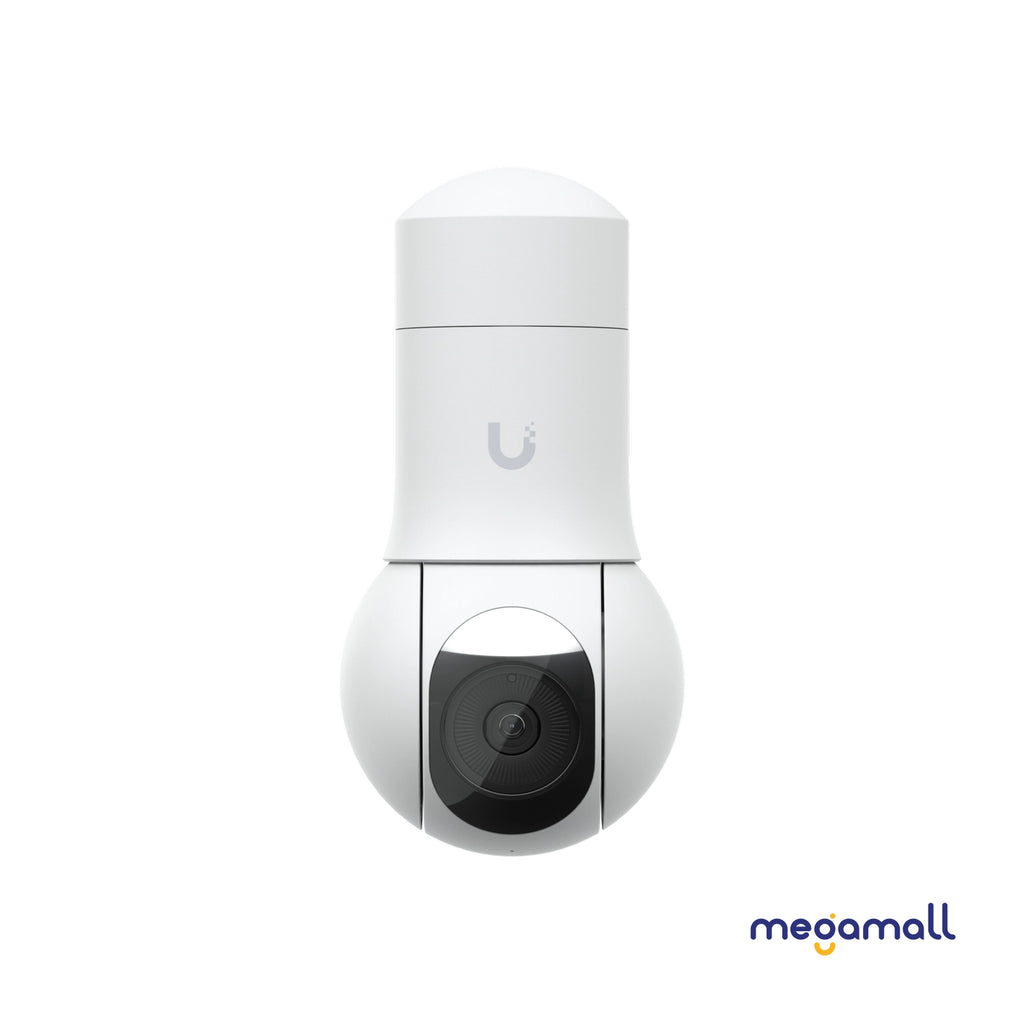

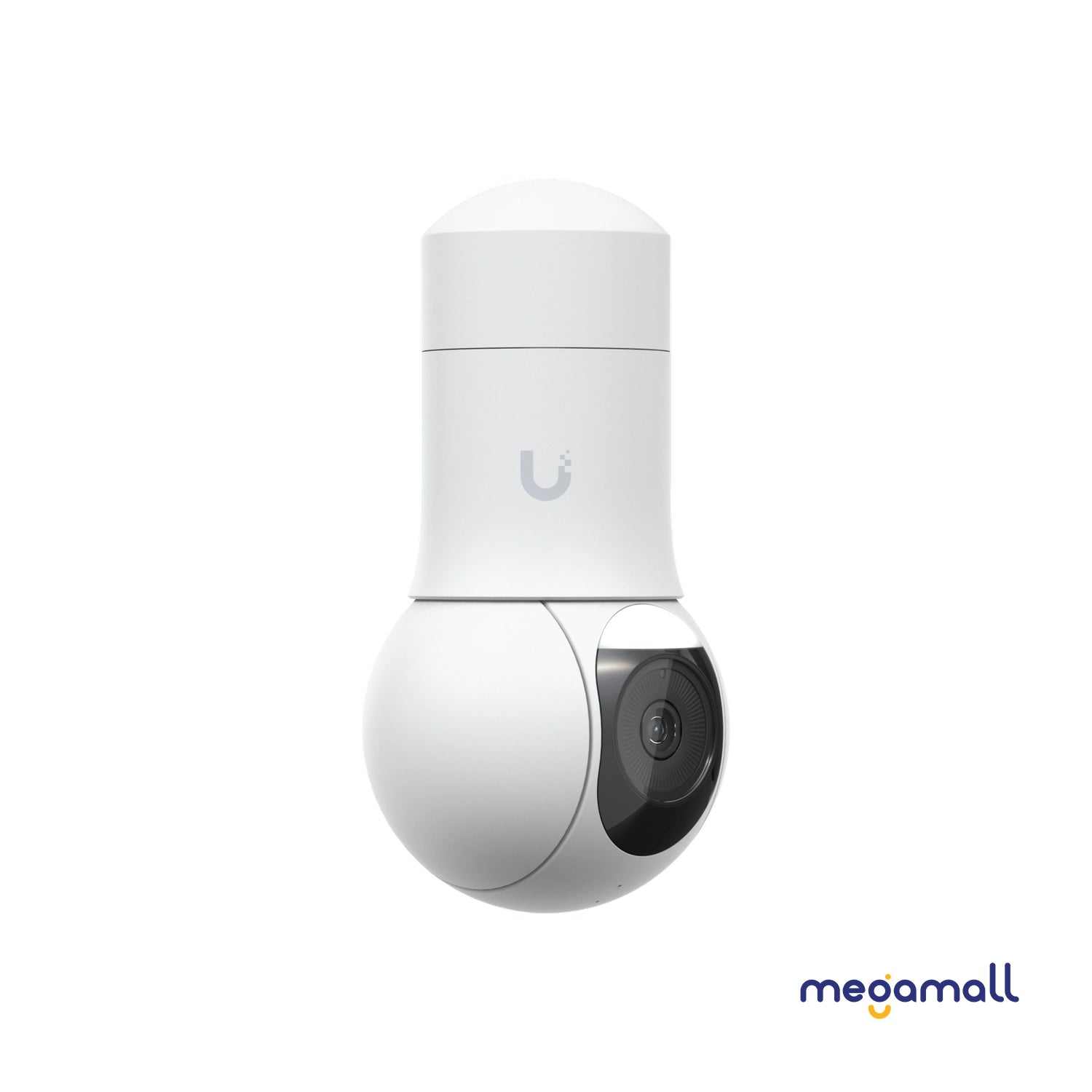

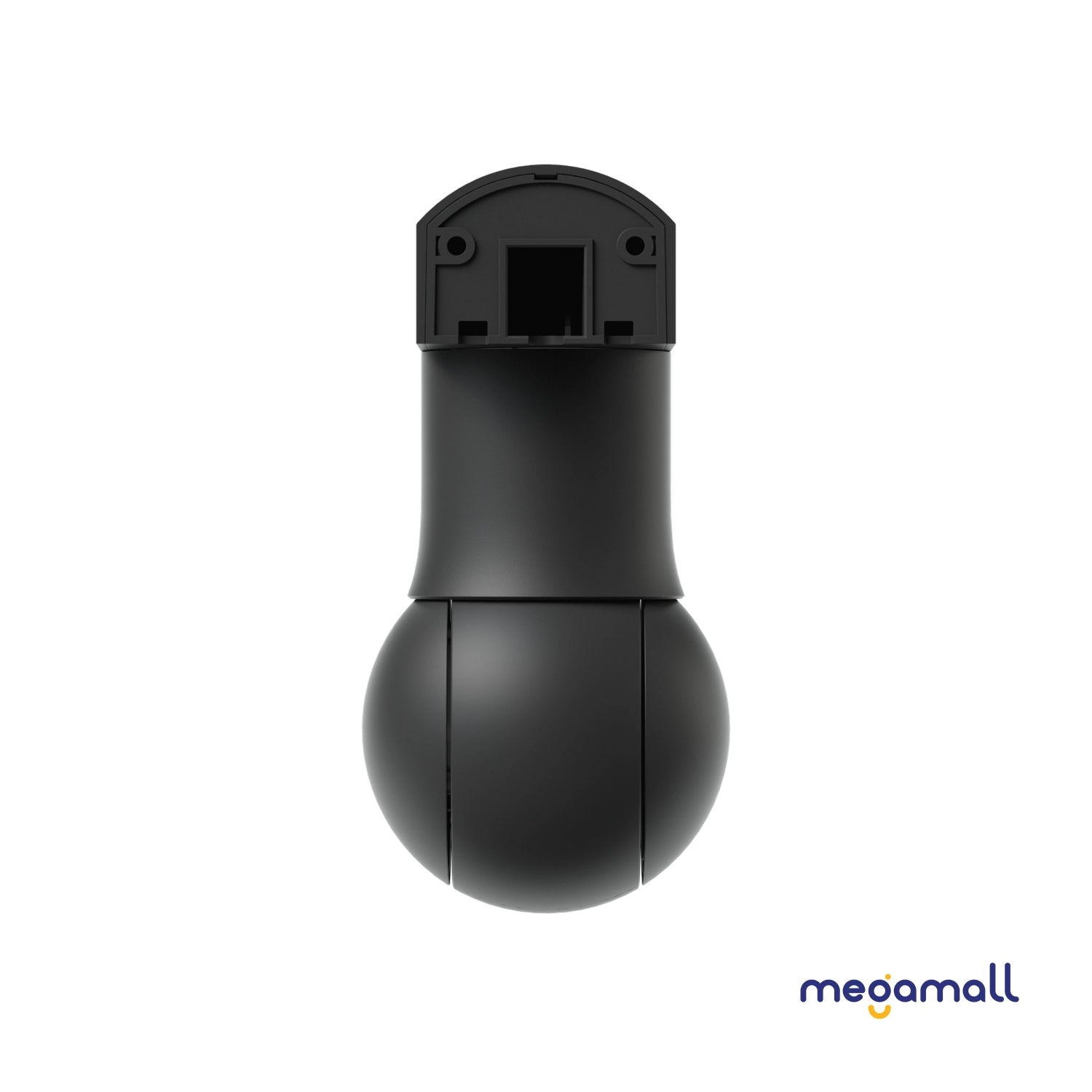

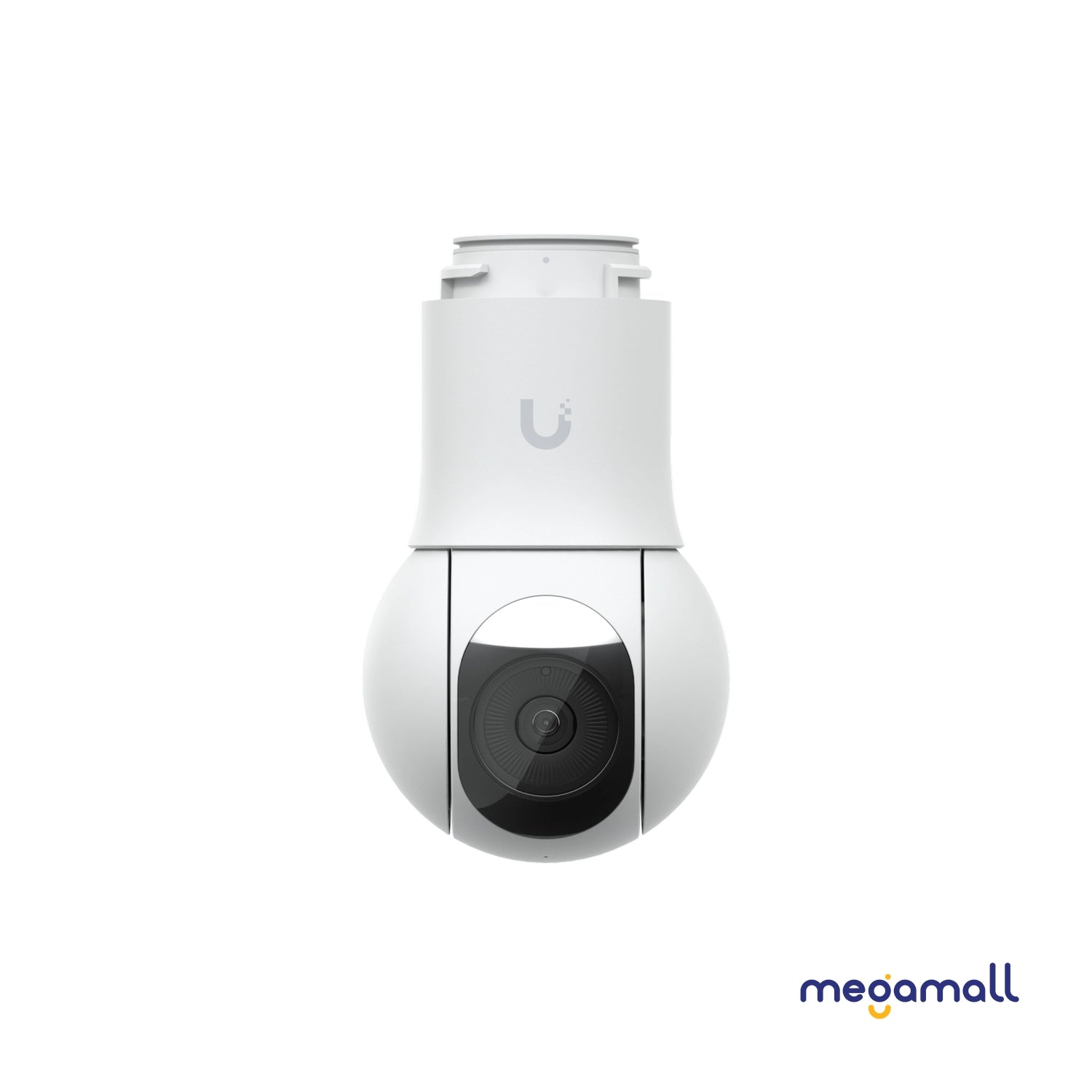

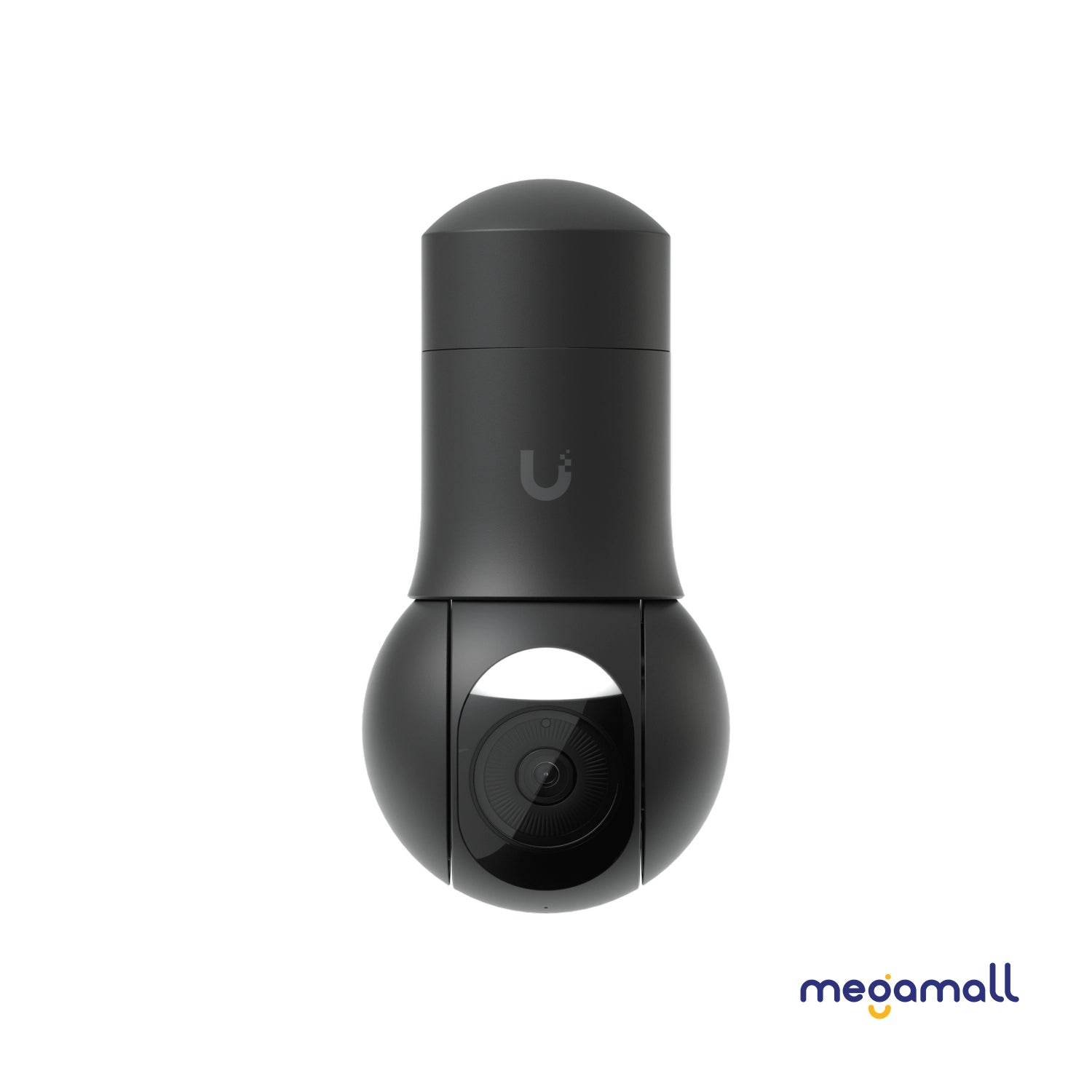

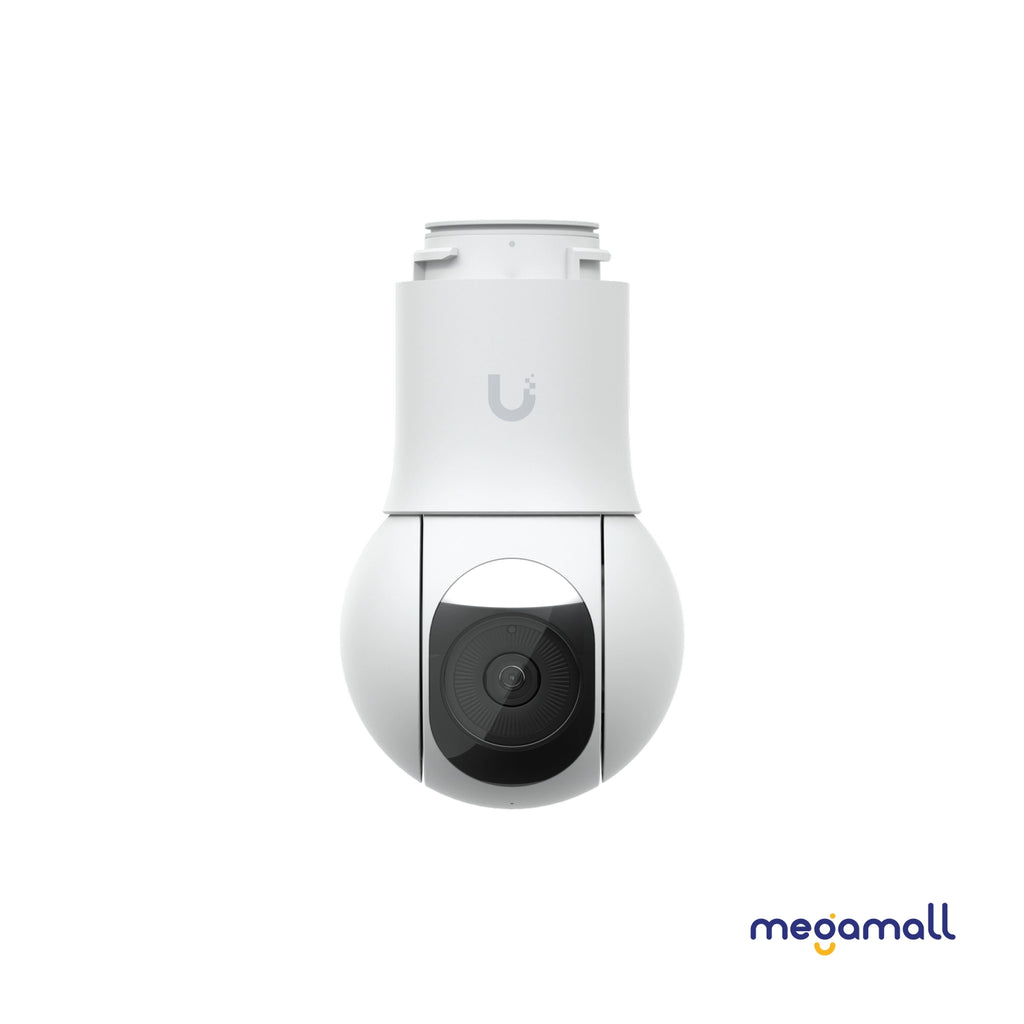

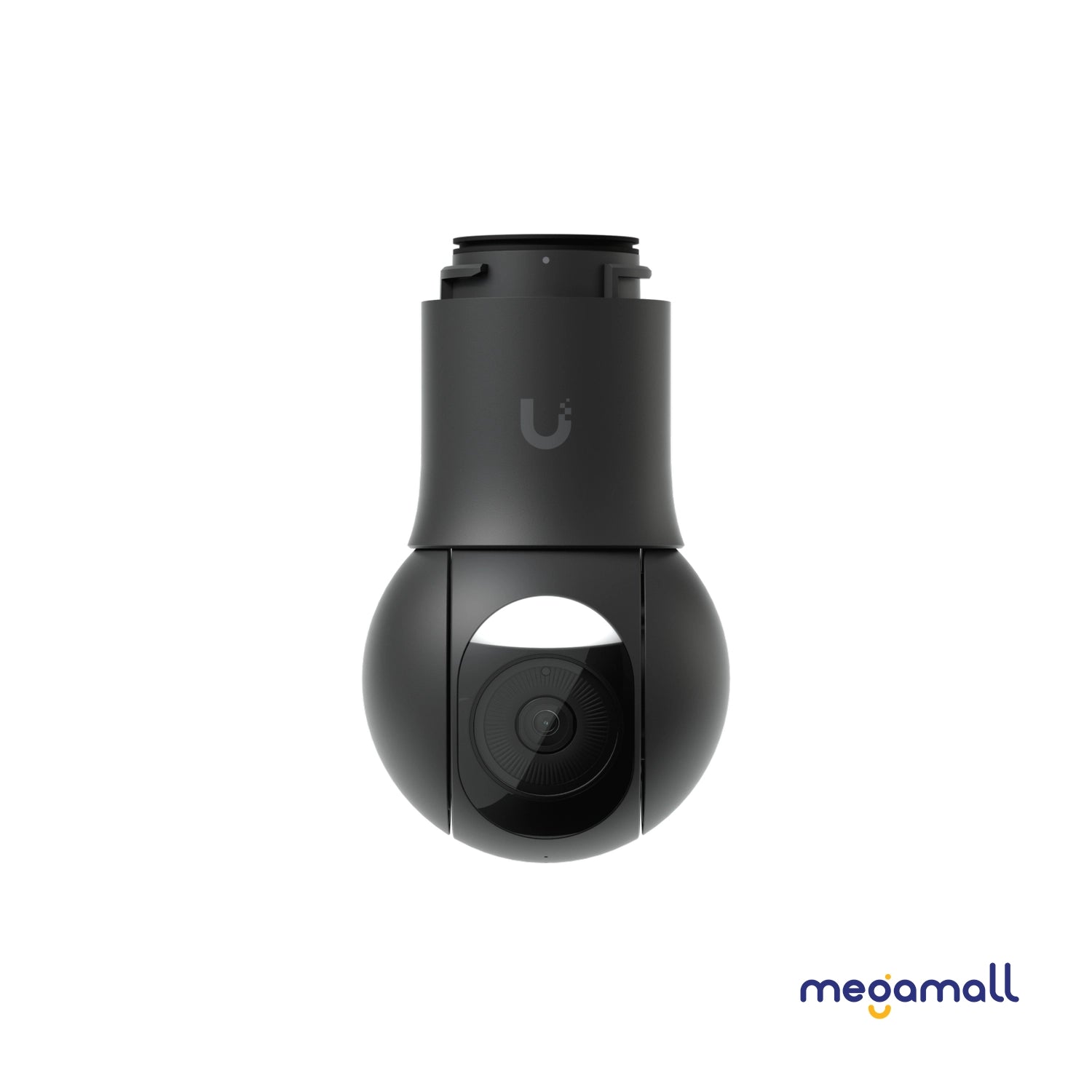

Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
|
Overview |
||
|
Dimensions |
Without mount: Ø90 x 152.5 mm (Ø3.5 x 6") With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7") |
|
|
IR Night Vision |
20 m (65 ft) |
|
|
Zoom Mode |
2x Optical |
|
|
Smart Detections (People, Vehicles, Animals) |
✓ |
|
|
Resolution |
2K |
|
|
Field of View |
Wide: H: 99.7°, V: 51.9°, D: 121° Tele: H: 45.5°, V: 25.4°, D: 52.4° |
|
|
Pan-Tilt Range |
Pan: 350° Tilt: 100° |
|
|
Audio |
Microphone |
|
|
Weatherproofing |
IP66 |
|
|
Tamper Resistance |
IK04 |
|
|
Mounting |

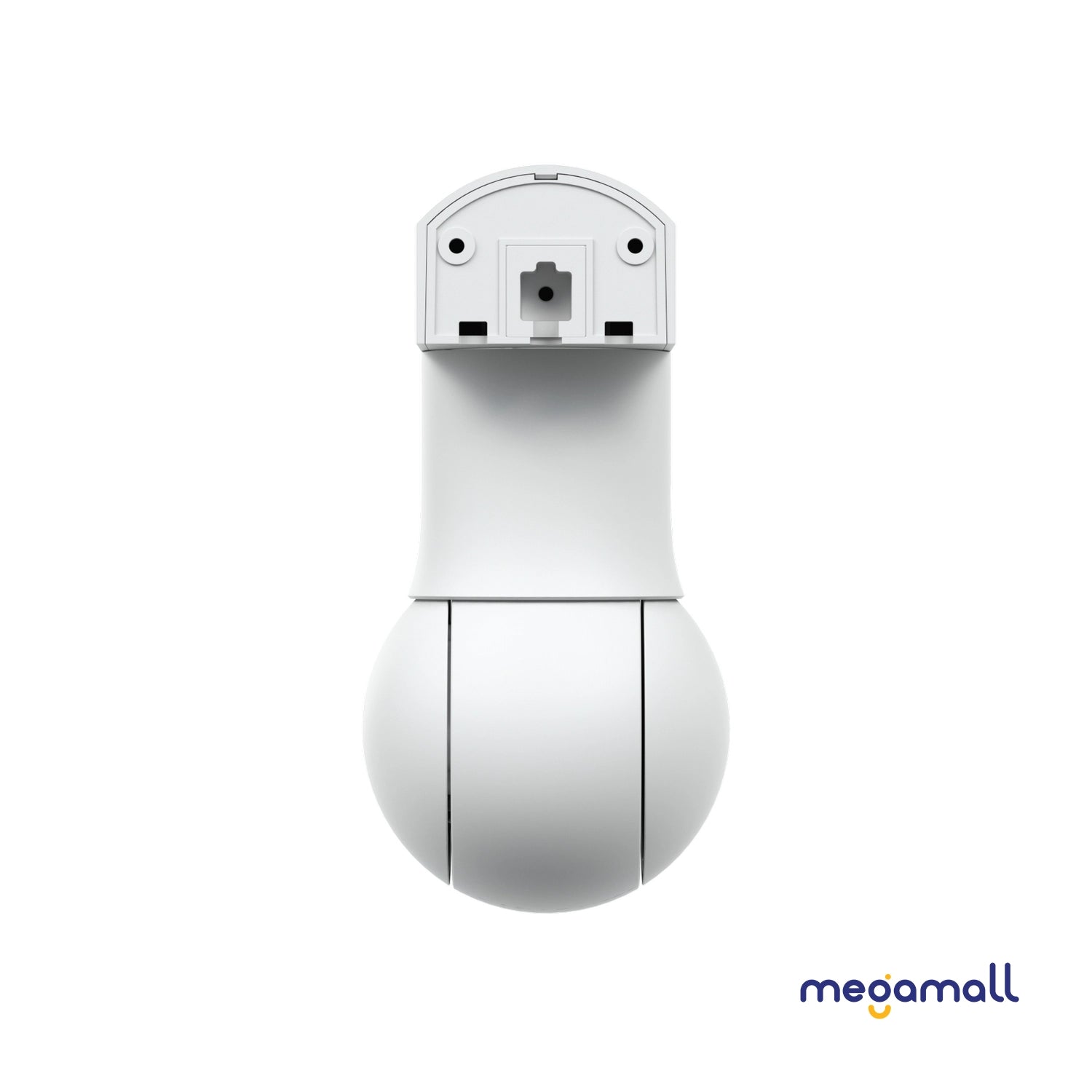

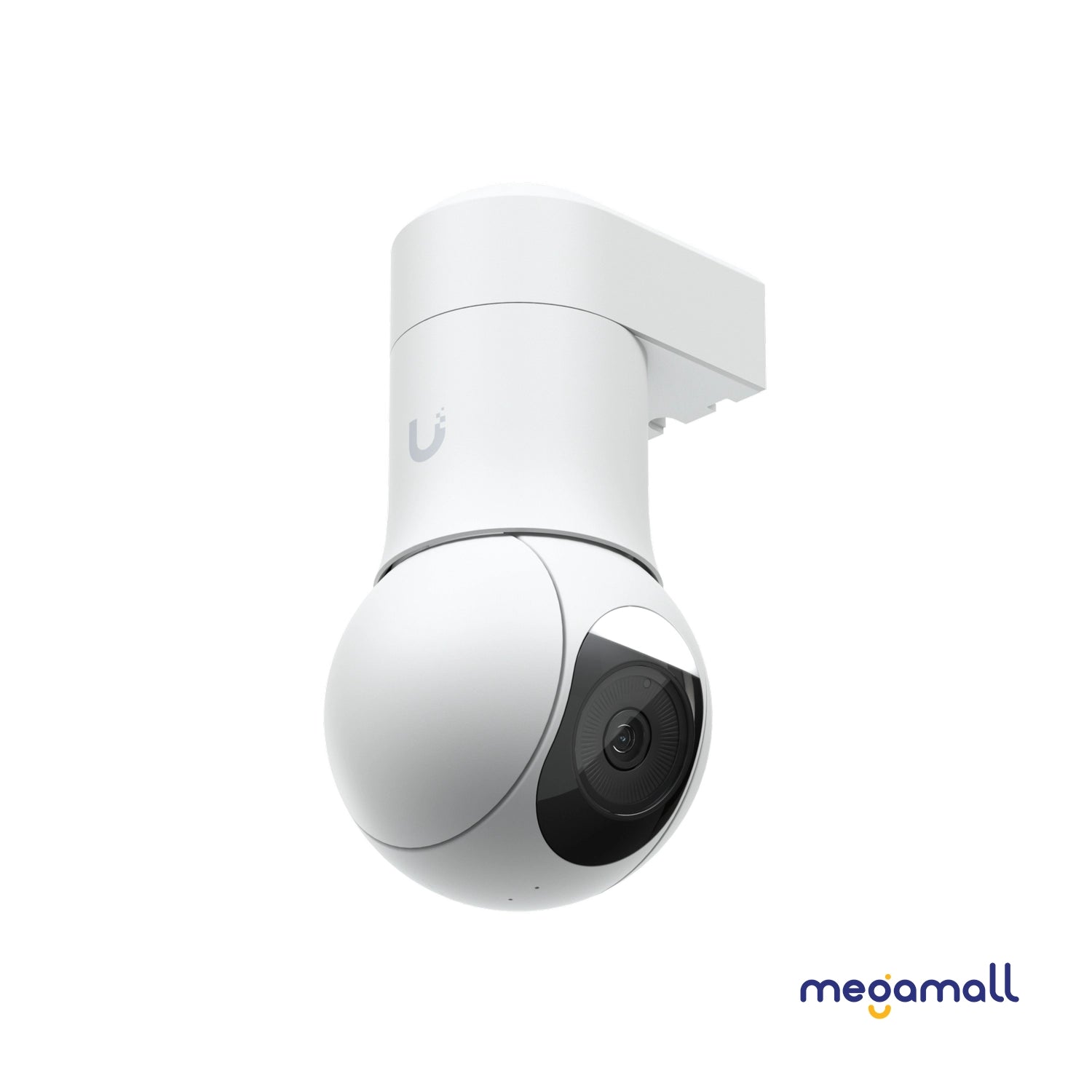

Wall mount, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional) |
|
|
Performance |
||
|
Networking Interface |

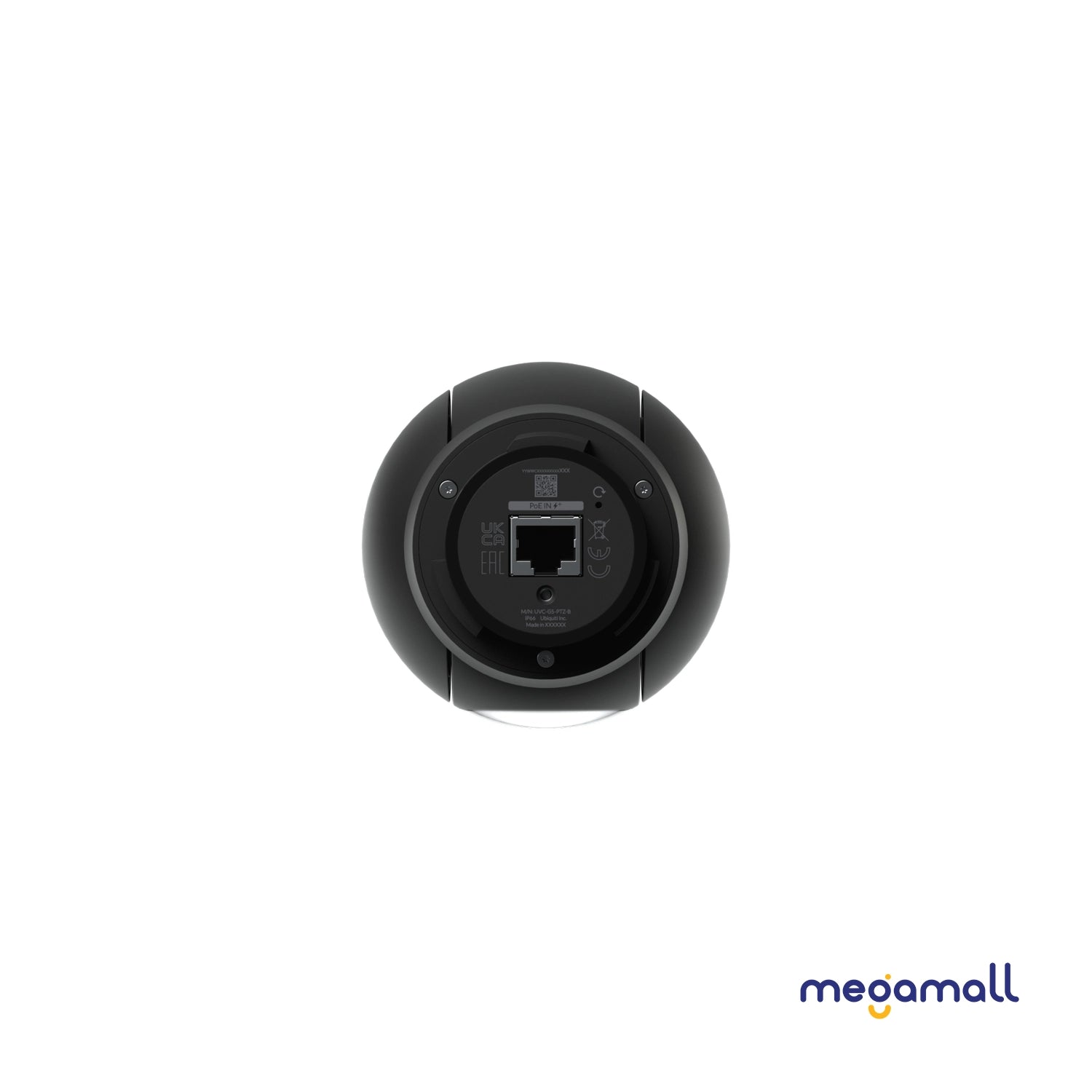

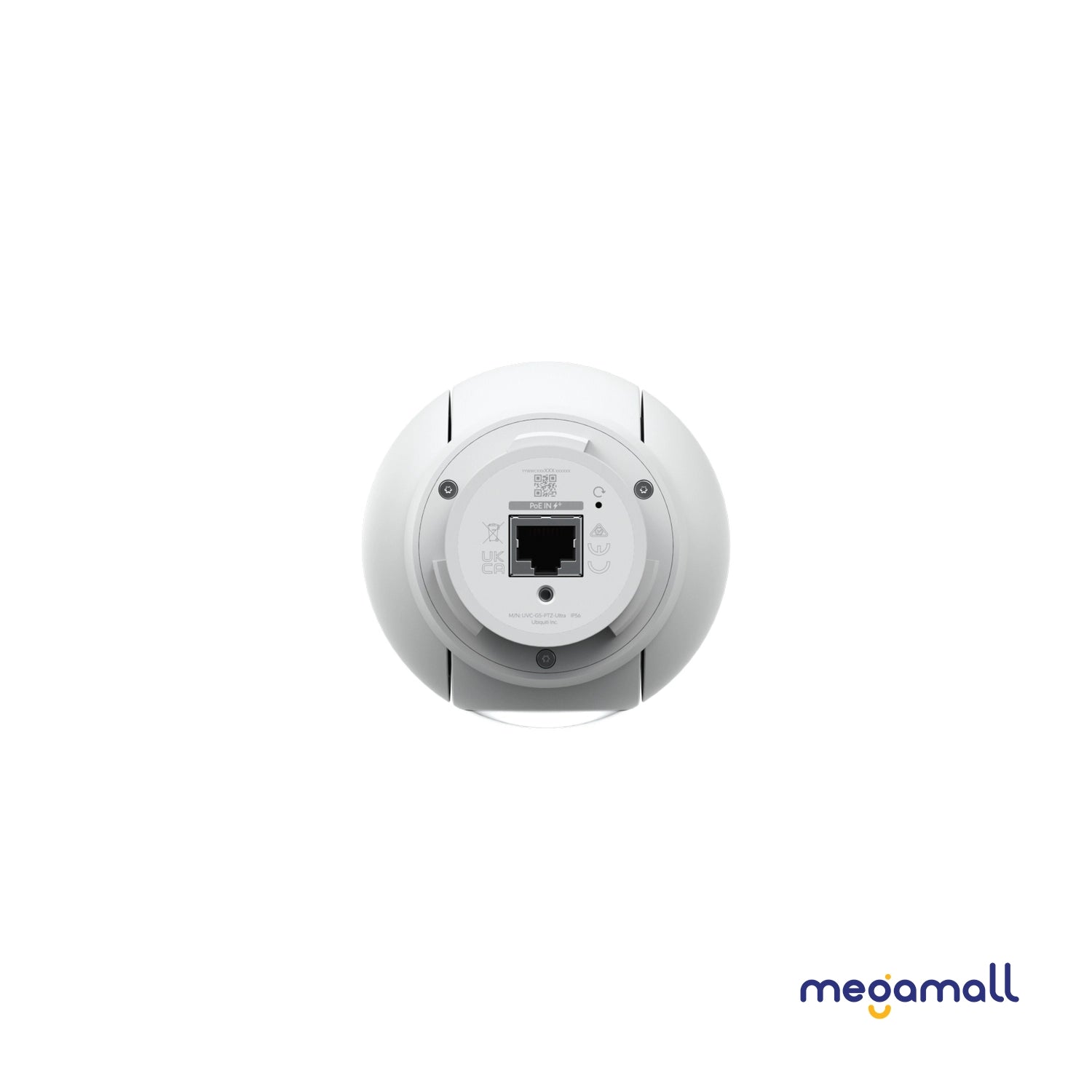

10/100 MbE RJ45 port |
|
|
Video |
||
|
Max. Frame Rate |
30 FPS |
|
|
Resolution |
4MP 2688 x 1512 (16:9) |
|
|
Optics |
||
|
Sensor |
5MP 1/2.7" CMOS |
|
|
Lens |
F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
|
|
Night Mode |
Built-in IR & white LED illumination with IR cut filter |
|
|
Hardware |
||
|
Max. Power Consumption |
14W |
|
|
Supported Voltage Range |
37—57V DC |
|
|
Power Method |
PoE+ |
|
|
Pole Mount Diameter |
1.5–2" (38–50 mm) |
|
|
Weight |
Without mount: 580 g (1.3 lb) With mount: 650 g (1.4 lb) |
|
|
Enclosure Material |
Aluminum alloy, polycarbonate |
|
|
Mount Material |
Wall mount: polycarbonate Pole mount: aluminum alloy |
|
|
Button |
(1) Factory-reset |
|
|
Ambient Operating Temperature |
-30 to 45º C (-22 to 113º F) |
|
|
Ambient Operating Humidity |
0 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC |
|
