Description

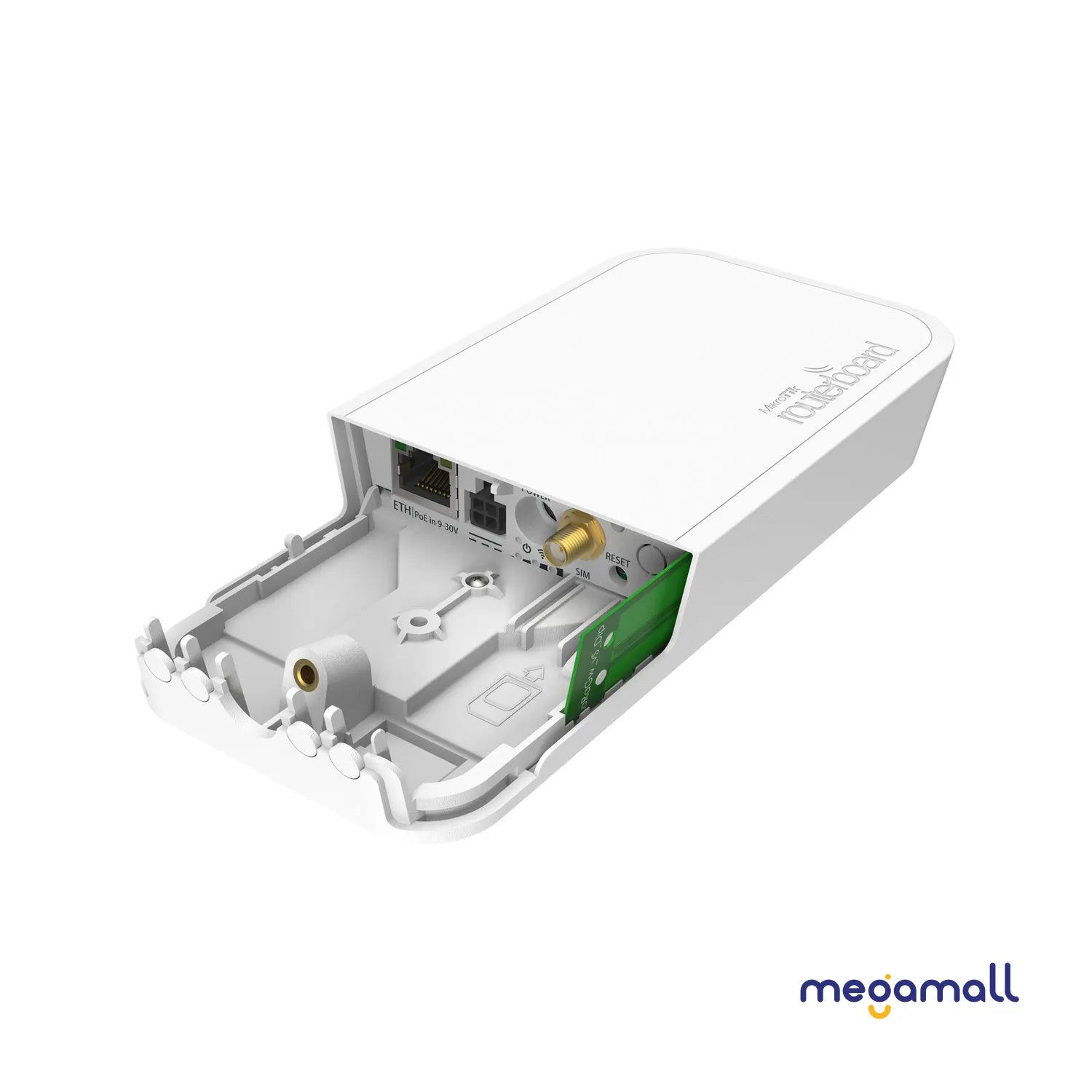

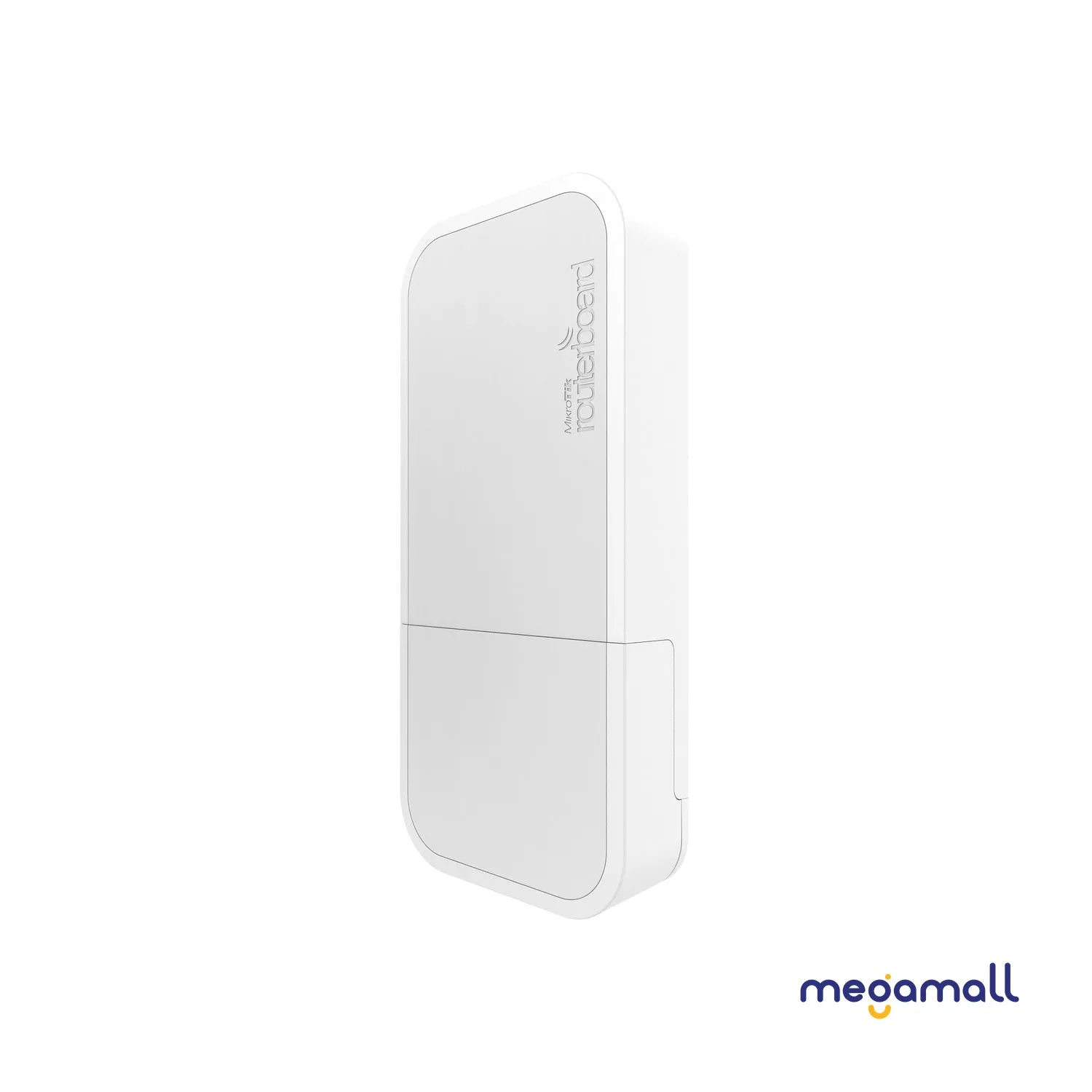

wAP LR9 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.
You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®.
Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)
Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR9 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.
*) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem
|
Specifications |
||
|
Product code |
RBwAPR-2nD&R11e-LR9 |
|
|
Architecture |
MIPSBE |
|
|
CPU |
QCA9531 |
|
|
CPU core count |
1 |
|
|
CPU nominal frequency |
650 MHz |
|
|
RouterOS license |
4 |
|
|
Operating System |
||
|
Size of RAM |
64 MB |
|
|
Storage size |
16 MB |
|
|
Storage type |
FLASH |
|
|
MTBF |
Approximately 100'000 hours at 25C |
|
|
Tested ambient temperature |
-40°C to 60°C |
|
|
Powering |
||
|
Number of DC inputs |
3 (Automotive, PoE-IN, DC jack) |
|
|
DC jack input Voltage |
9-30 V |
|
|
Automotive input Voltage |
9-30 V |
|
|
Max power consumption |
7 W |
|
|
PoE in |
Passive PoE |
|
|
Cooling type |
Passive |
|
|
PoE in input Voltage |
9-30 V |
|
|
Wireless specifications |
||
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
|
Wireless 2.4 GHz number of chains |
2 |
|
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
|
Antenna gain dBi for 2.4 GHz |
2 |
|
|
Wireless 2.4 GHz chip model |
QCA9531 |
|
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
|
Ethernet |
||
|
10/100 Ethernet ports |
1 |
|
|
Peripherals |
||
|
Number of SIM slots |
1 Modem (Mini SIM) |
|
|
MiniPCI-e slots |
1 |
|
|
Other |
||
|
PCB temperature monitor |
Yes |
|
|
Voltage Monitor |
Yes |
|
|
Certification & Approvals |
||
|
Certification |
FCC, IC, EAC |
|
|
IP |
IP54 |
|
|
Wireless specifications |
||
|
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|
1MBit/s |
22 |
-96 |
|
11MBit/s |
22 |
-89 |
|
6MBit/s |
20 |
-93 |
|
54MBit/s |
18 |
-74 |
|
MCS0 |
20 |
-93 |
|
MCS7 |
16 |
-71 |
|
Warranty |
||
|
Warranty |
1 Year |
|
